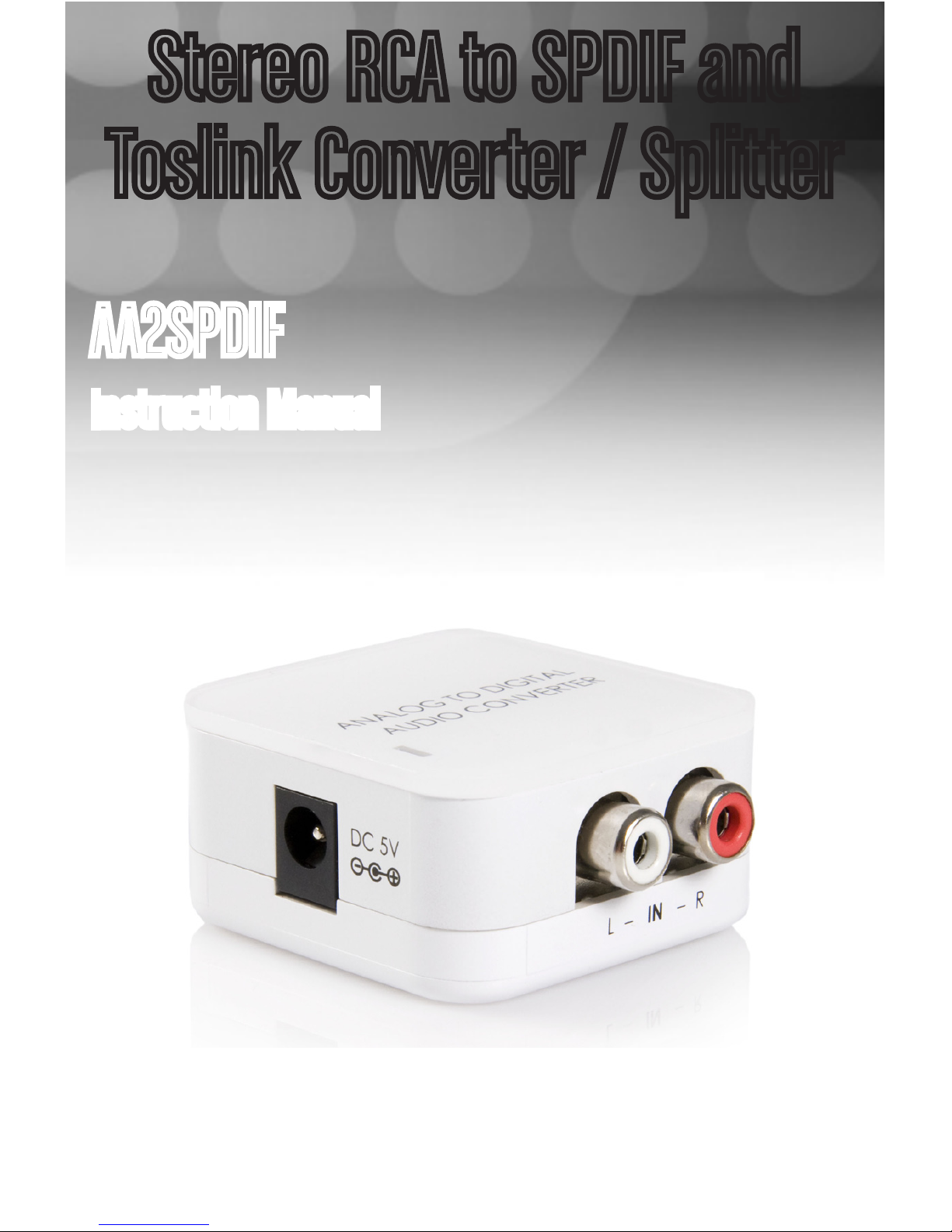

AA2SPDIF

Stereo RCA to SPDIF and

Toslink Converter / Splitter

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide rea-

sonable protection against harmful interference in a residential installation. This equip-

ment generates, uses and can radiate radio frequency energy and, if not installed and

used in accordance with the instructions, may cause harmful interference to radio com-

munications. However, there is no guarantee that interference will not occur in a particu-

lar installation. If this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.•

Increase the separation between the equipment and receiver.•

Connect the equipment into an outlet on a circuit different from that to which the receiver•

is connected.

Consult the dealer or an experienced radio/TV technician for help.•

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and

do not represent an endorsement of a product or service by StarTech.com, or an en-

dorsement of the product(s) to which this manual applies by the third-party company in

question. Regardless of any direct acknowledgement elsewhere in the body of this doc-

ument, StarTech.com hereby acknowledges that all trademarks, registered trademarks,

service marks, and other protected names and/or symbols contained in this manual and

related documents are the property of their respective holders.

Instruction Manual

Table of Contents

Introduction .................................................................... 1

Features......................................................................................1

Package Contents .....................................................................1

Hardware Guide............................................................... 2

Front View...................................................................................2

Rear View....................................................................................2

Side View ....................................................................................3

Installation....................................................................... 3

Speciﬁcations.................................................................. 4

Technical Support........................................................... 5

Warranty Information...................................................... 5

Instruction Manual

Introduction

Thank you for purchasing a StarTech.com AA2SPDIF Analog to Digital

Audio Converter. This Analog to Digital Audio Converter is designed to

convert analog stereo audio signals from L/R input to Coaxial S/PDIF

and Toslink Optical outputs, simultaneously. The output digital audio

signal created is a 2-channel uncompressed LPCM (Linear Pulse Code

Modulation) with sampling rate at 48 KHz. Both Optical Fiber and Coaxial

cables connected to the outputs of the unit can run up to 5 meters while

providing reliable and lossless audio signal transmission. The AA2SPDIF

is compact and easy to install, making it ideal for home or professional

audio switching.

Features

Supports uncompressed 2-channel LPCM (Linear Pulse Code•

Modulation) digital audio signal output.

Supports output sampling rate at 48 KHz.•

Provides electromagnetic-noise-free transmission.•

Easy to install and simple to operate.•

Package Contents

1 x Analog RCA to Digital Coaxial and Toslink Converter•

1 x Instruction Manual•

1 x Power Adapter•

Instruction Manual

Hardware Guide

Front View

L/R Analog Audio Input Ports1.

Rear View

Coaxial Audio Output Port1.

Toslink (Optical Fiber) Output Port2.

1 2

Instruction Manual

Side View

Power Input Port1.

Installation

R/L

DVD Player

Ampliﬁer

A/V Receiver

Coaxial

Optical

Instruction Manual

Specications

Speciﬁcation AA2SPDIF

Input Ports Stereo R/L

Output Ports 1 x TOSlink (Optical Fiber)

1 x Coaxial

Power Supply 5V/0.36~0.5A DC (US/EU

standards, CE/FCC/UL certiﬁed)

Dimensions (mm) 57(W) x 45.5(D) x 23.5(H)

Weight (g) 30

Operating Temperature Operating from 0°C ~ 48°C

Instruction Manual

Technical Support

StarTech.com’s lifetime technical support is an integral part of our commit-

ment to provide industry-leading solutions. If you ever need help with your

product, visit www.startech.com/support and access our comprehensive

selection of online tools, documentation, and downloads.

Warranty Information

This product is backed by a one year warranty.

In addition, StarTech.com warrants its products against defects in materi-

als and workmanship for the periods noted, following the initial date of

purchase. During this period, the products may be returned for repair,

or replacement with equivalent products at our discretion. The warranty

covers parts and labor costs only. StarTech.com does not warrant its

products from defects or damages arising from misuse, abuse, alteration,

or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA

LLP (or their ofﬁcers, directors, employees or agents) for any damages

(whether direct or indirect, special, punitive, incidental, consequential, or

otherwise), loss of proﬁts, loss of business, or any pecuniary loss, arising

out of or related to the use of the product exceed the actual price paid

for the product. Some states do not allow the exclusion or limitation of

incidental or consequential damages. If such laws apply, the limitations or

exclusions contained in this statement may not apply to you.

StarTech.com has been making “hard-to-ﬁnd easy” since 1985,

providing high quality solutions to a diverse IT and A/V customer

base that spans many channels, including government, education

and industrial facilities to name just a few. We offer an unmatched

selection of computer parts, cables, A/V products, KVM and Serv-

er Management solutions, serving a worldwide market through our

locations in the United States, Canada, the United Kingdom and

Taiwan.

Visit www.startech.com today for complete information about all

our products and to access exclusive interactive tools such as the

Cable Finder, Parts Finder and the KVM Reference Guide.
