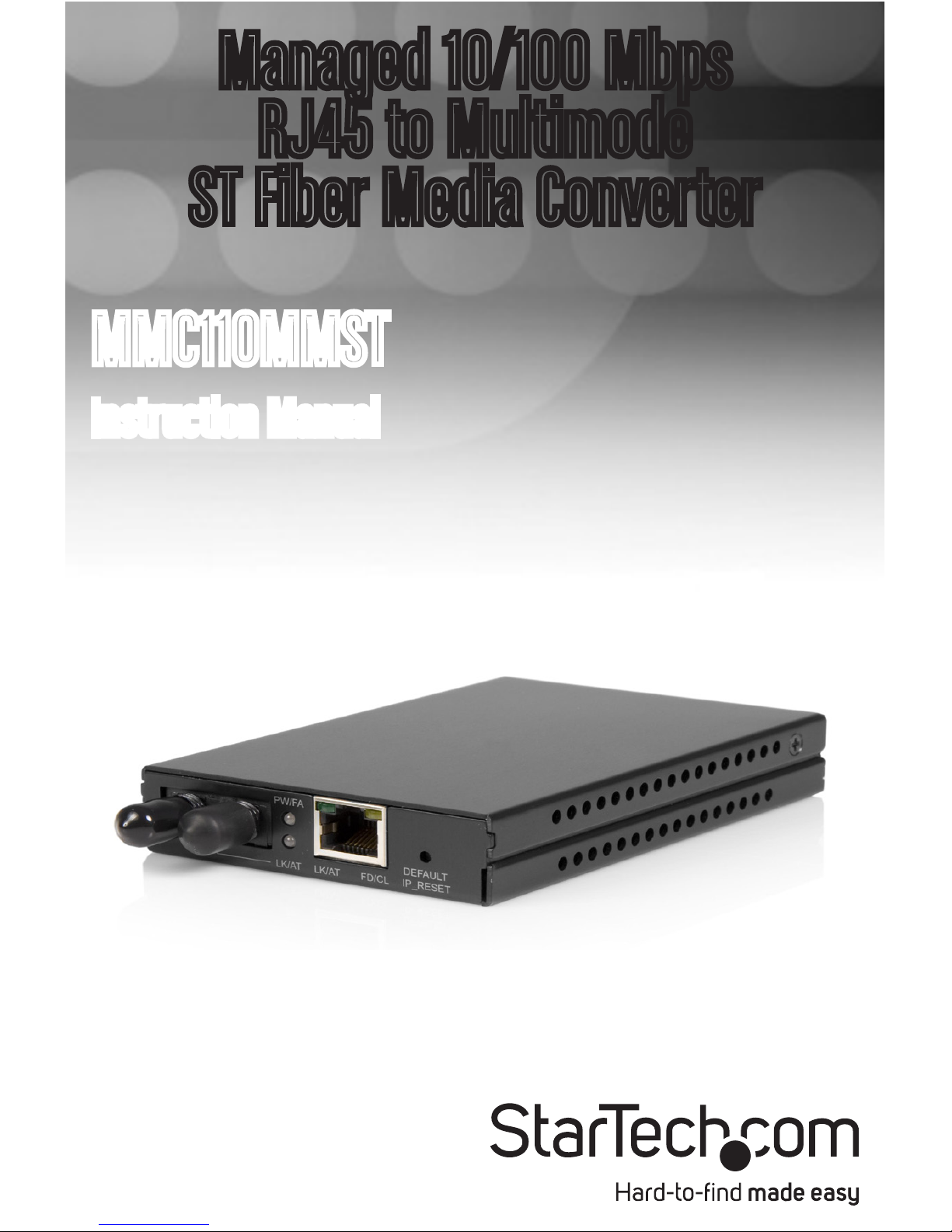

StarTech.com MMC110MMST Manual de usuario

MMC110MMST

Managed 10/100 Mbps

RJ45 to Multimode

ST Fiber Media Converter

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide rea-

sonable protection against harmful interference in a residential installation. This equip-

ment generates, uses and can radiate radio frequency energy and, if not installed and

used in accordance with the instructions, may cause harmful interference to radio com-

munications. However, there is no guarantee that interference will not occur in a particu-

lar installation. If this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver

is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and

do not represent an endorsement of a product or service by StarTech.com, or an en-

dorsement of the product(s) to which this manual applies by the third-party company in

question. Regardless of any direct acknowledgement elsewhere in the body of this doc-

ument, StarTech.com hereby acknowledges that all trademarks, registered trademarks,

service marks, and other protected names and/or symbols contained in this manual and

related documents are the property of their respective holders.

Instruction Manual

Table of Contents

Introduction .................................................................... 1

Installation....................................................................... 2

Connecting to Power.................................................................2

Conﬁguration and Management..................................... 3

Web Browser Conﬁguration .....................................................3

Logging Out Of The Monitoring System ..................................3

System Change Menu.............................................................4

IP Conﬁguration.......................................................................5

MC Status................................................................................6

MC Control ..............................................................................7

MAC Address Filter .................................................................9

VLAN Conﬁguration.................................................................9

SNMP Conﬁguration................................................................10

Telnet Management ...................................................................12

Speciﬁcations.................................................................. 14

LED Status Indicators..................................................... 15

Technical Support........................................................... 16

Warranty Information...................................................... 16

Instruction Manual

Introduction

Thank you for purchasing a StarTech.com Managed 10/100 Mbps RJ45

to Multimode ST Fiber Media Converter. A perfect solution for large, high

speed networks that require expansion of fast Ethernet networks over

long distances, the MMC110MMST acts as a standalone device allowing

for one-channel media conversion between 10/100 Base-TX and 100

Base-FX network segments.

Featuring fully integrated managed software, and support for Telnet,

SNMP v1 and v2 and Web Browser management, the MMC110MMST

ensures broad compatibility and maximum installation and conﬁguration

convenience.

Features

• 10/100Mbps-Full/Half-duplex, Auto-Negotiation, Auto-MDI/MDIX

• 1024 MAC addresses

• 256Kbps of buffer memory

• Compact design and weight makes it portable and unobtrusive to carry

• LED Indicators that detect Power, Link, Activity, Duplex mode, and Col

lision status

• Provides MAC address ﬁltering

• Supports Telnet, SNMP V1 & V2 and Web Browser Management

Package Contents

• 1 x MMC110MMST

• 1 x Information CD

• 1 x Instruction Manual (on CD)

Instruction Manual

Installation

For optimal performance and safety, ensure that the MMC110MMS is

installed in an area that meets the following speciﬁcations:

• A temperature between 0 to 45° Celsius (32° and 113° Fahrenheit)

• Relative Humidity (RH) less than 95% (non condensing)

• Surrounding electrical devices that do not exceed the electromagnetic

ﬁeld (RFC) standards for IEC 801 3, Level 2 (3V/M) ﬁeld strength

• Adequate ventilation, with the ventilation holes on each side of the

equipment being clear of obstruction

• Power outlet within 1.8 meters (5.9’) of the product

Connecting to Power

Connect the AC to DC power adapter to the receptacle on the rear panel

of the MMC110MMS, then insert the corresponding plug into a standard

AC outlet with a voltage range from 100 to 240VAC.

PLEASE NOTE: A grounding strap should be worn while handling the

Media Converter as well as when plugging and unplugging the TX port

connector.

Instruction Manual

Conguration and Management

The MMC110MMST Media Converter can be conﬁgured and managed

through SNMP, Web browsers, and Telnet, as outlined in the following

sections:

Web Browser Conguration

Logging Into The Monitoring System

The MMC110MMS is accessible through a web browser such as Internet

Explorer. To access the MMC110MMS monitoring system, enter the de-

fault IP address of the MMC110MMS, 192.168.1.10, into your browser’s

address bar. By default, the username and password to access the

monitoring system are set to blank ﬁelds. The password can be changed

once the user has logged in; the username is not required to log into the

monitoring system and can be left blank.

Logging Out Of The Monitoring System

The MMC110MMS monitoring system does not include a separate log out

function. The system automatically ends a management session when the

browser software is closed. Logging off by closing the browser and then

logging in again may be required if changes made during a management

session do not seem to take effect on-screen.

Instruction Manual

Main Menu

The main menu of the monitoring system is persistently displayed on

the left side of the screen after log-in. Options can be selected with the

mouse cursor. The sub-menus available from the main menu are:

• System Change

• IP Conﬁguration

• MC Status

• MC Control

• MAC Address Filter

NOTE: The Apply button on each sub-menu page applies changes for

that page, but does not save them beyond the current session. For any

changes made, the user must select Save from the main menu.

System Change Menu

The System Change menu contains the following ﬁelds that users can

edit:

• VLAN Conﬁguration

• SNMP Conﬁguration

• Alarm

• Save

• Update Firmware

• Reboot

Instruction Manual

• Device Name: A device name for the MMC110MMS can be set by the

user in this ﬁeld.

• New Password: A new password for the monitoring system can be set

in this ﬁeld. Setting a new password in this ﬁeld requires entering the

previous password in the Old Password ﬁeld.

• Old Password: The password that was previously being used to log in

to the monitoring system must be entered here when a new pass-

word is being applied. If the password is being changed from the

default blank ﬁeld, this ﬁeld should be left blank.

The System Change menu also contains two ﬁelds that display reference

information:

• Version: The version of software currently being used.

• MAC Address: The MAC address assigned to the MMC110MMS.

NOTE: The Apply button in each sub-menu page applies changes for

that page, but does not save them beyond the current session. For any

changes made, the user must select “Save” from the main menu.

IP Conﬁguration

The IP Conﬁguration sub-menu contains the following ﬁelds that can be

set by the user:

Instruction Manual

• DHCP: Allows the user to set DHCP to “Enable” or “Disable”. If DHCP

is enabled the MMC110MMS will set its’ IP address according to

a DHCP server. This IP will replace any other IP address that the

Media Converter had been using.

• IP Address: Allows the user to set an IP address for the MMC-

110MMS. The default address is 192.168.1.10.

• Netmask: Allows the user to set the Netmask or subnet mask. The

default is 255.255.255.0.

• Default Gateway: Allows the user to set the gateway address of the

MMC110MMS in the network. The default is 192.168.1.254.

NOTE: The Apply button in each sub-menu page applies changes for

that page, but does not save them beyond the current session. For any

changes made, the user must select “Save” from the main menu.

MC Status

The Media Converter Status sub-menu contains the following reference

ﬁelds for a user to view:

• Operation Status: Normal, Hardware Fault or Software Fault

Instruction Manual

• Media Port Status: Individual status reports for both the 10/100 TX

port and 100 FX port in these categories:

• Link Status

• Receive Count

• CRC Count

• Drop Count

• Collision Count

NOTE: The Apply button in each sub-menu page applies changes for

that page, but does not save them beyond the current session. For any

changes made, the user must select “Save” from the main menu.

MC Control

The Media Converter Control sub-menu contains three main categories

of ﬁelds:

• MC Options:

• Forwarding Mode: Can be set to either “Store & For-

ward” or “Repeater” mode.

• Broadcast Limit (%): Allows the user to set a percent-
