Video Converter & Scaler

VGA2DVII Instruction Manual

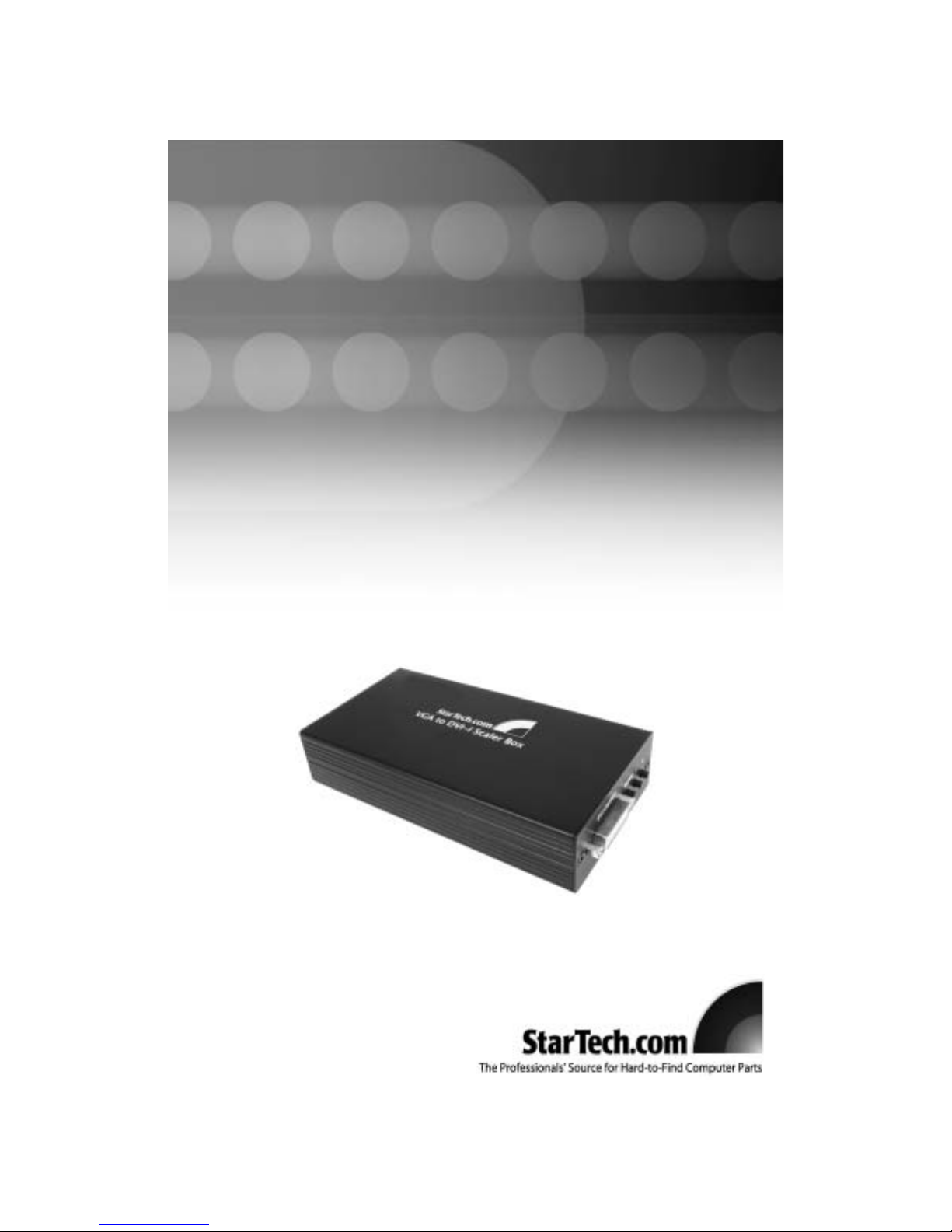

Actual product may vary from photo

VGA or Composite Video to DVI-I Output Converter and Scaler

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the following

measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other

Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and

do not represent an endorsement of a product or service by StarTech.com, or an

endorsement of the product(s) to which this manual applies by the third-party company in

question. Regardless of any direct acknowledgement elsewhere in the body of this

document, StarTech.com hereby acknowledges that all trademarks, registered

trademarks, service marks, and other protected names and/or symbols contained in this

manual and related documents are the property of their respective holders.

Table of Contents

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Site Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Connecting Devices to the Video Scaler . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Using the Menu Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Supported Resolutions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Accessory Products from StarTech.com . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Warranty Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Instruction Manual

Introduction

Thank you for purchasing a StarTech.com video scaler and converter. This product

allows you to use a flat-panel display that uses a DVI connector with a video source

(computer, satellite receiver) that uses either standard VGA or composite video output.

To achieve the best possible result the unit intelligently detects the input video type and

scales it to an output resolution of your choosing using intuitive on-screen controls,

resulting in excellent image clarity and stability.

Features

• Automatic input signal detection and multiple output resolutions supports a wide

range of equipment.

• Easy to use interface gets you up and running in minutes.

•Onboard 48MB buffer for seamless frame rate conversion.

•Combines the functions of a format converter and video scaler in a single product.

Before You Begin

Contents

This package should contain:

• 1 x VGA to DVI converter and scaler

• 1 x HD-15 male/male VGA cable

• 1 x HD-15 male to YPbPr 3-prong composite RCA cable

• 1 x Power Adapter

• 1 x User Manual

Site Preparation

Place the video converter near the source device and your display. It is highly

recommended that you use the cables provided in the package or other cables branded

by StarTech.com for the best possible performance. If you are using cables other than

those supplied in the video converter package, use the minimum amount of cable

possible to complete the connections. Excess cabling makes the signal more

susceptible to noise interference and may reduce performance. Need more cables?

Contact your dealer or visit www.startech.com for more information.

Instruction Manual

Connecting Devices to the Video Converter

WARNING: The default output signal from the video converter is 1024 x 768 (XGA) at 60

Hz. Not all HDTV devices have the capability to display this resolution, so it is advisable

to consult the documentation for your display product before attempting installation. If

your display does not support this resolution, you may not be able to access the menu

features through the on-screen display (OSD). If necessary, connect the converter to a

compatible monitor and set it to a compatible setting before following the instructions

below.

1. Disconnect the flat panel display from any existing video connections (if applicable).

2. Disconnect the video source that you wish to convert (computer, satellite receiver,

etc.) from its existing display (if applicable).

3. (a) If the video source uses a composite video connection, connect the provided

composite-to-VGA cable’s Red, Green, and Blue ends to the VIDEO OUT (or similarly

marked) connections on the signal source. These will be the same connectors you

disconnected in step 2 above. Connect the opposite end with the 15-pin (VGA)

connector to the PC/HD INPUT port on the rear panel of the video scaler.

(b) If the video source uses a VGA (HD-15) video connection, connect one end of the

male-to-male VGA video cable (provided) to the VGA out connection on the computer

or other video source. This will be the same connector you disconnected in step 2

above. Connect the opposite end to the PC/HD INPUT port on the rear panel of the

video scaler.

4. Connect the display to the connector marked DVI OUTPUT on the front of the video

scaler.

5. Connect the power adapter to a suitable wall outlet. Connect the opposite end to

the DC 5V connector on the rear panel of the unit.

6. Power on both the video source and the flat panel display.

Using the Menu Options

The video converter uses an intuitive on-screen display (OSD) system that allows you to

fine-tune the video output to the display you are using.

By default, the video converter selects an output setting of XGA (1024 x 768 pixels, 60

Hz). If the video setting you select from the OSD menu system exceeds the capabilities

Instruction Manual

Front Panel Rear Panel

of the display you are using, you can reset the video converter to the default setting by

using the following button combination on the front panel:

Press +and -at the same time to force the unit to XGA, 60 Hz.

1.After you have connected the video source and display to the video converter using

the directions in the previous section, power on both the device and the display.

2.The display should show a bright-blue screen. Be sure that the video source is

sending a video signal to the video converter for testing purposes.

4.Once the correct a signal source is detected, the device will display the image source

on the screen. Depending on the requirements of the display, you may need to adjust

the output settings on the video scaler for best image quality. See the instructions

below for more information.

Using the OSD

The video converter automatically interprets the input resolution and scales it to the

output resolution selected in the menu system. While the default settings will provide an

image, the video scaler offers several settings that will allow you to adjust the output

signal for the best possible result.

NOTE: Changing the settings below may cause the signal to become unusable if the

settings you select are incompatible with your display. Should this occur, repeat the

steps outlined in the section above to reset the video scaler back to a compatible setting.

To activate the menu system, press the MENU key on the front of the video scaler once.

The OSD will display the available option on the left-hand side of the screen. To

navigate the menu system:

1. Use the +and -keys on the front of the video converter to move

between options.

2. Use the MENU key to select an item to adjust or display a

sub-menu.

3. Once an item is selected, use the +and -keys to adjust the

setting.

4. When you are satisfied with your changes, press MENU to activate the setting.

5. You can continue to adjust other settings, or select Exit from the OSD menus until

the OSD disappears.

The following options can be adjusted from the OSD menu system:

Input Setup (Adjusts the sampling rate)

Clock

Phase

YPBPR / RGB (selects input source)

Output Setup (Adjusts the output resolution/refresh)

DVI-A / DVI-D (use DVI-A only with monitors that do not support a digital signal)

Resolution-Refresh Rate (Hz.)

Picture Adj. (Adjusts picture quality/appearance)

Contrast

Instruction Manual

Bright(ness)

Color

Red

Green

Blue

Reset

H V Adjust (Adjusts the position of the image on the display)

H Pos(ition)

V Pos(ition)

OSD Adjust (Adjusts the position of the OSD menu on the display)

H Pos(ition)

V Pos(ition)

Auto Adjust (Resets to factory default settings when selected)

System Information (Displays the current settings of the video scaler)

INPUT [Resolution-Refresh Rate (Hz.)]

OUTPUT [Resolution-Refresh Rate (Hz.)]

The video converter will store your changes until it is reset to its default settings.

NOTES:

• The System Information OSD menu does not allow you to modify any settings and

shows the current state of the video converter settings.

• The Output Setup menu allows you to adjust the output resolution and frequency of

the video converter. For more information about the resolution and refresh setting

supported by the device and correlating pixel counts for various settings (i.e. “SVGA”),

please see the “Specifications” section of the manual. You should exercise caution in

adjusting this setting, since a setting that exceeds the capabilities of your display could

cause damage in some situations. Consult the documentation for your display to

determine if the setting you wish to use is supported.

• Selecting Auto Adjust from the OSD menu is the same as using the reset procedure

on the front panel.

Troubleshooting

Problem: I can’t see an image from the video source or the OSD.

Cause: The input setting or output timing (resolution and refresh rate) is incorrect.

Resolution: a) Adjust the settings back to the default setting.

b) Ensure all cables are securely connected in the proper connectors.

Problem: The image is distorted or blurry.

Cause: The output timing settings/image quality settings are not optimized, or there is

interference degrading the cable signal.

Resolution: a) Adjust the timing settings and image settings using the menu system to

improve image quality and ensure the video source is working normally.

b) Use the shortest cable length possible using high-quality cables.

Instruction Manual

Specifications

Supported Resolutions

Bolded values indicate the value applies to output only.

Italicized values indicate the value applies to input only.

Instruction Manual

Input Format RGBHV, YPbPr, YCbCr

Input Signal Levels RGBHV @ 0.7V p-p, 75 ohm. H&V sync @ 3-5V p-p, TTL

Y@1V p-p, 75 ohm. Pb,Cb,Pr,Cr @ 0.7V p-p, 75 ohm

Output Format RGBHV, YPbPr

Output Signal Levels RGB @ 0.7V p-p, 75 ohm. H&V sync @ 3-5V p-p, TTL

Y@1V p-p, 75 ohm. Pb,Pr @ 0.7V p-p, 75 ohm

Input/Output Connectors Input: HD-15 (VGA) female Output: DVI-I female

Controls Front panel buttons utilizing on-screen display

Weight 10 oz. (280 g)

Dimensions (H x W x D) 1.2 x 3 x 5.75 in. (30 x 75 x 147 mm)

Power Adapter 5V DC, 2A, center positive

PC Resolutions Refresh Rate

VGA 640 x 480 60/72/75/85 Hz.

VESA85 640 x 400 85 Hz.

VGA70 720 x 400 70 Hz.

SVGA 800 x 600 60/72/75/85 Hz.

XGA 1024 x 768 60/70/75/85 Hz.

Mac 1152 x 864 70/75 Hz.

WXGA 1280 x 768 60 Hz.

1280A 1280 x 1024 60 Hz.

SXGA 1280 x 1024 60/75 Hz.

HDTV Resolutions Refresh Rate

480p 720 x 480 60 Hz.

480i 720 x 480 60 Hz.

576p 720 x 756 50/60 Hz.

576i 720 x 756 50 Hz.

720p 1280 x 720 60 Hz.

1080i 1920 x 1080 60 Hz.

Accessory Products from StarTech.com

Contact your local StarTech.com dealer or visit www.startech.com for cables or other

accessories that will help you get the best performance out of your new product.

10 ft DVI-I Dual Link Digital/Analog Extension Cable M-F

DVIIDMF10

15 ft DVI-I Dual Link Digital/Analog Extension Cable M-F

DVIIDMF15

6 ft DVI-I Dual Link Digital/Analog Extension Cable M-F

DVIIDMF6

10 ft DVI-I Dual Link Digital/Analog Flat Panel Cable M-M

DVIIDMM10

15 ft DVI-I Dual Link Digital/Analog Flat Panel Cable M-M

DVIIDMM15

20 ft DVI-I Dual Link Digital/Analog Flat Panel Cable M-M

DVIIDMM20

6 ft DVI-I Dual Link Digital/Analog Flat Panel Cable M-M

DVIIDMM6

10 ft DVI-I Single Link Digital/Analog Flat Panel Cable M-M

DVIISMM10

15 ft DVI-I Single Link Digital/Analog Flat Panel Cable M-M

DVIISMM15

6 ft DVI-I Single Link Digital/Analog Flat Panel Cable M-M

DVIISMM6

6 ft Coax SVGA Monitor Extension Cable HDDB15 M/F

MXT101HQ

25 ft. Coax SVGA Monitor Extension Cable HDDB15M/F

MXT101HQ_25

6 ft. Coax SVGA Monitor Cable HDDB15M/M

MXT101MMHQ

15 ft. Coax SVGA Monitor Extension Cable HDDB15M/F

MXT105HQ

15 ft. Coax SVGA Monitor Cable HDDB15M/M

MXT105MMHQ

Instruction Manual

Technical Support

StarTech.com’s lifetime technical support is an integral part of our commitment to provide

industry-leading solutions. If you ever need help with your product, visit our Web site to

access our comprehensive selection of online tools, documentation, and downloads:

www.startech.com/support

Warranty Information

This product is backed by a one-year warranty. In addition, StarTech.com warrants its

products against defects in materials and workmanship for the periods noted, following

the initial date of purchase. During this period, the products may be returned for repair, or

replacement with equivalent products at our discretion. The warranty covers parts and

labor costs only. StarTech.com does not warrant its products from defects or damages

arising from misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their

officers, directors, employees or agents) for any damages (whether direct or indirect,

special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business,

or any pecuniary loss, arising out of or related to the use of the product exceed the

actual price paid for the product.

Some states do not allow the exclusion or limitation of incidental or consequential

damages. If such laws apply, the limitations or exclusions contained in this statement

may not apply to you.

Instruction Manual

Tabla de contenidos

Otros manuales de Convertidor de medios de StarTech.com

StarTech.com

StarTech.com ET90110SM30 Manual del sistema

StarTech.com

StarTech.com IC485S Manual de usuario

StarTech.com

StarTech.com MCM110ST Manual de usuario

StarTech.com

StarTech.com ET91000LCOAM Manual de usuario

StarTech.com

StarTech.com MCMGBSC055 Manual de usuario

StarTech.com

StarTech.com MCMGBSCSM10 Manual de usuario

StarTech.com

StarTech.com MCMGBSC15 Manual de usuario

StarTech.com

StarTech.com ET91000LCOAM Manual de usuario

StarTech.com

StarTech.com CONVERGEAV CPNTA2HDMI Manual de usuario

StarTech.com

StarTech.com ET9003SM Manual del sistema

StarTech.com

StarTech.com USB2DVIE Manual de usuario

StarTech.com

StarTech.com VS440HDMI Manual de usuario

StarTech.com

StarTech.com IPUSB2VGAUE Manual del sistema

StarTech.com

StarTech.com VCSVIDVGA Manual

StarTech.com

StarTech.com PATA2SATA3 Manual de usuario

StarTech.com

StarTech.com SDI2HD Manual de usuario

StarTech.com

StarTech.com CONVERGEAV CPNTA2HDMI Manual de usuario

StarTech.com

StarTech.com HDMI2HDMI Manual de usuario

StarTech.com

StarTech.com SLMPT2HD Manual de usuario

StarTech.com

StarTech.com ET91000LC Manual del sistema

StarTech.com

StarTech.com ST122HDMI2 Manual de usuario

StarTech.com

StarTech.com 8STSDI2HD Manual de usuario

StarTech.com

StarTech.com ST122LEA Manual de usuario

StarTech.com

StarTech.com ET91000SC Manual de usuario

Manuales populares de Convertidor de medios de otras marcas

SoundTraxx

SoundTraxx Blunami BLU-2200 Manual de usuario

SPROLINK

SPROLINK VA1 Manual de usuario

Acclaim Lighting

Acclaim Lighting DDC-1-AC Manual de usuario

Nikon

Nikon AF-S TC-20E III Manual de usuario

Axis

Axis AXIS Q7406 Manual de usuario

Omega

Omega TAC80B-J Manual de usuario

Zoom

Zoom Thunderbolt TAC-2R Manual de usuario

OST

OST iConverter 10/100M Manual de usuario

Vertiv

Vertiv Netsure Manual de usuario

birddog

birddog MINI Manual de usuario

Roland

Roland GI-10 Manual de usuario

Wallenstein

Wallenstein WX310 Manual de usuario

Pace

Pace MSS 200-1 Manual de usuario

Solar Converters

Solar Converters EQ 12/24-50 Manual de usuario

CYP

CYP EL-7400V Manual de usuario

TIE

TIE MIDI 1i1o Manual de usuario

DCS

DCS Vivaldi Upsampler Manual de usuario

Westermo

Westermo MCW-211 SERIES Manual de usuario
