Socket SocketScan S730 Manual de usuario

Bluetooth®wireless technology

laser barcode scanner

Model S730

www.socketmobile.com

SOCKETSCAN®

S730 USERGUIDE

socketmobile.com

Package Contents 4

Product Information 5

Attach Wrist Strap 6

Charge the Battery 7

Optional Charging Accessories 8

Powering on/off 9

Scanning Barcodes 10

Bluetooth Connection Modes 11-12

How to setup your scanner:

Download our Companion App for Apple® and Android Device 13

Setup Alternatives

How to setup your scanner in Basic Mode:

Basic Mode 14

How to setup your scanner in Application Mode:

Android 15

Apple®16-17

Windows 18

TABLE OF CONTENTS

Bluetooth Unpairing 19

Factory Reset 20

Restore Method 21

Bluetooth Reconnection of Scanner 22

Status Indicators 23-26

Product Specifications 27-28

Helpful Resources 29

Safety, Compliance & Warranty 30-40

Battery Warning Statements 35-36

Command Barcodes 41-47

TABLE OF CONTENTS

DuraScan®, Battery Friendly® are registered trademarks or trademarks of Socket Mobile, Inc. Micro-

soft® is a registered trademark of Microsoft Corporation in the United States and other countries.

Apple®, iPad®, iPad Mini®, iPhone®, iPod Touch®, and Mac iOS® are registered trademarks of Apple,

Inc., registered in the U.S. and other countries. The Bluetooth® Technology word mark and logos are

registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Socket Mobile,

Inc. is under license. Other trademarks and trade names are those of their respective owners.

Thank you for choosing Socket Mobile!

Let’s get started!

PACKAGE CONTENTS

SocketScan

S700

Wrist Strap Charging Connector

GET STARTED WITH

YOUR BARCODE SCANNER

More at: socketmobile.com/companion

Set up your scanner with

Socket Mobile Companion App

Download for Free!

Insert Card

PRODUCT INFORMATION

Scanner head

Product label

Lanyard Eyelet

Scan Indicator Light

Scan button

Power button*

Battery Light (Green/Yellow/Red)

Bluetooth Light (Blue)

Charging pins

Power Connector

Stand Attachment/

Battery Door twist lock

Made with antimicrobial additives to help provide protection against bacteria.

Socket Mobile’s barcodes scanners can be wiped clean with a cloth dampened with isopropyl

alcohol or water. Or, the barcode scanners can be wiped clean with a Sani-Cloth.

Warning: DO NOT IMMERSE IN WATER (scanner’s mechanics could be damaged)

DO NOT USE BLEACH FOR CLEANING (scanner’s material property may be aected)

*Also used to display the on-screen keyboard in Basic Mode (iOS only).

Attach the Lanyard (optional)

1. Detach the string loop of the tether from the lanyard.

2. Feed the string loop through the eyelet.

3. Pull the tether through the string loop.

4. Pull tight so the string loop is secure.

5. Reattach the string loop’s tether to the lanyard.

ATTACH WRIST STRAP

Plug in the power adapter and the scanner will beep twice.

The scanner must be fully charged before rst use. Please allow 8 hours

uninterrupted charging for the initial battery charge.

The scanner will stop charging once the battery is full (No overcharging

occurs)

• Amber Light = Charging

• Solid Green Light = Fully charged

Important: Charging from a computer USB port is not reliable and

not recommended.

CHARGE THE BATTERY

Power Adapter

Available separately

OPTIONAL CHARGING ACCESSORIES

For all optional accessories visit our Socket Store.com.

AC Power Supply

International Adapters

available

Charging Dock Charging Stand

Powering On:

Press and hold down the small

power button until the Battery

light turns on and the scanner

beeps twice (low-high).

Powering O / Disconnecting:

Press and hold down the small

power button until the scanner

beeps twice (high-low) and all

lights turn o.

Scanner will power o

automatically if device is not con-

nected within 5 minutes. Scanner

connected to a device will power

o within 2 hours if idle/inactive.

POWERING ON/OFF

Power button

MODEL - S730 CAUTION - LASER LIGHT. DO NOT

STARE INTO BEAM. CLASS 2 LASER PRODUCT

COMPLIES WITH LASER NOTICE 50.

ATTENTION - LUMIERE LASER NE PAS

REGARDER LE RAYON. CLASSE 2 PRODUIT LASER

650nm

1.0mw

1D Laser Barcode Scanner

Aim the scan beam

across the entire barcode

Scanning Barcodes

1. Hold the scanner at least 4 inches from the barcode.

2. Aim, press and hold the scan button.

By default, the scanner will beep, vibrate, and the scan indicator will

ash green to conrm a successful scan.

Caution: Do not stare directly into the scanner’s laser beam.

SCANNING BARCODES

Scan button

Tabla de contenidos

Otros manuales de Lector de código de barras de Socket

Socket

Socket 6410-00233 Manual de usuario

Socket

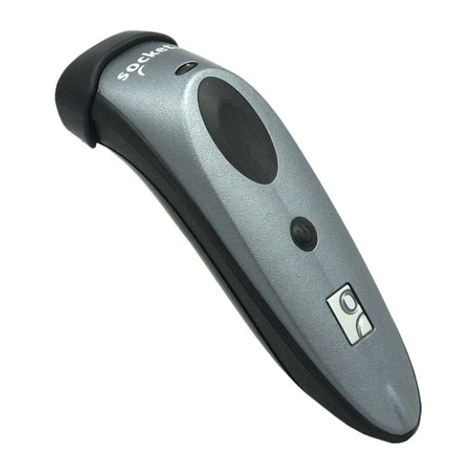

Socket CHS 7X Manual de usuario

Socket

Socket 8 Series Manual de usuario

Socket

Socket 2DSC 5 series Manual de usuario

Socket

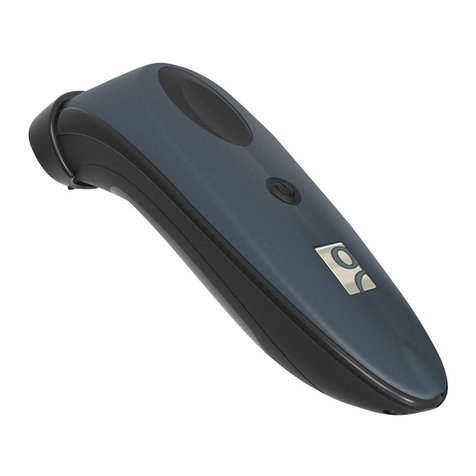

Socket CHS Series 7 Manual de usuario

Socket

Socket CHS Series 7 Manual de usuario

Socket

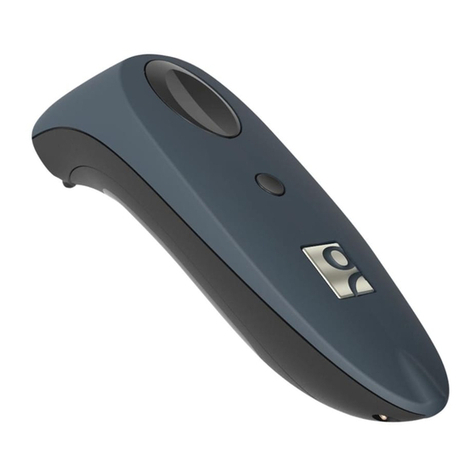

Socket CHS 7Ci Manual de usuario

Socket

Socket Gun Scanner (GS) 2X (Xtreme Performance) Manual de usuario

Socket

Socket Cordless Ring Scanner Series 9 Manual de usuario

Socket

Socket CHS 7Mi Manual de usuario

Socket

Socket 7Qi Manual de usuario

Socket

Socket CHS 7Mi Manual de usuario

Socket

Socket SOCKETSCAN S800 Manual de usuario

Socket

Socket CHS 7Qi Manual de usuario

Socket

Socket D860 Instrucciones de funcionamiento

Socket

Socket 7Qi Manual de usuario

Socket

Socket 7Qi Manual de usuario

Socket

Socket CHS Series 7 Manual de usuario

Socket

Socket CHS Series 7 Manual de usuario

Socket

Socket XtremeScan Manual de usuario

Socket

Socket SocketScan 800 Series Manual de usuario

Socket

Socket CHS 7Ci Manual de usuario

Socket

Socket DURASCAN D740 Manual de usuario

Socket

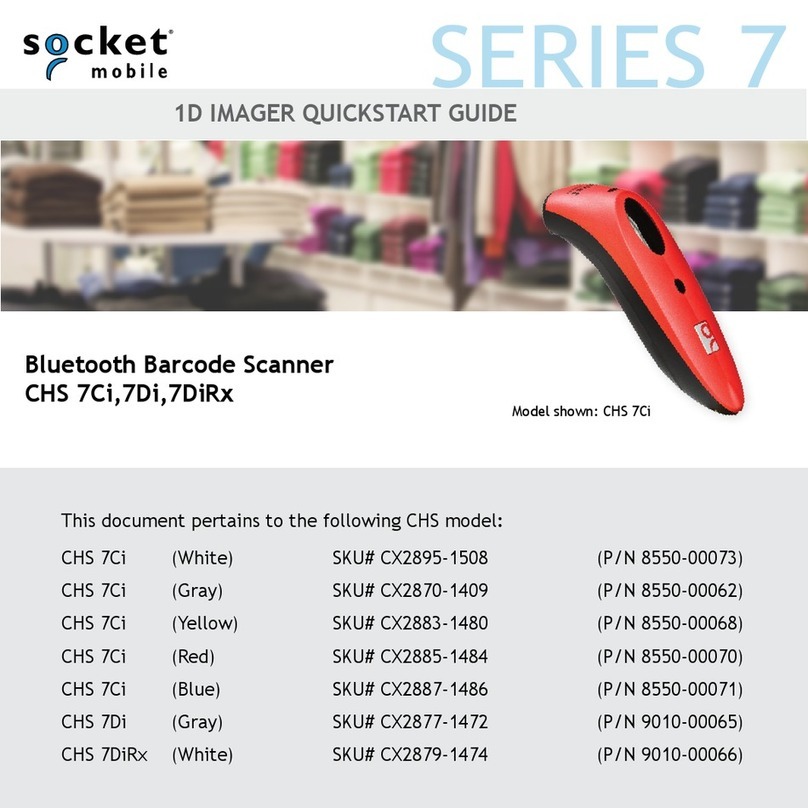

Socket CX2895-1508 Manual de usuario
