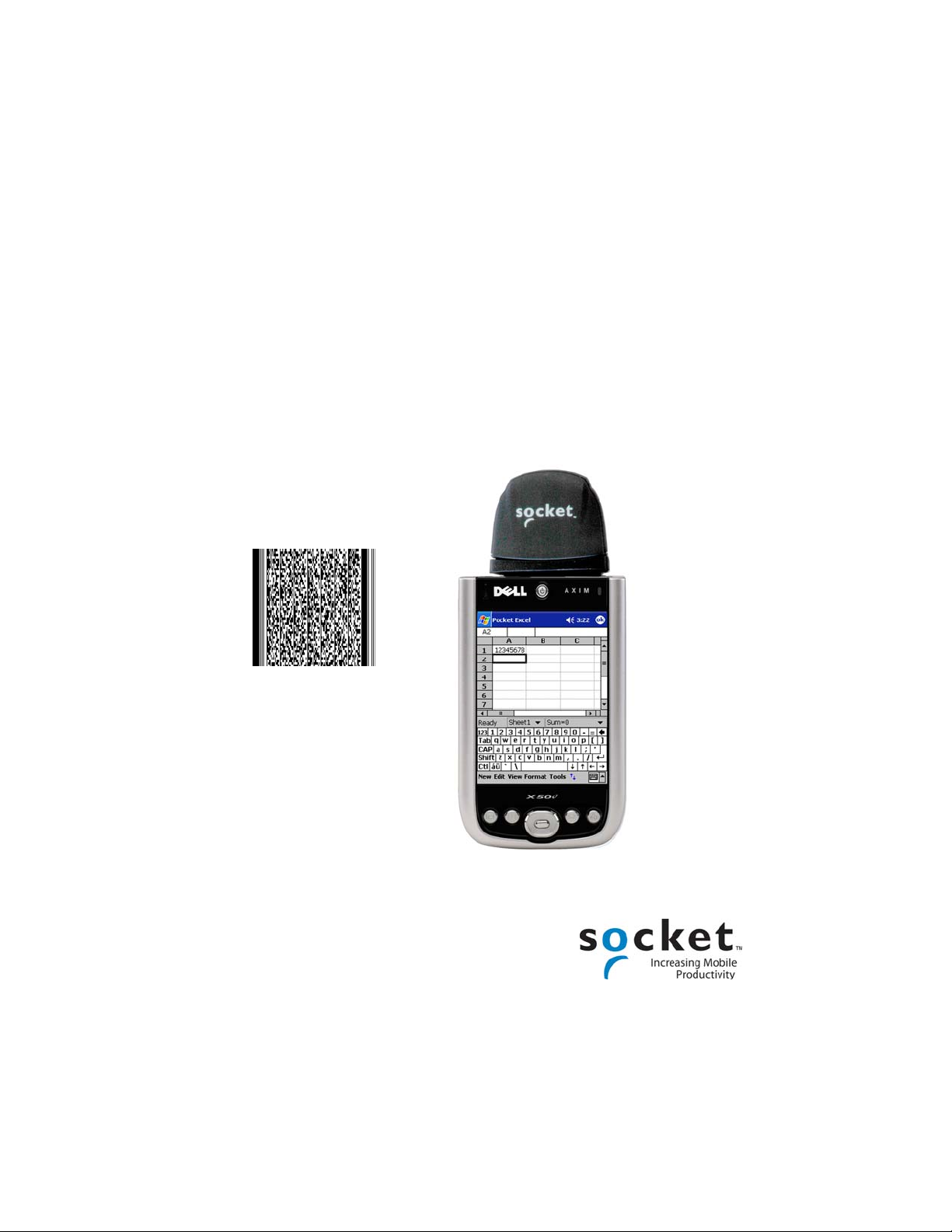

Socket 2DSC 5 series Manual de usuario

2D Scan Card™ Series 5

2D Scan Card Series 5 with

Built-in Bar Code CMOS Technology for:

•Pocket PC 2000/2002/2003/2003SE

•HPC 2000s and Pen Tablets based on Windows Mobile

•Windows 98SE/Me/2000/XP Notebooks

User’s Guide

8/2005 Document # 6410-00202 D

Socket Communications, Socket, the Socket Communications logo, 2D

Scan Card, SocketScan, and Mobility Friendly are registered trademarks or

trademarks of Socket Communications, Inc. All other brand and product

names are trademarks of their respective holders.

Reproduction of the contents of this manual without the permission of

Socket Communications is expressly prohibited. Please be aware that the

products described in this manual may change without notice.

Feel free to contact SOCKET COMMUNICATIONS at:

Socket Communications

37400 Central Court

Newark, CA 94560

Other than the above, Socket Communications can assume no responsibility

for anything resulting from the application of information contained in this

manual.

Socket Communications requests that you refrain from any applications of

the 2D Scan Card that are not described in this manual. Socket

Communications also requests that you refrain from disassembling the

CompactFlash Card. Disassembly of this device will void the product

warranty.

You can track new product releases, software updates and technical

bulletins by visiting Socket’s web page at www.socketcom.com

Table of Contents

1 | INTRODUCTION 5

About the Software 5

System Requirements 6

Package Contents 6

Product Registration 6

About This User’s Guide 6

2 | SETUP FOR WINDOWS MOBILE 7

STEP 1: Uninstall Other Scanning Software 8

STEP 2: Install the Software 9

STEP 3: Insert the Card 11

STEP 4: Assign a Trigger Button 12

STEP 5: Scan Data into a Windows Program 13

OPTIONAL: Configure Prefix/Suffixes 15

OPTIONAL: Run Scan Demo 16

OPTIONAL: Configure Sounds 17

OPTIONAL: Use SocketScan Trigger 18

3 | SETUP FOR WINDOWS 98SE/ME/2000/XP 20

STEP 1: Uninstall Old Scanning Software 21

STEP 2: Insert the Installation CD 21

STEP 3: Insert the Card 21

STEP 4: Complete the New Hardware Wizard 22

STEP 5: Assign a Trigger Button 24

STEP 6: Scan Data into a Windows Program 25

OPTIONAL: Configure Prefix/Suffixes 26

OPTIONAL: Configure Sounds 27

APPENDICES

A | 2DSC SPECIFICATIONS 28

B | BAR CODE LABEL SPECIFICATIONS 29

C | ENABLING OR DISABLING SYMBOLOGIES 30

D | DEPTH OF FOCUS 32

E | TROUBLESHOOTING 33

F | TECHNICAL SUPPORT 34

LIMITED WARRANTY 35

REGULATORY COMPLIANCE 37

1 | Introduction

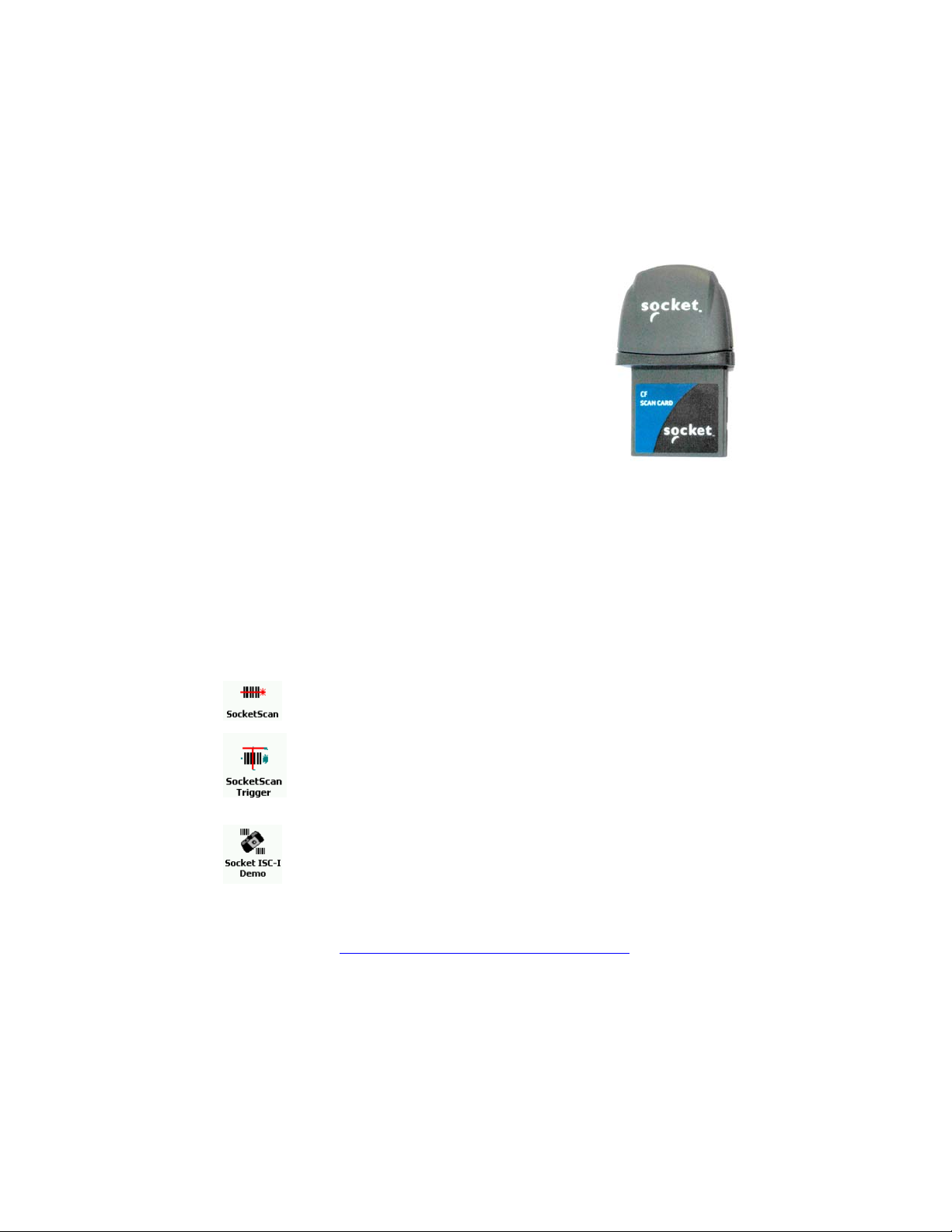

The Socket 2D Scan Car (2DSC) gives you the freedom

to scan linear, stacked, 2D/matrix or postal bar codes

anytime anywhere using a variety of Windows-based

mobile computers. You can also use the Socket 2DSC to

capture VGA grayscale images.

The world’s only bar code image scanner built into a

CompactFlash card, the 2DSC is sleekly designed with no

cables or batteries. Simply pop in the scanner when you

need it, and remove it when you’re done. The card’s

compact design lets you scan with only one hand when

used with a PDA.

The 2DSC is available in two decode configurations: The “2DSC 5B (Basic)”

configuration adds all linear 1D, 2D/Matrix and postal symbologies, as well as

OCR-A & B. The “2DSC 5X (Xtreme Performance)” configuration reads

high density or small front linear 1D, all 2D/Matrix and postal symbologies as

well as OCR-A & B. Refer to the product specifications in Appendix A for a

more detailed explanation of the two decode configurations. In order to switch

configurations, you must contact customer support and send the 2DSC back to

Socket.

About the Software

SocketScan™ software functions as a “keyboard wedge,” sending

scanned bar code data directly into any active Windows program.

Your application will accept the data as if it were manually typed.

The SocketScan Trigger™ launches an on-screen trigger icon

that you can tap on to trigger the 2DSC. This serves as an

alternative to using a hardware button on your device. Windows

Mobile only. Must be installed separately from the CD.

The Socket 2DSC Demo™ lets you perform basic bar code

scanning and image capture with the 2DSC. You can also

configure the decoder and image capture settings, and perform

image transfers. Refer to the separate User’s Guide for the

2DSC Demo for instructions. Windows Mobile only.

Software updates: www.socketcom.com/support/support_bar.asp

CHAPTER 1: INTRODUCTION 5

System Requirements

Your mobile computer should meet these minimum requirements:

•Any of the following operating systems:

-Windows Mobile 2003, 2003SE

-Windows CE 3.0 or greater

-Windows 98SE, Me, 2000, XP

•Available CompactFlash or PC Card slot

(Operation in a PC Card slot requires a Type II PC Card adapter.)

The PC Card adapter is available separately under Accessories at:

www.socketcom.com/shop

Package Contents

The 2D Scan Car (2DSC) package includes:

•2D Scan Card

•SocketScan Installation CD

•Booklet with, copyright and warranty information

Product Registration

Socket highly recommends that all customers register their Socket products.

About This User’s Guide

This User’s Guide shows how to install and use the 2D Scan Card

in conjunction with SocketScan keyboard emulation software.

IMPORTANT! This User’s Guide DOES NOT include

instructions for using the Socket 2DSC Demo application.

Please refer to the separate User’s Guide for that application.

2 | Setup for Windows Mobile

This chapter shows how to install, configure, and use the

2D Scan Car (2DSC) with a Pocket PC 2000/2002/

2003/2003SE.

This chapter shows Pocket PC 2002 screens. Other

Windows Mobile-based devices will have functionally

equivalent screens except where otherwise noted.

For instructions on using the 2D Scan Car Demo, please

refer to the User’s Guide for that specific application.

Setup Summary

STEP 1: Uninstall other scanning software.

STEP 2: Install the software.

STEP 3: Insert the 2DSC into Your Device.

STEP 4: Assign a trigger button.

STEP 5: Scan data into a Windows program.

OPTIONAL: Select symbologies.

OPTIONAL: Configure prefix/suffixes.

OPTIONAL: Run Scan Demo to scan unknown bar codes.

OPTIONAL: Configure sounds.

OPTIONAL: Manually configure specific symbologies or extensions.

CHAPTER 2: SETUP FOR WINDOWS MOBILE 7

STEP 1: Uninstall Other Scanning Software

Delete any bar code scanning software you may already have installed on

your Pocket PC. You can uninstall either directly from your Pocket PC, or

indirectly via ActiveSync.

OPTION 1: Uninstall Directly from the Pocket PC

1. Make sure the bar code scanning software is closed.

2. Tap Start | Settings. Tap on the System tab or Control Panel.

3. Tap on the Remove Programs icon.

4. Select the bar code scanning software, then tap Remove.

5. Tap Yes to confirm removal of the program.

OPTION 2: Uninstall via ActiveSync

1. Make sure the bar code scanning software is closed.

2. Use ActiveSync and a serial/Ethernet/USB cable or cradle to make an

active connection between your Pocket PC and a host PC.

3. On the host PC, open Microsoft ActiveSync.

4. Click Tools | Add/Remove Programs.

5. Select the bar code scanning software and click Remove.

6. In the confirmation screen, click OK.

7. A screen will ask if you also want to remove the software from the host PC.

If desired, click NO to keep a copy of the software on the host PC that

can later be re-installed onto a Pocket PC.

STEP 2: Install the Software

1. Use ActiveSync and a serial/Ethernet/USB cable or cradle to make an

active connection between the mobile computer and a host PC.

2. Insert the installation CD into your host PC.

3. Use My Computer or Windows Explorer to access your CD-ROM drive.

In the CD, click on SETUP.EXE.

4. Follow the instructions on your screen to install the software for

Windows CE (also compatible with Windows Mobile).

•Read the information in the Welcome screen, then click next.

•In the Main Page, click Software Installation.

•In the Installation screen, click Windows CE.

CHAPTER 2: SETUP FOR WINDOWS MOBILE 9

5. In the File Download screen, click Run.

6. If a Security Warning screen appears, click Run.

7. The installation wizard will begin. Follow the wizard to install the

software.

8. When software installation is complete, disconnect the Pocket PC from

the host PC. Soft reset the Pocket PC by pressing the reset button.
