SIIG SoundWave 5.1 PCI Manual de usuario
1
SoundWave 5.1 PCI
Quick Installation Guide
04-0359E
Introducing the SoundWave 5.1 PCI
The SoundWave 5.1 PCI transforms your PC into a home
theater system with multi-channel surround sound.
FeaturesandBenefits
• MPU-401 compatible MIDI/game port interface*
• Customize Internet audio with the power and
surround sound of EAX™audio technologies
• Conforms to PCI specification, revision 2.2 and
PC99 specification
• Supports multi-channel music, games and DVD's
on 2, 4, 6 (5.1) speaker systems
• Built-in 16 bit full duplex CODEC with DLS-based
wavetable music synthesizer, supports
DirectMusic™
*Gameport supported in XP ( 32-bit) and Server
2003 (32-bit) only
SystemRequirements
• Pentium® II 366 MHz or equivalent PC with an
available PCI slot
• Windows®7 (32-/64-bit) / Vista (32-/64-bit) / XP
(32-bit) / Server 2003 & 2008 (32-/64-bit) / 2000
• DirectX 8.1 or above
2
PackageContents
•SoundWave 5.1 PCI
• Driver CD
• Quick Installation Guide

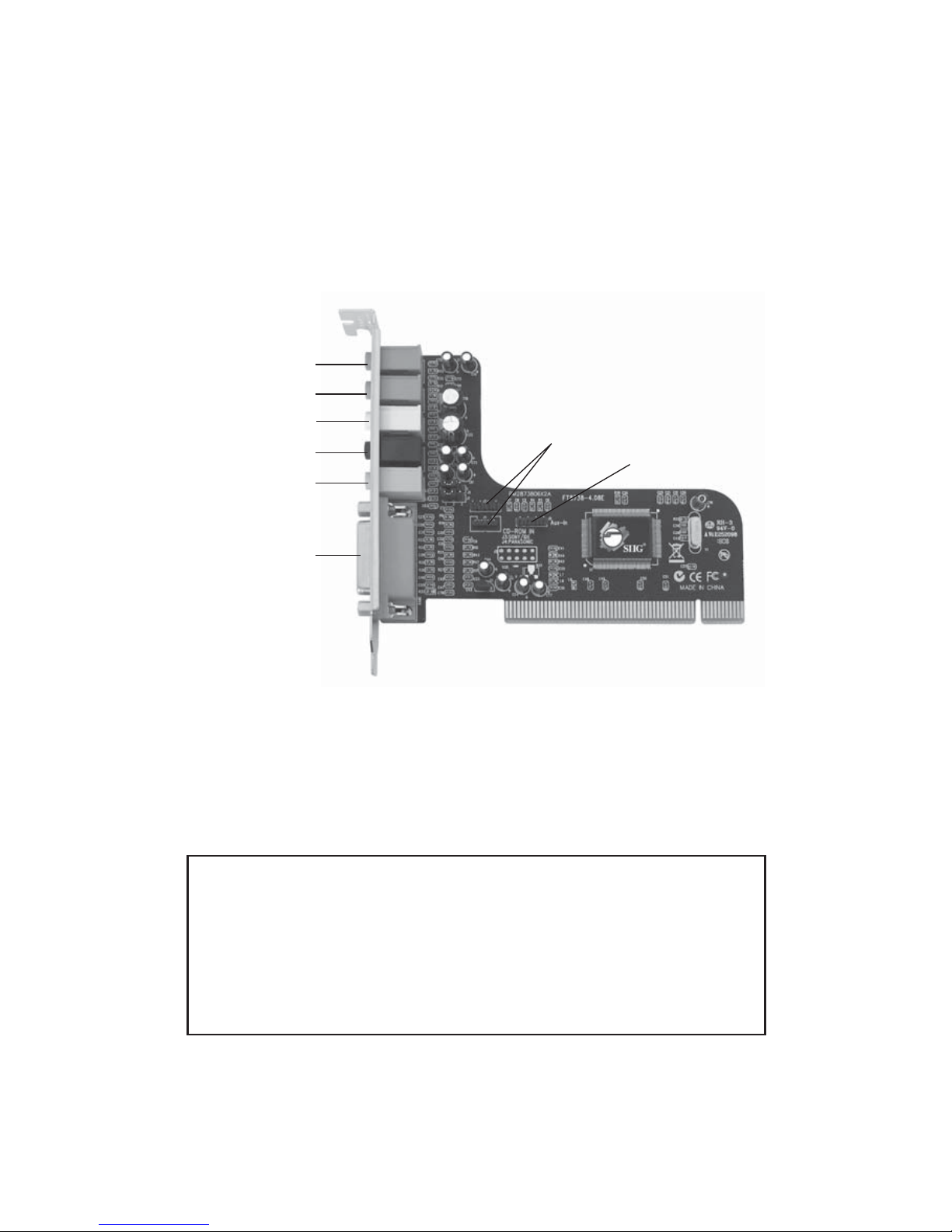

Layout
Figure 1: Layout
Note: You can connect to both CD-In and
Aux-In at the same time. However, only one
CD-In can be connected at one time. Leave the
jumpers in the default position. There is no
need to change this setting.
*Game/Midi port supported in XP (32-bit) / Server
2003 (32-bit) only
Line In
Mic In
F-Out
R-Out
Cen/Sub
Out
Game/Midi
Aux In
CD In
*
3
RearConnectors
LINE In:
This connector provides line-in function.
MIC:
This connector provides microphone in function.
Front Out:
This connector provides front source output, you can
connect one set of active speakers or headphone.
Rear Out:
This connector provides rear sound source output, you
can connect one set of active speakers or headphone.
Center/Subwoofer Out:
This connector provides center and subwoofer (LFE)
sound source output, you can connect one set of active
speakers.
Game/MIDI:
This is a 15 pin D-sub connector. It can be used with
standard MIDI adapters or joysticks. (Not supported in
Windows Vista and Windows 64-bit)
CD In (internal):
This connector can be used to attach CD-ROM or DVD-
ROM audio cable. There are two different connectors.
Select the connector that matches your audio cable.
Aux In (internal):
This connector can be used to connect other audio
output devices.
4
Hardware Installation
It is recommended that you remove any previously
installed sound card drivers before installing the
SoundWave 5.1 PCI to avoid any conflicts. If previously
installed drivers are not removed, the SoundWave 5.1
PCI may not function properly.
General instructions for installing the card are provided
below. Since the design of computer cases and
motherboards vary, refer to your computer’s reference
manual for further information, if needed.
Static Electricity Discharge may permanently damage
your system. Discharge any static electricity build up in
your body by touching your computer case for a few
seconds. Avoid any contact with internal parts and
handle cards only by their external edges.
1. Turn OFF the power to your computer and any
other connected peripheral devices.
2. Unplug the power cord from the computer.
3. Remove your computer’s cover.
4. Remove the slot bracket from an available PCI slot.
5. To install the card, carefully align the card's bus
connector with the selected PCI slot on the
motherboard. Push the board down firmly, but
gently, until it is well seated.
6. Replace the slot bracket holding screw to secure
the card.
7. Connect one end of the audio cable from your
CD-ROM or DVD-player to the CD In on the
soundcard.
8. Replace the computer cover and reconnect the
power cord.
5
Driver Installation
Windows7(32-/64-bit)
1. Install the board then boot up Windows.
2. At the Windows desktop, insert the Software CD:
At the AutoPlay window: Click Open folder to
view files. Double click Win7 folder, then double
click Setup.
If AutoPlay doesn't start: Click Start button, in the
Search programs and files box, type
D:\Win7\setup.exe,press Enter.(Change D: to
match your CD-ROM drive letter)
3. Follow the on-screen instructions to complete the
installation.
ToVerifyWindows7Installation
1. Right click Computer, click Manage, select Device
Manager.
2. Double-click Sound, video and game controllers,
then double click C-Media PCI Audio Device.
3. A message This device is working properly is
displayed, the driver has been correctly installed.
WindowsVista™(32-/64-bit)
1. Install the board then boot up Windows.
2. AttheFoundNewHardware window,clickCancel.
3. Insert the Software CD:
At the AutoPlay window: Click Open folder to
view files. Double click Vista folder, then double
click Setup.
6
If AutoPlay doesn't start: Click Start, in the Start
Search box,type D:\Vista\setup.exe,pressEnter,
then click Allow.(Change D: to match your CD-
ROM drive letter)
4. Select Yes, I want to restart my computer now,
then click Finish.
ToVerifyWindowsVistaInstallation
1. Right click Computer, click Manage, click
Continue, select Device Manager.
2. Double-click Sound, video and game controllers,
then double click C-Media PCI Audio Device.
3. A message This device is working properly is
displayed, the driver has been correctly installed.
WindowsXP(32-bit)/Server2003(32-/64-bit)/2000
1. Install the board then boot up in Windows.
2. At the Add New Hardware Wizard, click Cancel.
3. Insert the Software CD. Click Start, Run, type
D:\setup.exe, then click OK. (Change D: to match
your CD-ROM drive letter)
4. Click Next three times.
5. Select Yes, I want to restart my computer now,
then click Finish.
ToVerifyWindowsXP/Server2003 /2000Installation
1. Right click My Computer and click Manage, select
Device Manager.
2. Double-click Sound, video and game controllers,
then double click C-Media PCI Audio Device.
3. A message This device is working properly is
displayed, the driver has been correctly installed.
7
WindowsServer2008(32-/64-bit)
1. Install the board then boot up in Windows.
2. AttheFoundNewHardware window,clickCancel.
3. Insert Software CD
At the AutoPlay window: Click Open folder to
view files. Double click Setup.
If AutoPlay doesn't start: Click Start, in the Start
Search box, type D:\setup.exe, press Enter.
(Change D: to match your CD-ROM drive letter)
4. Select Yes, I want to restart my computer now,
then click Finish.
ToVerifyWindowsServer2008Installation
1. Right click Computer, click Manage, double click
Diagnostics, click Device Manager.
2. Double click Sound, video and game controllers,
then double click C-Media PCI Audio Device.
3. A message This device is working properly is
displayed, the driver has been correctly installed.
Uninstalling the Sound Card Driver
Windows7
1. Click Start, Control Panel, then click Programs.
2. DoubleclickUninstall a ProgramunderPrograms.
3. Double click C-Media PCI Audio Device, select
Yes, I want to restart my computer now, then click
Finish to restart Windows.
WindowsVista
1. Click Start, then Control Panel.
8
2. DoubleclickUninstall a Programunder Programs.
3. Double click C-Media PCI Audio Device, click
Continue. Follow on-screen instructions to
uninstall the driver.
WindowsXP/Server2003/2000
1. Click Start, Settings, then Control Panel.
2. Double click Add/Remove Programs.
3. Select C-Media PCI Audio, then click
Change/Remove or Add/Remove button.
4. Follow the on-screen instructions to uninstall the
driver.
WindowsServer2008
1. Click Start, then Control Panel.
2. Double click Programs and Features.
3. Double click C-Media PCI Audio.
4. Select Yes, I want to restart my computer now,
then click Finish to restart Windows.
Speaker Configuration
Windows7
Make sure to log in as Administrator or an account with
administrative privileges.
1. Right click the volume control icon located in the
taskbar by the system clock.
2. ClickPlaybackdevices,select C-Media PCI Audio
Device, click Configure.
3. Followtheon-screeninstructions to configure your
speakers.
9
WindowsVista
Make sure to log in as Administrator or an account with
administrative privileges.
1. Right click the volume control icon located in the
taskbar by the system clock.
2. ClickPlaybackdevices,select C-Media PCI Audio
Device, click Configure.
3. Followtheon-screeninstructions to configure your
speakers.
WindowsXP/Server2003/2000
1.From the main desktop, click Start, Settings,
Control Panel.
2. Click Sounds and Multimedia, select Audio tab.
3. Click Advancedunder Sound Playback, then click
the Speakers tab.
4. Click the drop down arrow and select your
speakers.
5. Click Apply, then OK to save the settings.
WindowsServer2008
Make sure to log in as Administrator or an account with
administrative privileges.
1. Right click the volume control icon located in the
taskbar by the system clock. If prompted, click Yes
toenableWindowsAudio Service, otherwisecontinue
to step 2.
2. ClickPlayback , select C-Media PCIAudioDevice,
click Configure.
3. Follow on-screen instructions to setup your
speakers.
10
Utilities Software
Xear 3D is an audio setup utility for your soundcard.
Xear 3D quick start icon, located in the system tray by
the clock, installs automatically during driver
installation. In addition to configuring speaker type,
sound effects and listening environment, the utility
includes mixer and equalizer software. Simply click on
the quick start icon to open the audio setup utility.
Note: In Xear 3D, please select six speakers under
Analog Output to get the full 5.1 channel
capability.
