SIIG JU-91RW12-S4 Manual de usuario
1
Introducing the Reader/Writer+Floppy
The Reader/Writer+Floppy is the perfect choice for
computer users who need a flash memory card
reader/writer that supports multiple card formats as
well as reads Floppy disks.
FeaturesandBenefits
• Fitsintoeither3.5"or5.25"(withincludedmounting
rack) drive bay
• Dual color Activity/Access LED:
- Red: Flash memory card interface
- Green: Floppy drive interface
Flash memory card interface:
• Compliant with USB specification rev. 2.0
• Works with CompactFlash (CF) Type I & Type II,
Microdrive,SmartMedia(SM),SecureDigital(SD),
MultimediaCard (MMC) and Memory Stick
(incl. MagicGate & Pro) memory cards
Note: USB 2.0 devices are limited to USB 1.1
speeds when they are connected to a USB 1.1 host
adapter.
Floppy drive interface:
• Supports 1.44MB and 2MB Floppy disks
04-0361A
USB 2.0 9-in-1 R/W+FDD
Quick Installation Guide
2
SystemRequirements
• PC computer with an internal USB port
(USB 2.0 recommended)
• One available 3.5" or 5.25" drive bay
• CD-ROM drive (for driver installation)
• Windows 98SE/ME/2000/XP/Server 2003
PackageContents
•USB 2.0 9-in-1 R/W+FDD
• (1) 5.25 inch mounting rack
• (1) 4-pin header-to-type A USB adapter
• (1) Driver installation CD
• (1) Bag assorted mounting screws
• Quick installation guide
Layout
Depending on the model purchased, the color of your
product may vary from what is shown.
SM/SD/MMC/
Memory Stick
CF/Microdrive Floppy diskActivity/Access
LED
Figure 1. Front Panel Layout
3
Figure 2. Rear Layout
5.25"MountingRackAssembly
Important:Use the Mounting Rack Assembly only
wheninstallingthehubintoa5.25"drivebay. Depending
on the model purchased, the color of your product may
vary from what is shown.
Floppy drive
connector
Power
connector
Figure 3. 5.25" Mounting Rack Assembly
4
4-pinUSBConnector
Figure 4. 4-pin USB Connector
USBPin-outHeader
Onmostmotherboards,theUSBheader/pin-outconsists
of 9 pins arranged in 2 rows; and each header allows for
2 USB connections (i.e. USB1 and USB2). Normally, the
pins for USB1 and USB2 are in seperate rows.
DATA -
DATA +
GND GND
DATA -
DATA +
+ 5VDC +5VDC
S-GND
Red
Black
Green
White
USB1
USB2
Pin Assignments
Figure 5. USB Pin-out Header
Note: See Figure 4, above, for proper orientation
of the 4-pin USB connector.
5
4-pinheader-to-typeAUSBAdapter
This USB adapter is only needed if you plan to connect
the Reader/Writer+Floppy to a type A USB port instead
of a USB pin-out header.
Match up the wires by color when connecting the
Reader/Writer+Floppy's 4-pin USB connector to the
4-pinheader,thenplugtheotherendintoatypeAport.

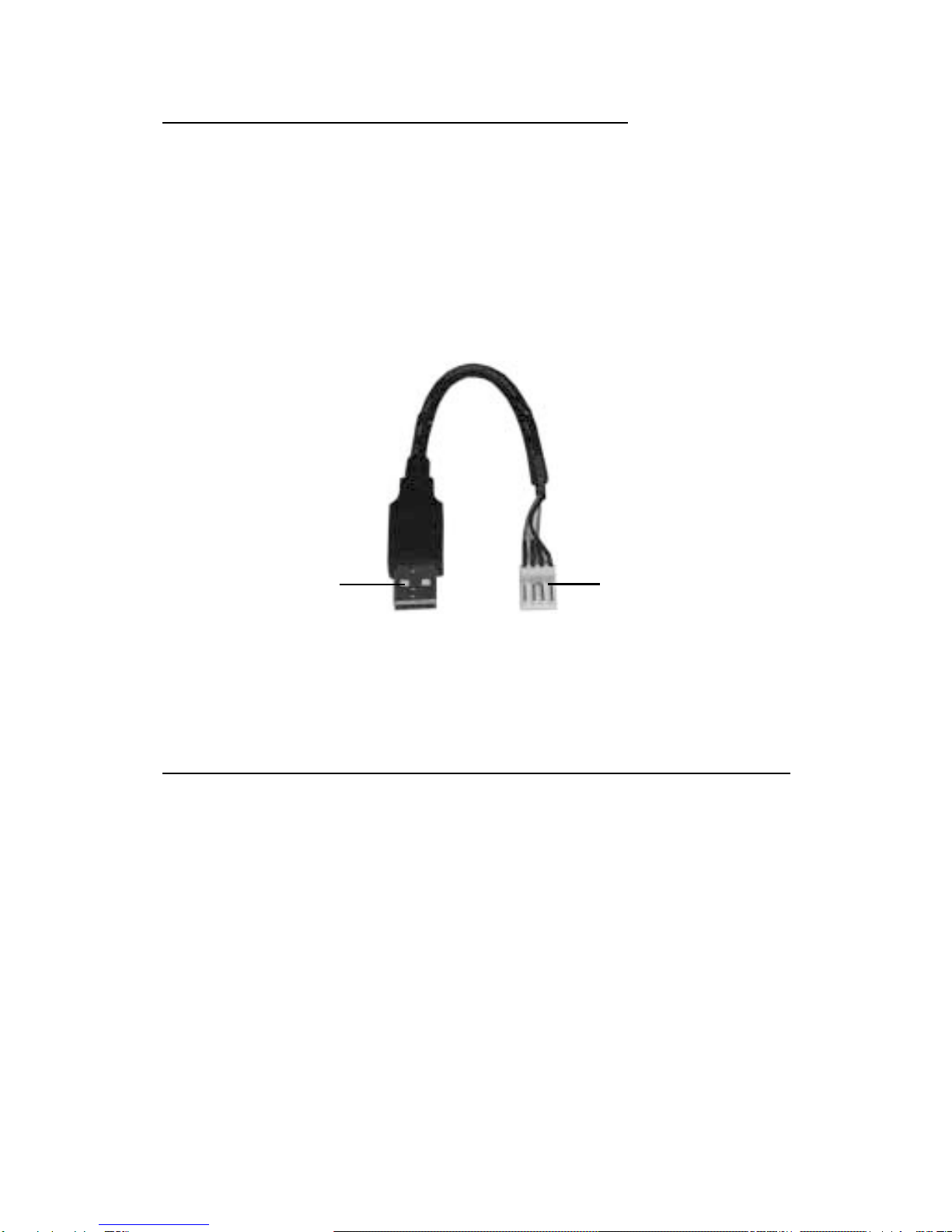

Figure 6. 4-pin header-to-type A USB Adapter
Installing the Reader/Writer+Floppy
Important: InorderfortheReader/Writer+Floppytowork
properly, the driver of your existing USB 2.0 host
adapter must be installed properly.
1. Turn OFF the power to your computer and all
connected peripheral devices.
2. Unplug the power cord from the back of the
computer.
3. Remove the computer’s cover.
4-pin
header
Type A
connector
6
4. Select an available 3.5" or 5.25" drive bay for the
Reader/Writer+Floppy,removethecoverplatefrom
the selected drive bay. Secure the
Reader/Writer+Floppy to the drive bay by using
the supplied mounting screws.
Note: When installing the Reader/Writer+Floppy
into a 5.25" drive bay install it into the 5.25"
mountingrack beforemountinginto thedrive bay
and follow the same assembly instructions. Refer
to 5.25" Mounting Rack Assembly on page 3.
5. Plug in a mini power connector from the system
power supply to the Reader/Writer+Floppy's
power connector.
Note: If you don't need the floppy drive, skip
steps 5 and 6 and continue to step 7.
Figure 7. Connecting the Power Cable
6. Connect the floppy drive ribbon cable to the
Reader/Writer+Floppy's floppy drive connector.
Make sure the stripe on the cable is on the side
opposite the power connector.
Stripe
Figure 8. Connecting the floppy drive ribbon cable
7
7. Connect the Reader/Writer+Floppy's 4-pin USB
connectorto the system's internal USB port. Refer
to USB Pin-out Header, on page 4 for more
information. Check your system documentation
for the location of the USB pin-out header.
Note: If your system has an internal type A USB
port you may choose to connect the
Reader/Writer+Floppy's 4-pin USB connector via
the included 4-pin header to USB adapter. Refer
to Figure 6, on page 5 for more information.
8. Replace the computer's cover and reconnect the
power cord.
Hardware installation is complete. Go to the next
section, Driver Installation to continue with the
installation.
Driver Installation
Windows98SE
1. Boot up Windows. At the Add New Hardware
Wizard click Cancel two times.
2. Insert the driver CD. Click Start, then Run. Type
D:\setup.exe,thenclickOK. (Change D:tomatch
your CD-ROM drive letter)
3. Follow the on-screen instructions to install the
driver. Restart the computer to complete the
installation.
4. The driver installs automatically when Windows
resumes.
8
Windows2000
With Service Pack 2 (SP2) or earlier:
1. Boot up Windows, then insert the driver CD.
2. Click Start, then Run. Type D:\setup.exe, then
click OK. (Change D: to match your CD-ROM
drive letter)
3. Follow the on-screen instructions to install the
driver. Restart the computer to complete the
installation.
4. The driver installs automatically when Windows
resumes.
With Service Pack 3 (SP3) or later:
Important: Windows 2000 with SP3 or later
automaticallydetectsandinstalls thecorrectdriversfor
this device. No driver installation is needed. Refer to
Accessing Memory Cards, on page 10, for the order in
which the memory slots appear.
However, you may choose to install the provided
software that labels each drive. If you choose to install
this optional software, please follow the directions
below.
1. Insert the driver CD. Click Start, then Run. Type
D:\setup.exe,thenclickOK. (ChangeD:tomatch
your CD-ROM drive letter)
2. Follow the on-screen instructions to install the
driver. Restart the computer to complete the
installation.
3. The driver installs automatically when Windows
resumes.
9
WindowsME/XP/Server2003
Important: Windows ME, XP and Server 2003
automaticallydetectsandinstalls thecorrectdriversfor
this device. No driver installation is needed. Refer to
Accessing Memory Cards, on page 10, for the order in
which the memory slots appear.
However, you may choose to install the provided
software that labels each drive. If you choose to install
this optional software, please follow the directions
below.
1. Insert the driver CD. Click Start, then Run. Type
D:\setup.exe,thenclickOK. (ChangeD:tomatch
your CD-ROM drive letter)
2. Follow the on-screen instructions to install the
driver. Restart the computer to complete the
installation.
3. The driver installs automatically when Windows
resumes.
ToVerifySuccessfulDriverInstallation
1. Check Device Managerto verify successful driver
installation.
Windows 98SE/ME: From the main desktop, right
click My Computer, click Properties,then click
Device Manager.
Windows 2000/XP/Server 2003: Right click My
Computer, click Manage, then click Device
Manager.
2. Double click Universal Serial Bus controllers.
Windows 98SE/2000 w/SP2 or earlier: Multi-Card
Reader should be listed.
10
Windows ME/2000 w/SP3 or later/XP/Server 2003:
USB Mass Storage Device should be listed.
3. Double click Disk drives:
Windows 98SE/ME/2000/XP/Server 2003: USB2.0
CF Card CF... and USB2.0 MULTI Card MS...
should be listed.
Inserting Memory Cards and Floppy Disk
For CompactFlash, IBM MicroDrive, Memory Stick,
MultiMediaCard and SecureDigital memory cards,
insert with the top label facing up.
For SmartMedia memory card, insert with the top label
facing down and gold pins facing up.
For Floppy disks, insert with the top label facing up.
Removing floppy disk and memory media
Donotremovememorycardsand/or floppydiskwhen
theActivity/Access LED is Flashing/On. Confirm that
the LED is off for several seconds before removing any
inserted media.
Accessing Memory Cards
WhentheReader/Writer+Floppyissuccessfullyinstalled,
twoRemovableDisciconsappearinMyComputer. To
access any one drive, double click the icon that
corresponds to the memory card. The first removable
disk icon corresponds to CF and Microdrive memory
media. The second removable disk icon corresponds to
SmartMedia, SecureDigital, MultimediaCard and
Memory Stick memory media.
