SIIG ExpressCard/54 CF R/W Manual de usuario

ExpressCard/54 CF R/W

Quick Installation Guide

04-0470A

FeaturesandBenefits

• Support CF Type I , CF Type II, MicroDrive, PIO

mode 0-6, and UDMA mode 0-4 (CF 3.0)

• Compliant with ExpressCard™ standard

• Suitable for desktop or laptop equipped with

ExpressCard™ /54 slot

• Extreme high speed: Transfer files up to

33MB/sec.

Note: Actual throughput may vary based on the

computer configuration.

Serial # Sticker

For future product return or exchange, this serial # is

required. Please keep it for your reference.

SystemRequirements

• Notebook or desktop computer with an available

ExpressCard slot

• Windows®2000/XP/Server 2003/Vista

PackageContents

•ExpressCard/54 CF R/W

• Thisquickinstallationguide

Layout

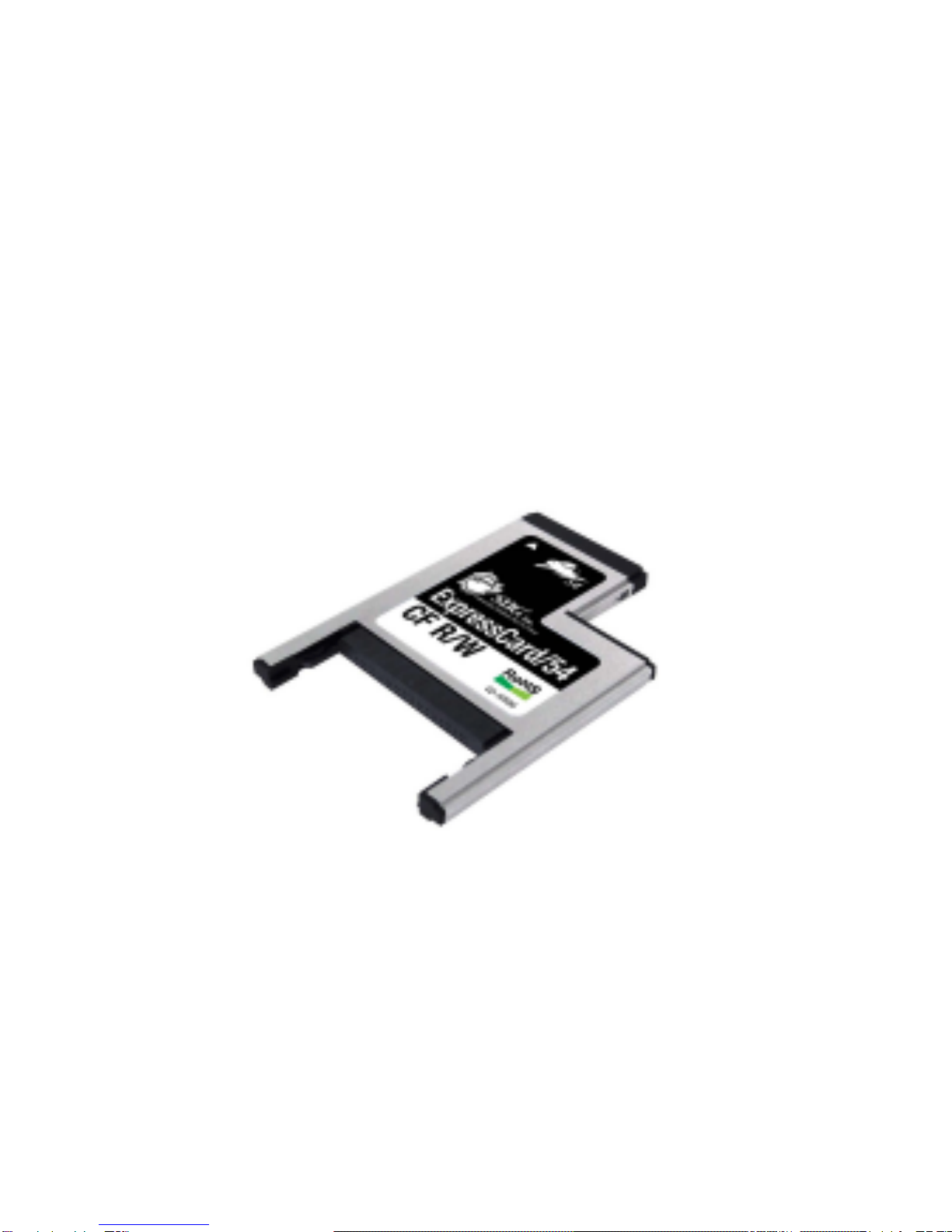

Figure 1. ExpressCard/54 CF R/W

Installation

HardwareInstallation

General instructions for installing the ExpressCard/54

CFR/Wareprovidedbelow. Sincethedesignofcomputers

vary, refer to your system’s reference manual for further

information, if needed.

1. Insert the ExpressCard/54 CF R/W into the

ExpressCardslotofthecomputerwithit'sExpress

CardConnectorfacingtheslot. Pushthecardinto

the slot gently, yet firmly for a solid connection.

Note: Some ExpressCard slots will click when

the ExpressCard is fully inserted into the slot.

2. Ifyoursystemwaspoweredoffwhenyouplugged

in the ExpressCard, turn it on and go to Driver

Installation on page 3. Otherwise, go directly to

Driver Installation on page 3.

DriverInstallation

Windows 2000, XP, Server 2003 and Vista automatically

detects and installs the correct driver for the

ExpressCard/54 CF R/W. No driver installation is needed.

VerifyWindowsInstallation

1. CheckDevice Manager toverifysuccessfuldriver

installation.

For2000/XP/Server2003: RightclickMyComputer,

clickManage

For Windows Vista™:Right click Computer,

click Manage, click Continue.

2. Click Device Manager.

3. Click on the +(plus sign) in front of Disk Drives,

GenericSTORAGE DEVICEUSBDeviceshould

be displayed.

Inserting Memory Card

CompactFlash memory cards are keyed for proper easy

insertion into the card reader with minimum

pressure. Make sure the CompactFlash label is facing up

when inserted.

Note: In some systems, CompactFlash memory card

will not go in properly when the ExpressCard/54 CF

R/W is inserted. In this case, the ExpressCard/54 CF

R/W must be remove from the ExpressCard slot

before inserting the CompactFlash memory card.

Removing Memory Cards

Memory cards can be removed at any time. Gently pull

the memory card from the ExpressCard/54 CF R/W.

Accessing Memory Cards

When the reader/writer is successfully installed, a

Removable Disk icon will appear in My Computer. To

access the memory card, double click the disk icon.

Removing the ExpressCard

Before ejecting the ExpressCard/54 CF R/W from the

ExpressCard slot, first use the SafelyRemoveHardware

utilitytostopit. Notfollowingthestepsbelowcouldlead

tosystemcrashes,datacorruptionordataloss. Followthe

steps below for your version of Windows.

ForWindows2000

1. Click the Unplug or Eject Hardware icon located

in the taskbar by the system clock.

2. Click Stop USB Mass StorageDevice.....

3. At the Safe To Remove Hardware box, click

OK. The ExpressCard/54 CF R/W can be ejected.

3. When Safe to Remove Hardware box pops up,

the ExpressCard/54 CF R/W can be ejected.

ForWindowsXP/Server2003/Vista

1. Click the Safely Remove Hardware icon located

in the taskbar by the system clock.

2. Click Safely remove USB Mass Storage

Device.....

3. When Safe to Remove Hardware box pops up,

the ExpressCard/54 CF R/W can be ejected.

Technical Support and Warranty

QUESTIONS? SIIG’sOnlineSupporthasanswers! Simplyvisitourwebsiteat

www.siig.comandclickSupport. Ouronlinesupportdatabaseisupdateddaily

withnewdriversandsolutions. Answerstoyourquestions could be just a few

clicks away. You can also submit questions online and a technical support

analystswillpromptly respond.

SIIGoffersa5-yearmanufacturerwarrantywiththisproduct. Pleaseseeourweb

siteformorewarrantydetails. Ifyouencounteranyproblemswiththisproduct,

pleasefollowtheproceduresbelow.

If it is within the store's return policy period, please return the

producttothestorewhereyoupurchasedfrom. Ifyourpurchasehaspassedthe

store'sreturnpolicyperiod,pleasefollowthesestepstohavetheproductrepaired

orreplaced.

Step1: SubmityourRMArequest.

Go to www.siig.com, click Support, then RMA to submit a

request to SIIG RMA. If the product is determined to be

defective,anRMAnumberwillbeissued. SIIGRMAdepartmentcanalsobe

reached at (510) 413-5333.

Step2: AfterobtaininganRMAnumber,shiptheproduct.

• Properlypacktheproductforshipping. Allaccessoriesthatcamewith

theoriginalpackagemustbeincluded.

• ClearlywriteyourRMAnumberonthetopofthereturnedpackage. SIIG

willrefusetoacceptanyshippingpackage,andwillnotberesponsible

foraproductreturnedwithoutanRMAnumberpostedontheoutsideof

theshippingcarton.

• You are responsible for the cost of shipping. Ship the product to the

followingaddress:

SIIG,Inc.

6078StewartAvenue

Fremont, CA 94538-3152, USA

RMA #: ________________

• SIIG will ship the repaired or replaced product via Ground

in the U.S. and International Economy outside of the U.S. at

nocosttothecustomer.

About SIIG, Inc.

Foundedin1985,SIIG,Inc.isaleadingcomputerupgrademanufacturerofI/O

connectivityproducts,includingPCI&ISAserialandparallelports,USB,Serial

ATA & UltraATA controllers, FireWire (1394a/b), networking, sound cards,

andotheraccessories. SIIGisthepremierone-stopsourceofupgrades.

SIIGproductsoffercomprehensiveusermanuals,manyuser-friendlyfeatures,

andarebackedbyanextensivemanufacturerwarranty. High-qualitycontrol

standards are evident by the overall ease of installation and compatibility of

ourproducts,aswellasoneofthelowestdefectivereturnratesintheindustry.

SIIG products can be found in computer retail stores, mail order catalogs,

throughmajordistributors,systemintegrators,andVARsintheAmericasand

theUK,andthroughe-commercesites.

ExpressCard/54 CF R/W is a trademark of SIIG, Inc. SIIG and the SIIG logo are registered

trademarksofSIIG,Inc. Microsoft,WindowsandWindowsVistaareregisteredtrademarks

of Microsoft Corporation. Other names used in this publication are for identification only

and may be trademarks of their respective companies.

PRODUCTNAME

ExpressCard/54 CF R/W

FCC RULES: TESTED TO COMPLY WITH FCC PART 15, CLASS B

OPERATING ENVIRONMENT: FOR HOME OR OFFICE USE

FCCCOMPLIANCESTATEMENT:

This device complies with part 15 of the FCC Rules. Operation is subject

to the following two conditions: (1) This device may not cause harmful

interference, and (2) this device must accept any interference received,

including interference that may cause undesired operation.

THE PARTY RESPONSIBLE FOR PRODUCT COMPLIANCE

SIIG,Inc.

6078 Stewart Avenue

Fremont, CA 94538-3152, USA
