SIIG YN6181 Manual de usuario

DisplayPort 1.2 to 2-Port

HDMI Active Adapter

Installation Guide

04-0970A

Introduction

The DisplayPort 1.2 to 2-Port HDMI Active Adapter

distributes one DisplayPort source to two HDMI

displays.

Key Features and Benefits

• Distribute content from one DisplayPort

input and two HDMI outputs

• Supports DisplayPort 1, 2 and 4 lanes and

link rates up to 3.2Gbps

• Supports SST (Single-Stream Transport) or

MST (Multi-Stream Transport)

• Supportsvideowallfunction:Tilingmultiple

screens together to form one large screen

• Supports 1080p and 3840x1080 when two

displays are connected

• DisplayPort IN: Connects to your

DisplayPort source device

• HDMI OUT (1-2): Connects to your HDMI

displays

Package Contents

•DisplayPort 1.2 to 2-Port HDMI Active

Adapter

• Installation guide

Layout

DisplayPort IN

HDMI OUT 1

HDMI OUT 2

Figure 1: Layout

Hardware Installation

1. Power off all devices you plan to connect to

this adapter.

2. Insert the DisplayPort IN of the DisplayPort

1.2 to 2-Port HDMI Active Adapter to your

DisplayPort source.

3. Connect your HDMI monitors to the HDMI

OUT (1 and 2) of the active adapter using

HDMI cables (HDMI cables not included).

4. Power on all of the connected devices.

5. The DisplayPort 1.2 to 2-Port HDMI Active

Adapter is ready for use.

Application

The DisplayPort 1.2 to 2-Port HDMI Active Adapter

supports 2 HDMI displays simultaneously.

2 HDMI Displays

Extended Mode (AMD Graphics with Eyefinity)

The two 2 HDMI displays act as one large

extended display.

2 HDMI displays

Figure 2

HDMI

cable

HDMI cable

DisplayPort source (Desktop,

notebook, etc)

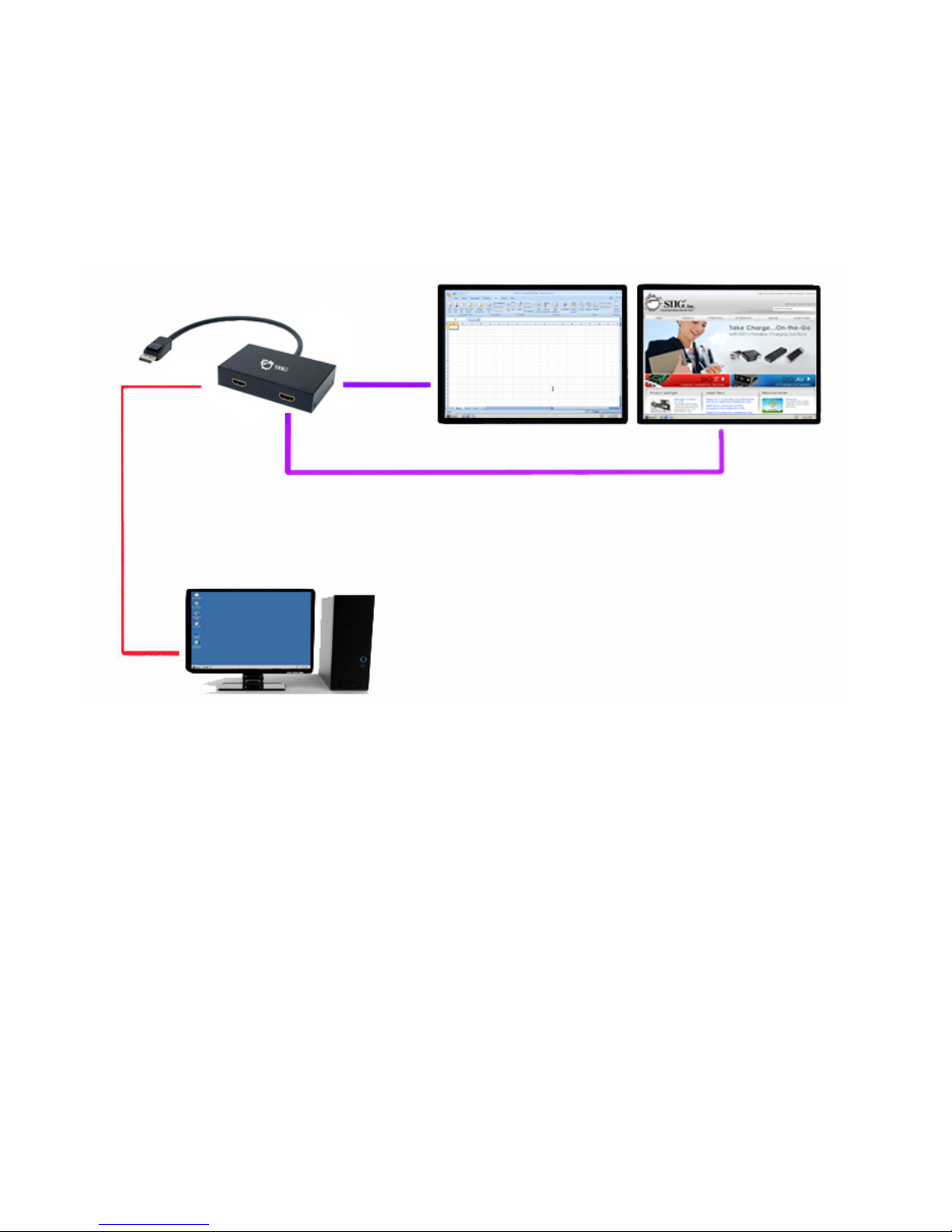

Extended Mode (Multi-Stream Transport)

The two 2 HDMI displays are individual.

2 HDMI displays

HDMI

cable

HDMI cable

DisplayPort source (Desktop,

notebook, etc)

Figure 3

Figure 5

Mirror Mode

Resolutions under 1920x1080:

2 HDMI displays

Figure 4

2 HDMI displays

Resolutions above 1920x1080:

DisplayPort source (Desktop,

notebook, etc)

HDMI

cable

HDMI cable

DisplayPort source (Desktop,

notebook, etc)

HDMI cable

HDMI

cable

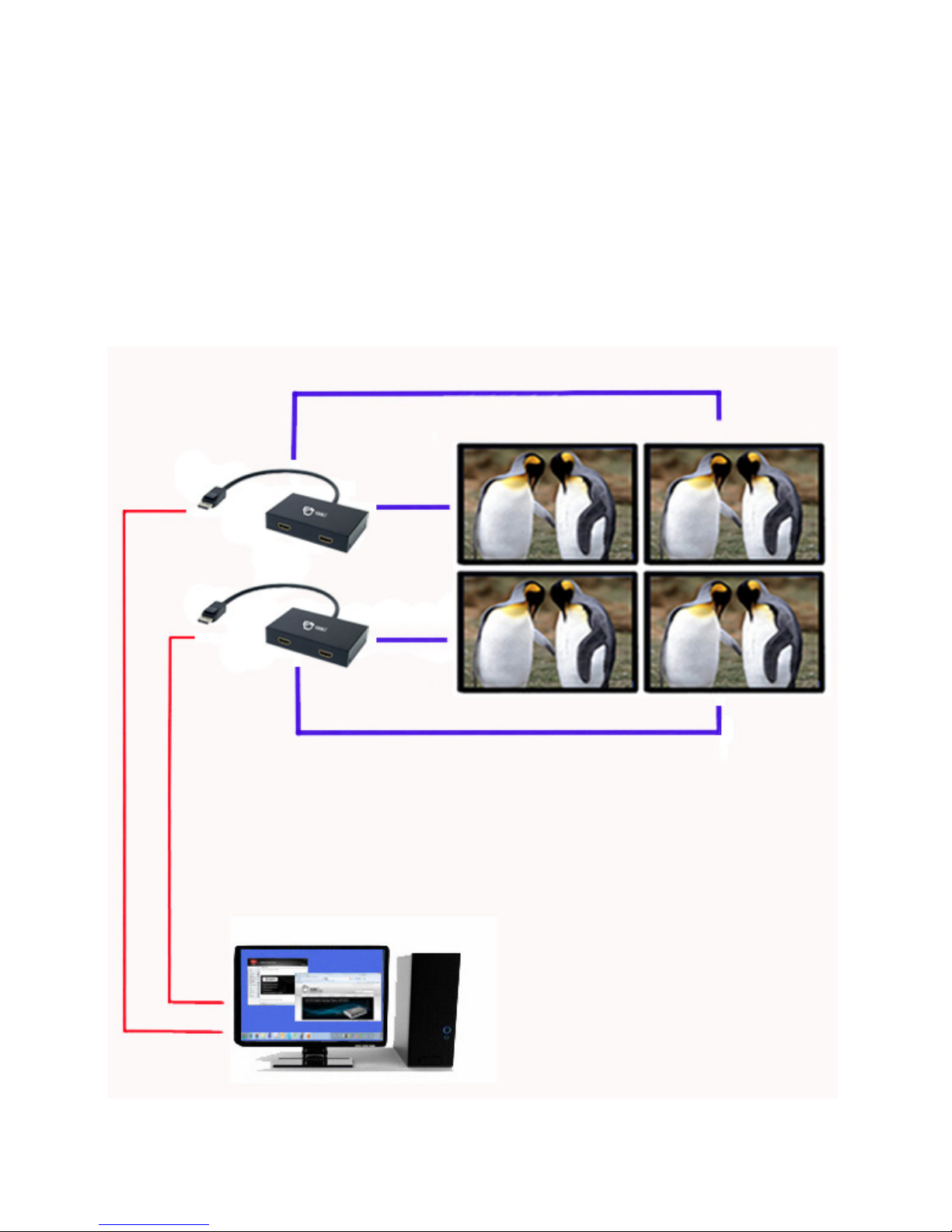

4 HDMI Displays

Two DisplayPort 1.2 to 2-Port HDMI Active Adapter

can work together as a 4-display video wall.

Important: Supports AMD with Eyefinity

Technology graphic cards with 2 DisplayPort

output connectors only.

4 HDMI displays

Figure 6

HDMI cable

HDMI

cable

HDMI

cable

HDMI cable

DisplayPort source* (e.g. Desktop)

Graphic Card Setup

At the AMD Catalyst Control Center, click AMD

Eyefinity Multi-Display for advanced display

mode setup. See Figure 7.

Refer to your graphic card menu for more details.

Figure 7

Supported Video Resolutions

Refer to Table 1 for the supported resolution

under different conditions (2 HDMI displays, or

4 HDMI displays via two DisplayPort 1.2 to 2-Port

HDMI Active Adapter):

*Note: The timing is listed in EDID

extensionblock.Someolddisplaydrivers

may not support it.

The actual output resolution is determined by the

EDID of each display. We suggest that you use

the same brand and model displays for the best

video output.

Table 1

Supported Video Resolutions (TV Wall)

Two Monitors Four Monitors

Computer Setting Each Monitor Computer Setting Each Monitor

3840x1080 1920x1080 3840x2160 1920x1080

2560x1024 1280x1024 2560x2048 1280x1024

2048x768 1024x768 2048x1536 1024x768

3360x1050 1680x1050 3360x2100 1680x1050

2880x900 1440x900 2880x1800 1440x900

1600x600 800x600 1600x1200 800x600

1280x480 640x480 1280x960 640x480

2800x1050 1400x2050 2800x2100 1400x1050
