A5E32114443 SITRANS LR260 (PROFIBUS PA) – QUICK START MANUAL Page EN-1

mmmmm

English

SITRANS LR260 (PROFIBUS PA) Quick Start

Manual

This manual outlines the essential features and functions of the SITRANS LR260 (PROFIBUS PA).

We strongly advise you to acquire the detailed version of the manual so you can use your

instrument to its fullest potential. The complete manual can be downloaded from the product

page of our web site at: www.siemens.com/LR260. The printed manual is available from your

local Siemens Milltronics representative.

Questions about the contents of this manual can be directed to:

Siemens Milltronics Process Instruments

1954 Technology Drive, P.O. Box 4225

Peterborough, Ontario, Canada, K9J 7B1

Email: techpubs.smpi@siemens.com

MILLTRONICS is a registered trademark of Siemens Milltronics Process Instruments.

Technical Support

Support is available 24 hours a day.

To find your local Siemens Automation Office address, phone number and fax number go to:

www.siemens.com/automation/partner:

• Click on the tab Contacts by Product then find your product group (+Process Automation

> +Process Instrumentation > +Level Measuring Instruments).

• Select the team Technical Support. Click on Next.

• Click on a continent, then a country, followed by a city. Click on Next.

For on-line technical support go to: www.siemens.com/automation/support-request

• Enter the device name (SITRANS LR260) or order number, then click on Search, and

select the appropriate product type. Click on Next.

• Enter a keyword describing your issue. Then either browse the relevant documentation,

or click on Next to email a description of your issue to Siemens Technical Support staff.

Siemens A&D Technical Support Center: phone +49 180 50 50 222

fax +49 180 50 50 223

Process Instruments 2013.

Disclaimer of Liability

We encourage users to purchase autho-

rized bound manuals, or to view elec-

tronic versions as designed and

authored by Siemens Milltronics Process

Instruments. Siemens Milltronics Pro-

cess Instruments will not be responsible

for the contents of partial or whole

reproductions of either bound or elec-

tronic versions.

While we have verified the contents of this manual

for agreement with the instrumentation described,

variations remain possible. Thus we cannot guar-

antee full agreement. The contents of this manual

are regularly reviewed and corrections are

included in subsequent editions. We welcome all

suggestions for improvement.

Technical data subject to change.

Page EN-2 SITRANS LR260 (PROFIBUS PA) – QUICK START MANUAL A5E32114443

mmmmm

English

Safety Guidelines

Warning notices must be observed to ensure personal safety as well as that of others, and to

protect the product and the connected equipment. These warning notices are accompanied by

a clarification of the level of caution to be observed.1

FCC Conformity

US Installations only: Federal Communications Commission (FCC) rules

SITRANS LR260

SITRANS LR260 is a 2-wire 25 GHz pulse radar level transmitter for continuous monitoring of

solids and liquids in storage vessels including extreme levels of dust and high temperatures, to

a range of 30 m (98.4 ft).

The instrument consists of an electronic component coupled to a horn antenna with an

integral Easy Aimer and flange for quick and easy positioning. A dust cover or air purging are

available as options.

WARNING: relates to a caution symbol on the product, and means that failure to

observe the necessary precautions can result in death, serious injury, and/or

considerable material damage.

WARNING1: means that failure to observe the necessary precautions can result

in death, serious injury, and/or considerable material damage.

Note: means important information about the product or that part of the operating manual.

1. This symbol is used when there is no corresponding caution symbol on the product.

WARNING: Changes or modifications not expressly approved by Siemens

Milltronics could void the user’s authority to operate the equipment.

Notes:

• This equipment has been tested and found to comply with the limits for a Class A digital

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference when the equipment is operated in a

commercial environment.

• This equipment generates, uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the Operating Instructions, may cause harmful

interference to radio communications. Operation of this equipment in a residential area is

likely to cause harmful interference to radio communications, in which case the user will

be required to correct the interference at his own expense.

WARNING: SITRANS LR260 is to be used only in the manner outlined in this

manual, otherwise protection provided by the equipment may be impaired.

Note: This product is designated as a Pressure Accessory per Directive 97 / 23 / EC, and is

not intended for use as a safety device.

A5E32114443 SITRANS LR260 (PROFIBUS PA) – QUICK START MANUAL Page EN-3

mmmmm

English

SITRANS LR260 supports PROFIBUS PA communication protocol, and SIMATIC PDM software.

Signals are processed using Process Intelligence which has been field-proven in over 

1, 000,000 applications worldwide (ultrasonic and radar). This device supports acyclic

communications from both a PROFIBUS Class I and Class II master.

Specifications

For a complete listing, see the SITRANS LR260 (PROFIBUS PA) Operating Instructions. For

Approvals information, please refer to the process device tag.

Ambient/Operating Temperature

Power

• Bus powered Per IEC 61158-2 (PROFIBUS PA)

• Current consumed 15.0 mA

Approvals

•General CSA

US/C, FM, CE

• Radio Europe (R&TTE), FCC, Industry Canada

• Hazardous ATEX II 1GD, 1/2D, 2D Ex ia IIC T4 Ga, Ex ta IIIC T100 °C Da

ATEX II 3G Ex nA IIC T4 Gc

IECEx SIR 11.0153X Ex ia IIC T4 Ga, Ex ta IIIC T100 °C Da

FM/CSA Class I, Div. 1, Groups A, B, C, D, Class II, Div. 1,

Groups E, F, G, Class III T4

FM/CSA Class I, Div 2, Groups A, B, C, D T5

SABS ARP0108 Ex ia IIC T4 Ga

INMETRO: DNV 12.0081 X

Ex ia IIC T4 Ga

Ex ta IIIC T100 °C Da

-40 °C Ta +80 °C

IP67/IP68

DNV #OCP 0017

ABNT NBR IEC 60079-0:2008

ABNT NBR IEC 60079-11:2009

ABNT NBR IEC 60079-26:2008 e

ABNT NBR IEC 60079-31:2011

Note: Process temperature and pressure capabilities are dependent upon information on

the process device tag. The reference drawing listed on the tag can be downloaded from the

Siemens website at: www.siemens.com/LR260

Note: Use appropriate conduit seals to maintain IP or NEMA rating.

process temperature (with FKM O-ring)

non-pressure version: –40 to +200 °C (–40 to +392 °F)

pressure rated version: –40 to +80 °C (–40 to +176 °F)

ambient temperature (surrounding

enclosure)

–40 °C to 80 °C (–40 °F to 176 °F)

Page EN-4 SITRANS LR260 (PROFIBUS PA) – QUICK START MANUAL A5E32114443

mmmmm

English

Pressure Application

Installation1

Installation guidelines

• Provide easy access for viewing the display and programming via the hand programmer.

• Provide an environment suitable to the housing rating and materials of construction.

• Provide a sunshield if the device will be mounted in direct sunlight.

Nozzle design

• The end of the horn must protrude a minimum of

10 mm (0.4”) to avoid false echoes being reflected

from the nozzle.

• Optional antenna extension: 100 mm (3.93"),

200 mm (70.9"), 500 mm (19.69"), 1000 mm (39.4")2

WARNINGS:

• This product is designated as a Pressure Accessory per Directive 97 / 23 / EC, and

is not intended for use as a safety device.

• Do not attempt to loosen, remove, or disassemble process connection or

instrument housing while vessel contents are under pressure.

• Improper installation may result in loss of process pressure.

WARNINGS:

• Installation shall only be performed by qualified personnel and in

accordance with local governing regulations.

• Materials of construction are chosen based on their chemical compatibility (or

inertness) for general purposes. For exposure to specific environments, check

with chemical compatibility charts before installing.

Notes:

• For European Union and member countries, installation must be according to ETSI EN

302372.

• The Process Device Tag shall remain with the process pressure boundary assembly1. In

the event the instrument package is replaced, the Process Device Tag shall be transferred

to the replacement unit.

• SITRANS LR260 units are hydrostatically tested, meeting or exceeding the requirements

of the ASME Boiler and Pressure Vessel Code and the European Pressure Equipment

Directive.

1. The process pressure boundary assembly comprises the components that act as a barrier against

pressure loss from the process vessel: that is, the combination of process connection body and

emitter, but normally excluding the electrical enclosure.

2. Extensions are not recommended for applications where there may be excessive visible vibration.

Please consult factory for more information.

min. clearance:

10 mm (0.4")

A5E32114443 SITRANS LR260 (PROFIBUS PA) – QUICK START MANUAL Page EN-5

mmmmm

English

Nozzle location

• Keep emission cone free of

interference from ladders, pipes,

I-beams or filling streams.

• Avoid central locations on tall,

narrow vessels.

• Align the antenna so that the

radar cone is perpendicular to the

surface of the monitored material,

if possible.

Mounting instructions

Wiring

Power

Note: Beam angle depends on horn

size.

WARNING: The user is responsible for the selection of bolting and gasket materials

which will fall within the limits of the flange and its intended use, and which are

suitable for the service conditions.

WARNINGS:

The DC input terminals shall be supplied from a source providing electrical

isolation between the input and output, meeting the applicable safety

requirements of IEC 61010-1.

All field wiring must have insulation suitable for rated voltages.

beam angle:

2" horn = 15°

3" horn = 10°

4" horn = 8°

emission

cone

min. 1 m (39")

Page EN-6 SITRANS LR260 (PROFIBUS PA) – QUICK START MANUAL A5E32114443

mmmmm

English

Connecting SITRANS LR260

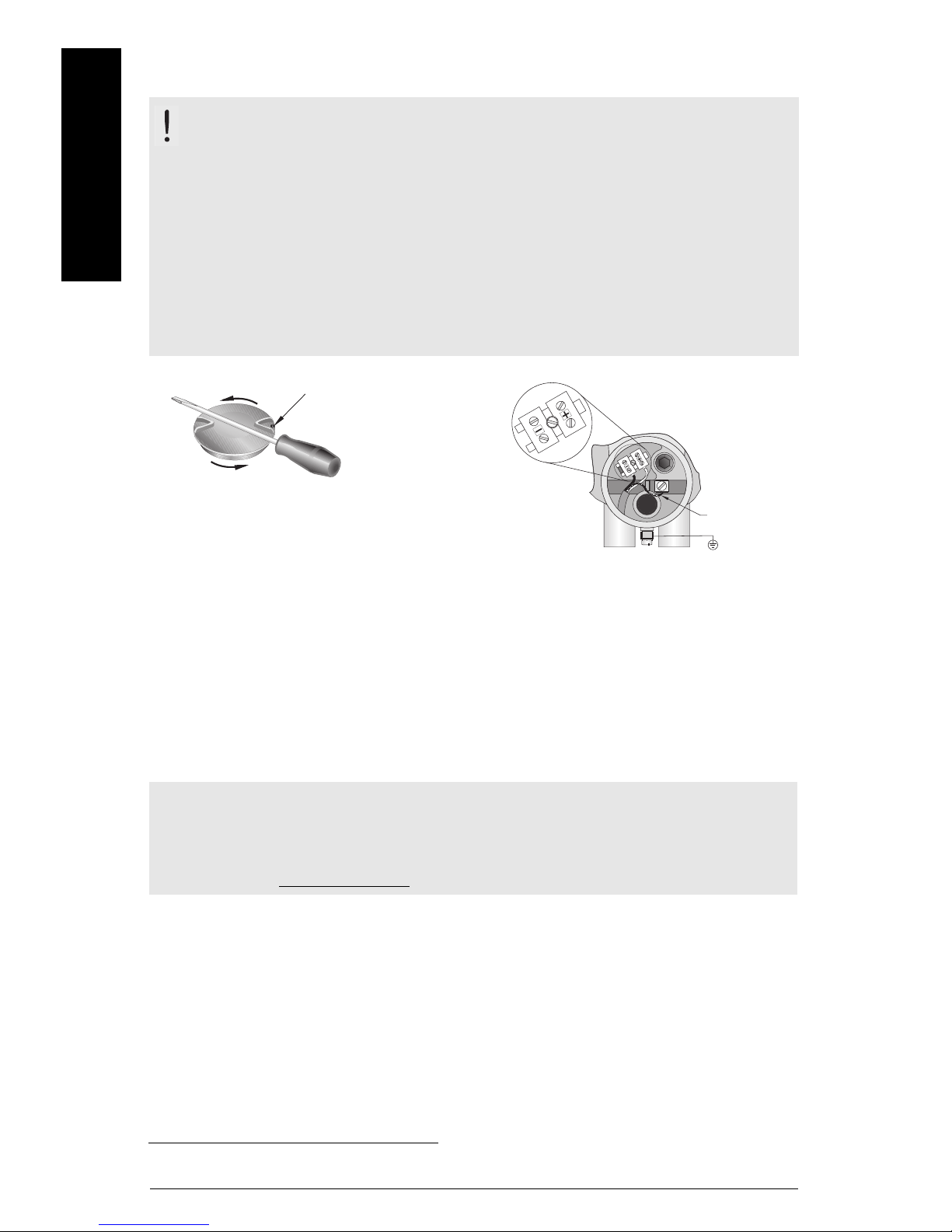

1. Use a 2 mm Allen key to loosen the lid-lock set screw then using a screwdriver for

leverage if necessary, unscrew the cover.

2. Strip the cable jacket for approximately 70 mm (2.75") from the end of the cable, and

thread the wires through the gland1.

3. Connect the wires to the terminal as shown (SITRANS LR260 is not polarity sensitive)

4. Ground the device according to local regulations.

5. Tighten the gland to form a good seal.

6. Close the lid and secure the locking ring beforeprogramming and calibration..

WARNINGS:

• Check the device nameplate and process device tag, to verify the approval rating.

• Use appropriate conduit seals to maintain IP or NEMA rating.

•Read

Wiring setup for hazardous area installations

on page 7.

Note:

• For detailed wiring instructions refer to the full Operating Instructions.

• Use twisted pair cable: AWG 22 to 14 (0.34 mm² to 2.5 mm²).

• Separate cables and conduits may be required to conform to standard instrumentation

wiring practices, or electrical codes.

1. If cable is routed through conduit, use only approved suitable-size hubs for waterproof applications.

Notes:

• PROFIBUS PA must be terminated at both extreme ends of the cable for it to work

properly.

• Please refer to the

PROFIBUS PA User and Installation Guidelines

(order number 2.092),

available from www.profibus.com, for information on installing PROFIBUS devices.

2 mm lid-lock

set screw.

cable shield

(if used)

A5E32114443 SITRANS LR260 (PROFIBUS PA) – QUICK START MANUAL Page EN-7

mmmmm

English

Connecting PROFIBUS PA

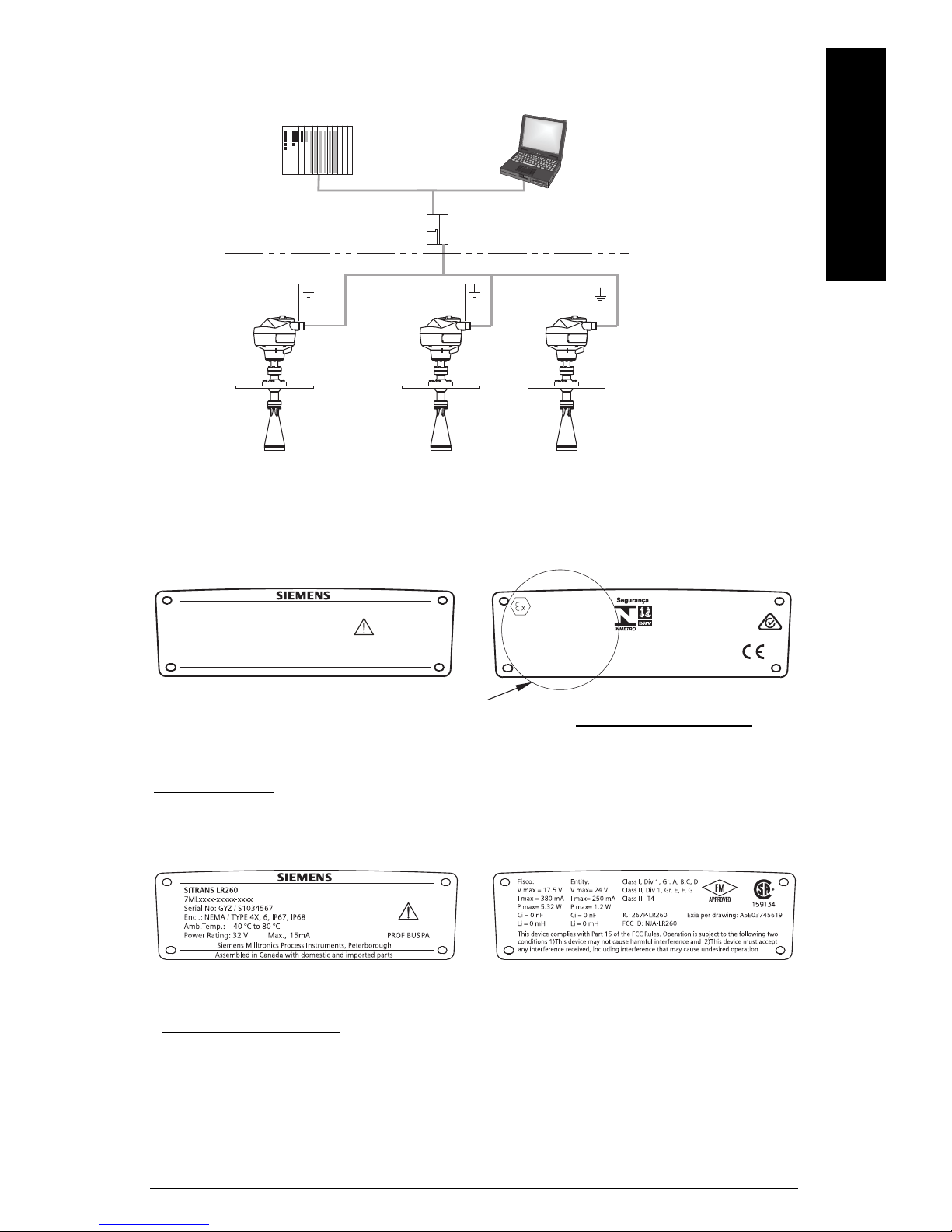

Typical PLC connection with PROFIBUS PA

Wiring setup for hazardous area installations

1. Intrinsically Safe wiring

• For wiring requirements: follow local regulations.

• Approved dust-tight and water-tight conduit seals are required for outdoor

NEMA 4X / type 4X / NEMA 6, IP67, IP68 locations.

• Refer to

Instructions specific to hazardous area installations

on page 9.

PROFIBUS PA

PROFIBUS DP

DP/PA

coupler

active PLC

PC/laptop

PDM

SITRANS

LR260

(PROFIBUS PA)

SITRANS

LR260

(PROFIBUS PA)

SITRANS

LR260

(PROFIBUS PA)

SITRANS LR260

Siemens Milltronics Process Instruments, Peterborough

7MLxxxx-xxxxx-xxxx

Encl.: NEMA / TYPE 4X, 6, IP67, IP68

Amb.Temp.: – 40°C to 80°C

Power Rating: 30 V Max., 15 mA

Serial No: GYZ / A1034567

FISCO:

Field Device

Ui = 17.5 V

Ii = 380 mA

Pi = 5.32 W

Ci = 0

Li=0

Entity:

Ui=24V

Ii = 250 mA

Pi = 1.2 W

Ci=0

Li = 0 0518

0891

Assembled in Canada with domestic and imported parts

PROFIBUS PA

KCC-REM-S49

SITRANSLR

II1GD,1/2D,2D

Ex ia IIC T4 Ga

Ex ta IIIC T100°C Da

SIRA 11ATEX2348X

IECEx SIR 11.0153X

ARP0108 Ex ia IIC T4 Ga

ATENÇÃO - RISCO POTENCIAL DE CARGA ELETROSTÁTICA – VEJA INSTRUÇÕES

- UTILIZAR CABOS ADEQUADOS PARA TEMPERATURAS >100 °C

WARNING: Use Cable Rated >100°C

Ex ia IIC T4 Ga

Ex ta IIIC T100°C Da

DNV 12.0081 X

OCP 0017

The ATEX certificate listed on the nameplate

can be downloaded from the product page of our website at: www.siemens.com/LR260. Go

to Support > Approvals / Certificates.

The IECEx certificate listed on the nameplate can be viewed on the IECEx website. Go to:

http://iecex.iec.ch and click on Ex Equipment Certificates of Conformity then enter the

certificate number IECEx SIR 11.0153X.

Device nameplate (ATEX/IECEX/INMETRO/C-TICK)

FM/CSA Intrinsically Safe connection drawing

number A5E03745619 can be downloaded from the product page of our website at:

www.siemens.com/LR260. Go to Support > Installation Drawings > Level Measurement >

Continuous - Radar.

Device nameplate (FM/CSA)

Page EN-8 SITRANS LR260 (PROFIBUS PA) – QUICK START MANUAL A5E32114443

mmmmm

English

2. Non-Sparking wiring

• For wiring requirements: follow local regulations.

• Approved dust-tight and water-tight conduit seals are required for outdoor 

Type 4X/NEMA 4X, Type 6/NEMA 6, IP67 locations.

• Refer to

Instructions specific to hazardous area installations

on page 9.

3. Non-incendive wiring (US/Canada only)

Assembled in Canada with domestic and imported parts

Siemens Milltronics Process Instruments, Peterborough

PROFIBUS PA

WARNING: Use Cable Rated > 100°C

Ex nA IIC T4 Gc

SIRA 09ATEX4156X

SITRANS LR260

7MLxxxx-xxxxx-xxxx

Serial No.: GYZ / B1034567

Encl.: NEMA / TYPE 4X, 6, IP67, IP68

Amb. Temp.: – 40°C to 80°C

Power Rating: 30 V Max., 15 mA

0891

KCC-REM-S49

SITRANSLR

The ATEX certificate listed on the nameplate

can be downloaded from the product page of our website at: www.siemens.com/LR260. Go to

Support > Approvals / Certificates.

FM/CSA Class 1, Div 2 connection drawing number A5E03745541

can be downloaded from the product page of our website at: www.siemens.com/LR260. Go to

Support > Installation Drawings > Level Measurement > Continuous - Radar.

Otros manuales para SITRANS LR260

Tabla de contenidos

Idiomas:

Otros manuales de Transmisor de Siemens

Siemens

Siemens SITRANS P DS III Manual de usuario

Siemens

Siemens SITRANS LR260 Manual de instrucciones

Siemens

Siemens SITRANS P series Manual de usuario

Siemens

Siemens SITRANS L Series Guía del administrador

Siemens

Siemens SITRANS TH100 Manual de usuario

Siemens

Siemens SITRANS T3K PA 7NG3213 Manual de usuario

Siemens

Siemens SITRANS P300 Manual de usuario

Siemens

Siemens SITRANS LU150 Manual de usuario

Siemens

Siemens SITRANS L Series Guía del administrador

Siemens

Siemens SITRANS LR260 Manual de usuario

Siemens

Siemens SITRANS LR560 Guía del administrador

Siemens

Siemens 7MF8*24 Series Guía del administrador

Siemens

Siemens SITRANS LH100 Guía del administrador

Siemens

Siemens SITRANS F C MASS 6000 IP67 Manual de instrucciones

Siemens

Siemens SITRANS P DS III Manual de usuario

Siemens

Siemens SITRANS FUS060 HART Manual de usuario

Siemens

Siemens 8DJH Manual

Siemens

Siemens SITRANS F M MAG 8000 Manual de usuario

Siemens

Siemens SITRANS LR260 Manual de usuario

Siemens

Siemens sitrans lr 460 Manual de instrucciones

Siemens

Siemens CP 1242-7 GPRS V2 Manual de usuario

Siemens

Siemens Sitrans LR200 Manual de instrucciones

Siemens

Siemens SITRANS LR140 Manual de usuario

Siemens

Siemens sitrans PROBE LU Manual de instrucciones

Manuales populares de Transmisor de otras marcas

NIVELCO

NIVELCO EasyTREK SCA-300 Series Manual del propietario

Honeywell

Honeywell 5816WMBR Manual de usuario

Kamstrup

Kamstrup READy MTU Instrucciones de funcionamiento

Omega

Omega ZW Series Manual de usuario

ABB

ABB Field 264H Guía

Alinco

Alinco DJ-V17T Manual de usuario

Dejero

Dejero EnGo 3x Manual de usuario

Rosemount

Rosemount 4600 Manual de usuario

Speaka Professional

Speaka Professional 2342740 Manual de usuario

trubomat

trubomat GAB 1000 Manual de usuario

Teledyne Analytical Instruments

Teledyne Analytical Instruments LXT-380 Manual de usuario

Rondish

Rondish UT-11 Manual de usuario

MG 10JRE Manual de usuario

Burkert

Burkert 8177 Manual de usuario

Firetide

Firetide HotPort 3203 Manual

Tele Radio

Tele Radio T9-02 Manual de usuario

Rotronic

Rotronic HygroFlex HF3 Series Manual de usuario

Jamara

Jamara FCX6 Pro Tel Manual de usuario
