FCA2015-U1

Serial Digital Alarm Communicator Transmitter

(DACT)

Installation Instruction

Siemens Industry, Inc, A6V10334254_en--_g

Building Technologies Division

Legal Notice

Technical specifications and availability subject to change without notice.

Transmittal, reproduction, dissemination and/or editing of this document as well as utilization of its

contents and communication thereof to others without express authorization are prohibited.

Offenders will be held liable for payment of damages. All rights created by patent grant or

registration of a utility model or design patent are reserved.

Issued by:

Siemens Industry, Inc.

Building Technologies Division

8 Fernwood Road

Florham Park, NJ 07932

Tel. + 1 973- 593-2600

www.sbt.siemens.com/FIS

Edition: 2018-02-09

Document ID: A6V10334254_en--_g

Siemens Industry, Inc, A6V10334254_en--_g

Building Technologies Division

Cyber security disclaimer

Siemens products and solutions provide security functions to ensure the secure operation of building

comfort, fire safety, security management and physical security systems. The security functions on these

products and solutions are important components of a comprehensive security concept.

It is, however, necessary to implement and maintain a comprehensive, state-of-the-art security concept that

is customized to individual security needs. Such a security concept may result in additional site-specific

preventive action to ensure that the building comfort, fire safety, security management or physical security

system for your site are operated in a secure manner. These measures may include, but are not limited to,

separating networks, physically protecting system components, user awareness programs, defense in depth,

etc.

For additional information on building technology security and our offerings, contact your Siemens sales or

project department. We strongly recommend customers to follow our security advisories, which provide

information on the latest security threats, patches and other mitigation measures.

http://www.siemens.com/cert/en/cert-security-advisories.htm

Siemens Industry, Inc, A6V10334254_en--_g

Building Technologies Division

Table of Contents

OVERVIEW..........................................................................................................................................................6

INSTALLATION ON DESIGO AND CERBERUS PRO PANELS .................................................................................6

INSTALLATION ON XLS/DESIGO FIRE SAFETY MODULAR/CERBERUS PRO MODULAR ......................................7

FIRMWARE UPDATE ON XLS/DESIGO FIRE SAFETY MODULAR/CERBERUS PRO MODULAR SYSTEMS..............7

FCA2015-U1 WIRING..........................................................................................................................................7

FCA2015-U1 FORMAT DESCRIPTION .............................................................................................................8

COMPATIBLE RECEIVERS/FORMATS ..............................................................................................................8

COMPATIBLE ALARM COMMUNICATORS......................................................................................................8

FCA2015-U1 EVENT CODES..........................................................................................................................10

FCC Statement .................................................................................................................................................12

Siemens Industry, Inc, A6V10334254_en--_g

Building Technologies Division

NOTICE TO USERS, INSTALLERS, AUTHORITIES HAVING JURISDICTION, AND OTHER

INVOLDED PARTIES

This product incorporates field-programmable software. In order for the product to comply with the

requirements in the Standard for Control Units and Accessories for Fire Alarm Systems, UL 864,

certain programming features or options must be limited to specific values or not used at all as

indicated below.

Program feature or

option

Permitted in UL 864?

(Y/N) Possible settings

Settings permitted in

UL 864

PERIODIC TEST,

PROGRAMMING

RANGE Y 1 – 24 Hours 1 – 6 Hours

Digital Communication

format

SIA DCS, Ademco

Contact ID, 3/1, 4/2

SIA DCS, Ademco

Contact ID

Siemens Industry, Inc, A6V10334254_en--_g

Building Technologies Division

OVERVIEW

The FCA2015-U1 Digital Alarm Communicator Transmitter (DACT) Board is an optional module for the

Desigo FC2025/2050, FV2025/2050, Cerberus PRO FC922/924, FV922/924, and XLS/Desigo Fire Safety

Modular/Cerberus PRO Modular Fire Alarm System Control Panels. The DACT provides telephone line

connections for communication with a DACR (Digital Alarm Communicator Receiver). The DACT Board is

mounted inside the Fire Alarm cabinet. The DACT Board options are set through the control panel

programming sequence.

INSTALLATION ON DESIGO AND CERBERUS PRO PANELS

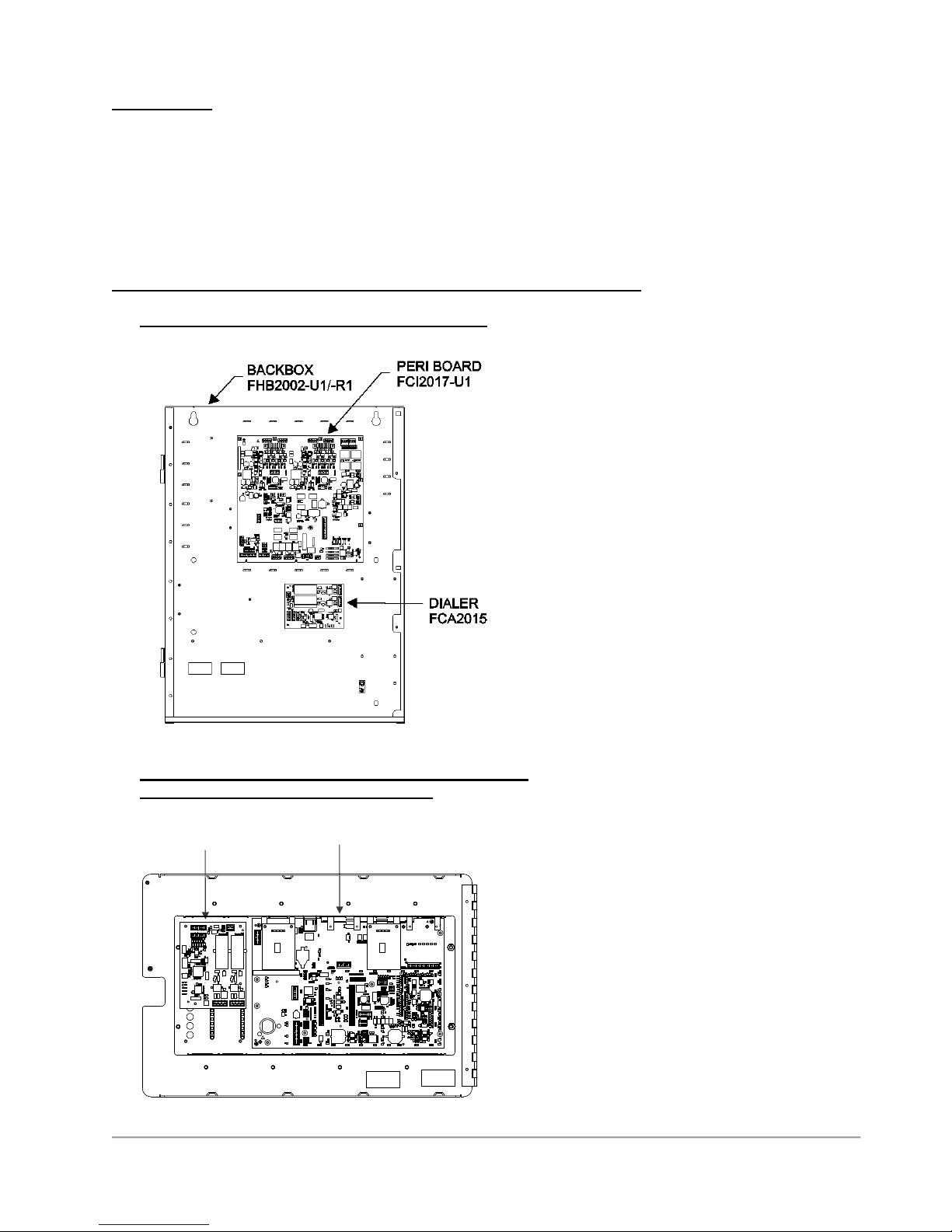

Dialer FCA2015-U1 mounted on 2HU Enclosure

Dialer FCA2015-U1 mounted on the back of the inner

door (when used with a 3HU Enclosure)

Step 1)

Installation should be performed by

qualified personnel who have

thoroughly read and understood this

instruction sheet.

Step 2) Disconnect BATTERY and AC on the

cabinet prior to working on the

equipment.

Step 3) Mount FCA2015-U1 as shown using

the four screws that are supplied.

Step 4) Attach conduit and run wires as

required. Wire Size: 12-22AWG

Step 5) Connect the Serial Communication

Cable to the fire system control unit as

required.

Step 6) Apply power to system.

Step 7) Program for proper operation.

NOTE: See the Desigo FC2025/2050,

FV2025/2050 Configuration manual,

Document ID A6V10315023, and

Cerberus PRO FC922/924, FV922/924

Fire Detection System Configuration

manual, Document ID A6V10333423, for

details on programming.

Step 8) Check for proper operation.

PARTS SUPPLIED

1 DACT Board

4 Screws

1 Instruction Sheet

1 Serial Communication Cable

*4 1 ¾” x ¼” Hex Male to Female

Standoff

*Used for FCM2019-U2/-U3 or FCM2035-

U2/-U3 only.

DIALER

FCA2015 PMI

OPERATING UNIT

Siemens Industry, Inc, A6V10334254_en--_g

Building Technologies Division

INSTALLATION ON XLS/DESIGO FIRE SAFETY MODULAR/CERBERUS PRO

MODULAR

For instructions on installing and wiring the FCA2015-U1 DACT to the XLS/Desigo Fire Safety

Modular/Cerberus PRO Modular panel, refer to the XDACT-ASSY Installation Instructions, Document ID

A6V10807278.

If a message indicating an XDACT firmware mismatch is displayed on the Operator Interface (OI), upgrade

the XDACT firmware as follows.

FIRMWARE UPDATE ON XLS/DESIGO FIRE SAFETY MODULAR/CERBERUS PRO

MODULAR SYSTEMS

To update the firmware on an FCA2015-U1 that is installed on a XLS/Desigo Fire Safety Modular/Cerberus

PRO Modular system, establish an Ethernet connection between the PC and the OI, then select the XDACT

module in the Zeus configuration. Next, select Build > Transfer > Module Firmware To Panel… in Zeus.

Select the XDACT firmware file under Firmware File, then set the Connection Settings as needed and click

Start Transfer to begin the update. Transfer Completed will be displayed in Zeus after the firmware update

has completed.

FCA2015-U1 WIRING

NOTE: The RJ31X provides a convenient connection allowing the DACT to be installed and removed

without requiring re-wiring and can be installed by the telephone installer.

NOTE: If installed in Canada, the signal receiving centre must not share a common communication channel

with the protected premises. A dedicated line must be installed for use only by the FCA2015-U1.

NOTE: Either of the two lines at X300 or X301 can be disabled using the Engineering Configuration tool for

the case where the dialer is connected to an alarm communicator that is capable of transmitting with

two separate technologies (ex. GSM and POTS). Consult the installation instructions for the

communicator to determine if it supports this capability.

Siemens Industry, Inc, A6V10334254_en--_g

Building Technologies Division

FCA2015-U1 FORMAT DESCRIPTION

Format

Description

SIA DCS 8

Security Industry Association - Digital Communications Standard (DCS). Format may send up

to eight events per call. SIA 1997 Level 1 compatibility with support for O (old) blocks and

300 Baud (FAST) operation.

Sends an account number (up to 6 digits), a 2-character code and 3-digit identifier up

to four times with FSK frequency encoding.

SIA DCS 20

See SIA DCS 8, except format may send up to twenty events per call.

Ademco Contact ID Sends a 4-digit account number, a 3-digit code and 3-digit identifier up to four rounds of dual

tone multiple frequency with 1400 and 2300 Hz handshake frequency.

3/1 1400HZ

Sends a 3-digit account number and a 1-digit code up to four rounds at 20 pps with 1400 Hz

handshake frequency.

3/1 2300HZ

Sends a 3-digit account number and a 1-digit code up to four rounds at 20 pps with 2300 Hz

handshake frequency.

4/2 1400HZ

Sends a 4-digit account number and a 2-digit code up to four rounds at 20 pps with 1400 Hz

handshake frequency.

4/2 2300HZ

Sends a 4-digit account number and a 2-digit code up to four rounds at 20 pps with 2300 Hz

handshake frequency.

COMPATIBLE RECEIVERS/FORMATS

Receiver

Manufacturer

Compatible

Receivers

SIA DCS

SIA

DCS

Ademco

Contact ID

3/1

1400HZ

3/1

2300HZ

4/2

1400HZ

4/2

2300HZ

Honeywell

M8000

SIA

DCS 8

SIA20

Ademco

Contact ID

SK 3/1

SK 4/2

Bosch

D6100i

SIA

DCS 8

SIA20

Ademco

Contact ID

SK 3/1

SK 4/2

Silent Knight

Security

Corp.

9800 X X Ademco

Contact ID SK 3/1 SK 3/1 SK 4/2 SK 4/2

Sur-Gard

System IV

SIA

DCS 8

SIA20

Ademco

Contact ID

SK 3/1

SK 4/2

Sur-Gard

System III*

SIA

DCS 8

SIA20

Ademco

Contact ID

SK 3/1

SK 4/2

*For FM use only

The FCA2015-U1 is also compatible with alarm communicators that utilize different communication

technologies (IP and GSM technologies) to connect to compatible receivers using compatible protocols listed

within this document.

COMPATIBLE ALARM COMMUNICATORS

Manufacturer

Model #

Communication Technology

Installation Part Number

Tellular TG7GFS04 GSM 56044102

Bosch C900V2 IP

F01U087780-01

DSC TL300CF IP 29007636/ 29007842

DSC 3G3070-CF GSM

29008179

Siemens Industry, Inc, A6V10334254_en--_g

Building Technologies Division

NOTES:

•The DACT can be used with alarm communicators that also employ other transmission technologies

for off-premises signaling for UL. The DACT is limited to off-premises transmission for ULC.

•When using these alarm communicators, the DACT shall be configured for Contact ID.

•Refer to the Alarm Communicator Installation Instruction for compatible receivers.

•Wiring between the DACT and the alarm communicator shall be within 20 feet, and in conduit.

•All compatible Alarm Communicators shall be installed in accordance with their installation

instructions.

•A means must be provided for detection of faults on the communicator by the fire alarm panel, as

described in the installation instructions for the communicator. This is typically done by connecting a

trouble-activated relay on the communicator to an input switch module (i.e. HTRI).

•The TL300CF communicator must be wired as shown below.

NOTE: This relay must be listed to ULC S527.

HTRI

Input

To XDACT Line

Tip or

Ring

Out

To TL

300

PGM Terminal

To TL

300

IN Terminal

“IP Path Down”

Custom Message

ULC

527

Listed

Relay

Siemens Industry, Inc, A6V10334254_en--_g

Building Technologies Division

FCA2015-U1 EVENT CODES

Event Type

SIA DCS

(8 or 20)

5Ademco

Contact ID

3/1

1400 Hz or

2300HZ

4/2

1400 Hz or

2300HZ

Fire Alarm

FA pppp

1 110 0p ppp

Fire Alarm Restore

(Through Reset)

FH pppp

3 110 0p ppp

Smoke Alarm

FA pppp

1 111 0p ppp

Smoke Alarm Restore

FH pppp

3 111 0p ppp

2 21

Heat Alarm

FA pppp

1 114 0p ppp

Heat Alarm Restore

FH pppp

3 114 0p ppp

Pull Station Alarm

FA pppp

1 115 0p ppp

Pull Station Alarm Restore

FH pppp

3 115 0p ppp

Waterflow Alarm

pppp

1 113 0

p ppp

Waterflow Alarm Restore

SH pppp

3 113 0p ppp

Supervisory

SS pppp

1 200 0p ppp

Supervisory Restore

SR pppp

3 200 0p ppp

AC Trouble

1 301 00 000

AC Trouble Restore

3 301 00 000

Trouble

FT pppp

1 373 0p ppp

Trouble Restore

FJ pppp

3 373 0p ppp

System Battery Trouble

1 302 00 000

System Battery Trouble Restore

3 302 00 000

Phone Line 1 Trouble

LT 1

1 351 00 000

Phone Line 1 Trouble Restore

LR 1

3 351 00 000

Phone Line 2 Trouble

LT 2

1 352 00 000

Phone Line 2 Trouble Restore

LR 2

3 352 00 000

Data Lost

RT 0

1 354 00 000

Automatic Test (Normal)

1 602 00 000

Automatic Test (Off Normal)

1 608 00 000

Manual Test

RX 0

1 601 00 000

Test Activation

FX pppp

1 611 0p ppp

Gas Alarm

GA pppp

1 151 0p ppp

Gas Alarm Restore

GH pppp

3 151 0p ppp

Communications Fail YC 1 350 00 000 8 84

System Reset

OR 0

1 305 00 000

Test Begin

FI pppp

1 604 0p ppp

Test End

FK pppp

3 604 0p ppp

Mass Notification Alarm4

PA pppp

1 120 0p ppp

Mass Notification Alarm Restore4

PH pppp

3 120 0p ppp

Mass Notification Trouble4

PT pppp

1 375 0p ppp

Mass Notification Trouble Restore4

PJ pppp

3 375 0p ppp

MNS11

XB pppp

1 789 0p ppp

MNS1 Restore1

pppp

3 789 0p

ppp

MNS21

XN pppp

1 788 0p ppp

MNS2 Restore1

XP pppp

3 788 0p ppp

MNS Trouble1

XU pppp

1 787 0p ppp

MNS Trouble Restore1

XV pppp

3 787 0p ppp

Security3

TA pppp

1 137 0p ppp

Security Restore3

TH pppp

3 137 0p ppp

Emergency2, 4

EB pppp

1 785 0p ppp

Emergency Restore2, 4

EC pppp

3 785 0p ppp

Building2

ZA pppp

1 152 0p ppp

Building Event Restore2

ZH pppp

3 152 0p ppp

“Other”2

XY pppp

1 786 0p ppp

“Other” Restore2

XZ pppp

3 786 0p ppp

*pppp is the dialer group or zone number

Tabla de contenidos

Otros manuales de Transmisor de Siemens

Siemens

Siemens SITRANS P320 Guía del administrador

Siemens

Siemens 7MF8*23 Series Guía del administrador

Siemens

Siemens SITRANS P250 Manual de usuario

Siemens

Siemens Sitrans LR250 Manual de usuario

Siemens

Siemens SITRANS P Manual de usuario

Siemens

Siemens SITRANS L Series Manual de usuario

Siemens

Siemens SITRANS P200 Manual de usuario

Siemens

Siemens Sitrans Probe LR Manual de instrucciones

Siemens

Siemens 7MF8*24 Series Guía del administrador

Siemens

Siemens SITRANS 7MF1570 Manual de usuario

Siemens

Siemens sitrans tr200 Manual de usuario

Siemens

Siemens SITRANS TH320 Manual de usuario

Siemens

Siemens SITRANS LR250 PROFIBUS PA Manual de usuario

Siemens

Siemens SITRANS P 7MF4013 Manual de usuario

Siemens

Siemens SITRANS P500 Guía del administrador

Siemens

Siemens SITRANS LR560 Guía del administrador

Siemens

Siemens SITRANS P series Instrucciones de funcionamiento

Siemens

Siemens SITRANS LR560 Manual de instrucciones

Siemens

Siemens SITRANS L Manual de usuario

Siemens

Siemens Sitrans LR250 Manual de instrucciones

Siemens

Siemens sitrans lc 300 Manual de instrucciones

Siemens

Siemens SITRANS LR560 Manual de instrucciones

Siemens

Siemens miniTek Manual de usuario

Siemens

Siemens SITRANS F C MASSFLO MASS 6000 Manual de usuario

Manuales populares de Transmisor de otras marcas

NIVELCO

NIVELCO EasyTREK SCA-300 Series Manual del propietario

Honeywell

Honeywell 5816WMBR Manual de usuario

Kamstrup

Kamstrup READy MTU Instrucciones de funcionamiento

Omega

Omega ZW Series Manual de usuario

ABB

ABB Field 264H Guía

Alinco

Alinco DJ-V17T Manual de usuario

Dejero

Dejero EnGo 3x Manual de usuario

Rosemount

Rosemount 4600 Manual de usuario

Speaka Professional

Speaka Professional 2342740 Manual de usuario

trubomat

trubomat GAB 1000 Manual de usuario

Teledyne Analytical Instruments

Teledyne Analytical Instruments LXT-380 Manual de usuario

Rondish

Rondish UT-11 Manual de usuario

MG 10JRE Manual de usuario

Burkert

Burkert 8177 Manual de usuario

Firetide

Firetide HotPort 3203 Manual

Tele Radio

Tele Radio T9-02 Manual de usuario

Rotronic

Rotronic HygroFlex HF3 Series Manual de usuario

Jamara

Jamara FCX6 Pro Tel Manual de usuario
