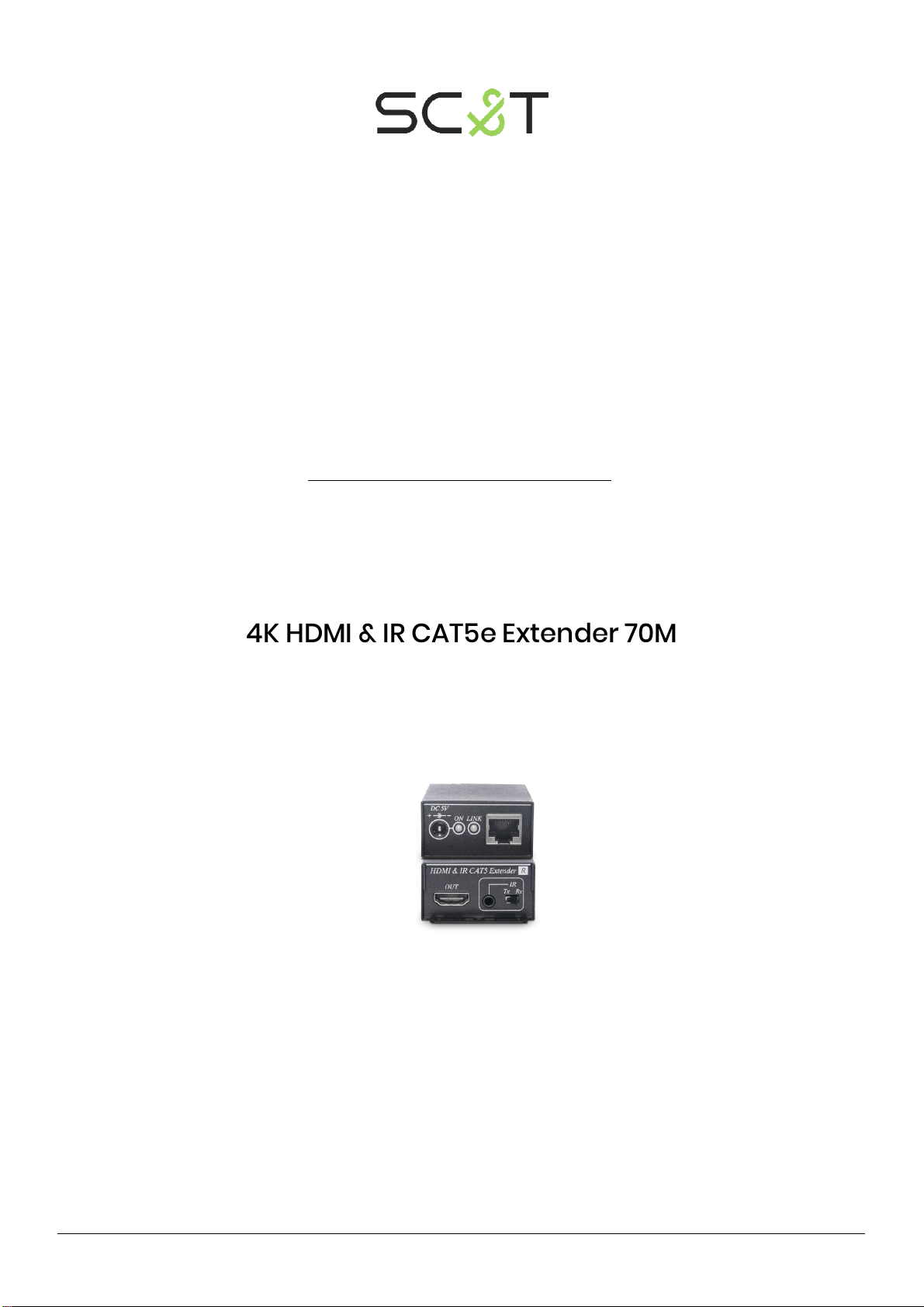

SC&T HE02EI Manual de usuario
Smart Cabling & Transmission Corp.
V1.0_150429B
HDMI over HDBaseT Extender
User Manual
Model : HE02EI
4K HDMI & IR CAT5e Extender 70M
1
User Manual
HE02EI
Introduction
HE02EI is a 4K HDMI over HDBaseT™ extender that can use an Ethernet cable to send uncompressed HDMI,
bi-directional IR signals with resolution up to 4K@60Hz 4:2:0 and transmission distance up to 70M.
Features
Resolution up to 4K@60Hz 4:2:0.
Signal extension up to 70M over CAT5e/6 cable.
Supports IR transmission, selectable from either TX or RX side.
Supports EDID and CEC pass through.
Installation view
IR Switch Setting
1. When use BD/DVD remote controller (DVD at remote side)，HE02EIR IR switch move to RX and connect
with Receiver cable; HE02EIT IR switch move to TX and connect with Emitter cable.
2. When use TV remote controller (TV at remote side), HE02EIT IR switch move to RX and connect with
Receiver cable; HE02EIR IR switch move to TX and connect with Emitter cable.
Low-power Mode
When there is no HDMI video signal input or TV is not connected or power off, this product will enter a
low-power mode to save power consumption; under a low power mode still provides Ethernet, RS-232, IR,
and CEC of signal transmission.
LED Indication
Power GREEN on (power)
Link BLUE on (linking)
Flash (low-power mode)
2
User Manual
HE02EI
Cable
Link cable recommend use high quality CAT.5e、CAT.6、CAT.6a、CAT.7 UTP / STP or FTP cable. Poor quality
cable or network connection or improper construction will cause unstable connection, video or sound
disruptions, picture noise appears.
HDBaseT Distance Chart by Different Cable
Cable Type
Range
Pixel Clock Rate
Video Data Rate
Supported Video
CAT.5e / CAT.6
60 M
≦225MHz
≦5.3Gbps(Full HD Video)
1080p 60Hz 36 bit
CAT.6a / CAT.7
70 M
CAT.5e / CAT.6
35 M
> 225MHz
> 5.3Gbps(Ultra HD Video)
1080p 60Hz 48 bit
1080p 60Hz 3D
4K x 2K 30Hz
CAT.6a / CAT.7
40 M
If connection through the wall socket, the cable length must less 5 meters between HDMI extender and
wall jack, as below drawing:
10/100Mbps network connection using general CAT5e cable and working distance up to 60M.
RJ45 Define
Video Link (TIA/EIA-568-B)
1. Orange-white DATA0 +
2. Orange DATA0 -
3. Green-white DATA1 +
4. Blue DATA2 +
5. Blue-white DATA2 -
6. Green DATA1 -
7. Brown-white DATA3 +
8. Brown DATA3 -
Panel View
HE02EIT HE02EIR
Transmitter
Wall Jack
Wall Jack
Receiver
CAT6a 70M
< 5M
< 5M
3
User Manual
HE02EI
Caution
1. The wiring must away from any equipment with electromagnetic wave, i.e.: mobile phone, microwave,
radio equipment, fluorescent lamp, high voltage power lines.
2. The cable must pull in straight to avoid any crosstalk interference and the transmission stability.
3. This device HDBaseT port is not general Ethernet signal; do not connect with Network devices to avoid
damage.
4. IR transmitter do not put near from receiver to avoid mutual interference.
5. The receiver unit working temperature is higher which is in normal condition.
Package Include
HE02EIT HDM Transmitter x 1 pcs
HE02EIR HDMI Receiver x 1 pcs
IR Emitter Cable x 1 pcs
IR Receiver Cable x 1 pcs
Mounting Screw pack x 1 bags
Power Adapter x 2 pcs
4
User Manual
HE02EI
Specification
ITEM NO.
HE02EIT
HE02EIR
Support
Compliance
HDMI 1.4, HDCP, 3D
Max. Video Resolution
4K@30Hz
Max. Transmission Distance
70M at 1080p@60Hz, 40M at 4K@30Hz
Video Bandwidth
10.2 Gbps
Audio Format
7.1 LPCM 192KHz, Dolby TrueHD, DTS-HD MA
IR Support
30-60Khz, ±15°, 5M, Bi-directional
30-60Khz, ±55°, 5M,
Bi-directional
Ports & Interfaces
Video Input
1 x HDMI Type A
1 x HDBaseT
Video Output
1 x HDBaseT
1 x HDMI Type A
Power
Power Supply
DC 5V 1A
DC 5V 1A
Power Consumption
2W (Max), 0.8W(Low Power)
4W (Max), 1W (Low Power)
Ambient Temperature
Operation
0 to 55℃
Storage
-20 to 85℃
Humidity
up to 95%
Physical Characteristics
Dimensions
49 x 92.3 x 25mm
49 x 92.3 x 25mm
Weight
125g
135g
