Instruction Manual

Manuel Lever Test Stand

SAUTER TVP

Version 1.2

05/2015

GB

TVP-BA-e-1512

PROFESSIONAL MEASURING

2 TVP-BA-e-1512

GB

SAUTER TVP

Version 1.2 05/2015

Instruction Manual

Manuel Lever Test Stand

Thank you for buying a manual lever test stand of the brand SAUTER. We hope you

are pleased with your high quality measurement system and its high repeatability. If

you have any queries, wishes or helpful suggestions, do not hesitate to call our ser-

vice number.

Summarize:

1Scope of delivery........................................................................................... 3

2Warning .......................................................................................................... 3

3Technical Specifications............................................................................... 3

4Adaptation of measurement devices ........................................................... 3

5Pictures with dimensions.............................................................................. 4

TVP -BA-e-1512 3

1 Scope of delivery

- SAUTER TVP

2 Warning

If force measurements are carried out irregularly, this can lead to serious injuries of

people and also material damages. Therefore, these measurements may only be car-

ried out by experienced and qualified persons.

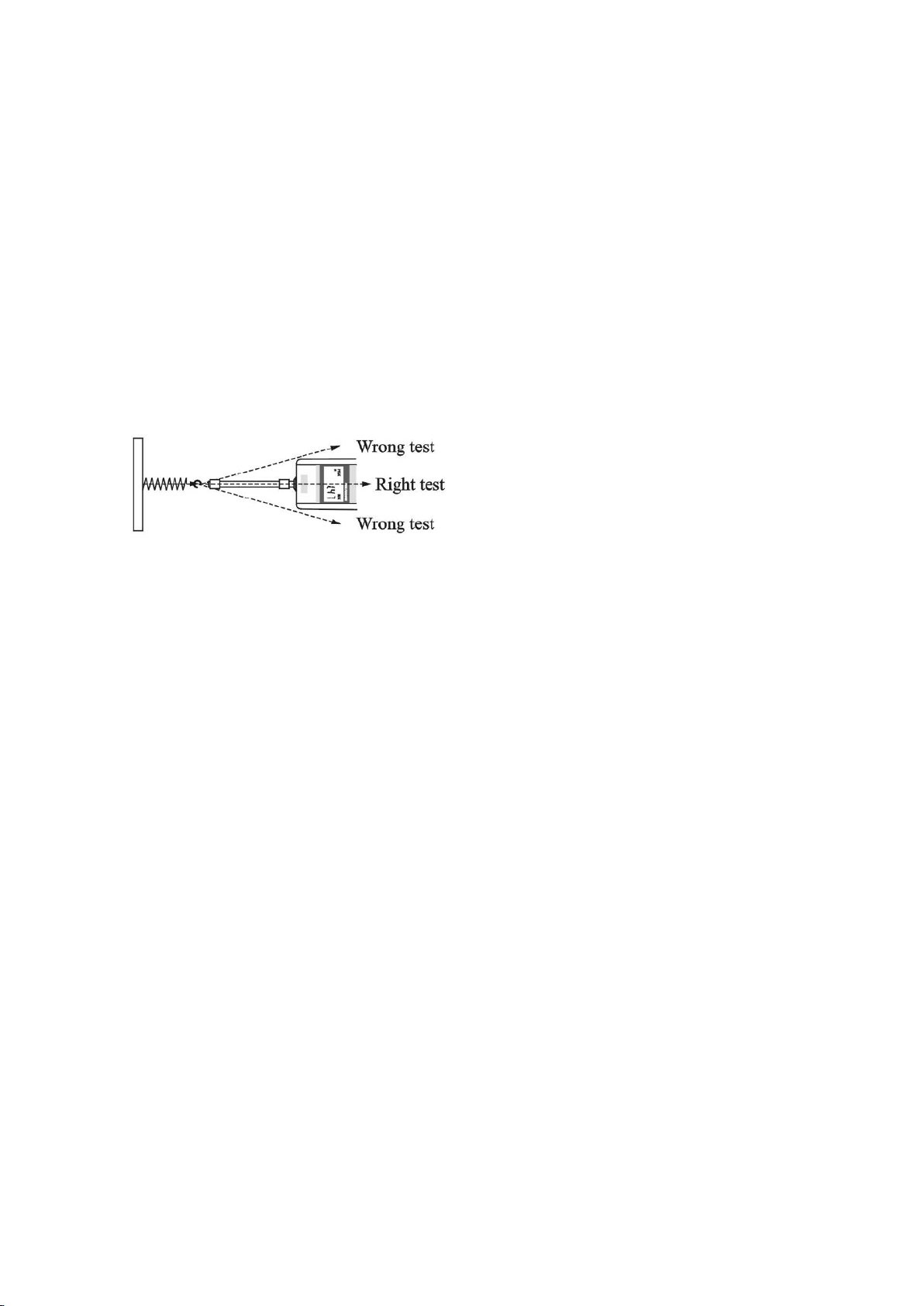

Particularly it has to be avoided that forces operating by the test stand on the force

gauge, are exceeding the maximum load (max) of the test stand or the measuring

instrument, or which do not operate axially from the test stand on the gauge.

3 Technical Specifications

For force compression tests up to 500N

Measuring direction: vertical

Minimum initial height of sledge over base plate: 115 mm

Maximum height of sledge over base plate: 318 mm

Maximum stroke length (stroke of sledge with one lever movement): 78mm

Maximum test object length: 315mm

Height: 420 mm / Length: 233 mm / Width: 150 mm

Proper weight: 10,5 kg

4 Adaptation of measurement devices

With 4 M3 screws

4 TVP-BA-e-1512

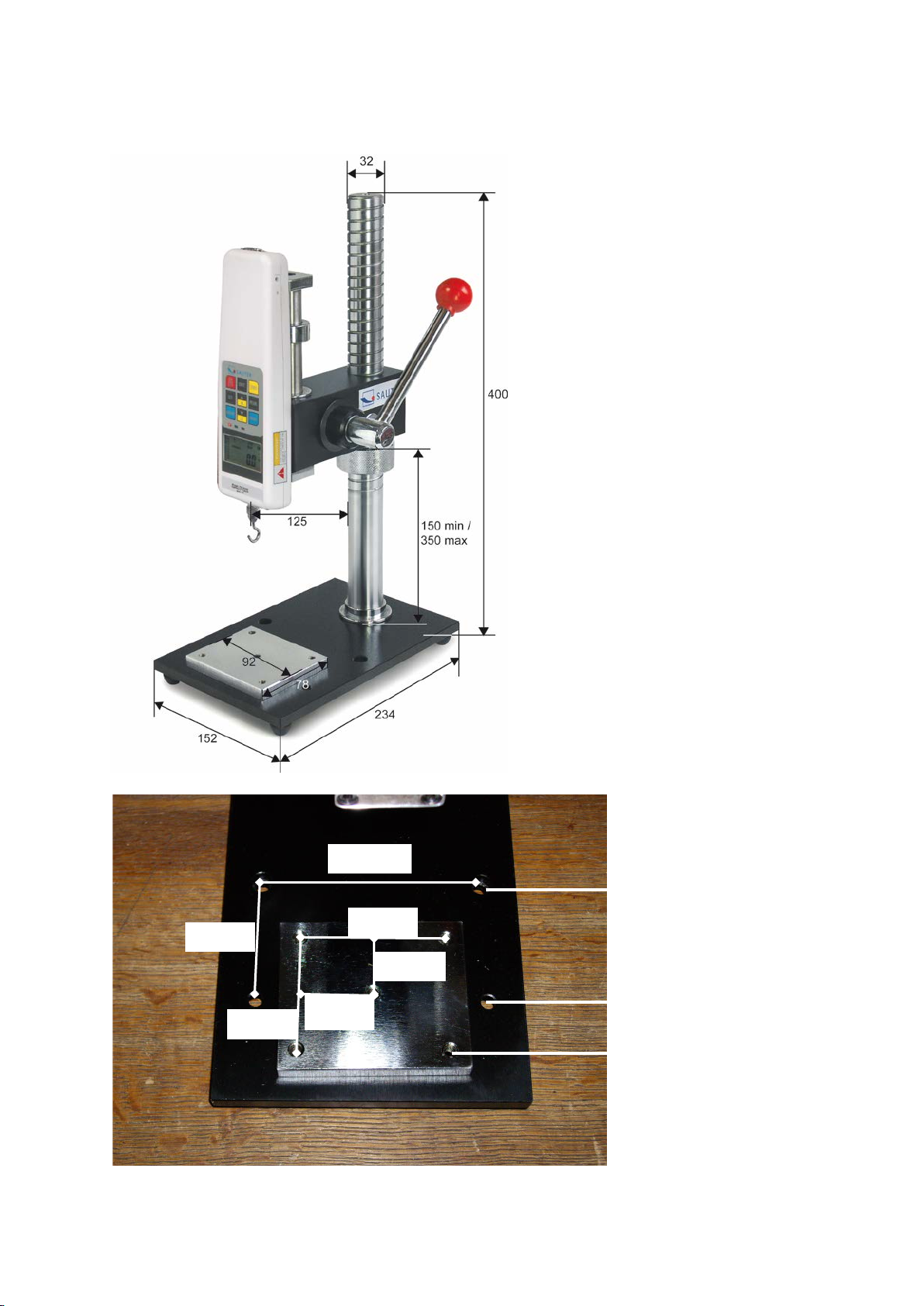

5 Pictures with dimensions

Dimension in mm

M6 Inner thread

(all 5 holes)

Inner diameter: 7mm

(without thread)

Inner diameter: 7mm

(without thread)

65 mm

115 mm

58 mm

73 mm

30mm

35mm
