Royal Sovereign PL-1310 Manual de usuario

Royal Sovereign International, Inc.

PL-910/ PL-1310

LAMINATOR

Owner's Manual

Please read and retain these instructions.

To register your product, please go to www.royalsovereign.com USA.

Click the Customer Support Tab then Registration Tab.

www.royalsovereign.com

Página en Español 9

Page en Français 17

LAMINATOR

PL-910/1310

SAFETY INSTRUCTIONS

The safety recommendations outlined in this section should be read and understood before operating this machine. When

using this machine follow these basic safety precautions to reduce risk of fire, electric shock or injury. Keep this information

for future reference.

1. To prevent the possibility of a fire or injury, do not allow foreign articles inside the machine.

2. Do not attempt to laminate items that exceed total recommended material thickness.

3. Do not insert pouch film with the back end first. (Front of film: sealed side, Back of film: open side.) This may cause the

pouch to jam the rollers.

4. To prevent the possibility of electric shock, do not immerse the laminator in water or permit liquids inside the machine.

5. Because the laminator creates heat, keep out of the reach of children.

6. Do not cut pouches before inserting them into the laminator. This will cause the laminator to jam.

7. Do not laminate leaves, flower, clothes etc.

8. If the room temperature is low (under 64˚F), the ready light may take longer to come on.

9. When unplugging the power plug, grip the plug to pull it out. Pulling the cord may result in electric shock, fire, or damage

to the machine.

10. Do not use the machine if the cord is damaged. This may result in electric shock, fire, or other hazards.

11. Do not place objects on the power cord and do not bend it excessively. This may result in electric shock, fire or other

hazards.

12. When not using the machine for long periods of time, unplug the power cord from the outlet.

Box Contents 5

Parts 5

Controls 5

Features 5

Operation 6

Troubleshooting 7

Specifications 7

Warranty 8

Contact Information 8

Página en Español 9

Page en Français 17

CONTENTS

PL-910/1310

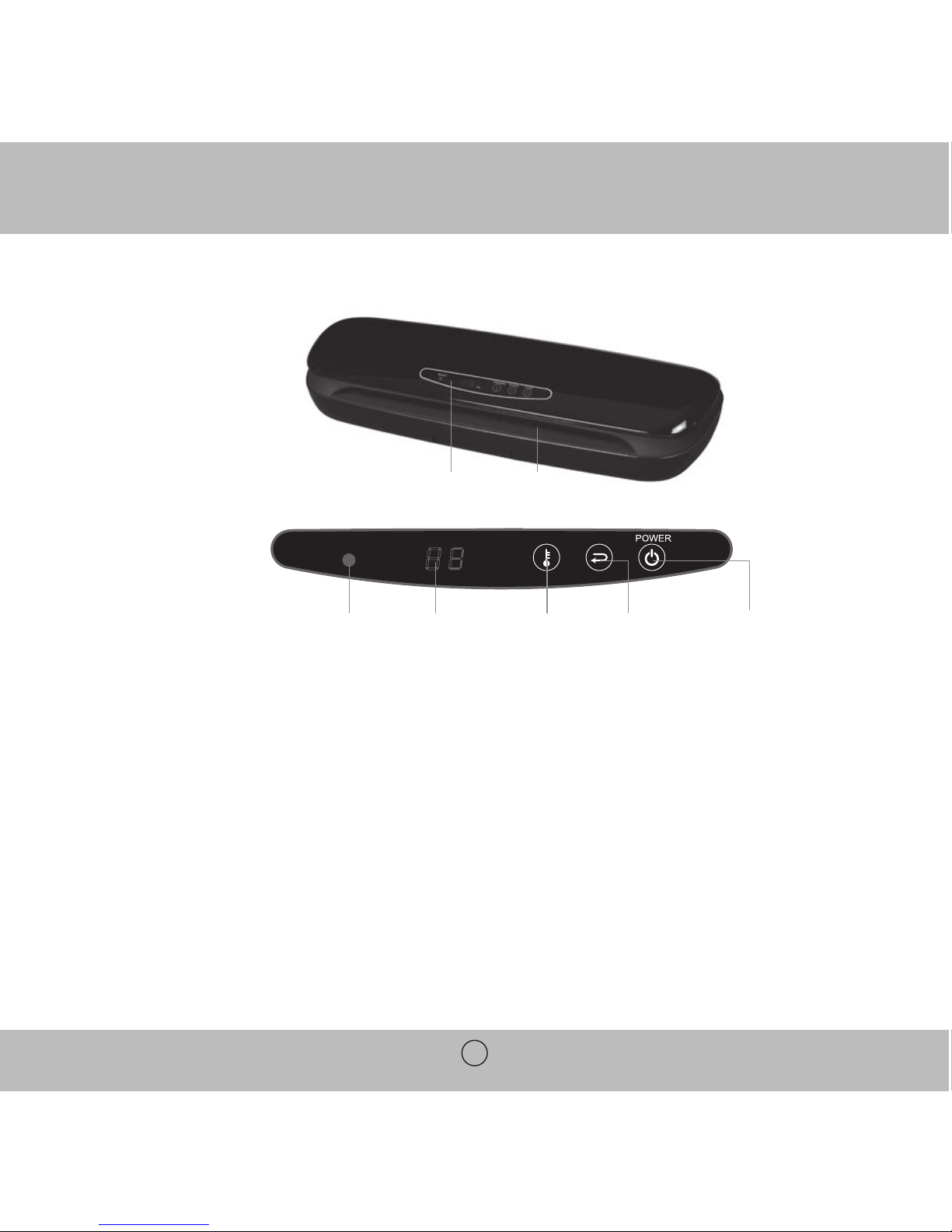

Control panel Front opening

BOX CONTENTS

Laminator and pouch film

PARTS

CONTROLS

FEATURES

Four Roller System

The four roller system provides precise heat and pressure to ensure high quality lamination.

Hot and Cold Lamination

The laminator can easily be adjusted to handle both hot and cold lamination pouch film.

Thickness Control

Individual settings for different film thicknesses from 3-10 mil.

Ready Light

A ready light clearly indicates when the machine has reached optimal temperature and is ready to laminate.

Fast Speed

Laminates up to 20” per minute.

Automatic Shut-Off Function

The machine will automatically shut off after one hour of idling.

Reverse Functions

The machine has both a manual and an automatic reverse function.

mil

READY THICKNESS REVERSE

Display Temperature

control button Reverse button Power button

Ready light

OPERATION

Hot Lamination

[Before laminating important or unique documents, always test a pouch through the laminator using a similar document.]

1. Place the machine on a flat, sturdy surface and press the power button to turn on the machine.

2. The machine is preset to the 3 mil setting. To change the setting, press the temperature control button. The machine

will take approximately 4 minutes to warm-up. When the proper temperature is reached, the blinking light will glow

steady.

3. Place the item to be laminated into the laminating pouch.

4. Insert the pouch film into the front opening of the laminator. Make sure to place the sealed end of the pouch film in first.

All sized pouches should be placed in the center of the front opening to pass through the sensor.

5. The document or photo will then exit out the back of the machine.

6. If the item is not completely laminated, repeat step 4.

NOTE:

After inserting the pouch into the laminator, if the laminated item does not pass through all 4 rollers within approximately 15

seconds the automatic reverse function will turn on sending the item out of the front of the machine. If you need to reverse

an item after it is inserted into the rollers press the reverse button and the item will exit the front opening

NOTE: Laminated items exiting the machine may be too hot to touch.

NOTE: Laminated items will be hot and will easily bend. To keep the item flat, place on a flat surface and allow it to cool.

Cold Lamination

1. Place the machine on a flat, sturdy surface and press the power button to turn on the machine.

2. Press the temperature setting button until the Cold lamination setting is lit. If the machine was previously used in hot

mode, allow approximately 40 minutes to cool down. When the proper temperature is reached, the light will glow steady.

3. Place the document to be laminated on the non-adhesive side of the cold film with the document face down, sealed end

first.

4. Insert the document to be laminated into the front opening of the machine.

5. Remove paper liner from the cold film slowly while the document is being inserted into the machine.

6. The document or photo will exit out the back of the machine.

NOTE:

After inserting the pouch into the laminator, if the laminated item does not pass through all 4 rollers within approximately

15 seconds the automatic reverse function will turn on sending the item out of the front of the machine. If you need to

reverse an item after it is inserted into the rollers press the reverse button and the item will exit the front opening.

PL-910/1310

Symptom Solution

Motor does not work. Check to make sure machine is plugged in. Check to make sure the power button is turned on.

Pouches are not laminating correctly. Make sure that the machine is set to the correct setting. The setting should be the same as

the thickness of the pouch you are using. Ex.75 mic pouch film should be set to 3 mil setting.

The machine is beeping and the pouch

is returning out of the front of the

machine.

The automatic reverse function has turned on to retrieve the item. The item you are laminating

may be jammed or too large to pass the rollers. Wait for the pouch to exit the front of the

machine. You can try laminating again after 15 seconds.

The rollers are moving, but the

laminated item is not.

Hold down the reverse button until the entire pouch has exited the front of the machine. You

can try laminating again after 15 seconds.

TROUBLESHOOTING

If you are still having complications, please contact Royal Sovereign’s Service Center at 1-800-397-1025.

SPECIFICATIONS

Model PL-910 PL-1310

Dimensions 17.6x7.3x4.6 in

448x186x118 mm

21.6x7.3x4.6 in

548x186x118 mm

Maximum laminating width 9 " / 235 mm 13"/ 340 mm

Maximum laminating thickness 27.6 mil / 0.7 mm

Film thickness 3~10 mil / 75~250 micron

Number of rollers 4

Cold mode Yes

Heating system Hot shoe

Ready time 4 min

Motor type AC motor

Laminating speed 20" per min. / 430 mm per min.

Weight 8.4 lbs / 3.8 kg 15.4 lbs / 7 kg

Voltage/Cycle 120V, 60Hz

Power consumption 450 W 730 W

LIMITED ONE YEAR WARRANTY

This warranty applies to repair or replacement of product found to be defective in material or workmanship for one year

from the date of the original purchase. This warranty is extended only to the original purchaser.

This warranty does not apply to damage resulting from abuse, misuse, or improper maintenance of damage that is

attributable to acts of nature. Royal Sovereign International, Inc. (and its affiliated companies) is not liable for incidental or

consequential damages of any nature. This limitation would not apply if you live in those areas that do not permit the

exclusion or limitation of incidental or consequential damages.

Defective products for warranty repair or replacement cannot be returned without a Return Authorization number. Please

go to www.royalsovereign.com USA-Customer Support Tab to make a request for an Office Product Return Authorization.

Defective products must be returned to Royal Sovereign International Consumer Return Department, freight prepaid, with

proof of purchase and Return Shipping and Handling payment (check or money order). Upon repair or replacement the

product will be returned to the customer.

Return defective product to the following address with a detailed description of the problem. If possible, pack in original

carton. Please prepay shipping charges.

For out of warranty service or frequently asked questions please go to www.royalsovereign.com USA- Customer Support Tab.

For sales of product, parts or accessories please visit us at www.royalfulfillmentcorp.com.

For service or sales please contact your local Royal Sovereign Office:

ROYAL SOVEREIGN INTERNATIONAL, INC. RS CANADA INC.

2 Volvo Drive Rockleigh, NJ 07647 USA 1025 Westport Crescent, Mississauga, Ontario, Canada L5T1E8

TEL : +1) 800-397-1025 FAX : +1) 201-750-1022 TEL : +1) 905-461-1095 FAX : +1) 905-461-1096

www.royalsovereign.com

Royal Sovereign International, Inc.
