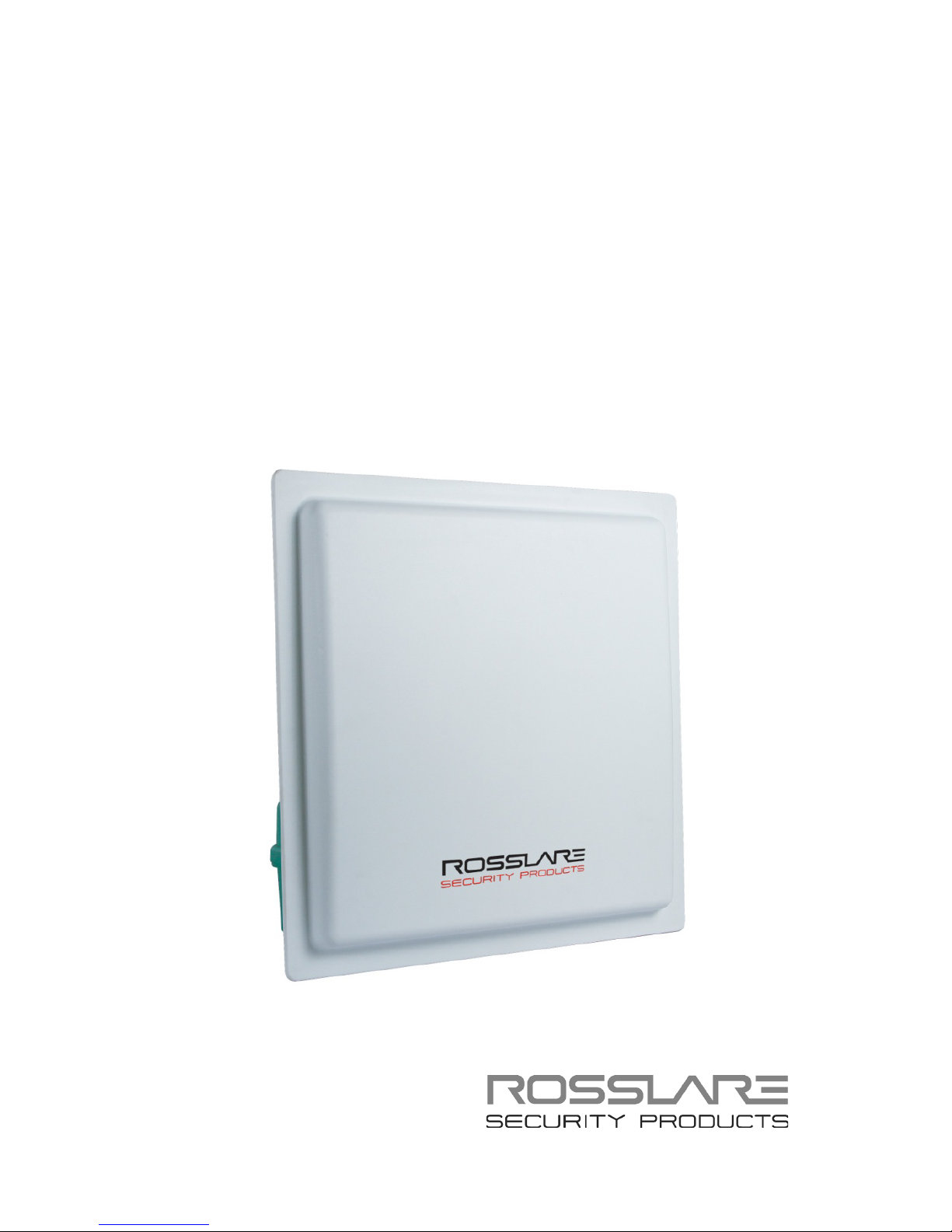

Rosslare AY-U910 Manual de usuario

AY-U910

UHF Integrated Long-Range Reader

Installation and User Manual

This manual and the information contained herein are proprietary to ROSSLARE

ENTERPRISES LIMITED and/or its related companies and/or subsidiaries’ (hereafter:

"ROSSLARE"). Only ROSSLARE and its customers have the right to use the information.

No part of this manual may be re-produced or transmitted in any form or by any means,

electronic or mechanical, for any purpose, without the express written permission of

ROSSLARE.

ROSSLARE owns patents and patent applications, trademarks, copyrights, or other

intellectual property rights covering the subject matter in this manual.

TEXTS, IMAGES, AND ILLUSTRATIONS INCLUDING THEIR ARRANGEMENT IN THIS

DOCUMENT ARE SUBJECT TO THE PROTECTION OF COPYRIGHT LAWS AND OTHER

LEGAL RIGHTS WORLDWIDE. THEIR USE, REPRODUCTION, AND TRANSMITTAL TO THIRD

PARTIES WITHOUT EXPRESS WRITTEN PERMISSION MAY RESULT IN LEGAL

PROCEEDINGS.

The furnishing of this manual to any party does not give that party or any third party any

license to these patents, trademarks, copyrights or other intellectual property rights,

except as expressly provided in any written agreement of ROSSLARE.

ROSSLARE reserves the right to revise and change this document at any time, without

being obliged to announce such revisions or changes beforehand or after the fact.

Table of Contents

AY-U910 Installation and User Manual iii

Table of Contents

1. Introduction....................................................................... 6

1.1 Installation Kit..................................................................................... 6

2. Technical Specifications ................................................... 7

3. Installation ........................................................................ 8

3.1 General .............................................................................................. 8

3.1.1 1-Shaped Stand Bracket Side-Loaded ........................................................... 9

3.1.2 L-Shaped Stand Bracket Top-Loaded ............................................................ 9

3.2 Adjusting the Azimuth Angle of Antenna.......................................... 10

4. Wiring............................................................................... 11

5. Operation Instructions ................................................... 12

6. UHF Reader Application.................................................. 13

6.1 Installing the Software ...................................................................... 13

6.2 Connecting the Reader ..................................................................... 15

6.3 Configuring the Reader..................................................................... 16

6.3.1 Tag Type................................................................................................... 16

6.3.2 Reader Power............................................................................................ 16

6.3.3 RF Frequency............................................................................................. 17

6.3.4 Data Output Setting .................................................................................. 17

6.3.5 Read Mode ............................................................................................... 17

7. UHF Credential Programming ........................................ 18

7.1 Installing the Card Programming Software ........................................ 18

7.2 Programming a UHF Credential......................................................... 20

A. Limited Warranty ............................................................ 22

List of Figures

iv AY-U910 Installation and User Manual

List of Figures

Figure 1: Reader Components ........................................................................ 8

Figure 2: Reader Fixing Mode ......................................................................... 9

Figure 3: Antenna Angle Top View ............................................................... 10

Figure 4: Antenna Angle Side View .............................................................. 10

Figure 5: Interfaces....................................................................................... 11

Figure 6: Wiring ........................................................................................... 11

Notice and Disclaimer

AY-U910 Installation and User Manual v

Notice and Disclaimer

This manual’s sole purpose is to assist installers and/or users in the safe and

efficient installation and usage of the system and/or product, and/or software

described herein.

BEFORE ATTEMPTING TO INSTALL AND/OR USE THE SYSTEM,THE INSTALLER AND

THE USER MUST READ THIS MANUAL AND BECOME FAMILIAR WITH ALL SAFETY

REQUIREMENTS AND OPERATING PROCEDURES.

The system must not be used for purposes other than those for which it

was designed.

The use of the software associated with the system and/or product, if

applicable, is subject to the terms of the license provided as part of the

purchase documents.

ROSSLARE exclusive warranty and liability is limited to the warranty and

liability statement provided in an appendix at the end of this document.

This manual describes the maximum configuration of the system with the

maximum number of functions, including future options. Therefore, not

all functions described in this manual may be available in the specific

system and/or product configuration you purchased.

Incorrect operation or installation, or failure of the user to effectively

maintain the system, relieves the manufacturer (and seller) from all or any

responsibility for consequent noncompliance, damage, or injury.

The text, images and graphics contained in the manual are for the

purpose of illustration and reference only.

All data contained herein subject to change without prior notice.

In no event shall manufacturer be liable for any special, direct, indirect,

incidental, consequential, exemplary or punitive damages (including,

without limitation, any and all damages from business interruption, loss of

profits or revenue, cost of capital or loss of use of any property or capital

or injury).

All graphics in this manual are for reference only, some deviation between

the image(s) and the actual product may occur.

All wiring diagrams are intended for reference only, the photograph or

graphic of the PCB(s) are intended for clearer illustration and

understanding of the product and may differ from the actual PCB(s).

Introduction

6 AY-U910 Installation and User Manual

1. Introduction

The AY-U910 is a UHF reader that is compatible with multiple protocols and

can read multiple tag formats.

The reader is waterproof and is suitable for use in a wide range of RFID

applications, such as transport management, vehicle management, car

parking, production process control, and access control.

The AY-U910 series includes the following three models:

AY-U910US: 902–928 MHz (America)

AY-U910CH: 920–925 MHz (China)

AY-U910EU: 865–868 MHz (Europe)

1.1 Installation Kit

The AY-U910 package includes:

1 installation and user manual

1 AY-U910 reader

1 switching power supply: 12 VDC, 4 A

1 DB-15 with RS-232 cable

1 installation bracket kit

Technical Specifications

AY-U910 Installation and User Manual 7

2. Technical Specifications

Electrical Characteristics

Operating Voltage Range 9 to 12 VDC (4 A)

Input Current

Standby: 0.2 A max

Read: 1.2 A max

Credential Read Distance* 1.2 to 12 m (3.9 to 39.4 ft) (adjustable)

Transmission Protocol Wiegand 26-Bit (default)

Wiegand 34-Bit

Maximum Cable Distance 150 m (500 ft)

Frequency AY-U910US: 902–928 MHz (America)

AY-U910CH: 920–925 MHz (China)

AY-U910EU: 865–868 MHz (Europe)

Modulation Type ASK

Read Sensitivity Dual polarization read mode

Cards and Tags •Rosslare’s AT-T910 and AT-T911 cards

•ISO18000-6B Tags

•EPC GEN2 (ISO18000-6C) Tags

Environmental Characteristics

Operating Temp. Range -20°C to 60°C (-4°F to 140°F)

Operating Humidity Range 0 to 95% (non-condensing)

Suitable for outdoor use (IP 54)

Physical Characteristics

Height x Width x Depth 44.5 x 44.5 x 6.7 cm (17.5 x 17.5 x 2.6 in.)

Weight 3.4 kg (7.5 lb)

* Measured using a Rosslare proximity card or equivalent.

Installation

8 AY-U910 Installation and User Manual

3. Installation

Installation of an RFID reader adjacent to metallic surfaces might alter the

reader’s specifications. To diminish this interference, use a plastic spacer when

mounting the reader.

3.1 General

Figure 1 shows the structure of the reader.

Figure 1: Reader Components

There are two ways to install the stand-bracket of the AY-U910 reader as

shown in Figure 2:

1-shaped stand bracket side-loaded

L-shaped stand bracket loaded

Installed

Fixture

Upright Post

Installation

AY-U910 Installation and User Manual 9

Figure 2: Reader Fixing Mode

Each installation method is selected based on application requirements and

actual location. The user can use the provided template to install AY-U910

reader in more convenient and easier way, but the read distance is a little

short; the situation becomes opposite if using the latter.

3.1.1 1-Shaped Stand Bracket Side-Loaded

In this method, the stand pole installed to the AY-U910 reader should have a

diameter of between 50 and 60 mm and the length of 2.2 m. The pole should

be made of stainless steel with a thickness of more than 1.20 mm.

Use the fastener contained in package box to mount AY-U910 reader to the

top of the stand pole according to actual vehicle type (mainly large car and

small car) and then adjust the height from the center of AY-U910 reader to

lane level to be around 2.0 m (between 1.8 and 2.2 m).

3.1.2 L-Shaped Stand Bracket Top-Loaded

In this method, the L-shaped stand pole (or dragon shape) installed to AY-

U910 reader should have a diameter of between 60 to 80 mm. The pole

should be made of stainless steel with the thickness of more than 1.20 mm.

Use the fastener contained in package box to mount AY-U910 reader to the

rail near the center of the lane.

Adjust the height between the rail and the ground to between 3.5 to 4.0 m,

depending on the height of vehicle.

Reader

Road Pavement

1-shaped stand bracket side-loaded L-shaped stand bracket loaded

Installation

10 AY-U910 Installation and User Manual

3.2 Adjusting the Azimuth Angle of Antenna

The angle of inclination with the ground plane of the antenna should be

approximately 60° to 75°, while the deviation angle of the antenna should be

biased towards the lane direction (Figure 3).

Figure 3: Antenna Angle Top View

Figure 4: Antenna Angle Side View

Reader

30–40°

Barrier Gate

60–75°

2.0–2.2 m
