Rosslare AY-U920BT-US Manual de usuario

AY-U920BT-US

Extended Long-Range UHF-RFID Reader

with Bluetooth BLE-ID

Installation and User Manual

SMART

This manual and the information contained herein are proprietary to ROSSLARE

ENTERPRISES LIMITED and/or its related companies and/or subsidiaries’ (hereafter:

"ROSSLARE"). Only ROSSLARE and its customers have the right to use the information.

No part of this manual may be re-produced or transmitted in any form or by any means,

electronic or mechanical, for any purpose, without the express written permission of

ROSSLARE.

ROSSLARE owns patents and patent applications, trademarks, copyrights, or other

intellectual property rights covering the subject matter in this manual.

TEXTS, IMAGES, AND ILLUSTRATIONS INCLUDING THEIR ARRANGEMENT IN THIS

DOCUMENT ARE SUBJECT TO THE PROTECTION OF COPYRIGHT LAWS AND OTHER

LEGAL RIGHTS WORLDWIDE. THEIR USE, REPRODUCTION, AND TRANSMITTAL TO THIRD

PARTIES WITHOUT EXPRESS WRITTEN PERMISSION MAY RESULT IN LEGAL

PROCEEDINGS.

The furnishing of this manual to any party does not give that party or any third party any

license to these patents, trademarks, copyrights or other intellectual property rights,

except as expressly provided in any written agreement of ROSSLARE.

ROSSLARE reserves the right to revise and change this document at any time, without

being obliged to announce such revisions or changes beforehand or after the fact.

Table of Contents

iii

Table of Contents

1. Introduction....................................................................... 7

1.1 Installation Kit..................................................................................... 7

2. Technical Specifications ................................................... 8

3. Mounting ........................................................................... 9

3.1 General .............................................................................................. 9

3.1.1 1-Shaped Stand Bracket Side-Loaded ........................................................... 9

3.1.2 L-Shaped Stand Bracket Top-Loaded .......................................................... 10

3.1.3 Adjusting the Azimuth Angle of Antenna ................................................... 11

4. Wiring............................................................................... 12

5. Operation Instructions ................................................... 14

6. APP-x421 Admin App...................................................... 15

6.1 Opening the App.............................................................................. 15

6.2 Reader Settings................................................................................. 16

6.3 AY-U920BT Reader Configuration Settings........................................ 17

6.4 Additional Settings ........................................................................... 18

A. Declaration of Conformity............................................. 19

B. Radio Equipment Directive (RED).................................. 20

C. RoHS Directive................................................................. 21

D. Limited Warranty ............................................................ 22

AY-U920BT-US Installation and User Manual

List of Figures

Figure 1: 1-shaped Stand Bracket Side-Loaded................................................ 9

Figure 2: L-shaped Stand Bracket Loaded...................................................... 10

Figure 3: Antenna Angle Side View .............................................................. 11

Figure 4: Antenna Angle Top View ............................................................... 11

Figure 5: Wiring Colors................................................................................. 12

AY-U920BT-US Installation and User Manual

List of Tables

Table 1: Wiring the Unit as a Reader to a Control Panel ................................ 12

AY-U920BT-US Installation and User Manual

Notice and Disclaimer

This manual’s sole purpose is to assist installers and/or users in the safe and

efficient installation and usage of the system and/or product, and/or software

described herein.

BEFORE ATTEMPTING TO INSTALL AND/OR USE THE SYSTEM,THE INSTALLER AND

THE USER MUST READ THIS MANUAL AND BECOME FAMILIAR WITH ALL SAFETY

REQUIREMENTS AND OPERATING PROCEDURES.

The system must not be used for purposes other than those for which it

was designed.

The use of the software associated with the system and/or product, if

applicable, is subject to the terms of the license provided as part of the

purchase documents.

ROSSLARE exclusive warranty and liability is limited to the warranty and

liability statement provided in an appendix at the end of this document.

This manual describes the maximum configuration of the system with the

maximum number of functions, including future options. Therefore, not

all functions described in this manual may be available in the specific

system and/or product configuration you purchased.

Incorrect operation or installation, or failure of the user to effectively

maintain the system, relieves the manufacturer (and seller) from all or any

responsibility for consequent noncompliance, damage, or injury.

The text, images and graphics contained in the manual are for the

purpose of illustration and reference only.

All data contained herein subject to change without prior notice.

In no event shall manufacturer be liable for any special, direct, indirect,

incidental, consequential, exemplary or punitive damages (including,

without limitation, any and all damages from business interruption, loss of

profits or revenue, cost of capital or loss of use of any property or capital

or injury).

All wiring diagrams are intended for reference only, the photograph or

graphic of the PCB(s) are intended for clearer illustration and

understanding of the product and may differ from the actual PCB(s).

AY-U920BT-US Installation and User Manual

Introduction

1. Introduction

The AY-U920BT is a UHF and Bluetooth reader that is available with versions in

both UHF frequencies (865-868 and 902-928 MHz) and supports Bluetooth

BLE frequencies and protocols. Two associated apps for iOS and Android

smartphones made by Rosslare can be used with the reader – BLE-ID credential

app and BLE-Admin configuration app – for programming operational settings.

The reader is waterproof (IP65) and is suitable for use in a wide range of RFID

applications, such as transport management, vehicle management, car

parking, production process control, and access control.

The reader supports the following functions:

Reading UHF hard credential

Reading BLE soft credential

Transmitting credential ID to the controller

Acting based on controller’s input (allowing access or not)

Self-update

Reconfiguration provided by credential (soft or hard) or by PC SW

The AY-U920BT series includes the following models:

AY-U920BT-US: 902–928 MHz (America)

AY-U920BT-EU: 865–868 MHz (Europe)

1.1 Installation Kit

The AY-U920BT package includes:

1 AY-U920BT reader with a 5 m (16.4 ft) 10-wire cable



1 installation bracket

kit



1 installation and user manual

AY-U920BT-US Installation and User Manual

Technical Specifications

2. Technical Specifications

Electrical Characteristics

Operating Voltage Range Typical: 9 to 12 VDC (2 A)

Max: 24 VDC

Input Current

Standby: 0.2 A max

Read: 1.2 A max

Credential Read Distance* 0.5 to 12 m (1.6 to 39.4 ft) (adjustable)

Transmission Protocol Wiegand 26-Bit (default)

Wiegand 32-Bit

Wiegand 34-Bit

Wiegand 40-Bit

Wiegand 56-Bit

Wiegand 64-Bit

OSDP

Custom

Maximum Cable Distance 150 m (492 ft) with 18” AWG cable

Frequency AY-U920BT-US: 902–928 MHz (America)

AY-U920BT-EU: 865–868 MHz (Europe)

Modulation Type ASK

Read Sensitivity Dual polarization read mode

Cards and Tags •EPC GEN2 (ISO18000-6C) Tags

•BLE-ID soft credentials

* Measured using a Rosslare proximity card or equivalent.

Environmental Characteristics

Operating Temp. Range -20°C to 60°C (-4°F to 140°F)

Operating Humidity Range 0 to 95% (non-condensing)

Suitable for outdoor use (IP 54)

Physical Characteristics

Height x Width x Depth 36.5 x 36.5 x 3.2 cm (14.4 x 14.4 x 1.3 in.)

Weight 2.8 kg (6.2 lb)

AY-U920BT-US Installation and User Manual

Mounting

3. Mounting

Installing an RFID reader adjacent to metallic surfaces might alter the reader’s

specifications. To diminish this interference, use a plastic spacer when mounting

the reader.

3.1 General

There are two methods that can be used when installing the reader.

1-Shaped Stand Bracket Side-Loaded

L-Shaped Stand Bracket Top-Loaded

Each installation method is selected based on application requirements and

actual location.

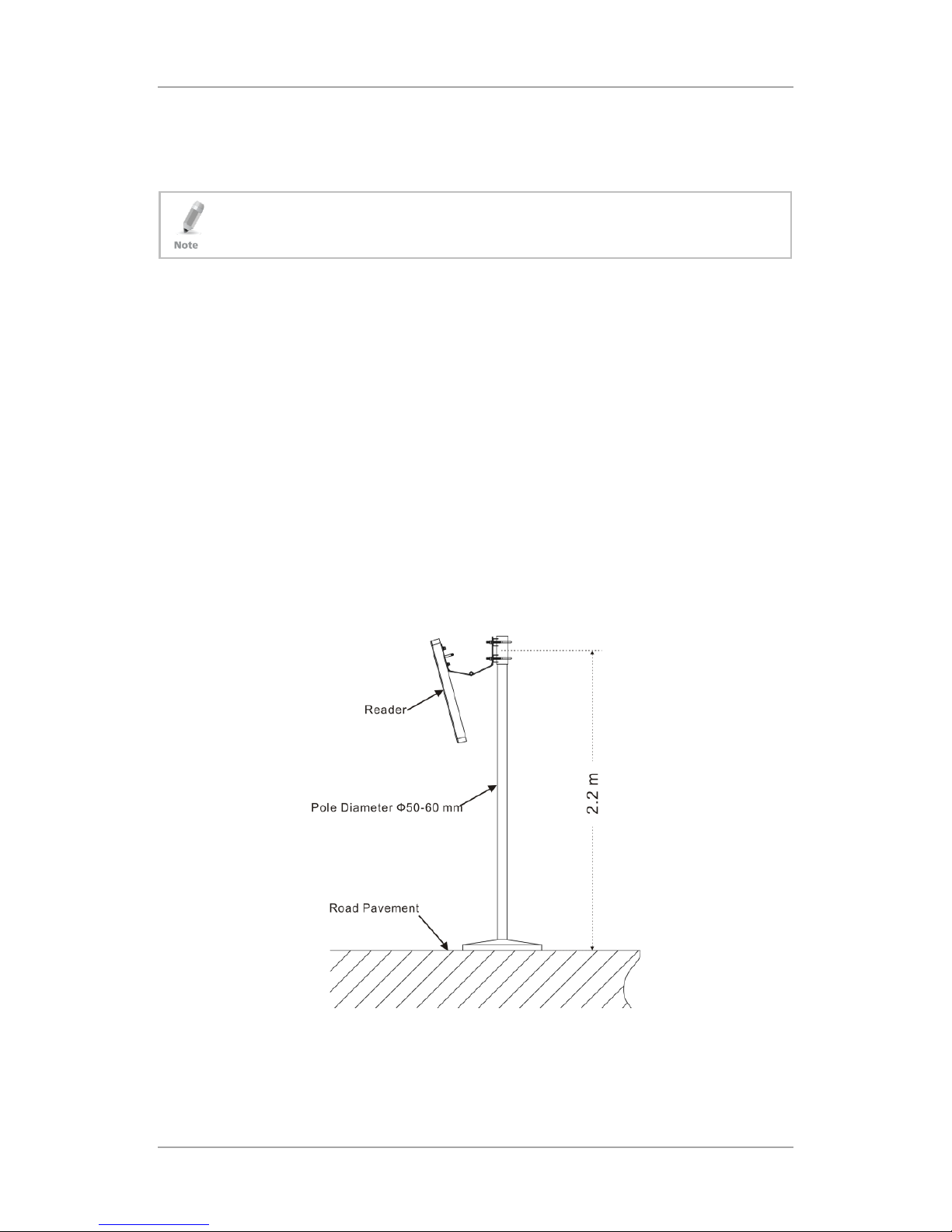

3.1.1 1-Shaped Stand Bracket Side-Loaded

In this method, the stand pole should have a diameter of between 50 and

60 mm (2 to 2.4 in.) and a height of 2.2 m. The pole should be made of

stainless steel with a thickness of at least 1.2 mm (0.05 in.).

Use the bracket contained in the package box to mount the AY-U920BT reader

to the top of the stand pole depending on actual vehicle type (mainly large car

and small car) (Figure 1).

Figure 1: 1-shaped Stand Bracket Side-Loaded

Adjust the height from the center of AY-U920BT reader to lane level to be

around 2.0 m (6.5 ft).

AY-U920BT-US Installation and User Manual

Mounting

3.1.2 L-Shaped Stand Bracket Top-Loaded

In this method, the L-shaped stand pole should have a diameter of between 60

to 80 mm (2.4 to 3.1 in.) and a height of 4.2 m (13.8 ft). The pole should be

made of stainless steel with the thickness of at least 1.2 mm (0.05 in.).

Use the bracket contained in package box to mount the AY-U920BT reader to

the rail near the center of the lane (Figure 2).

Figure 2: L-shaped Stand Bracket Loaded

Adjust the height between the rail and the ground to between 3.5 to 4.0 m

(11.5 to 13 ft), depending on the height of vehicle.

AY-U920BT-US Installation and User Manual
