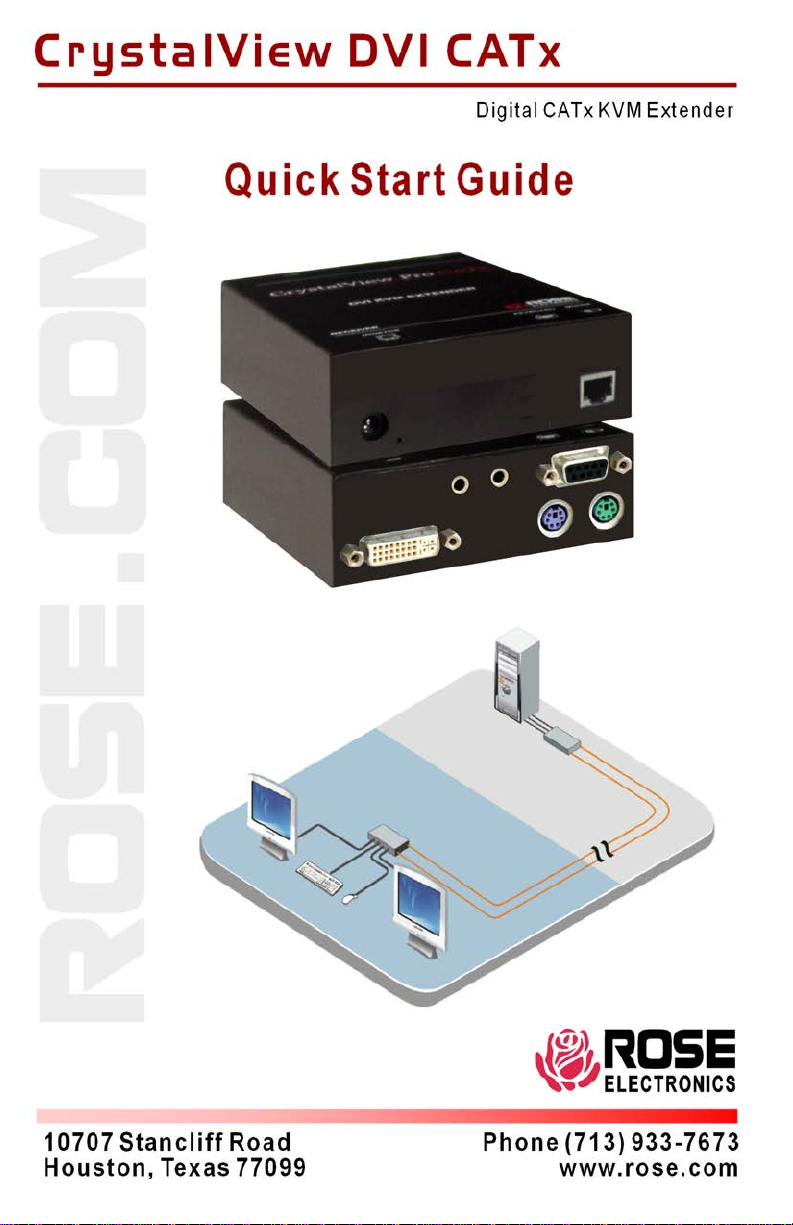

Rose electronics CrystalView DVI CAT Series Manual de usuario

Using the CD

Insert the provided CD and

the Product Document

selection window will

automatically display.

Select the product and the

Manual, DataSheet, and

QuickStart document

window will display. Select

the document to display or

print. Documents are in

PDF format.

The system consists of two Units, a transmitter and a receiver. The transmitter

connects to your CPUs keyboard, DVI monitor, and mouse connectors, or to a

Rose KVM switch. The receiver connects to a keyboard, DVI video monitor

and mouse or KVM station. The transmitter and receiver are connected

together with CATx industry standard cable. The receiver can be up to 400 feet

from the transmitter using CAT5, 5e, 6, or 7 cables.

If your model is the serial/audio model, connect a serial DB9 cable from the

COM port on your computer to the DB9 connector on the transmitter. Connect

audio cables from the computer sound card audio in/out to the transmitter. On

the receiver, connect a supported serial device and stereo speakers and a

microphone.

TRANSMITTER RECEIVER

LOCAL KVM REMOTE KVM

ACCESS ACCESS

CATx cable

Up to 400’

Operating instructions – Local KVM access

Operation of your computer is no different than having your keyboard, monitor,

and mouse connected directly to the computer. All functions, applications,

upgrades and other items can be done normally. The only difference is the

computer can be up to 400 feet away.

CrystalView DVI CATx with local KVM access allows an additional KVM station

to be connected to the transmitter. The CPU can easily be operated from the

remote KVM station or the local KVM station but not simultaneously.

The transmitter or local unit is active during boot-up and the connected CPUs

video is displayed on both the local and remote KVM stations monitor. To

activate the remote KVM station, simply press any key on the remote KVM

stations keyboard. Control is passed to the remote KVM station. To activate

the local KVM station, press any key on the KVM station’s keyboard.

The dual video models have the capability of connecting the transmitter to two

video sources. The two video sources are sent to the receiver and displayed

on it’s two video monitors. Video source one should be connected to the

computer’s primary DVI video port that is associated with the keyboard and

mouse.

Connect the local USB model transmitter as shown below (single or dual

video). A USB hub is used for local keyboard and mouse connections to the

computer

To 2nd DVI To 2nd DVI

Graphic card local monitor

To 1st DVI To 1st

DVI To CPU USB or USB hub

Graphic card local monitor for keyboard and mouse

Specifications

Maximum resolution

DVI – 1600 x 1200 @ 60Hz

Video compatibility

DVI-D

Keyboard

PS/2 or USB

Mouse

PS/2 or USB

Transmitter power

90-240 VAC adapter to 5VDC / app. 10W

Receiver power

90-240 VAC adapter to 5VDC / app. 10w

Connectors

Video to PC – DVI-D

Video to KVM – DVI-D

Keyboard: PS/2 or USB

Mouse: PS/2 or USB

Interconnect: RJ45

Temp/Humidity

41οF-113οF / 5οC-45οC / 80% RH max

Weight

0.65 lbs / 0.3 kg (each unit)

Dimensions

H: 1.375 in / 3.0 cm

W: 4.125 in / 10.0 cm

D: 5.625in / 14.4 cm

Parts and cables

Part Number

Description

CRV-DLDTXPD1D

DVI-D / PS/2 Single video (Transmitter)

CRV-SRDTXPD1D

DVI-D / PS/2 Single video (Receiver)

CRV-DLDTXPD2D

DVI-D / PS/2 Dual video (Transmitter)

CRV-SRDTXPD2D

DVI-D / PS/2 Dual video (Receiver)

CRV-DLDTXUD1D

DVI-D / USB Single video (Transmitter)

CRV-SRDTXUD1D

DVI-D / USB Single video (Receiver)

CRV-DLDTXUD2D

DVI-D / USB Dual video (Transmitter)

CRV-SRDTXUD2D

DVI-D / USB Dual video (Receiver)

CAB-DDPMDD66M006

DVIDM w/PS2 to DVID & 2 MD6M, 6’

CAB-MD6M2MD6F

Keyboard/Mouse PS/2 “Y” cable

No part of this publication may be reproduced, stored in a retrieval system, or transcribed in any form or any

means, electronic or mechanical, including photocopying and recording, without the prior written permission of

Rose Electronics.

Rose Electronics Part # QS-CRV-DVI5

Printed In the United States of America
