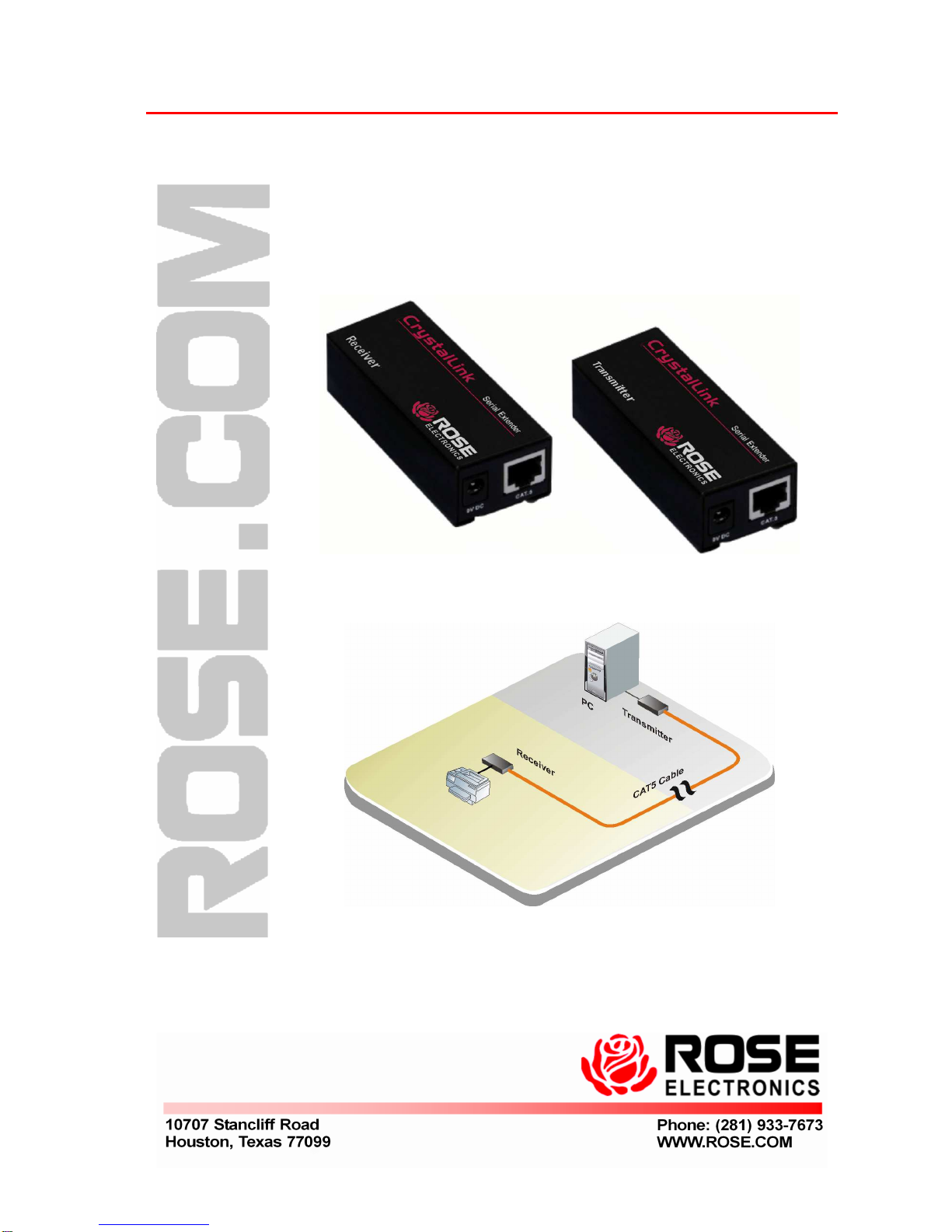

CrystalLink

CrystalLink CrystalLink

CrystalLink

CAT5 Serial Extender / 9

Quick Start Guide

Perform the following steps to install the CrystalLink CAT5 Serial

Extender

1- Connect the Local unit’s DB9F port to the corresponding Com port

on your PC using the provided DB9MM cable.

2- Connect a compatible serial device to the Remote unit’s DB9F port.

3- Connect the local unit to the remote unit with up to 3,300 feet (1000

meters) of UTP CAT5 cable.

If the serial transmission does not perform properly, connect the 9VDC

power adapter to the power jack on the transmitter unit and re-test the

transmission. If the transmission is still performing improperly, remove

the power adapter from the transmitter unit and connect it to the

receiver unit.

If the serial transmission is still unacceptable, contact Rose Electronics

technical support.

Features



Extend the distance of any compatible serial device up to 3,300 feet

(1,000 meters) from your PC over CAT5 cable.



Sends serial data at 230 kbps



One CAT5 cable for serial data to the remote unit



Conforms to RS-232c standards / wiring per 568A / 568B

Specifications

Part Number CLK-SLDTPD9/9

Connectors

Local RS-232 – DB9F

Remote RS-232 – DB9F

Link – RJ45F

Power – From +9VDC power adapter

Max data rate 230 kbps

Cable Distance 3.300 feet (1,000 meter) Max.

Communication mode Full-duplex

Power Adapter 9VDC 300mA

Weight Local / Remote unit – 2.3 oz / 65g

Dimensions Width Depth Height

1.33in / 34mm 3.62in / 92mm 0.87in / 22mm

Technical Support

If you are experiencing problems, or need assistance in setting up,

configuring or operating your unit, consult the appropriate sections of this

document. If, however, you require additional information or assistance,

please contact the Rose Electronics Technical Support Department at:

Phone: (281) 933-7673

E-Mail: TechSupport@rose.com

Web: www.rose.com

Technical Support hours are from: 8:00 am to 6:00 pm CST (USA), Monday

through Friday.

Please report any malfunctions in the operation of this Unit or any

discrepancies in this document to the Rose Electronics Technical Support

Department.
