Rose electronics CrystalView DVI Multi Manual de usuario

CrystalView DVI Multi

10707 Stancliff Road Phone: (281) 933-7673

Houston, Texas 77099 WWW.ROSE.COM

Quick Installation

Guide

Features







Supports PC DVI-D and Mac computers







Extends and splits a single-link DVI-D signal







Extends up to 220 feet (70m)







Splits/Extends the input signal into 1, 2, 4, or 8 outputs







High resolution support up to 1920 x 1080 @ 60 Hz







All models provide a DVI Video output connector on the transmitter for local

viewing







Superior video quality over CAT5e or CAT6 cable







Flash upgradeable







Automatically reads the DDC information from the locally attached monitor

or uses the internal DDC table if no monitor is attached locally







DDC table is stored in flash memory







Compatible with all operating systems







Perfect image quality at all resolutions







Ideal for use in:







Call Centers







Airport terminals







Information stations / Kiosks







Digital signage in retail environments







Broadcast, from a centralized computer, real time information to remote DVI

monitors up to 220 feet (70m) away







Rack mountable

Part Numbers

CRK-21DLC DVI-D video extender w/local access (Extends to 1 DVI monitor)

CRK-22DLC DVI-D video extender w/local monitor (Extends to 2 DVI monitors)

CRK-24DLC DVI-D video extender w/local monitor (Extends to 4 DVI monitors)

CRK-28DLC DVI-D video extender w/local monitor (Extends to 8 DVI monitors)

CRV-SRDLC Receiver unit for all models

Resolutions Supported by the internal EDID table

Resolution Refresh Rate

640 x 480 85Hz

800 x 600 85 Hz

1024 x 768 85 Hz

1152 x 870 75 Hz

1280 x 768 75 Hz

1280 x 960 60 Hz

1280 x 1024 60 Hz

1600 x 1200 60 Hz

1920 x 1080 60 Hz

Installation Procedure

This procedure is required as a first step, to allow the CrystalView DVI Multi to

“learn” the EDID characteristics of the Monitor(s) connected to the receiver

unit.

Note: Use DVI-D cables and CAT6 Shielded Cable. Max distance is 220ft (70

meters).

It is recommended that power to all equipment be off

(Computer, monitor(s), transmitter and receiver units)

1. Connect the DVI-D mm cable between the computer’s video port and the

transmitter’s DVI In connector

2. Connect the monitor or projector to the local DVI out connector on the Transmitter

3. Apply power to the monitor or projector

4. Connect the power adapter to a power source and the Transmitter’s +5VDC

power port

(Wait 5 sec. to allow the Transmitter to read and save the monitors DDC table)

5. Disconnect the monitor from the Transmitter and connect it to the Receiver’s

DVI In port

6. Connect a CAT6 STP cable(s) between the Transmitter and Receiver(s)

7. Connect the power adapter to a power source and the Receiver’s +5VDC

power port

8. Apply power to the computer and wait for it to fully boot-up. Adjust the computer’s

resolution, if required. (Max resolution 1920 x 1080)

CRK-21DLC CRK-22DLC CRK-24DLC

Transmitter Transmitter Transmitter

DVI Local DVI Local DVI Local

In DVI In DVI In DVI

OUT OUT OUT

CRV-SRDLC

Receiver (All)

〒103-0014

東京都中央区日本橋蛎殻町 1-16-11

TEL:03-3668-8089 FAX:03-3668-9872

URL:http://www.cybernetech.co.jp

Tabla de contenidos

Otros manuales de Extensor de Rose electronics

Rose electronics

Rose electronics CrystalLink USB-3-2-1 Fiber Manual de usuario

Rose electronics

Rose electronics CrystalView CAB-MD6M2MD6F Manual de usuario

Rose electronics

Rose electronics CrystalView DVI Fiber CRK-2DFMPD1D Manual de usuario

Rose electronics

Rose electronics CrystalLink USB-3-2-1 Fiber Manual de usuario

Rose electronics

Rose electronics CrystalLink CAT5 Serial Manual de usuario

Rose electronics

Rose electronics ORION Manual de usuario

Rose electronics

Rose electronics CrystalView DVI Plus Manual de usuario

Rose electronics

Rose electronics CRK-1DFMPDVI/SF Manual de usuario

Rose electronics

Rose electronics UltraLink 2 Manual de usuario

Rose electronics

Rose electronics CrystalView HDMI 4K60 Manual de usuario

Rose electronics

Rose electronics CRYSTALVIEW USB 1.1 Manual de usuario

Rose electronics

Rose electronics CrystalView fiber CRK-1DFM/SUN Manual de usuario

Rose electronics

Rose electronics CrystalView EX HDMI Multi CRV-SRDTXT2D-2T-HD6... Manual de usuario

Rose electronics

Rose electronics CrystalView CAT5 Rack CRV-12SLP Manual de usuario

Rose electronics

Rose electronics CrystalView DVI CATx CRK-2DTXPD1D Manual de usuario

Rose electronics

Rose electronics RJ45 Manual de usuario

Rose electronics

Rose electronics CrystalView DVI EX Manual de usuario

Rose electronics

Rose electronics AUTO EQUALIZATION Manual de usuario

Rose electronics

Rose electronics CrystalLink USB3.1 Fiber Dual Port Manual de usuario

Rose electronics

Rose electronics CLK-4U2TP-100M Manual de usuario

Rose electronics

Rose electronics CrystalView CRK-1DTXT-HD5 Manual de usuario

Rose electronics

Rose electronics CrystalView DVI CAT Series Manual de usuario

Rose electronics

Rose electronics CrystalLink CLK-1U4TP-100M/PE Manual de usuario

Rose electronics

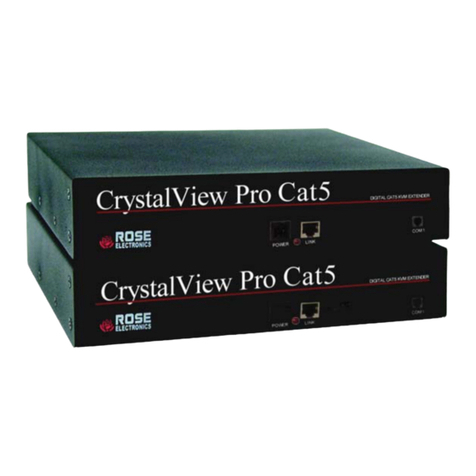

Rose electronics CRK-2DTPPDVI Manual de usuario
