Rose electronics CrystalView DVI Fiber CRK-2DFMPD1D Manual de usuario

CrystalView DVI Fiber

WWW.ROSE.COM

Digital Fiber KVM extender

Extends keyboard, video, and mouse

signals up to:

650ft (200m) w/ 62,5µm Multimode-Fiber

1300ft (400m) w/ 50.0µm Multimode-Fiber

33,000ft (10,000m) w/9.0µm Singlemode-Fiber

6,550ft (2,000m) w/3.2 GBit model)

Supports DVI-D video at resolutions

up to 1920 x 1200

3.2 GBit optional models

User selectable DDC table

Serial and Audio option

Supports Singlemode and Multimode fiber cables

PS/2 or USB keyboard and mouse support

Single or Dual video models

Easily adapted to your system

Features and Benefits

JSupports:

DVI-D video modes

PS/2 or USB keyboards and mice

Bi-Directional serial (Optional)

Full CD Quality stereo audio (Optional)

JExtend a KVM station from a CPU using

fiber cable up to 6 miles

(1¼ mile for 3.2 GBit model)

JVideo resolutions up to 1920 x 1200 @ 60Hz

JFull 60 Hz frame rate for resolutions up to

1600 x 1200 @ 60 Hz and at least 30 Hz for

lower resolutions

JSupports 18/24–Bit color (Selectable)

JSingle and Dual video models available

JCompatible with all operating systems

JFully automatic KVM sharing on local access

models

JStatus and Data error indicators on all units

JEasy installation and operation

The CrystalView™ DVI Fiber Advantage

The CrystalView DVI Fiber is the KVM extender of choice

for businesses that need to extend and operate a

computer, server, or KVM switch from a great distance.

The CrystalView DVI Fiber makes this possible by the use

of singlemode or multimode fiber cable. You can fully

operate and control a computer or server from as far away

as 6 miles using 9 µm singlemode fiber (1.25 miles using

the 3.2 GBit model). The CrystalView DVI Fiber supports all

combinations of DVI-D monitors and video cards.

The system consists of two units; a transmitter and a

receiver. The transmitter connects to your CPU’s

keyboard, DVI-D monitor, and mouse connectors, or to a

Rose KVM switch. The receiver connects to a keyboard,

DVI-D video monitor and mouse or KVM station. The

transmitter and receiver are connected together with fiber

cable. The receiver can be up to 6 miles from the

transmitter using 9µm Singlemode-Fiber (1.25 miles using

the 3.2 GBit model).

All models are available with both transmitter

and receiver KVM access. The transmitter’s

KVM access allows an additional KVM station to

be connected to the transmitter unit. If your

system requires dual video, the CrystalView DVI

Fiber dual video model can fully support it.

Fiber makes extended

distances easy to reach

Phone: 281-933-7673 E-mail: [email protected] 

10707 Stancliff Rd. Houston, TX 77099

Rose Electronics – Europe: +49 (0)2454 969442 Rose Electronics – Asia: +65 6324 2322

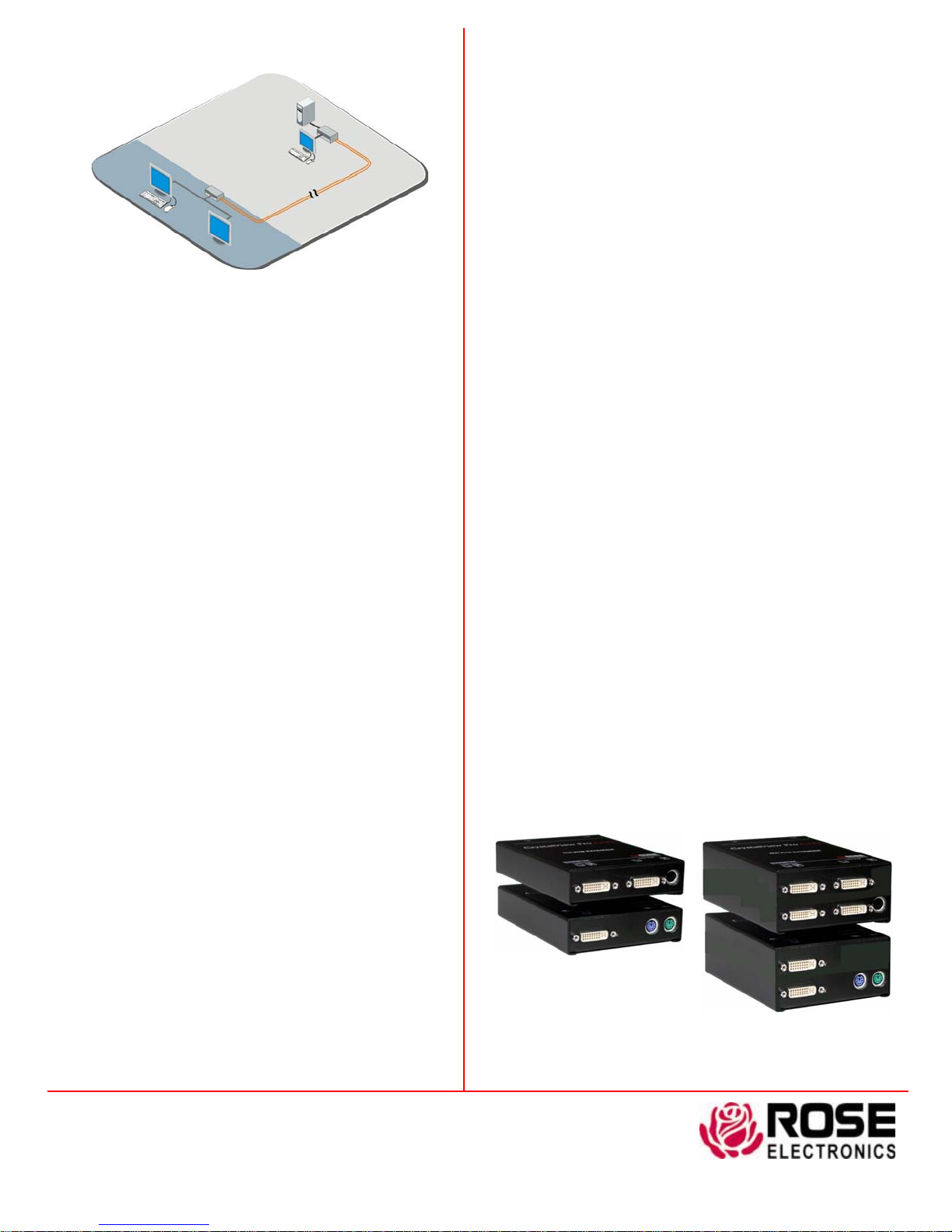

Typical Application

Dual DVI Video model Application

Digitally access a computer from two locations,

locally and remotely

CrystalView DVI Fiber basics The CrystalView DVI Fiber

system consists of a transmitter that connects to a PC, or server and

a receiver that connects to a keyboard, monitor, and mouse or a KVM

switch. The transmitter and receiver units are connected together

with up to 1¼ or 6 miles of standard fiber cable depending on model.

Models The CrystalView DVI Fiber is available in a PS/2 or USB

model. All models allow for a second KVM station next to the PCs,

providing operation from the transmitter or the receiver unit. There is

also a dual video model for systems that need to digitally transmit a

second video source.

Installation Installing the CrystalView DVI Fiber units is as easy

as connecting the KVM station to the receiver, connecting the CPU to

the transmitter, and connecting the transmitter to the receiver with

fiber cable.

Keyboard and Mouse emulation The CrystalView DVI

Fiber uses a microprocessor to emulate the keyboard and mouse.

Only the transmitter unit has to be connected for the PC to boot

properly.

Part Numbers – Multi-Mode Fiber Extender kits*

CRK-2DFMPD1D PS/2 model

CRK-2DFMUD1D USB model

CRK-2DFMPD2D PS/2 Dual Video

CRK-2DFMUD2D USB Dual Video

Part Numbers – Single-Mode Fiber Extender kits*

CRK-2DFSPD1D PS/2 model

CRK-2DFSUD1D USB model

CRK-2DFSPD2D PS/2 Dual Video

CRK-2DFSUD2D USB Dual Video

*kits include transmitter and receiver units

/AUD part number suffix = serial and audio option

/3.2 part number suffix = 3.2 GBit model option

Specifications

Dimensions 4.125W x 5.625D x 1.375H (in)

10.0W x 14.4D x 3.0H (mm)

H = 2.7in (6.3mm) for dual video

Weight 0.65 lbs / 0.3 kg (each)

1.20 lbs / 0.6 kg (each-dual video)

Operating Temp 5˚C – 45˚C / 41˚F – 113˚F

Storage Temp -25˚C – 60˚C / -13˚F – 140˚F Humidity

80% max, non-condensing

Resolution up to 1920 x 1200 @60 Hz

Connectors Video – DVI – I

Keyboard – MiniDIN6 / USB Type A

Mouse – MiniDIN6 / USB Type A

Fiber – LC fiber

Power 90-240 VAC to 5.0 VDC / app. 10W

Power Local unit: 750 ma max

Requirements Remote Unit: 750 ma max

Max distance 650ft (200m) 62,5µm Multimode

1300ft (400m) 50.0µm Multimode

33,000ft (10km) 9.0µm Singlemode

6,550ft (2,000m) w/3.2 GBit model)

Indicators (LEDs) Front panel – power

Video check LED

RJ45 LEDs – Data error / status

Approvals CE

Serial Data: Baud Rate up to 19,200

Data Flow - Format independent

Flow control - RTS, CTS, DTR, DSR

Audio Data: Signal level 5V p-p

Impedance 47KΩ

Connectors 3.5mm stereo jack

Transmission 16 bit, 38.4KHz Digitized

audio

Microphone - Powered or un-powered

Speakers - Powered

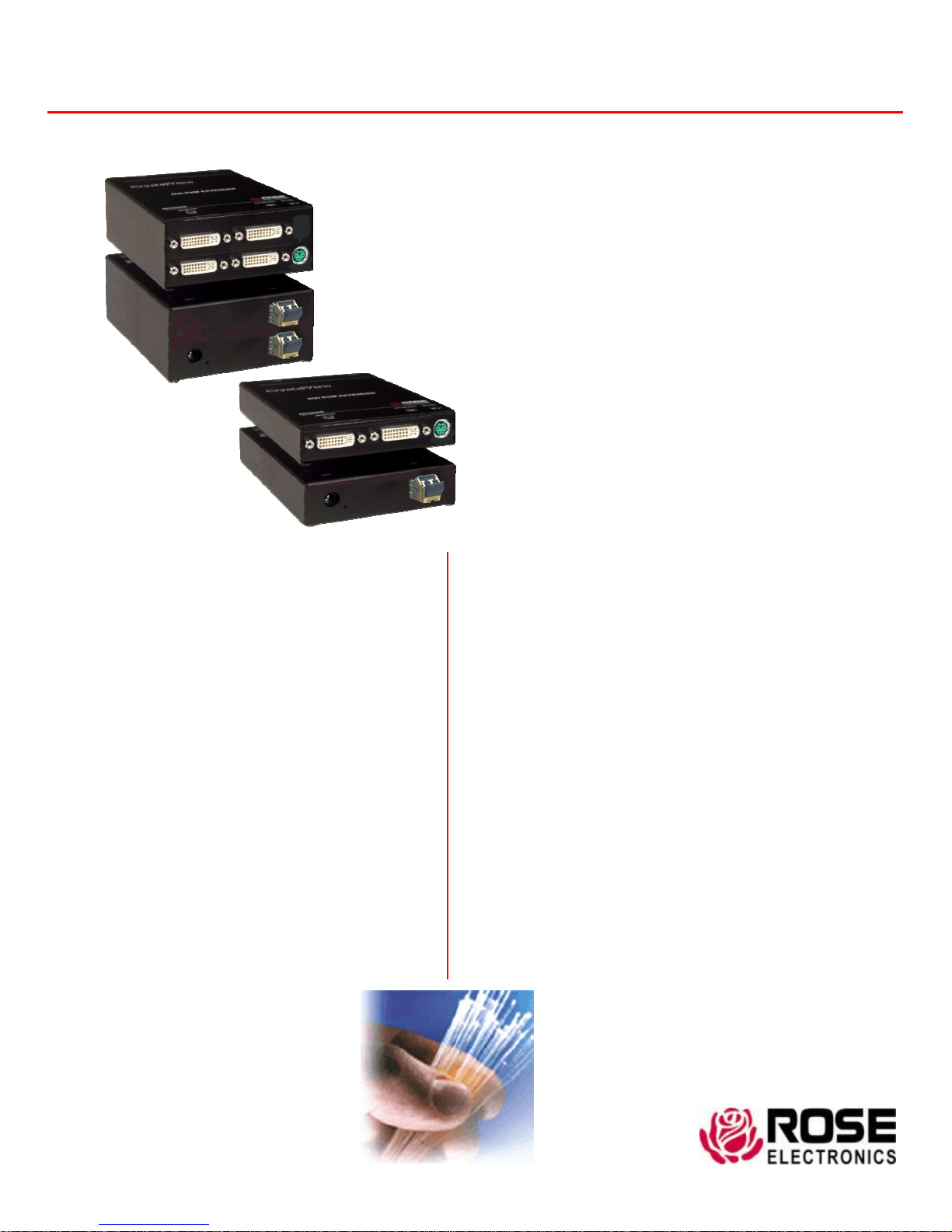

CrystalView DVI Fiber (Single

video model)

CrystalView DVI Fiber

(Dual video model)

USB keyboard and mouse models available

Receiver

Transmitter
