INSTALLATION GUIDE

1506-PHX Cargo Plus

RAM Promaster 159" EX Wheelbase

PHASE 1 – ASSEMBLY

1.1 SETUP

1.1.2 Verify all parts are present.

15-U4009 BOX

15-U1005 BOX

15-U3002 BOX

15-U2002 BOX

Saddle extruSion ×8

roller Support “r” ×1

Bar ×3

Bar ×6

roller ×1

roller Support “l” ×1 Foot Clamp ×8 CFK - 1 ×1 CFK - 2 ×1 CFK - 3 ×1

Foot ×8 Foot Cowl ×8 RuBBer SpaCer ×8

×2 ×2×2

Side railS

For technical support, contact us at 1-800-565-5321 1506-PHX Installation Guide |REV. A2 | Page 3

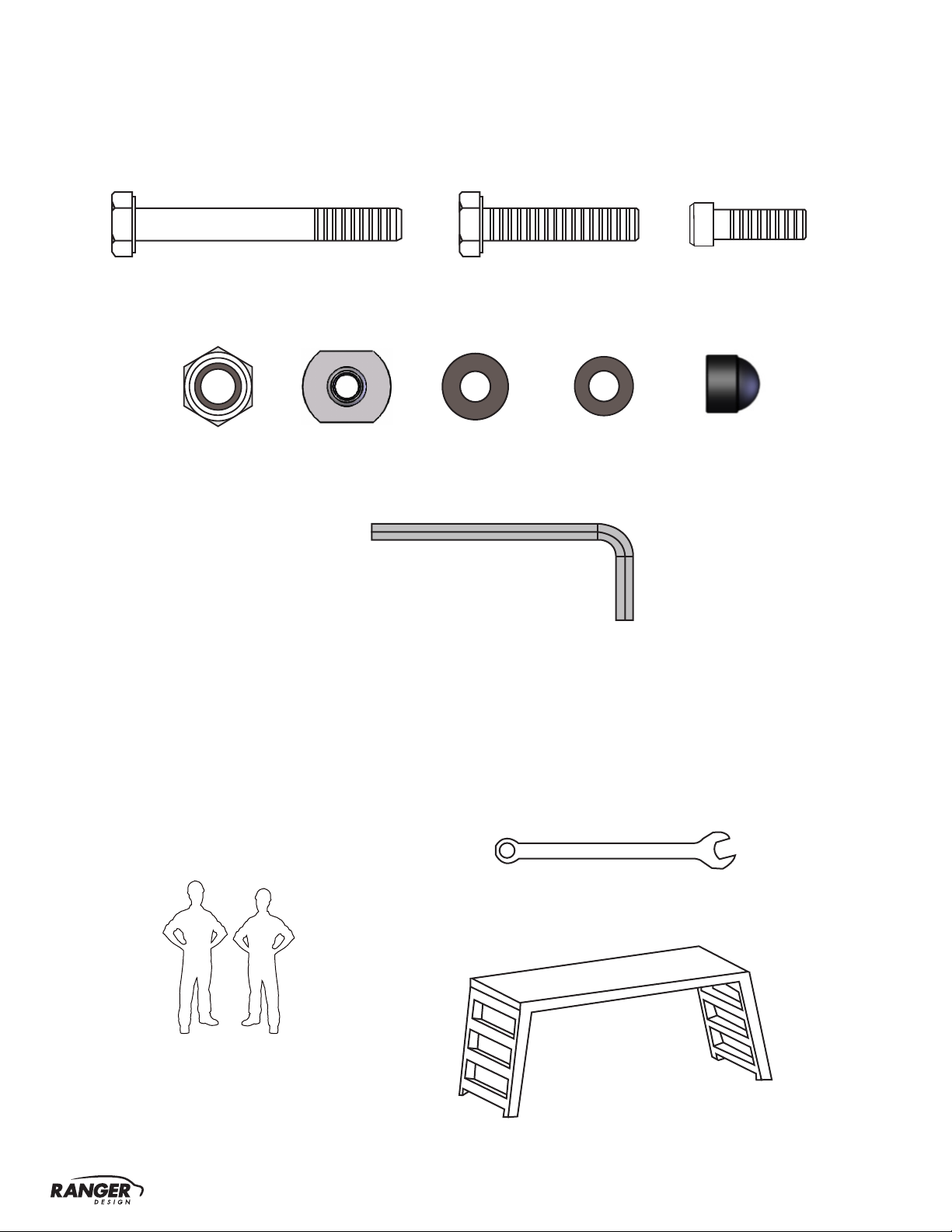

REQUIRED ITEMS

HARDWARE

2

PERSONS

( M8 × 65 ) ×16

( M8 ) ×28

( M8 ) ×1

( M8 ) ×22 ( M8 ) ×32 ( M8 ) ×16

( M8 × 40 ) ×8 ( M8 ) ×32

13mm ×2

( M8 ) ×8

For technical support, contact us at 1-800-565-5321 1506-PHX Installation Guide |REV. A2 | Page 4

PHASE 2 – INSTALLATION

2.1 INSTALLATION

2.1.1 Install the feet. Use the 1st, 2nd, 4th, and 5th mounting points as shown below.

M8 × 40

M8

M8 ( the 12pCS. )

M8 ( the 12pCS. )

1st 2nd 3rd 4th 5th

Front Rear

For technical support, contact us at 1-800-565-5321 1506-PHX Installation Guide |REV. A2 | Page 5

2×

STEP 1 STEP 2

STEP 3 STEP 4

2.1.2 Connect the 3 side rails parts.

10 NM

For technical support, contact us at 1-800-565-5321 1506-PHX Installation Guide |REV. A2 | Page 6

1St Side railS

×11

×11

2nd Side railS

2.1.3 Install 4 bars in the feet.

2.1.4 Slide 11pcs. of channel nuts in each

side rails.

2.1.5 Attach the 2 side rails on both ends

of the bar, using the 2ND,4TH, 5TH & 8th

Channel nuts from the front.

2.1.6 Attach the roller to the side rails using

the 2 last channel nuts from the front.

2.1.7 Slide the rack to the appropriate

position.

2.1.8 Center the bar on the vehicle.

1"

BaCKup Camera

For technical support, contact us at 1-800-565-5321 1506-PHX Installation Guide |REV. A2 | Page 7

PHASE 3 – TIPS

3.1 SAFETY TIPS

MAX

110 lbs

MAX

220 lbs

2.1.9 Attach the 5 bar. 2.1.10 Attach the foot cowl to the foot.

ADD ADD ADD ADD ADD

For technical support, contact us at 1-800-565-5321 1506-PHX Installation Guide |REV. A2 | Page 8

“You have successfully installed your

1506-PHX Cargo Plus

Thank you for doing business with us.”

For any feedback or suggestions you may have, please contact: cs@rangerdesign.com
