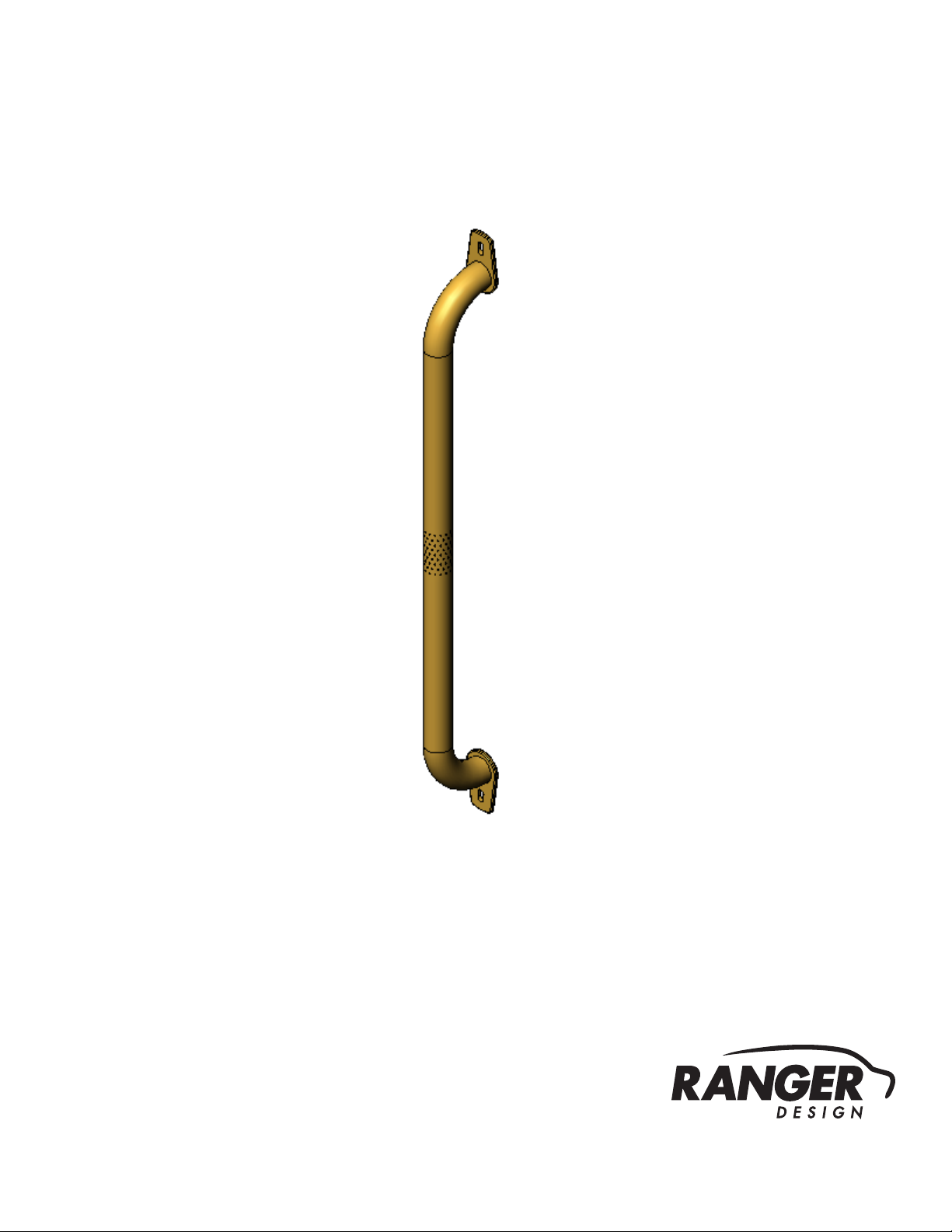

INSTALLATION GUIDE

6093-27 Large Grab Hnadle

Steel

For technical support, contact us at 1-800-565-5321 6093-27 Installation Guide |REV. A1 | Page 2

QUICK START GUIDE

REQUIRED ITEMS

PERSONS

q1.1 Setup...............................................................................................................................................

q1.2 Tips How to Install Plusnut..............................................................................................................

3 - 4

Phase 1 - Assembly

Phase 2 - Installation

qCordless Drill

qTorque Gun or Ratchet

qPlusnut Tools ( 5/16" )

q3/8" Drill Bit

qMarker

q1/2" Socket

q2.1 OEM Installation...............................................................................................................................

q2.2 Ranger Design Installation...............................................................................................................

For technical support, contact us at 1-800-565-5321 6093-27 Installation Guide |REV. A1 | Page 3

PHASE 1 – ASSEMBLY

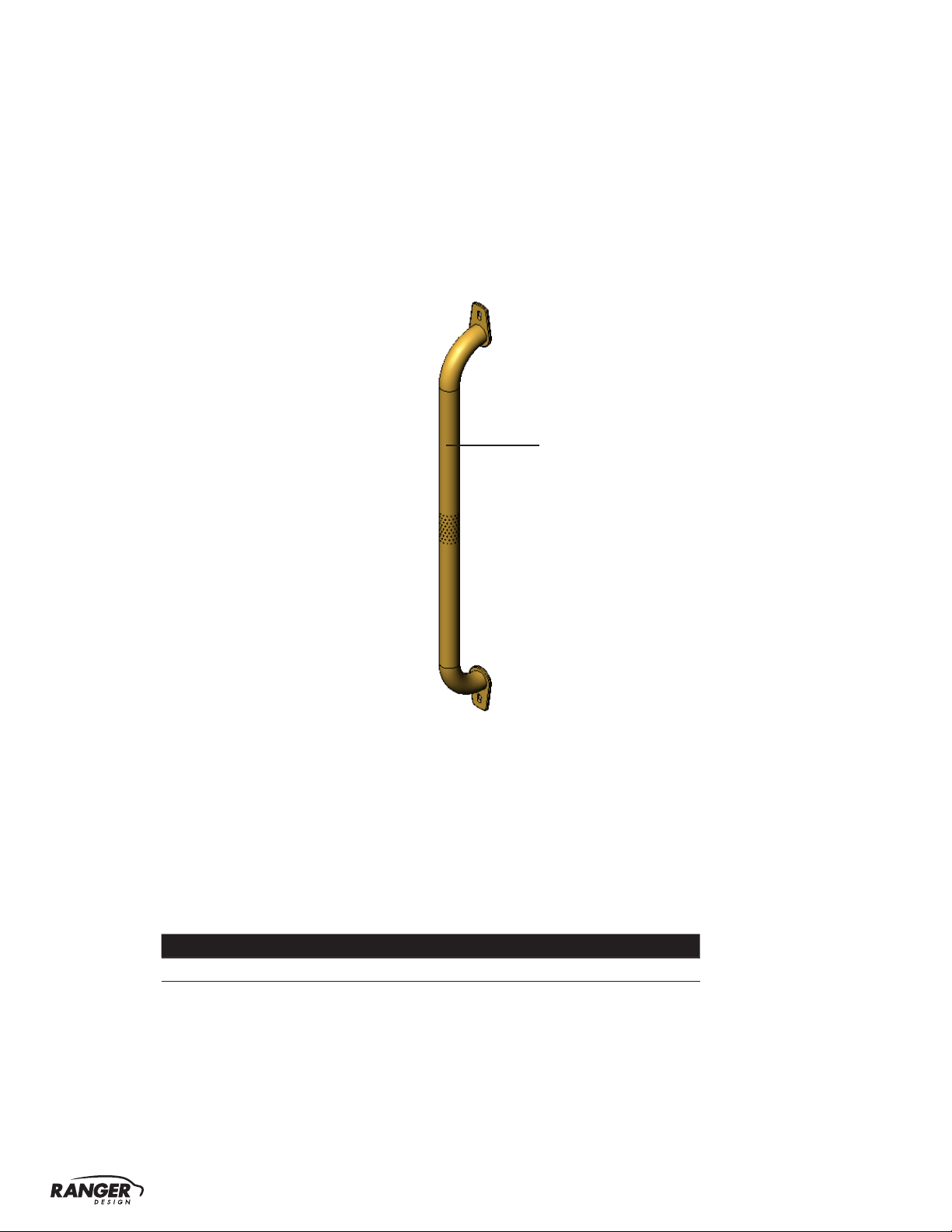

1.1 SETUP

1.1.2 Verify all parts are present.

Item No. Description Qty.

Large Grab Handle Large Grab Handle 1

Large grab HandLe

1.1.1 Unpack components; compare with the bill of materials.

For technical support, contact us at 1-800-565-5321 6093-27 Installation Guide |REV. A1 | Page 4

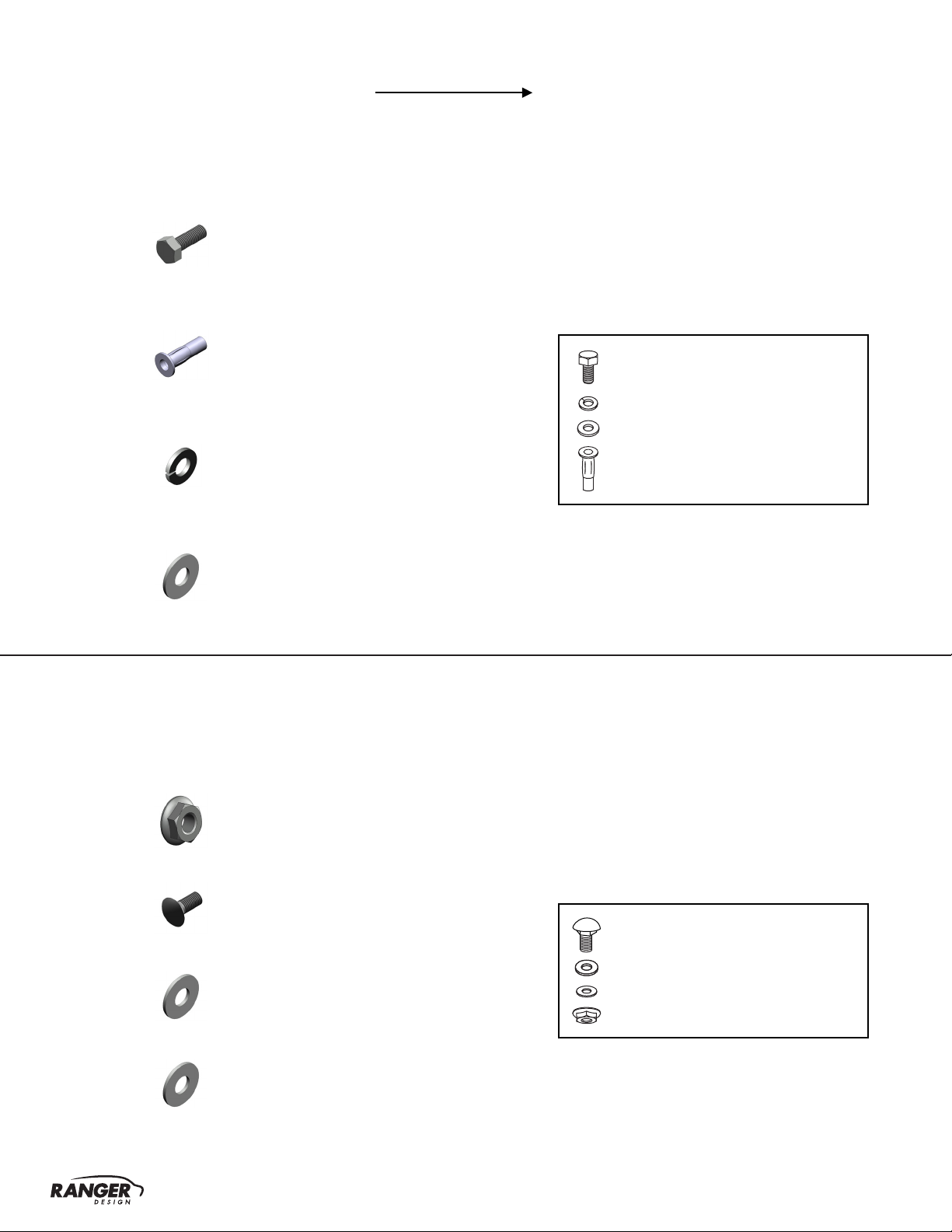

Fastener Kit Fastener Assembly

2×

Hex Bolt

5/16"-18 × 1"

GR-5 ZINC

# 90-208

# 98-110

2×

Flat Washer

5/16"

ZINC

2× Plusnut

5/16"

# 94-132

2× # 98-122

Lock Washer

5/16"

ZINC

# 94-116

Serrated Nut

5/16"-18

ZINC

2×

# 98-114

2×

Flat Washer

3/8"

ZINC

# 98-109

2× Flat Washer

3/8"

# 90-486

Carriage Bolt

5/16"-18 × 3/4"

ZINC

2×

OEM FASTENER

RANGER DESIGN FASTENER

#90-208 Hex Bolt 5/16" × 1"

#98-122 Lock Washer

#98-110 Flat Washer

#94-132 Plus nut

2×

#90-486 Carriage Bolt 5/16" × 3/4"

#98-109 Flat Washer

#98-114 Flat Washer

#94-116 Serrated Nut

For technical support, contact us at 1-800-565-5321 6093-27 Installation Guide |REV. A1 | Page 5

PHASE 1 – INSTALLATION

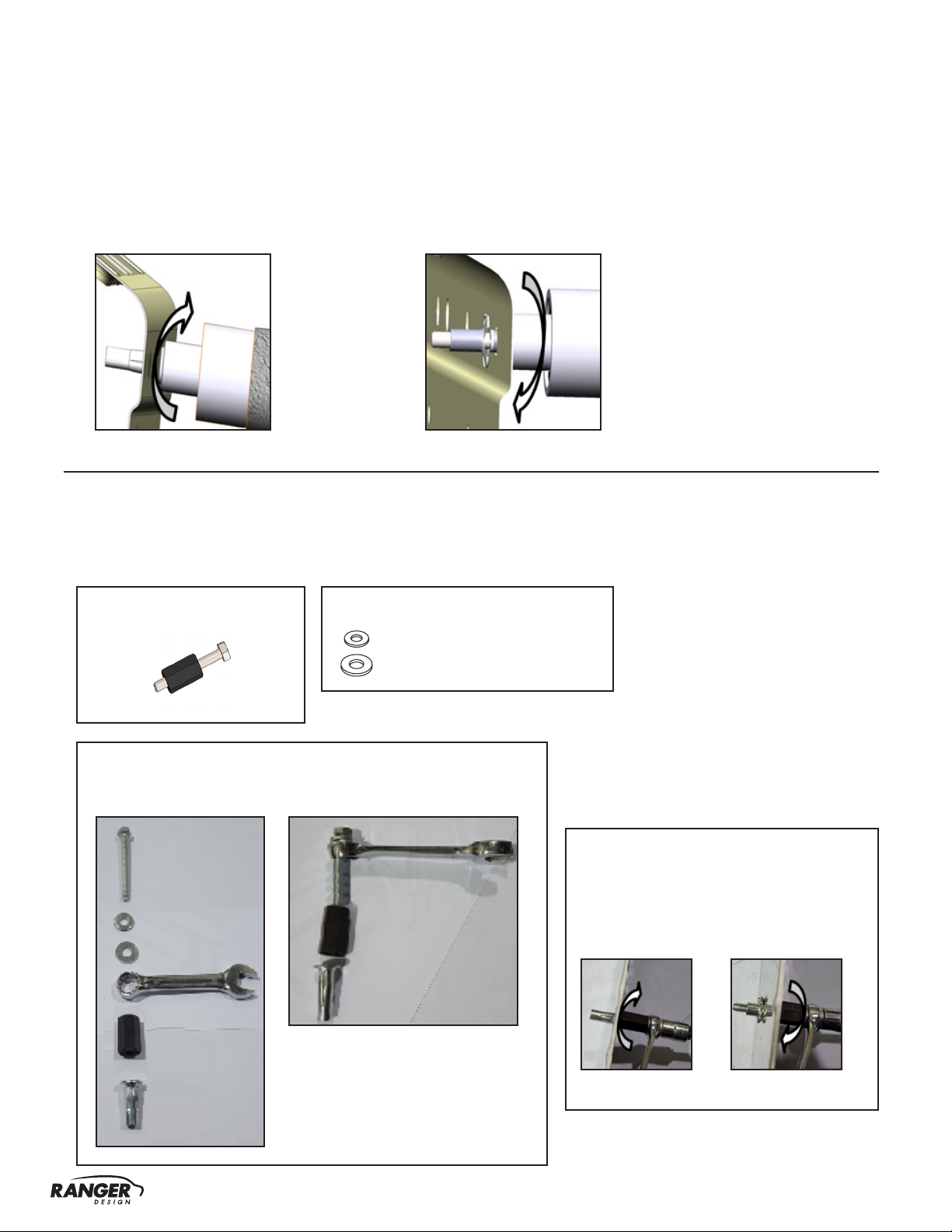

1.2 TIPS HOW TO INSTALL PLUSNUT

FORWARD REVERSE

STEP: Put the plusnut on the plusnut gun, then attach the plus nut in the hole by turning the gun forward until

the plus nut locks, then remove the gun by turning in reverse.

•using plusnut gun

•using plusnut tool

1.2.1 How to attach plus nut.

PLUSNUT TOOL HARDWARE USED

Flat washer 5/16"

Flat washer 5/16" BS × 7/8" OD

TOOLS

qCordless Impact

q1/2" Socket

q9/16" Wrench

STEP 1:

Assemble the plusnut tool with the hardware needed, plus nut

and the 9/16" wrench as shown.

FORWARD REVERSE

STEP 2:

Attach the plus nut in the hole by turning

the bolt forward using an impact with a

1/2" socket until the plusnut locks, then

remove the bolt by turning the impact in

reverse.

NOTE: The hardware used for the plusnut tool is not included in the fastener bag.

The plusnut tool can be ordered separately upon demand at no charge.

For technical support, contact us at 1-800-565-5321 6093-27 Installation Guide |REV. A1 | Page 6

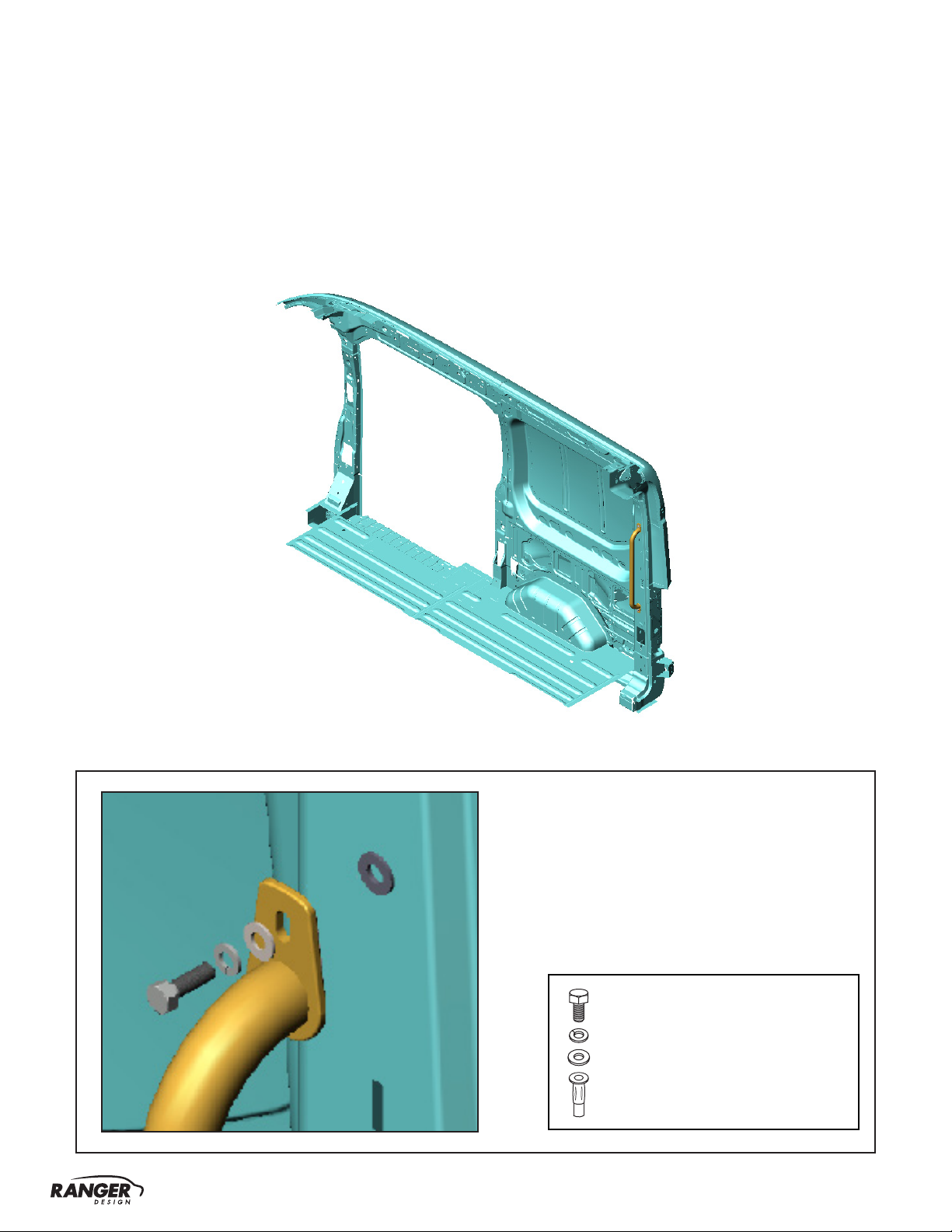

2.1.1 • Place the Grab Handle against a at surface.

• Mark the holes of the Grab Handle, then drill the mark using 1/2" drill bit.

• Install the plusnut to the holes.

• Install the Grab Handle to the plusnut using OEM fastener kit.

PHASE 2 – INSTALLATION

2.1 OEM INSTALLATION

HARDWARE USED

2× ( 17 ft •lbs )

TOOLS

qCordless Drill

qMarker

q1/2" Drill Bit

qTorque Gun

q1/2" Socket

#90-208 Hex Bolt 5/16" × 1"

#98-122 Lock Washer

#98-110 Flat Washer

#94-132 Plus nut

For technical support, contact us at 1-800-565-5321 6093-27 Installation Guide |REV. A1 | Page 7

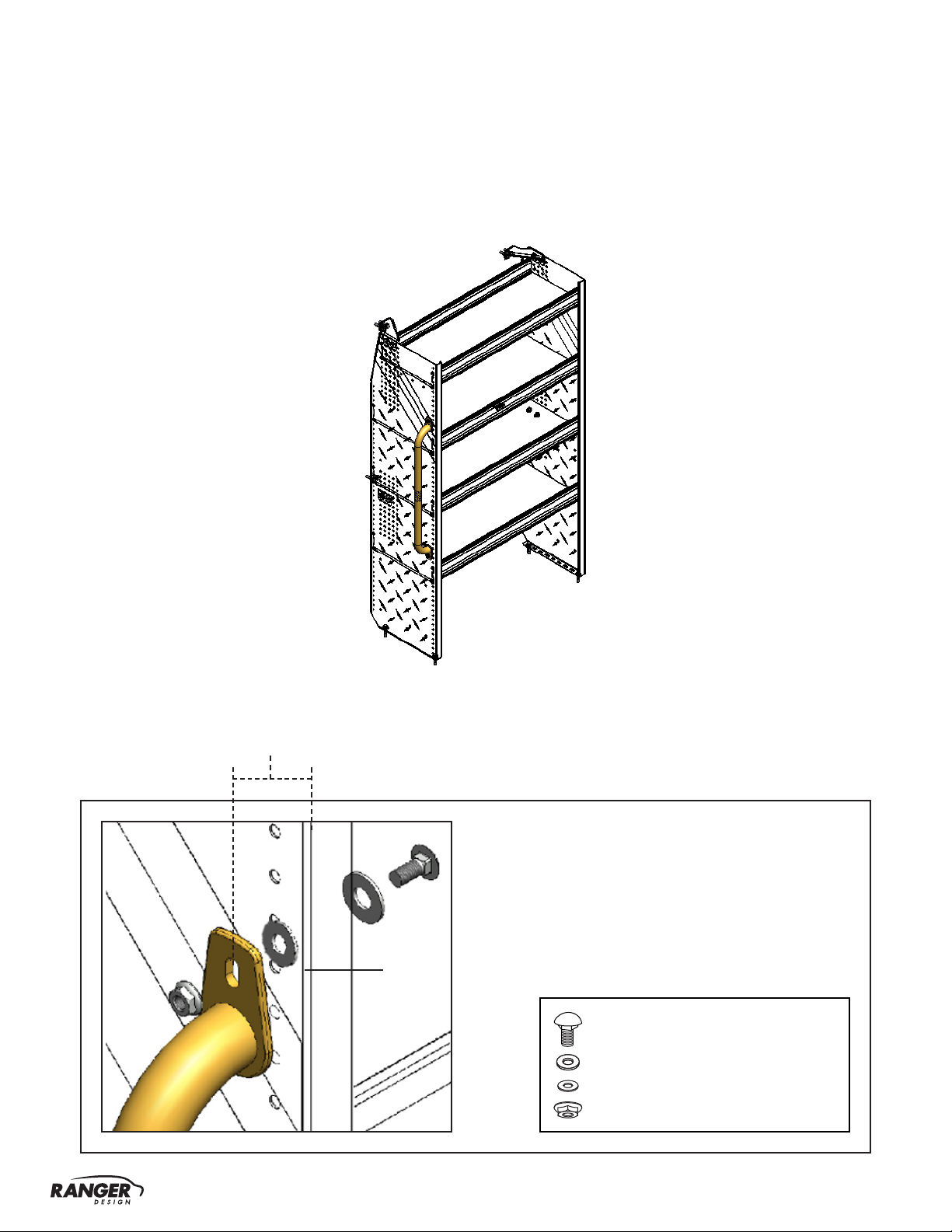

2.2.2 • Place the Grab Handle to Ranger Design unit or panel.

• Mark the holes of the Grab Handle, then drill the mark using 3/8" drill bit.

• Install the Grab Handle to the Ranger Design unit or panel using Ranger Design fasyener kit.

NOTE: If you are installing the Grab Handle to Ranger design unit,

always place the Grab Handle 3/4" from the bend of the panel.

PHASE 2 – INSTALLATION

2.2 RANGER DESIGN INSTALLATION

3/4"

bend HARDWARE USED

2× ( 17 ft •lbs )

TOOLS

qCordless Drill

qMarker

q3/8" Drill Bit

qTorque Gun

q1/2" Socket

#90-486 Carriage Bolt 5/16" × 3/4"

#98-109 Flat Washer

#98-114 Flat Washer

#94-116 Serrated Nut

For technical support, contact us at 1-800-565-5321 6093-27 Installation Guide |REV. A1 | Page 8

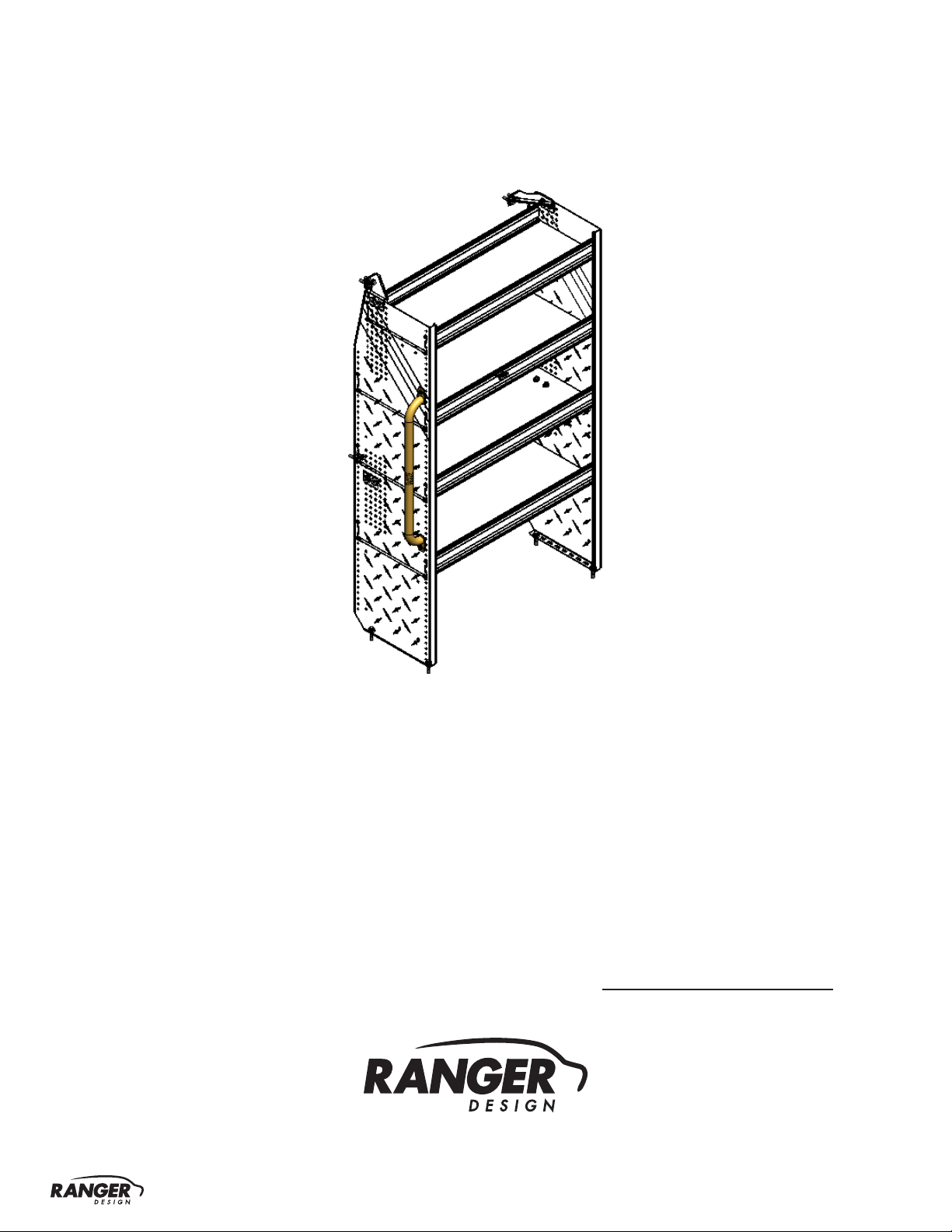

“You have successfully installed your

Large Grab Handle

Thank you for doing business with us.”

For any feedback or suggestions you may have, please contact: cs@rangerdesign.com
