INSTALLATION GUIDE

1506-DH Cargo Plus

Sprinter 170" LWB & 170"EWB Wheelbase

PHASE 1 – ASSEMBLY

1.1 SETUP

1.1.2 Verify all parts are present.

15-U4012 BOX

15-U3002 BOX

15-U2002 BOX

Saddle extruSion ×10

roller Support “r” ×1

Bar ×3

Bar ×6

roller ×1

roller Support “l” ×1

CFK - 1 ×1

CFK - 5 ×1 CFK - 6 ×1

CFK - 2 ×1 CFK - 3 ×1 CFK - 4 ×1

Foot ×10 Foot Cowl ×10 RuBBer SpaCer ×10

15-U1005 BOX

Side railS

×2 ×2×2

For technical support, contact us at 1-800-565-5321 1506-DH Installation Guide |REV. A2 | Page 3

REQUIRED ITEMS

HARDWARE

PERSONS

( M8 × 65 ) ×20 ( M8 × 25 ) ×10 ( M8 × 25 ) ×10

( M8 ) ×32

( M8 ) ×4 ( M8 ) ×4 ( M8 ) ×1

( M8 ) ×22 ( M8 ) ×50( M8 × 25 ) ×34

13mm ×2

For technical support, contact us at 1-800-565-5321 1506-DH Installation Guide |REV. A2 | Page 4

PHASE 2 – INSTALLATION

2.1 INSTALLATION

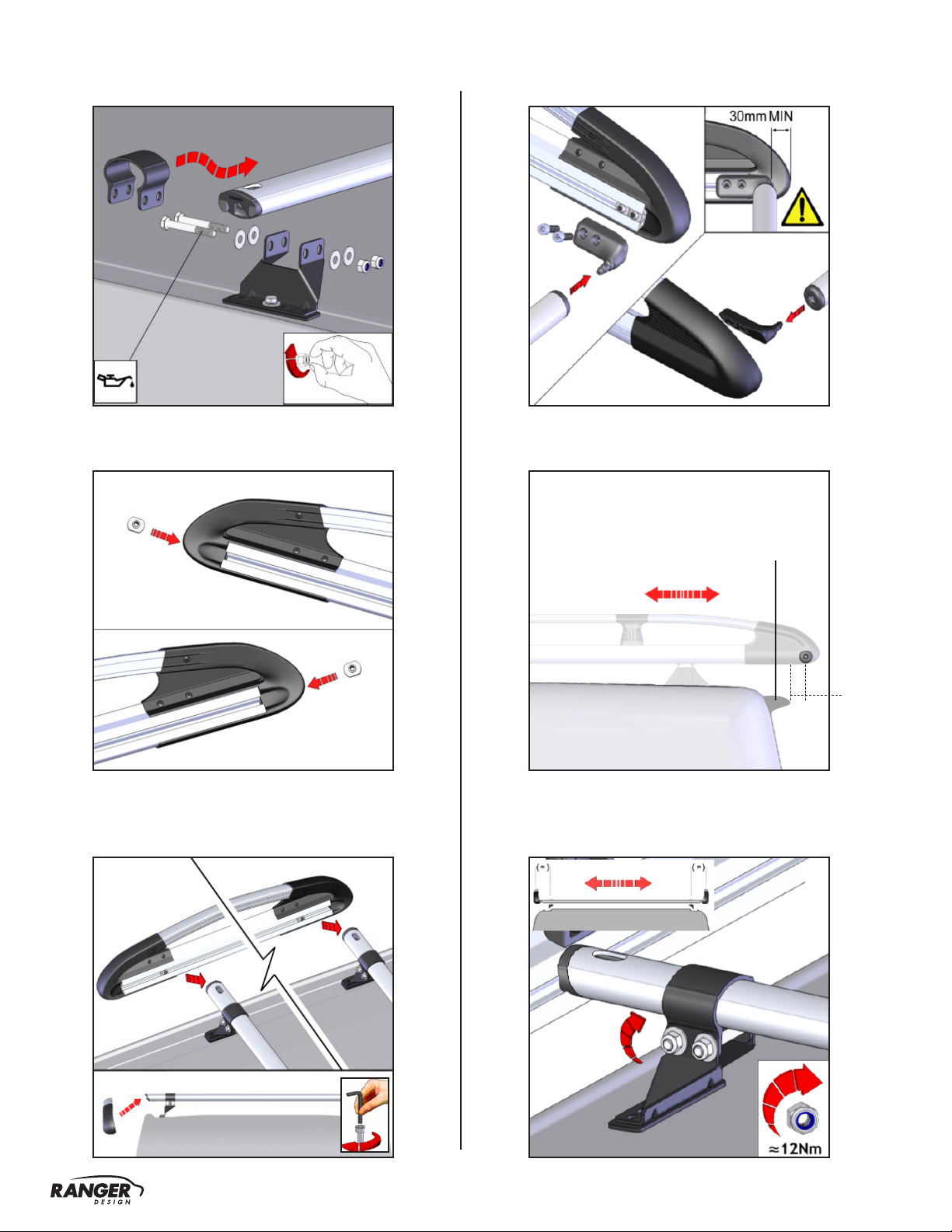

2.1.1 Install the feet.

INSIDE

W/O OEM TRACK WITH OEM TRACK

1.a.1.b.

1.b.

M8 × 25

NOTE: Use 1ST , 3RD, 5TH, 7TH

and 7TH holes from

the front.

For technical support, contact us at 1-800-565-5321 1506-DH Installation Guide |REV. A2 | Page 5

2×

STEP 1 STEP 2

STEP 3 STEP 4

2.1.2 Connect the 2 half side rails.

10 NM

For technical support, contact us at 1-800-565-5321 1506-DH Installation Guide |REV. A2 | Page 6

1St Side railS

×11

2nd Side railS

2.1.3 Install 5 bars in the feet.

2.1.4 Slide 11pcs. of channel nuts in each

side rails.

2.1.5 Attach the 2 side rails on both ends

of the bar, using the 2ND,4TH, 6TH, 8TH

& 9TH Channel nuts from the front.

2.1.6 Attach the roller to the side rails using

the 2 last channel nuts from the front.

2.1.7 Slide the rack to the appropriate

position.

2.1.8 Center the bar on the vehicle.

BaCKup Camera

For technical support, contact us at 1-800-565-5321 1506-DH Installation Guide |REV. A2 | Page 7

PHASE 3 – TIPS

3.1 SAFETY TIPS

MAX

110 lbs

MAX

220 lbs

2.1.9 Attach the 4 bar. 2.1.10 Attach the foot cowl to the foot.

ADD ADD ADD ADD

For technical support, contact us at 1-800-565-5321 1506-DH Installation Guide |REV. A2 | Page 8

“You have successfully installed your

1506-DH Cargo Plus

Thank you for doing business with us.”

For any feedback or suggestions you may have, please contact: cs@rangerdesign.com
