PROAIM P-GBD-01 Manual de usuario

Please inspect the contents of your shipped package to ensure you have received everything that is listed

below.

Gimbal-Bird Body Support Rig (P-GBD-01)

Assembly Manua l

No part of this document may be reproduced, stored in a retrieval system, or transmied by any form or by any means,

electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permied by the applicable copyright

statutes or in wring by the Publisher.

What’s In The Box

2 x Shoulder

2 x Belts

Jacket

2 x arms (Le And Right)

Gimbal Support Rig Setup

• Wear the jacket and fasten the buckles from

the waist.

• Now, fasten the buckle of the center strap of

the jacket.

• Follow the same process for the other Velcro

belt.

• Adjust the side Velcro belt of the vest as per

your comfort.

• You can use the buckle strap to loosen or

ghten the jacket.

• Loosen the knob present at the back of the

vest and have the vest sit on your shoulder

comfortably.

• Aach the shoulder strap to the chest sup-

port and follow the same procedure for the

other shoulder.

NOTE: A red knob at the back of the vest lets

you control the height and posioning of the

support bar and shoulder pad.

• Unlock the quick-release knob present on the

shoulder strap.

• The jacket would look like this aerwards.

• Now, fasten both shoulder strap buckles, as

shown in the image.

• Slide the provided arms on each shoulder

strap and lock the quick-release knob to se-

cure them.

• The jacket will look like this aerwards.

• Wrap the Velcro belt on the top mounng of

the handheld Gimbal (Not Included).

• Aach the other end of the Velcro belt with

the arm.

• Follow the same procedure to

aach the second Velcro belt to the

handheld Gimbal (Not Included).

• The Velcro belt will look like this when

securely wrapped around the top mounng.

• Follow the same procedure to aach the

second Velcro belt to the other arm.

Warranty: We oer one year warranty for our products from date of purchase. Within this period of me,

we will repair it without charge for labor or parts. Warranty doesn’t cover transportaon costs nor does it

cover a product subjected to misuse or accidental damage. Warranty repairs are subjected to inspecon and

evaluaon by us.

Liability: We are not liable for damage caused by products that we do not supply or from mishandling in

transit, accident, misuse, neglect, lack of care of the product, or service by anyone other than our company.

utmost support and care unl you use our product.

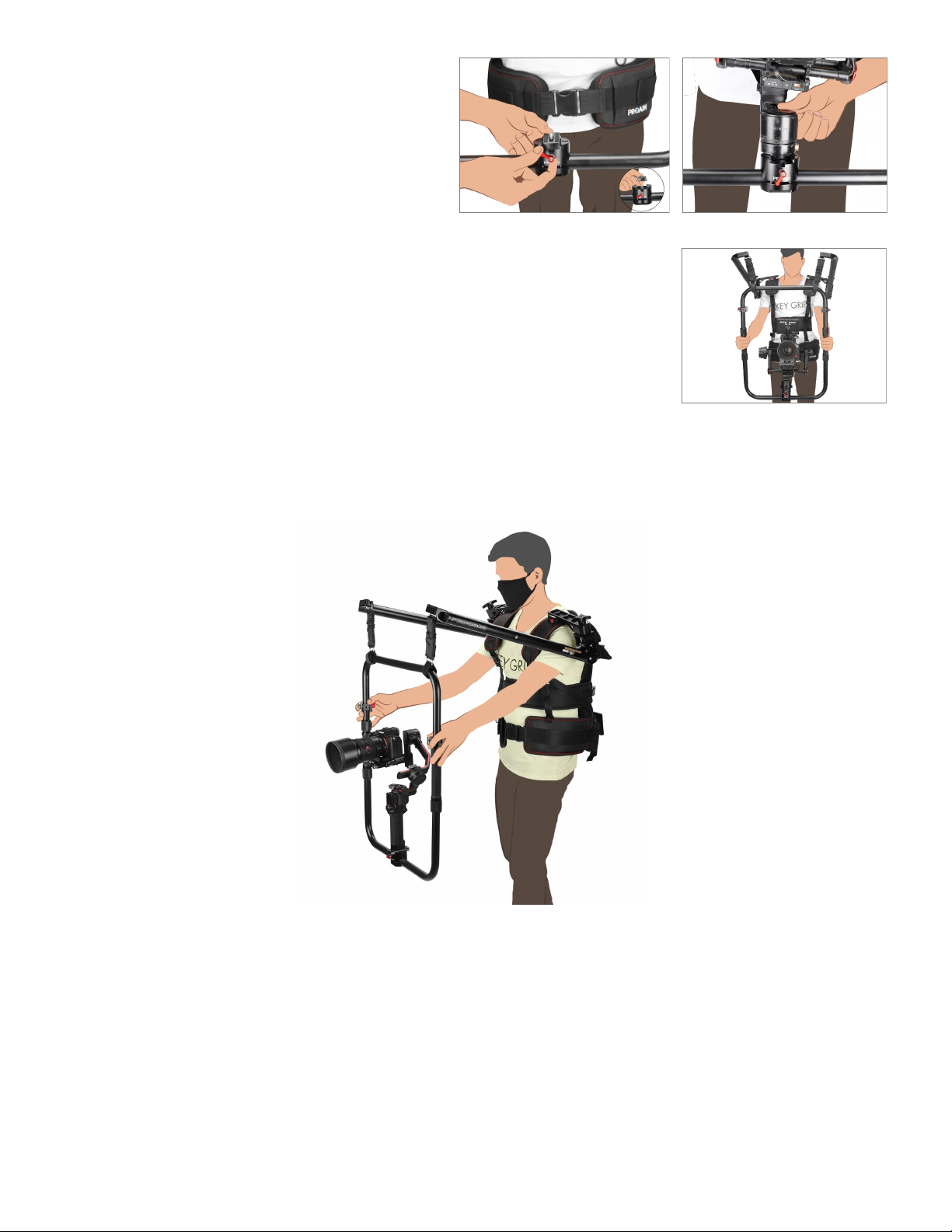

YOUR PROAIM GIMBAL-BIRD BODY SUPPORT RIG

ALL DRESSED UP AND READY TO GO!

(SHOWN WITH OPTIONAL ACCESSORIES)

• Loosen and remove the quick-release plate

from the Handheld Gimbal (Not Included),

and then slide the Gimbal

(Not Included) to aach it to the Handheld

Gimbal (Not Included).

• Tighten the knob to secure it.

• The Gimbal (Not Included) is properly

aached to the camera (Not Included), as

shown in the image.
