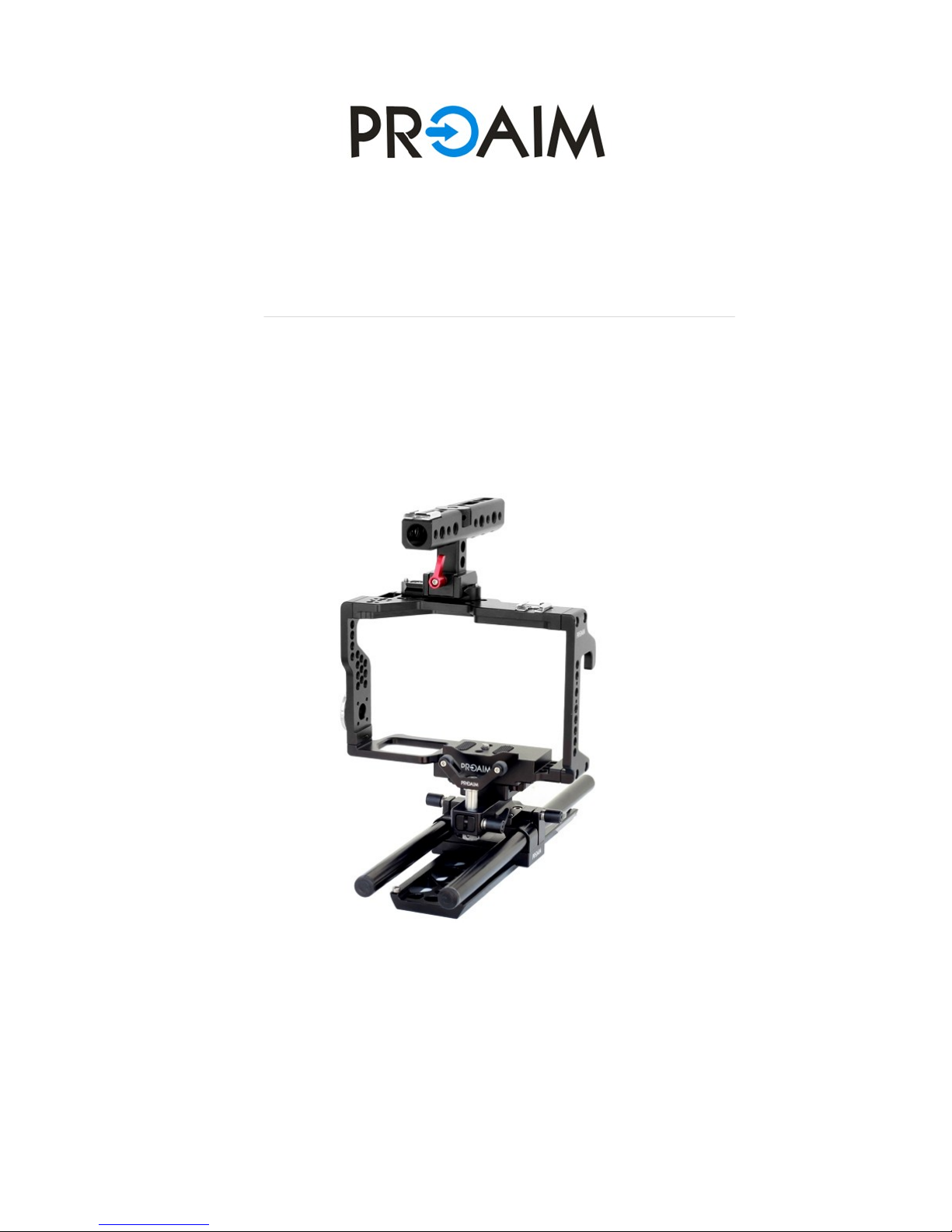

Muffle Cage For Panasonic Lumix

GH3, GH4 & GH5 Cameras

(CG-014-00)

INSTRUCTION MANUAL

All rights reserved.

No part of this document may be reproduced, stored in a retrieval system, or transmied by any form or by any

means, electronic, mechanical, photocopying, recording, or otherwise, except as may be expressly permied by

the applicable copyright statutes or in wring by the Publisher.

Proaim Mue Cage For Panasonic Lumix GH3, GH4 & GH5 Cameras 2

INTRODUCTION

With the rapid development of digital cinematography techniques, more and more powerful

cameras are coming on the market. To keep-up with the changes, Proaim delighully uncovers a

nely craed Camera Cage specically designed for Panasonic Lumix GH3, GH4 & GH5 cameras,

to give your every shot a more rened & professional feel.

The CNC-machined aluminium constructed lightweight cage is custom-designed to protect and

stabilize your camera, thus ensuring years of long life use and also provides access to all ports

and controls. Ergonomically designed top handle enhances handheld operaons. It comes with

adovetail base plate with 15mm rod adaptor and a pair of 15mm rods for enhancing mounng

capabilies.

IN THE BOX

Please inspect the contents of your shipped package to ensure you have received all that is

pictured and listed below.

 Aach dovetail plate with your quick release plate and ghten it with the help of screw driver.

Now mount the dovetail plate onto the uid head and secure it properly .

ASSEMBLING YOUR MUFFLE CAGE

Camera Cage Top handle

2 x 300mm Rods

Dovetail Plate

Rod adapter with

lens support

Proaim Mue Cage For Panasonic Lumix GH3, GH4 & GH5 Cameras 3

 Aach the camera with cage and ghten with the help of screw driver. (NOT INCLUDED)

 Slide-in the rod adapter into the dovetail plate and lock it with the help of provided knob as

shown.

 Slide in the cage with camera onto the rod adapter and ghten the knob to secure it.

Proaim Mue Cage For Panasonic Lumix GH3, GH4 & GH5 Cameras 4

 Now insert the rods into the rod adapter and ghten the knob as shown below.

 You can adjust the height of lens support with the help of provided knob as per your lens

height.

 Slide in the top handle on the top of the

cage and ghten the knob.

Proaim Mue Cage For Panasonic Lumix GH3, GH4 & GH5 Cameras 5

WARRANTY

We oer a one year warranty for our products from the date of purchase.

We will repair or replace your product, free of charge, in the event of a defect in materials or

crasmanship obtained during normal use or handling based on the user manual. Please note

that we will not cover any shipping costs for returning the product to us. If any VAT or import

dues are applied to the return, we will also charge these costs to the customer.

The warranty does not include, by the way of example, damage caused by products that we do

not supply or from mishandling in transit, accident, misuse, neglect, lack of care of the product ,

or service by anyone other than our company.

We are not liable for incidental or consequenal damages resulng from the use of the unit or

occurring due to any breach of this warranty.

Replacement parts of the product will be provided at nominal cost (covering the cost price of the

replacement parts only) to the customers aer the Warranty Period has expired. We will cover

the complete cost of sending replacement parts within the warranty period. Aer that, nominal

cost of the product & Actual shipping cost will be charged.

Do not send the unit to us without rst geng a response and geng the approval to send back

the item.

In case of any kind of dissasfacon, we urge you to Contact us immediately and we shall do our

best to help you out.

For any other assistance you can reach us via email.

YOUR MUFFLE CAGE FOR PANASONIC LUMIX GH3, GH4 & GH5 CAMERAS

ALL DRESSED UP AND GOOD TO GO

(SHOWN WITH OPTIONAL ACCESSORIES)
