Pro-Form Endurance 520 E Manual de usuario

USER’S MANUAL

Serial

Number

Decal

CAUTION

Read all precautions and

instructions in this manual before

using this equipment. Keep this

manual for future reference.

Model No. PFEVEL69716.0

Serial No.

Write the serial number in the space

above for reference.

www.iconeurope.com

CUSTOMER SERVICE

UNITED KINGDOM

Call: 0330 123 1045

From Ireland: 053 92 36102

Website: www.iconsupport.eu

E-mail: [email protected]

Write:

ICON Health & Fitness, Ltd.

Unit 1D, The Gateway

Fryers Way, Silkwood Park

OSSETT

WF5 9TJ

UNITED KINGDOM

AUSTRALIA

Call: 1800 993 770

E-mail: [email protected]

Write:

ICON Health & Fitness

PO Box 635

WINSTON HILLS NSW 2153

AUSTRALIA

TABLE OF CONTENTS

WARNING DECAL PLACEMENT

This drawing shows the location(s) of the warning

decal(s). If a decal is missing or illegible, see

the front cover of this manual and request a

free replacement decal. Apply the decal in the

location shown. Note: The decal(s) may not be

shown at actual size.

WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

IMPORTANT PRECAUTIONS..................................................................3

BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

HOW TO USE THE ELLIPTICAL ..............................................................16

MAINTENANCE AND TROUBLESHOOTING.....................................................25

EXERCISE GUIDELINES ....................................................................27

PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

ORDERING REPLACEMENT PARTS .................................................. Back Cover

RECYCLING INFORMATION ......................................................... Back Cover

PROFORM is a registered trademark of ICON Health & Fitness, Inc. IFIT is a registered trademark of ICON

Health & Fitness, Inc. App Store is a trademark of Apple Inc., registered in the U.S. and other countries. Android

and Google Play are trademarks of Google Inc. The BLUETOOTH®word mark and logos are registered trade-

marks of Bluetooth SIG, Inc. and are used under license. IOS is a trademark or registered trademark of Cisco in

the U.S. and other countries and is used under license.

WARNING: To reduce the risk of serious injury, read all important precautions and

instructions in this manual and all warnings on your elliptical before using your elliptical. ICON

assumes no responsibility for personal injury or property damage sustained by or through the

use of this product.

1. It is the responsibility of the owner to ensure

that all users of the elliptical are adequately

informed of all precautions.

2. Before beginning any exercise program,

consult your physician. This is especially

important for persons over age 35 or per-

sons with pre-existing health problems.

3. The elliptical is not intended for use by

persons with reduced physical, sensory, or

mental capabilities or lack of experience and

knowledge, unless they are given supervi-

sion or instruction about use of the elliptical

by someone responsible for their safety.

4. Use the elliptical only as described in this

manual.

5. The elliptical is intended for home use only.

Do not use the elliptical in a commercial,

rental, or institutional setting.

6. Keep the elliptical indoors, away from mois-

ture and dust. Do not put the elliptical in a

garage or covered patio, or near water.

7. Place the elliptical on a level surface, with at

least 3 ft. (0.9 m) of clearance in the front and

rear of the elliptical and 2 ft. (0.6 m) on each

side. To protect the floor or carpet from dam-

age, place a mat under the elliptical.

8. Inspect and properly tighten all parts each

time the elliptical is used. Replace any worn

parts immediately.

9. Keep children under age 13 and pets away

from the elliptical at all times.

10. The elliptical should not be used by persons

weighing more than 300 lbs. (136 kg).

11. Wear appropriate clothes while exercising;

do not wear loose clothes that could become

caught on the elliptical. Always wear athletic

shoes for foot protection while exercising.

12. Hold the handlebars or the upper body arms

when mounting, dismounting, or using the

elliptical.

13. The heart rate monitor is not a medical

device. Various factors may affect the accu-

racy of heart rate readings. The heart rate

monitor is intended only as an exercise aid

in determining heart rate trends in general.

14. The elliptical does not have a freewheel; the

pedals will continue to move until the fly-

wheel stops. Reduce your pedaling speed in

a controlled way.

15. Keep your back straight while using the ellip-

tical; do not arch your back.

16. Over exercising may result in serious injury

or death. If you feel faint, if you become short

of breath, or if you experience pain while

exercising, stop immediately and cool down.

IMPORTANT PRECAUTIONS

Thank you for selecting the revolutionary PROFORM®

ENDURANCE 520 E elliptical. The ENDURANCE 520

E elliptical provides an impressive selection of features

designed to make your workouts at home more effec-

tive and enjoyable.

For your benefit, read this manual carefully before

you use the elliptical. If you have questions after

reading this manual, please see the front cover of this

manual. To help us assist you, note the product model

number and serial number before contacting us. The

model number and the location of the serial number

decal are shown on the front cover of this manual.

Before reading further, please familiarize yourself with

the parts that are labeled in the drawing below.

Heart Rate Monitor

Accessory Tray

Speaker

Handlebar Upper Body Arm

Pedal

Roller

Handle

Ramp

Ramp Handle

Console

Tablet Holder

BEFORE YOU BEGIN

Wheel

Leveling Foot

Length: 5 ft. 8 in. (173 cm)

Width: 2 ft. 2 in. (66 cm)

Weight: 172 lbs. (78 kg)

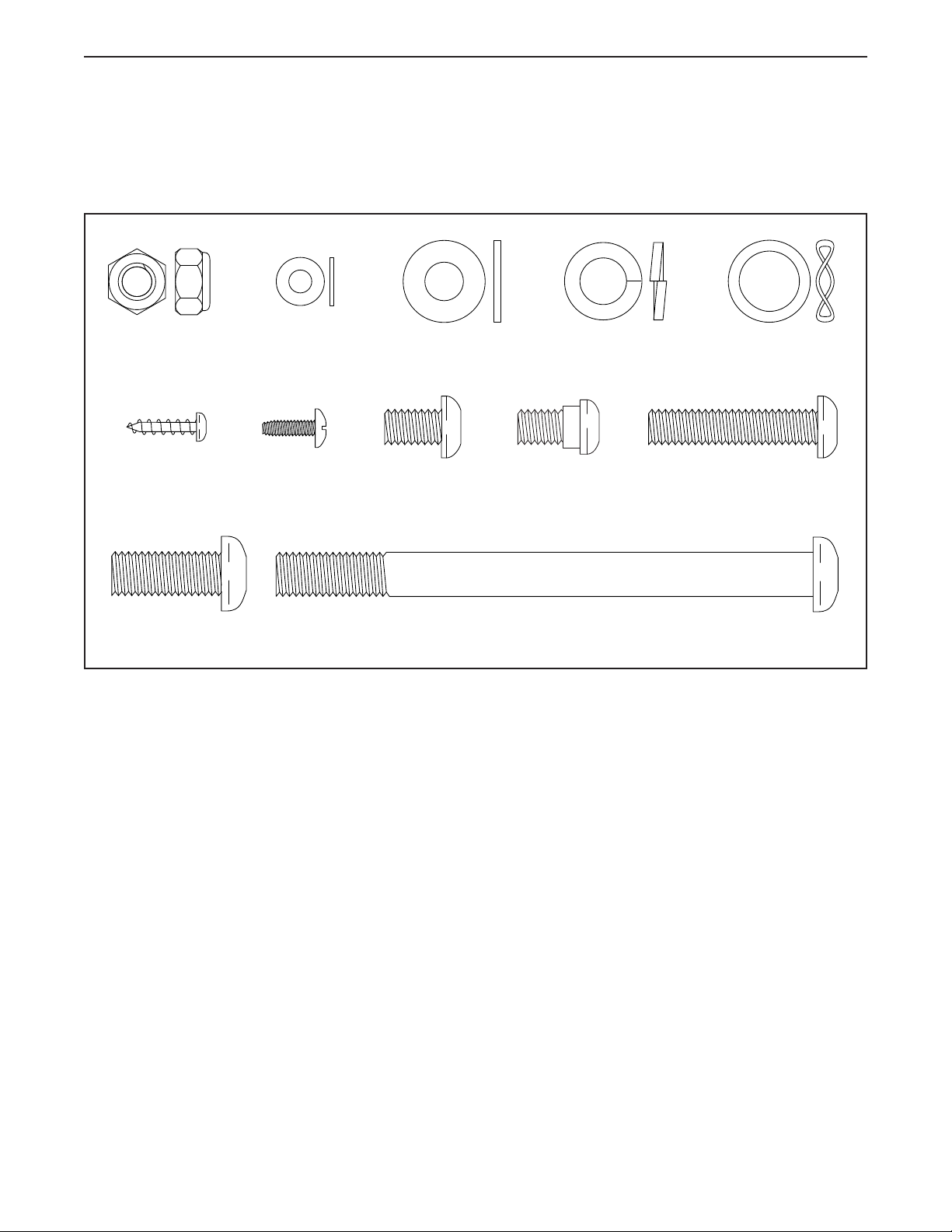

PART IDENTIFICATION CHART

Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each

drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the

key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it

has been preassembled. Extra parts may be included.

M8 x 13mm

Screw (82)–6

M10 x 25mm

Screw (92)–4

M10 x 122mm Screw

(104)–4

M8 Locknut

(102)–4

M4 x 16mm

Screw (101)–16

16mm Wave

Washer (54)–2

M10 Split

Washer (105)–8

M8 Washer

(97)–8

M5 Washer

(32)–2

M8 x 38mm Bolt

(96)–4

M8 x 14mm

Shoulder

Screw (120)–2

#8 x 12mm

Screw (9)–4

2. With the help of a second person, place some of

the packing materials (not shown) under the rear

of the Frame (1). Have the second person hold

the Frame to prevent it from tipping while you

complete this step.

Attach the Rear Stabilizer (2) to the Frame (1)

with two M10 x 122mm Screws (104) and two

M10 Split Washers (105).

Then, remove the packing materials from under

the rear of the Frame (1).

104

105

• Assembly requires two persons.

• Place all parts in a cleared area and remove the

packing materials. Do not dispose of the packing

materials until you nish all assembly steps.

• Left parts are marked “L” or “Left” and right parts

are marked “R” or “Right.”

• To identify small parts, see page 5.

• In addition to the included tool(s), assembly

requires the following tools:

one Phillips screwdriver

one rubber mallet

Assembly may be easier if you have a set of

wrenches. To avoid damaging parts, do not use

power tools.

ASSEMBLY

1. Go to www.iconsupport.eu on your computer

and register your product.

• activates your warranty

• saves you time if you ever need to contact

Customer Service

• allows us to notify you of upgrades and offers

Note: If you do not have Internet access, call

Customer Service (see the front cover of this

manual) and register your product.

106

3. Press the Cover Mounts (106) on the underside

of the Rear Stabilizer Cover (15) into the Rear

Stabilizer (2).

4. With the help of a second person, place some

of the packing materials (not shown) under the

front of the Frame (1). Have the second per-

son hold the Frame to prevent it from tipping

while you complete this step.

Attach the Front Stabilizer (6) to the Frame (1)

with two M10 x 122mm Screws (104) and two

M10 Split Washers (105).

Then, remove the packing materials from under

the front of the Frame (1).

6104

105

5. Orient the Upright (4) as shown. Have a second

person hold the Upright near the Frame (1).

See the inset drawing. Locate the wire tie in the

lower end of the Upright (4). Tie the wire tie to

the Main Wire (110). Then, pull the upper end of

the wire tie until the Main Wire is routed through

the Upright.

Tip: To prevent the Main Wire (110) from fall-

ing into the Upright (4), secure the Main Wire

with the wire tie.

110

Wire

Tie

Wire

Tie

110

6. Tip: Avoid pinching the Main Wire (110).

Avoid damaging the indicated plastic tabs.

Have a second person hold the Upright (4) on

the Frame (1).

Attach the Upright (4) with four M10 x 25mm

Screws (92) and four M10 Split Washers (105);

start all the Screws, and then tighten them.

Avoid pinching the Main

Wire (110) and avoid

damaging the tabs

Tabs

105

110

7. Using a plastic bag to keep your fingers clean,

apply some of the included grease to the Pivot

Axle (35) and to two 16mm Wave Washers (54).

Insert the Pivot Axle (35) through the Upright (4)

and center it. Tip: It may be helpful to use a

rubber mallet.

Next, identify the Right Upper Body Leg (60) and

orient it as shown.

Slide a 16mm Wave Washer (54) and the Right

Upper Body Leg (60) onto the right side of the

Pivot Axle (35).

Repeat these actions for the Left Upper Body

Leg (46).

Then, tighten an M8 x 13mm Screw (82) and an

M8 Washer (97) into each end of the Pivot Axle

(35) at the same time.

Grease

8. Identify the Right Upper Body Arm (61) and

orient it as shown.

Slide the Right Upper Body Arm (61) onto the

Right Upper Body Leg (60).

Attach the Right Upper Body Arm (61) with two

M8 x 38mm Bolts (96) and two M8 Locknuts

(102). Make sure that the Locknuts are in the

hexagonal holes.

Repeat this step for the Left Upper Body

Arm (47).

Hexagonal

Holes

102

110

9. Untie and discard the wire tie on the Main

Wire (110).

While a second person holds the Console (7)

near the Upright (4), connect the wires on the

Console to the Main Wire (110) and to the Pulse

Sensor Wires (63).

Insert the excess wire into the Upright (4) or into

the Console (7).

Avoid pinching

the wires

10. Tip: Avoid pinching the wires. Attach

the Console (7) to the Upright (4) with four

M4 x 16mm Screws (101); start all the Screws,

and then tighten them.

101

Otros manuales para Endurance 520 E

Tabla de contenidos

Otros manuales de Entrenador elíptico de Pro-Form

Pro-Form

Pro-Form PFEL03807.0 Manual de usuario

Pro-Form

Pro-Form ZE5 Manual de usuario

Pro-Form

Pro-Form 490 LE Manual de usuario

Pro-Form

Pro-Form 790 Hr Elliptical Manual de usuario

Pro-Form

Pro-Form 470 Hr Elliptical Manual de usuario

Pro-Form

Pro-Form PFEL08011.2 Manual de usuario

Pro-Form

Pro-Form 510 EX Manual de usuario

Pro-Form

Pro-Form 420 Zle Elliptical Guía de inicio rápido

Pro-Form

Pro-Form 380 Razor Elliptical Manual de usuario

Pro-Form

Pro-Form 762 Ekg Bike Manual de operación y mantenimiento

Pro-Form

Pro-Form XP 115 831.28643.0 Manual de usuario

Pro-Form

Pro-Form PFEL79907.1 Manual de usuario

Pro-Form

Pro-Form 400 Zle Elliptical Manual del sistema

Pro-Form

Pro-Form 615 Hr Elliptical Manual de usuario

Pro-Form

Pro-Form 831.285732 Manual de usuario

Pro-Form

Pro-Form 900 CardioCrossTrainer Manual de usuario

Pro-Form

Pro-Form 6.0 Ce Elliptical Manual de usuario

Pro-Form

Pro-Form 310 Ce Elliptical Manual de usuario

Pro-Form

Pro-Form 696 Elliptical Guía de inicio rápido

Pro-Form

Pro-Form PFIVEL74514.0 Manual de usuario

Pro-Form

Pro-Form PFIVEL19216.0 Manual de usuario

Pro-Form

Pro-Form 485 E Elliptical Manual de operación y mantenimiento

Pro-Form

Pro-Form 850 PFEL5105.0 Manual de usuario

Pro-Form

Pro-Form 520 Razor Manual de usuario

Manuales populares de Entrenador elíptico de otras marcas

Weslo

Weslo Momentum 4.0 Elliptical Manual de operación y mantenimiento

Progear Fitness

Progear Fitness Air elliptical pro 1307 Manual de usuario

Torque Fitness

Torque Fitness XPLLP Manual de usuario

Octane Fitness

Octane Fitness PRO3700C Manual de usuario

Xterra

Xterra FS5.8e Manual de usuario

Bodyguard

Bodyguard E-40 Manual de usuario

Bonn Germany

Bonn Germany Concept 2.2 Manual de usuario

Precor

Precor Resolute RSL 620 Manual de usuario

NordicTrack

NordicTrack E 9.2 Elliptical Manual de usuario

Vision Fitness

Vision Fitness X6600iNetTV Manual de usuario

Matrix

Matrix MX-A5x Manual de usuario

SportsArt Fitness

SportsArt Fitness ECO-NATURAL Elite E874 Manual de usuario

Sears

Sears FREE SPIRIT C249 30737 0 Manual de usuario

True

True FS-64 Manual de usuario

Sport-thieme

Sport-thieme ST 310 Manual de usuario

VIRTUFIT

VIRTUFIT CTR 1.1 Manual de usuario

Kettler

Kettler GIRO C 1 Manual de usuario

CIRCLE FITNESS

CIRCLE FITNESS E7 Manual de usuario
