POSIFLEX XT-3817 Manual de usuario

Package Contents

17” fanless touch terminal with

Gen 7E or Gen 8E base stand (x 1)

Power adapter (x 1)

Power cord (x 1)

User manual (x 1)

Recovery DVD or Information

DVD (x 1)

Product Features

Intel Bay Trail-D J1900 2.0G CPU, Quad Core, 2MB Cache

DDR3L SO-DIMM slot x 1, max 8GB

True Flat PCAP touch with 10 points multi-touch

Support Windows 7, POSReady 7, Win 8.1 Industry, Linux per request

Gen 7E or optional Gen 8E foldable base (U.S. Patent #9004436)

16780903010 Ver. Original

http://www.posiflex.com

XT-3817

Fanless Touch Terminal

User Manual

Views of the XT-3817 with Gen 7E Base Stand

Front View

Rear View

Side View

XT-3817

P-Cap Touch Panel

Cable Cover

Neck Cover

Cable Exit

HDD Cover

Power Button

Brightness Adjustment Button

＋

Brightness Adjustment Button －

I/O Compartment

Cover

Cable Arrangement

Cover

LED indicator

Gen 7E Base Stand

Bottom View

Views of the XT-3817 with Gen 8E Base Stand

Front View

Rear View

XT-3817

P-Cap Touch Panel

Cable Holder

HDD Cover

Rubber Feet with Fixing Screw

Cable Exit

I/O Compartment

Cover

Cable Arrangement

Cover

Cable Cover

Neck Cover

Cable Exit

LED indicator

Gen 8E Base Stand

Side View

Bottom View

View of I/O Interface of XT-3817

Rubber Feet with Fixing Screw

USB Ports

DB9 COM Ports

VGA Port

CR Port

LAN Ports

12V BAT Port

DC IN

Power

Connector

Rubber Feet with Fixing Screw

UPS Battery

Compartment

Power Button

Brightness Adjustment Button

＋

Brightness Adjustment Button －

Power Adapter

Compartment

PoweredUSB

Compartment

Positioning your POS for a Perfect Viewing Angle

The adjustable base stands designed for XT-3817 come in two models,

Gen 7E/8E, and allow you to determine an ideal position for your terminal

using its unique tilt adjustment mechanism. As the below figures suggest, both

Gen 7E and Gen 8E base stands provide three standard positioning solutions

for your terminal: flat folded mode, low profile mode, and full extended mode.

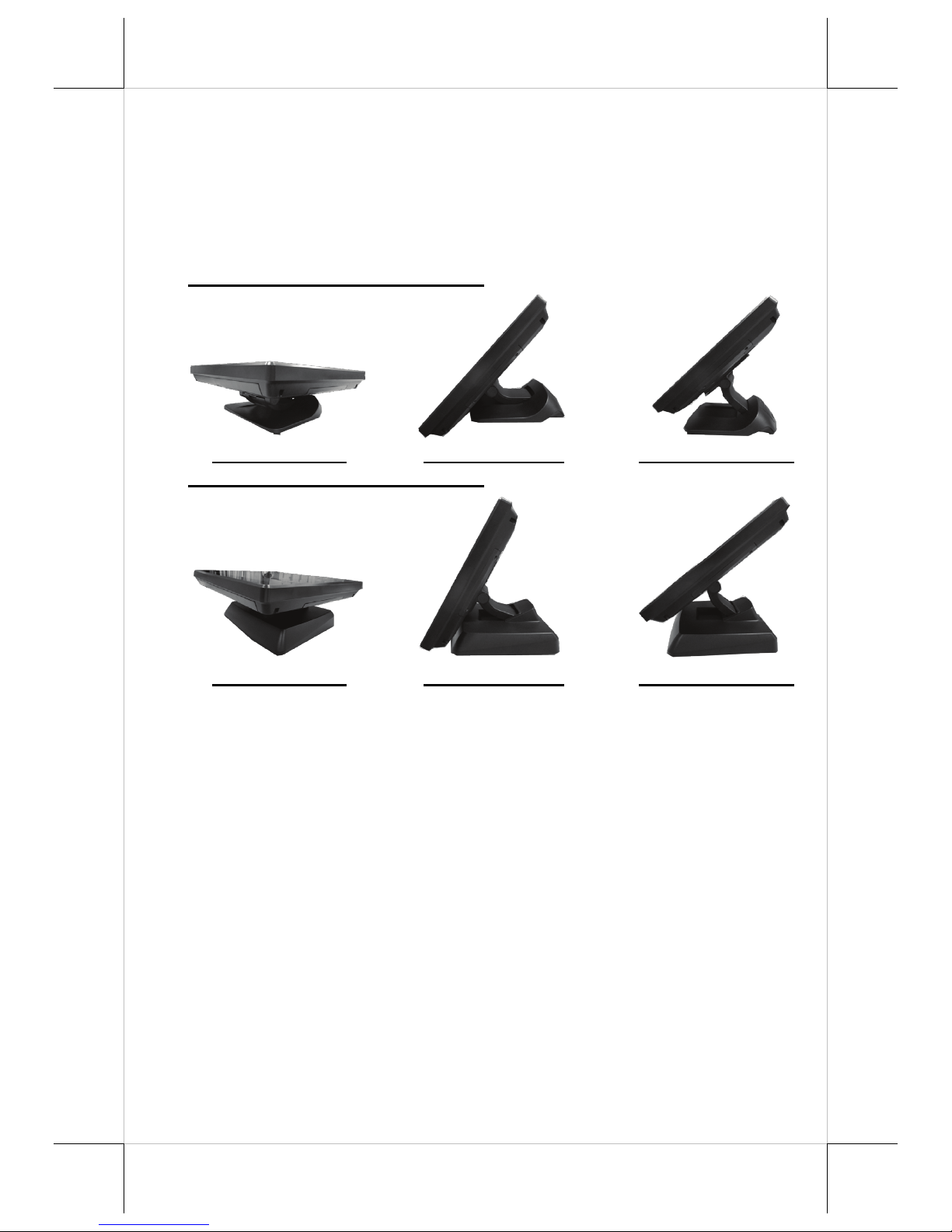

XT-3817 with Gen 7E Stand Base

Flat folded mode

Low profile mode

Full extended mode

XT-3817 with Gen 8E Stand Base

Flat folded mode

Low profile mode

Full extended mode

In general, XT-3817 will be set up beforehand in flat folded mode before

packaged into the box for shipping. After it is unpacked, you may re-adjust the

terminal in either low profile mode or full extended mode according to your

situation. Below will provide instructions on how to adjust the specific base

stand connected to the POS system among different positioning modes. As a

reminder, please be careful not to touch the LCD panel while setting up the tilt

angle.

XT-3817 with Gen 7E Base Stand

1. Please refer to the following instructions on

how to switch among different positioning

modes to find an ideal viewing angle for XT-

3817 with Gen 7E base stand.Unpack XT-

3817, which is supposed to be set in flat folded

mode, out of the package box and then lay

your POS system on a flat surface.

2. Steady the base stand with one hand, and then

tilt the screen downwards.

3. Position your terminal in Full Extended mode.

3.1 After grabbing the bottom edge of the screen with your hand, gently

move the screen upward until the screen is locked into place with a

click sound.

3.2 Tilt the screen up or down to your desired

angle. Please do not press on the LCD panel

while setting up the tilt angle.

4. Restore your terminal to Flat Folded mode from Full Extended mode.

4.1 Tilt your screen in a horizontal position.

4.2 Remove the cable cover from the base stand.

4.3 Support the screen with one hand holding onto its bottom edge. While

pulling the lever backwards, move the display downwards until the lever

is lifted off the hook as shown in the figure

4.4 Push the cable cover back.

4.5 Tile the screen again to the horizontal

position.

Hook

Lever

5. Position the terminal in Low Profile mode.

5.1 Follow Step 4 to set up the termimal in Flat

Folded mode.

5.2 With on hand holding the base, tilt the

screen all the way down

5.3 To tilt screen up or down to your desired

angle, please be advised to keep the base

stand steady with one hand to do so. Do

NOT press on the LCD panel while setting

up the tilt angle.

XT-3817 with Gen 8E Base Stand

Please refer to the following instructions on how to switch among different

positioning modes to find an ideal viewing angle for XT-3817 with

Gen 8E base stand.

1. Unpack XT-3817, which is supposed to be set

in flat folded mode, out of the package box and

then lay your POS system on a flat surface.

2. While steadying the terminal with your hand

holding onto the base stand, tilt the screen

down.

3. Push the cable cover outwards to remove it

from the base stand.

4. Position your terminal in Full Extended mode.

4.1 Support the screen with one hand holding onto its bottom edge. Then,

while pulling the lever backwards, move the display upwards until the

lever is snapped into the lower hook to raise the screen as shown in

the below figure.

4.2 Push the cable cover back.

4.3 Tilt the screen up or down to your desired

angle. Please do not press on the LCD panel

while setting up the tilt angle.

Lower

hook

Lever

5. Position the terminal in Low Profile mode.

5.1 Properly Tile the screen up or down to make sure the cable cover

could be removed easily. Then, release the cable cover from the

base.

5.2 Support the screen with one hand holding onto its bottom edge.

Then, while pulling the lever backwards, move the display upwards

or downwards until the lever is snapped into the upper hook to lower

the screen as shown in the below figure.

5.3 Push the cable cover back.

5.4 Tilt the screen up or down to your desired

angle. Please do not press on the LCD panel

while setting up the tilt angle.

Lever

Upper

hook
