Pilz PSSu E F BSW Manual de usuario

PSSu E F BSW(-T)

Operating Manual 21372-EN-06

}Decentralised system PSSuniversal I/O

Preface

This document is a translation of the original document.

All rights to this documentation are reserved by Pilz GmbH & Co. KG. Copies may be made

for internal purposes. Suggestions and comments for improving this documentation will be

gratefully received.

Pilz®, PIT®, PMI®, PNOZ®, Primo®, PSEN®, PSS®, PVIS®, SafetyBUS p®,

SafetyEYE®, SafetyNET p®, the spirit of safety® are registered and protected trademarks

of Pilz GmbH & Co. KG in some countries.

SD means Secure Digital

Contents

Operating Manual PSSu E F BSW(-T)

21372-EN-06 3

Section 1 Introduction 5

1.1 Validity of documentation 5

1.1.1 Retaining the documentation 5

1.2 Definition of symbols 5

Section 2 Overview 7

2.1 Module structure 7

2.2 Module features 7

2.3 Front view 8

Section 3 Safety 10

3.1 Intended use 10

3.2 Safety regulations 11

3.2.1 Use of qualified personnel 11

3.2.2 Warranty and liability 11

3.2.3 Disposal 11

Section 4 Function description 12

4.1 Block diagram 12

4.2 Module features 12

4.2.1 Integrated protection mechanisms 12

4.2.2 Functions 13

4.3 Configuration 14

4.3.1 Addressing with SafetyBUS p 15

4.3.2 Addresses in the process image 15

4.3.3 FS error behaviour 15

Section 5 Installation 16

5.1 General installation guidelines 16

5.1.1 Dimensions 16

5.2 Installing the base module 17

5.3 Inserting and removing an electronic module 18

5.3.1 Inserting an electronic module 19

5.3.2 Removing an electronic module 20

5.3.3 Changing an electronic module during operation 20

Section 6 Wiring 21

6.1 General wiring guidelines 21

6.1.1 Mechanical connection of the base modules 22

6.2 Terminal configuration 24

6.3 Connecting the module 27

Section 7 Operation 29

7.1 Messages 29

7.2 Display elements 30

7.2.1 Display elements for module diagnostics 30

7.2.2 Display elements for supply voltage 31

Contents

Operating Manual PSSu E F BSW(-T)

21372-EN-06 4

Section 8 Technical Details 32

8.1 Safety characteristic data 34

8.2 Service life table 35

Section 9 Order reference 36

9.1 Product 36

9.2 Accessories 36

Introduction

Operating Manual PSSu E F BSW(-T)

21372-EN-06 5

1 Introduction

1.1 Validity of documentation

This documentation is valid for the products PSSu E F BSW and PSSu E F BSW-T. It is

valid until new documentation is published.

This operating manual explains the function and operation, describes the installation and

provides guidelines on how to connect the product.

Electronic module to switch off the periphery supply for failsafe applications

1.1.1 Retaining the documentation

This documentation is intended for instruction and should be retained for future reference.

1.2 Definition of symbols

Information that is particularly important is identified as follows:

DANGER!

This warning must be heeded! It warns of a hazardous situation that poses

an immediate threat of serious injury and death and indicates preventive

measures that can be taken.

WARNING!

This warning must be heeded! It warns of a hazardous situation that could

lead to serious injury and death and indicates preventive measures that can

be taken.

CAUTION!

This refers to a hazard that can lead to a less serious or minor injury plus

material damage, and also provides information on preventive measures

that can be taken.

NOTICE

This describes a situation in which the product or devices could be dam-

aged and also provides information on preventive measures that can be

taken. It also highlights areas within the text that are of particular import-

ance.

Introduction

Operating Manual PSSu E F BSW(-T)

21372-EN-06 6

INFORMATION

This gives advice on applications and provides information on special fea-

tures.

Overview

Operating Manual PSSu E F BSW(-T)

21372-EN-06 7

2 Overview

2.1 Module structure

A module consists of

}Electronic module and

}Base module with

– Screw terminals or

– Cage clamp terminals

The base modules are the carrier units for the electronic modules and are used to connect

the field wiring. The electronic modules are inserted on to the base modules and determine

the module's function.

Details of the base modules that can be used are available in the chapter entitled “Intended

Use”.

2.2 Module features

The product has the following features:

}Infeed for periphery supply

}Infeed for C-rail supply

}Failsafe switching off of the periphery supply (block switching)

}LEDs for:

– Switch status of periphery supply

– Periphery supply

– Module error

}Application range depends on the base module

}T-type:

PSSu E F BSW-T: for increased environmental requirements

Overview

Operating Manual PSSu E F BSW(-T)

21372-EN-06 8

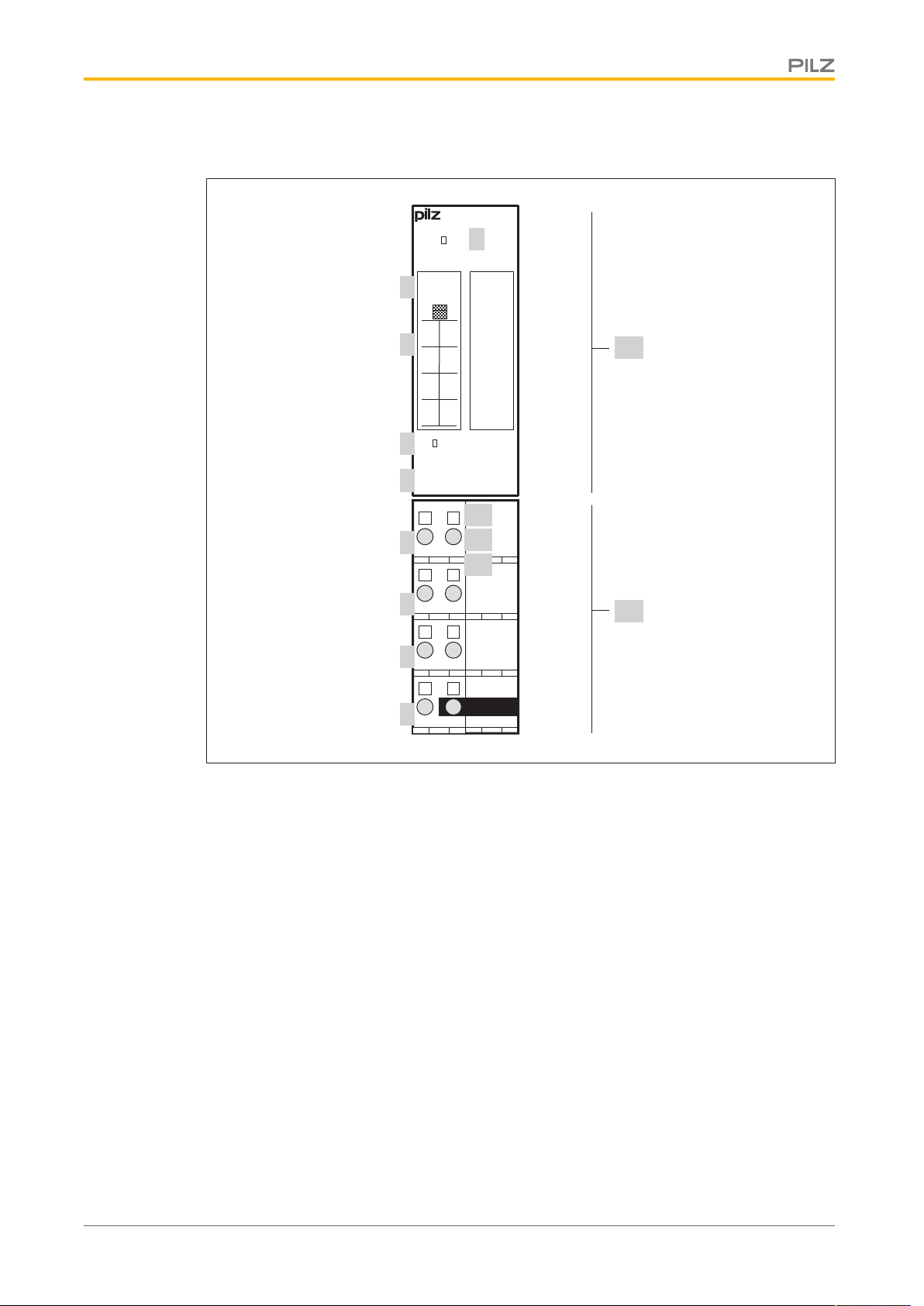

2.3 Front view

2111

2212

2313

Err

11 21

13 23

PSSu E F

BSW

24V

24V 24V

2414

PSSu E F

BSW

312230

000000

001

Legend:

}A: Electronic module

}B: Base module

}1: LED for module diagnostics

}2: Labelling strip with:

– Name of electronic module

– Order Number

– Serial number

– Hardware version number

– 2D code

}3: Labelling strip for the terminal configuration on the base module

}4: Status LEDs

}5: Name of electronic module

}6: Connection level 1

}7: Connection level 2

}8: Connection level 3

Overview

Operating Manual PSSu E F BSW(-T)

21372-EN-06 9

}9: Connection level 4

}10: Square mounting holes (connection levels 1, 2, 3 and 4)

– With screw to loosen/tighten the screw terminal on base modules with screw termin-

als

– With mechanism to operate the cage clamp on base modules with cage clamp ter-

minals

}11: Round connection holes (connection levels 1, 2, 3 and 4) for connecting the signal

lines

}12: Mounting slot for colour marker to label the connection level (connection levels 1, 2,

3 and 4)

Safety

Operating Manual PSSu E F BSW(-T)

21372-EN-06 10

3 Safety

3.1 Intended use

The module meets the requirements of EN IEC 61508 up to SIL3 and EN954-1 up to Cat-

egory4.

The module may be used to switch off the periphery supply on standard modules.

}If the module is used to switch off standard output modules (e.g. PSSu ES 4DO0.5 or

PSSu ES 2DO2), Category3 of EN954-1 can be achieved.

}If the module is used to switch off modules of type PSSuEPD, Category4 of EN954-1

can be achieved.

The module may be used to switch:

}Resistive loads

}Inductive loads

The module PSSu E F BSW-T is suitable for use where there are increased environmental

requirements (see Technical Details).

Intended use includes making the electrical installation EMC-compliant. Please refer to the

guidelines stated in the "PSSuniversal Installation Manual". The module is designed for use

in an industrial environment. It is not suitable for use in a domestic environment, as this can

lead to interference.

The following is deemed improper use in particular:

}Any component, technical or electrical modification to the module

}Use of the module outside the areas described in this manual

}Any use of the module that is not in accordance with the technical details.

INFORMATION

The module is supported by the PSSuniversal Configurator and PSSuniver-

sal Assistant from Version 1.4.0. We recommend that you always use the

latest version (download from www.pilz.de).

The PSSu E F BSW module may be used in conjunction with the following base modules:

}PSSu BS 2/8 S

}PSSu BS 2/8 C

The module PSSu E F BSW-T may be used in conjunction with the following base modules:

}PSSu BS 2/8 S-T

}PSSu BS 2/8 C-T

WARNING!

The module may not be used in combination with compact modules or

modules with relay outputs in safety-related applications.
