PNOZ po3p
Operating Manual 1003835-EN-07
}Safety relays
Preface
This document is a translation of the original document.
All rights to this documentation are reserved by Pilz GmbH & Co. KG. Copies may be made
for internal purposes. Suggestions and comments for improving this documentation will be
gratefully received.
Source code from third-party manufacturers or open source software has been used for
some components. The relevant licence information is available on the Internet on the Pilz
homepage.
Pilz®, PIT®, PMI®, PNOZ®, Primo®, PSEN®, PSS®, PVIS®, SafetyBUS p®,
SafetyEYE®, SafetyNET p®, the spirit of safety® are registered and protected trademarks
of Pilz GmbH & Co. KG in some countries.
SD means Secure Digital
Contents
Operating Manual PNOZ po3p
1003835-EN-07 3
Introduction 4
Validity of documentation 4
Using the documentation 4
Definition of symbols 4
Safety 5
Intended use 5
Safety regulations 6
Safety assessment 6
Use of qualified personnel 6
Warranty and liability 6
Disposal 6
For your safety 7
Unit features 7
Safety features 7
Block diagram/terminal configuration 8
Function Description 8
Installation 9
Wiring 10
Preparing for operation 10
Operation 11
Status indicators 11
Faults – Interference 11
Dimensions in mm 12
Technical details 12
Safety characteristic data 15
Supplementary data 15
Service life graph 16
Remove plug-in terminals 16
Order reference 17
EC declaration of conformity 17
PNOZ po3p
Operating Manual PNOZ po3p
1003835-EN-07 4
Introduction
Validity of documentation
This documentation is valid for the product PNOZ po3p. It is valid until new documentation
is published.
This operating manual explains the function and operation, describes the installation and
provides guidelines on how to connect the product.
Using the documentation
This document is intended for instruction. Only install and commission the product if you
have read and understood this document. The document should be retained for future ref-
erence.
Definition of symbols
Information that is particularly important is identified as follows:
DANGER!
This warning must be heeded! It warns of a hazardous situation that poses
an immediate threat of serious injury and death and indicates preventive
measures that can be taken.
WARNING!
This warning must be heeded! It warns of a hazardous situation that could
lead to serious injury and death and indicates preventive measures that can
be taken.
CAUTION!
This refers to a hazard that can lead to a less serious or minor injury plus
material damage, and also provides information on preventive measures
that can be taken.
NOTICE
This describes a situation in which the product or devices could be dam-
aged and also provides information on preventive measures that can be
taken. It also highlights areas within the text that are of particular import-
ance.
PNOZ po3p
Operating Manual PNOZ po3p
1003835-EN-07 5
INFORMATION
This gives advice on applications and provides information on special fea-
tures.
Safety
Intended use
The PNOZ po3p is an expansion module of the safety system PNOZpower. It may only be
used with a base unit or a control module of the modular safety system PNOZpower.
The expansion module meets the requirements of EN60947-5-1, EN60204-1 and
VDE0113-1.
The max. achievable safety level depends on the base unit. The expansion module may not
exceed this. The safety-related characteristic values stated under safety-related character-
istic data [ 15] can only be achieved if the base unit also exhibits these safety charac-
teristic values.
The following is deemed improper use in particular:
}Any component, technical or electrical modification to the product
}Use of the product outside the areas described in this manual
}Use of the product outside the technical details (see Technical details [ 12]).
NOTICE
EMC-compliant electrical installation
The product is designed for use in an industrial environment. The product
may cause interference if installed in other environments. If installed in other
environments, measures should be taken to comply with the applicable
standards and directives for the respective installation site with regard to in-
terference.
PNOZ po3p
Operating Manual PNOZ po3p
1003835-EN-07 6
Safety regulations
Safety assessment
Before using a unit it is necessary to perform a safety assessment in accordance with the
Machinery Directive.
Functional safety is guaranteed for the product as a single component. However, this does
not guarantee the functional safety of the overall plant/machine. In order to achieve the re-
quired safety level for the overall plant/machine, define the safety requirements for the
plant/machine and then define how these must be implemented from a technical and organ-
isational standpoint.
Use of qualified personnel
The products may only be assembled, installed, programmed, commissioned, operated,
maintained and decommissioned by competent persons.
A competent person is someone who, because of their training, experience and current pro-
fessional activity, has the specialist knowledge required to test, assess and operate the
work equipment, devices, systems, plant and machinery in accordance with the general
standards and guidelines for safety technology.
It is the company’s responsibility only to employ personnel who:
}Are familiar with the basic regulations concerning health and safety / accident preven-
tion
}Have read and understood the information provided in this description under "Safety"
}And have a good knowledge of the generic and specialist standards applicable to the
specific application.
Warranty and liability
All claims to warranty and liability will be rendered invalid if
}The product was used contrary to the purpose for which it is intended
}Damage can be attributed to not having followed the guidelines in the manual
}Operating personnel are not suitably qualified
}Any type of modification has been made (e.g. exchanging components on the PCB
boards, soldering work etc.).
Disposal
}In safety-related applications, please comply with the mission time TM in the safety-re-
lated characteristic data.
}When decommissioning, please comply with local regulations regarding the disposal of
electronic devices (e.g. Electrical and Electronic Equipment Act).
PNOZ po3p
Operating Manual PNOZ po3p
1003835-EN-07 7
For your safety
The unit meets all the necessary conditions for safe operation. However, please note the
following:
}Note for overvoltage category III: If voltages higher than low voltage (>50 VAC or >120
VDC) are present on the unit, connected control elements and sensors must have a
rated insulation voltage of at least 250 V.
Unit features
}Expansion module control inputs via PNOZpower bus
}Positive-guided relay outputs:
– 3 safety contacts (N/O)
– 1 auxiliary contact (N/C)
}LED indicator for:
– Supply voltage
– Switch state of the safety contacts
– Error
}Plug-in connection terminals
Safety features
In conjunction with a base unit of the safety system PNOZpower, the expansion module ful-
fils the following safety requirements:
}The circuit is redundant with built-in self-monitoring.
}The safety device remains effective in the case of a component failure.
}The correct opening and closing of the safety device relays is tested automatically in
each on-off cycle.
PNOZ po3p
Operating Manual PNOZ po3p
1003835-EN-07 8
Block diagram/terminal configuration
PNOZpower-Bus
PNOZpower-Bus
13 23 33 41
14 24 34 42
*Safe separation from non-marked area in accordance with EN 60947-1, 6 kV, basic insula-
tion between all safety contacts.
Function Description
The safety contacts are controlled by the base unit. The base unit controls the status of the
input circuits and the feedback loop. The supply voltage is fed via the PNOZpower bus.
When supply voltage is applied the "POWER" LED will light. The unit is ready for operation
when the feedback loop and the start circuit are closed at the base unit.
}Functional procedure after closing the input circuit of the base unit:
– Safety contacts 13-14, 23-24 and 33-34 close, auxiliary contact 41-42 is open.
– The LEDs "CH.1" and "CH.2" are lit.
}Functional procedure after opening the input circuit of the base unit:
– Safety contacts 13-14, 23-24 and 33-34 are opened redundantly, auxiliary contact
41-42 is closed.
– The LEDs "CH.1" and "CH.2" go out.
NOTICE
When controlling an expansion module via the den PNOZpower bus the
switch-on delay/delay-on de-energisation of the controlling device (e.g base
unit, control module, ...) and the expansion module are added together.
PNOZ po3p
Operating Manual PNOZ po3p
1003835-EN-07 9
Installation
}The unit should be installed in a control cabinet with a protection type of at least IP54.
}Use the notches on the rear of the unit to attach it to a DIN rail.
}Fit the unit to a horizontal DIN rail. If other mounting positions are used, the switching
capability values stated in the technical details cannot be maintained.
}There are 2 sockets on the rear of the PNOZ po3p.
The base unit/control module and the expansion modules are connected using the
jumpers supplied.
NOTICE
Always connect a terminator to the first and last device.
}Only use terminators, jumpers and terminals of the modular safety system PNOZpower.
}Layout:
– The base module and the expansion modules can be installed in any position on
the PNOZpower modular safety system.
}Maximum hardware:
– 1 base unit/control module
– 4 expansion modules
– 1 power supply unit
Power supply Base unit Expansion module 1 Expansion module 4
95579
Terminator
95579
Terminator
95425
Jumper
Order no: 779120 Order no: 779120Order no: 774639
PNOZ po3p
WARNING!
Risk of electrocution!
When voltage is applied, contact with live components could result in seri-
ous or even fatal injury from an electric shock.
The plug-in connection terminals should only be connected and disconnec-
ted when the voltage is switched off.
PNOZ po3p
Operating Manual PNOZ po3p
1003835-EN-07 10
Wiring
Please note:
}Information given in the "Technical details [ 12]" must be followed.
}Outputs 13-14, 23-24, 33-34 are safety contacts; output 41-42 is an auxiliary contact
(e.g. for display).
}Auxiliary contact 41-42 shouldnot be used for safety circuits!
}To prevent contact welding, a fuse should be connected before the output contacts (see
Technical details [ 12]).
}Use copper wire that can withstand 60/75°C.
}Sufficient fuse protection must be provided on all output contacts with capacitive and in-
ductive loads.
}Do not switch low currents using contacts that have been used previously with high cur-
rents.
}Ensure the wiring and EMC requirements of IEC 60204-1 are met.
Preparing for operation
The expansion module is ready for operation when it is connected to a base unit via the
PNOZpower bus.

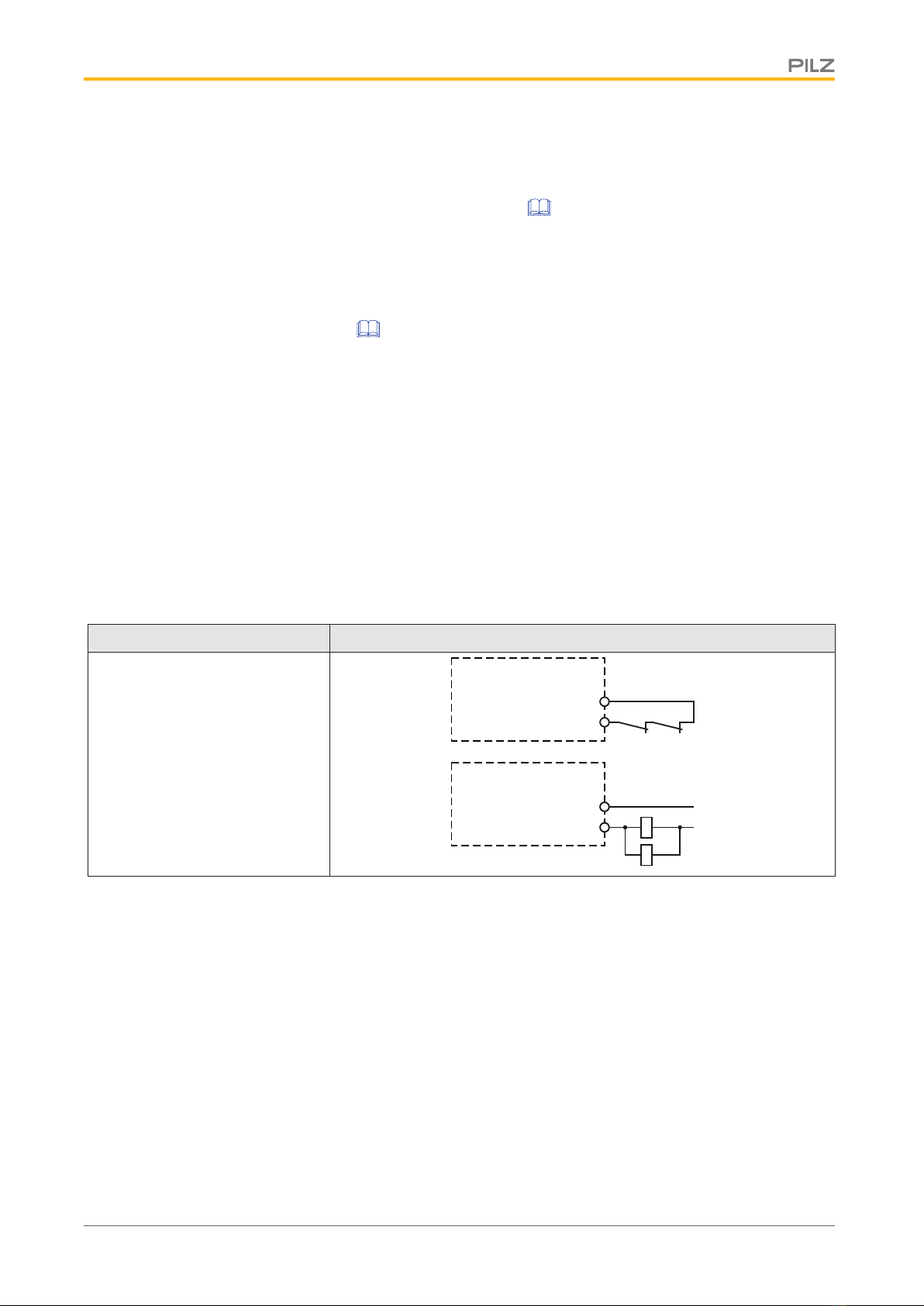

If the contactors are to be controlled directly, we recommend the following wiring:
Feedback loop
Contacts from external contactors
K5 N
L1
K6
13 (23 ...)
14 (24 ...)
Y1 K5 K6
Y2
Base unit
Expansion module
Tabla de contenidos
Otros manuales de Unidad de control de Pilz
Pilz
Pilz PNOZ mml2p Manual de usuario
Pilz
Pilz PIT es Set10u-5ns (AIDA) basic Manual de usuario
Pilz
Pilz Motion Control PMC Manual de usuario
Pilz
Pilz PNOZ mc4p Manual de usuario
Pilz
Pilz PSSu E PD1-T Manual de usuario
Pilz
Pilz PSS Series Manual de usuario
Pilz
Pilz PNOZ mc7p Manual de usuario
Pilz
Pilz PNOZ mmc1p Manual de usuario
Pilz
Pilz PNOZ p1vp Manual de usuario
Pilz
Pilz PSSu E S 2AI RTD Manual de usuario
Pilz
Pilz PNOZ mmc12p Manual de usuario
Pilz
Pilz PSSu E F BSW Manual de usuario
Pilz
Pilz ms3p HTL Manual de usuario
Pilz
Pilz PSSu E F 2DI 60-R Manual de usuario
Pilz
Pilz PSS u2 ES 4AO U/I Manual de usuario
Pilz
Pilz PSS u2 ES 4DOD 0.5A Manual de usuario
Pilz
Pilz PSEN cs5.11n Manual de usuario
Pilz
Pilz PSSu E F PS2 Manual de usuario
Pilz
Pilz PSSu E F 4DO 0.5 Manual de usuario
Pilz
Pilz PSSu E S INC 24V se Manual de usuario
Manuales populares de Unidad de control de otras marcas
Festo
Festo Compact Performance CP-FB6-E Manual de lista de piezas
Elo TouchSystems
Elo TouchSystems DMS-SA19P-EXTME Manual de usuario
JS Automation
JS Automation MPC3034A Manual de usuario
JAUDT
JAUDT SW GII 6406 Series Guía rápida
Spektrum
Spektrum Air Module System Manual de usuario
BOC Edwards
BOC Edwards Q Series Manual de usuario
