Pilz PNOZ m EF 16DI Manual de usuario

PNOZ m EF 16DI

Operating Manual 1002703-EN-03

}Configurable control systems PNOZmulti 2

Preface

This document is a translation of the original document.

All rights to this documentation are reserved by Pilz GmbH & Co. KG. Copies may be made

for internal purposes. Suggestions and comments for improving this documentation will be

gratefully received.

Pilz®, PIT®, PMI®, PNOZ®, Primo®, PSEN®, PSS®, PVIS®, SafetyBUS p®,

SafetyEYE®, SafetyNET p®, the spirit of safety® are registered and protected trademarks

of Pilz GmbH & Co. KG in some countries.

SD means Secure Digital

Contents

Operating Manual PNOZ m EF 16DI

1002703-EN-03 3

Section 1 Introduction 4

1.1 Validity of documentation 4

1.2 Using the documentation 4

1.3 Definition of symbols 4

Section 2 Overview 6

2.1 Scope of supply 6

2.2 Unit features 6

2.3 Front view 7

Section 3 Safety 8

3.1 Intended use 8

3.2 System requirements 8

3.3 Safety regulations 8

3.3.1 Safety assessment 8

3.3.2 Use of qualified personnel 9

3.3.3 Warranty and liability 9

3.3.4 Disposal 9

3.3.5 For your safety 9

Section 4 Function description 10

4.1 Integrated protection mechanisms 10

4.2 Functions 10

4.3 System reaction time 10

4.4 Block diagram 10

Section 5 Installation 11

5.1 General installation guidelines 11

5.2 Dimensions in mm 11

5.3 Connecting the base unit and expansion modules 11

Section 6 Commissioning 13

6.1 General wiring guidelines 13

6.2 Connection 13

6.3 Download modified project to the PNOZmulti system 13

Section 7 Operation 14

7.1 Messages 14

Section 8 Technical details 15

8.1 Safety characteristic data 17

Section 9 Order reference 18

9.1 Product 18

9.2 Accessories 18

Introduction

Operating Manual PNOZ m EF 16DI

1002703-EN-03 4

1 Introduction

1.1 Validity of documentation

This documentation is valid for the product PNOZ m EF 16DI. It is valid until new docu-

mentation is published.

This operating manual explains the function and operation, describes the installation and

provides guidelines on how to connect the product.

1.2 Using the documentation

This document is intended for instruction. Only install and commission the product if you

have read and understood this document. The document should be retained for future ref-

erence.

1.3 Definition of symbols

Information that is particularly important is identified as follows:

DANGER!

This warning must be heeded! It warns of a hazardous situation that poses

an immediate threat of serious injury and death and indicates preventive

measures that can be taken.

WARNING!

This warning must be heeded! It warns of a hazardous situation that could

lead to serious injury and death and indicates preventive measures that can

be taken.

CAUTION!

This refers to a hazard that can lead to a less serious or minor injury plus

material damage, and also provides information on preventive measures

that can be taken.

NOTICE

This describes a situation in which the product or devices could be dam-

aged and also provides information on preventive measures that can be

taken. It also highlights areas within the text that are of particular import-

ance.

Introduction

Operating Manual PNOZ m EF 16DI

1002703-EN-03 5

INFORMATION

This gives advice on applications and provides information on special fea-

tures.

Overview

Operating Manual PNOZ m EF 16DI

1002703-EN-03 6

2 Overview

2.1 Scope of supply

}Expansion module PNOZ m EF 16DI

}Jumper

2.2 Unit features

Using the product PNOZ m EF 16DI:

Expansion module for connection to a base unit from the configurable control system .

The product has the following features:

}Can be configured in the PNOZmulti Configurator

}16 inputs for connecting, for example:

– E-STOP pushbutton

– Two-hand button

– Safety gate limit switch

– Start button

– Light beam devices

– Scanner

– Enabling switch

– PSEN

– Operating mode selector switch

}LED for:

– Error messages

– Diagnostics

}Test pulse outputs used to monitor shorts across the inputs

}Plug-in connection terminals:

Either spring-loaded terminal or screw terminal available as an accessory (see order

reference)

}Please refer to the document "PNOZmulti System Expansion" for the PNOZmulti base

units that can be connected.

Overview

Operating Manual PNOZ m EF 16DI

1002703-EN-03 7

2.3 Front view

Legend:

}Inputs I0 – I15

}LEDs:

– POWER

– Run

– Diag

– Fault

– I Fault

Safety

Operating Manual PNOZ m EF 16DI

1002703-EN-03 8

3 Safety

3.1 Intended use

The expansion module may only be connected to a base unit from the configurable system

(please refer to the document "PNOZmulti System Expansion" for details of the base units

that can be connected).

The configurable system is used for the safety-related interruption of safety circuits and is

designed for use in:

}Emergency stop equipment

}Safety circuits in accordance with VDE0113 Part 1 and EN60204-1

The following is deemed improper use in particular:

}Any component, technical or electrical modification to the product

}Use of the product outside the areas described in this manual

}Use of the product outside the technical details (see Technical details [ 15]).

NOTICE

EMC-compliant electrical installation

The product is designed for use in an industrial environment. The product

may cause interference if installed in other environments. If installed in other

environments, measures should be taken to comply with the applicable

standards and directives for the respective installation site with regard to in-

terference.

3.2 System requirements

Please refer to the "Product Modifications PNOZmulti" document in the "Version overview"

section for details of which versions of the base unit and PNOZmulti Configurator can be

used for this product.

3.3 Safety regulations

3.3.1 Safety assessment

Before using a unit it is necessary to perform a safety assessment in accordance with the

Machinery Directive.

Functional safety is guaranteed for the product as a single component. However, this does

not guarantee the functional safety of the overall plant/machine. In order to achieve the re-

quired safety level for the overall plant/machine, define the safety requirements for the

plant/machine and then define how these must be implemented from a technical and organ-

isational standpoint.

Safety

Operating Manual PNOZ m EF 16DI

1002703-EN-03 9

3.3.2 Use of qualified personnel

The products may only be assembled, installed, programmed, commissioned, operated,

maintained and decommissioned by competent persons.

A competent person is someone who, because of their training, experience and current pro-

fessional activity, has the specialist knowledge required to test, assess and operate the

work equipment, devices, systems, plant and machinery in accordance with the general

standards and guidelines for safety technology.

It is the company’s responsibility only to employ personnel who:

}Are familiar with the basic regulations concerning health and safety / accident preven-

tion

}Have read and understood the information provided in this description under "Safety"

}And have a good knowledge of the generic and specialist standards applicable to the

specific application.

3.3.3 Warranty and liability

All claims to warranty and liability will be rendered invalid if

}The product was used contrary to the purpose for which it is intended

}Damage can be attributed to not having followed the guidelines in the manual

}Operating personnel are not suitably qualified

}Any type of modification has been made (e.g. exchanging components on the PCB

boards, soldering work etc.).

3.3.4 Disposal

}In safety-related applications, please comply with the mission time TM in the safety-re-

lated characteristic data.

}When decommissioning, please comply with local regulations regarding the disposal of

electronic devices (e.g. Electrical and Electronic Equipment Act).

3.3.5 For your safety

The unit meets all the necessary conditions for safe operation. However, you should always

ensure that the following safety requirements are met:

}This operating manual only describes the basic functions of the unit. The expanded

functions are described in the PNOZmulti Configurator's online help. Only use these

functions once you have read and understood the documentations.

}Do not open the housing or make any unauthorised modifications.

}Please make sure you shut down the supply voltage when performing maintenance

work (e.g. exchanging contactors).

Function description

Operating Manual PNOZ m EF 16DI

1002703-EN-03 10

4 Function description

4.1 Integrated protection mechanisms

The relay conforms to the following safety criteria:

}The circuit is redundant with built-in self-monitoring.

}The safety function remains effective in the case of a component failure.

4.2 Functions

The expansion module provides additional inputs.

The function of the inputs on the safety system depends on the safety circuit created using

the PNOZmulti Configurator. A chip card is used to download the safety circuit to the base

unit. The base unit has 2 microcontrollers that monitor each other. They evaluate the input

circuits on the base unit and expansion modules and switch the outputs on the base unit

and expansion modules accordingly.

The online help on the PNOZmulti Configurator contains descriptions of the operating

modes and all the functions of the PNOZmulti safety system, plus connection examples.

4.3 System reaction time

Calculation of the maximum reaction time between an input switching off and a linked out-

put in the system switching off is described in the document "PNOZmulti System Expan-

sion".

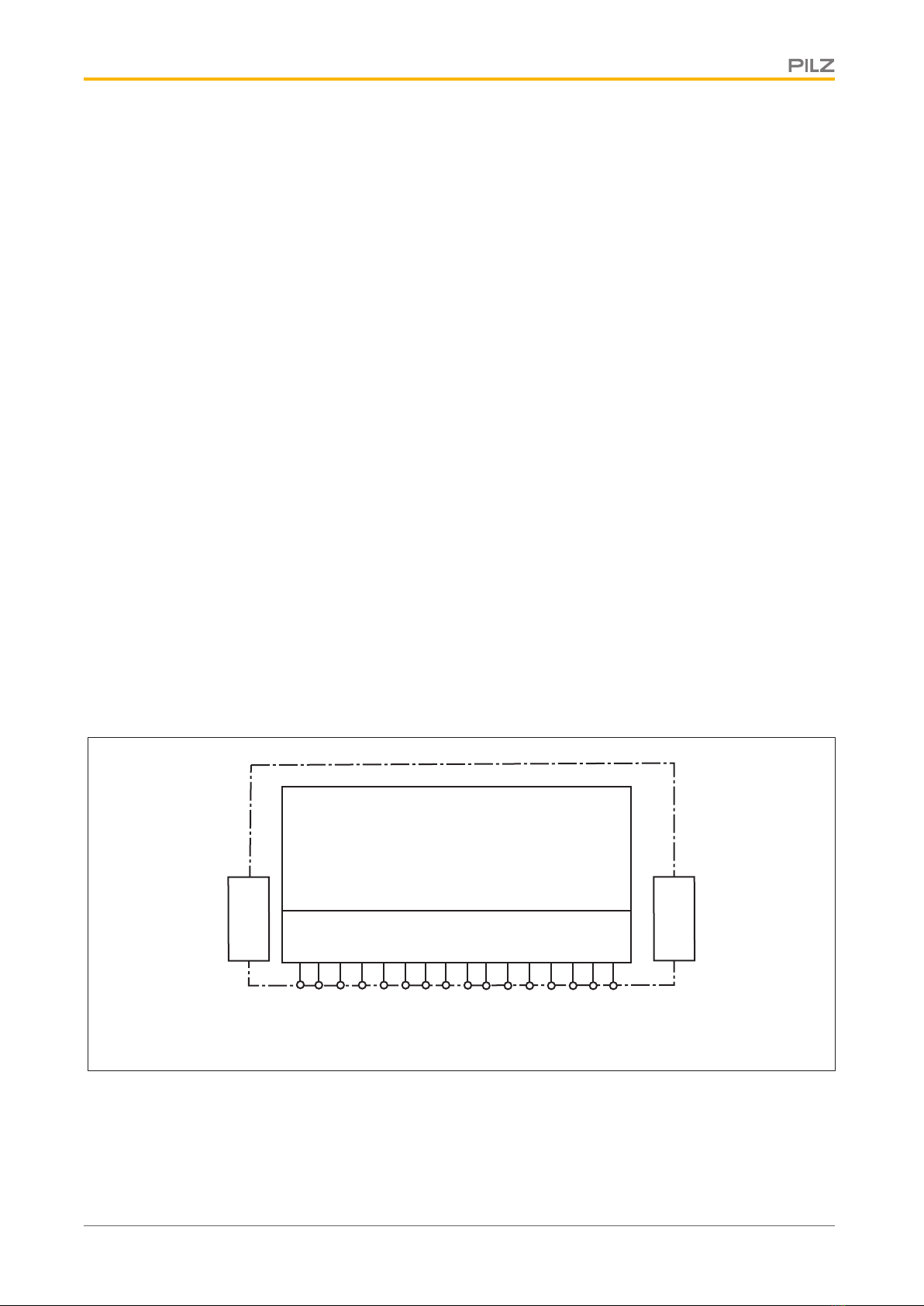

4.4 Block diagram

Input

I4I1 I7

I0 I5I3I2 I6

Interface

to rpevious

module

Interface

to next

module

I12I9 I15

I8 I13I11I10 I14
