Page 1.1

PXI/PXIe Expandable RF Matrix Module 4x-727A/728A/729A

pickering SECTION 1 - TECHNICAL SPECIFICATION

SECTION 1 - TECHNICAL SPECIFICATION

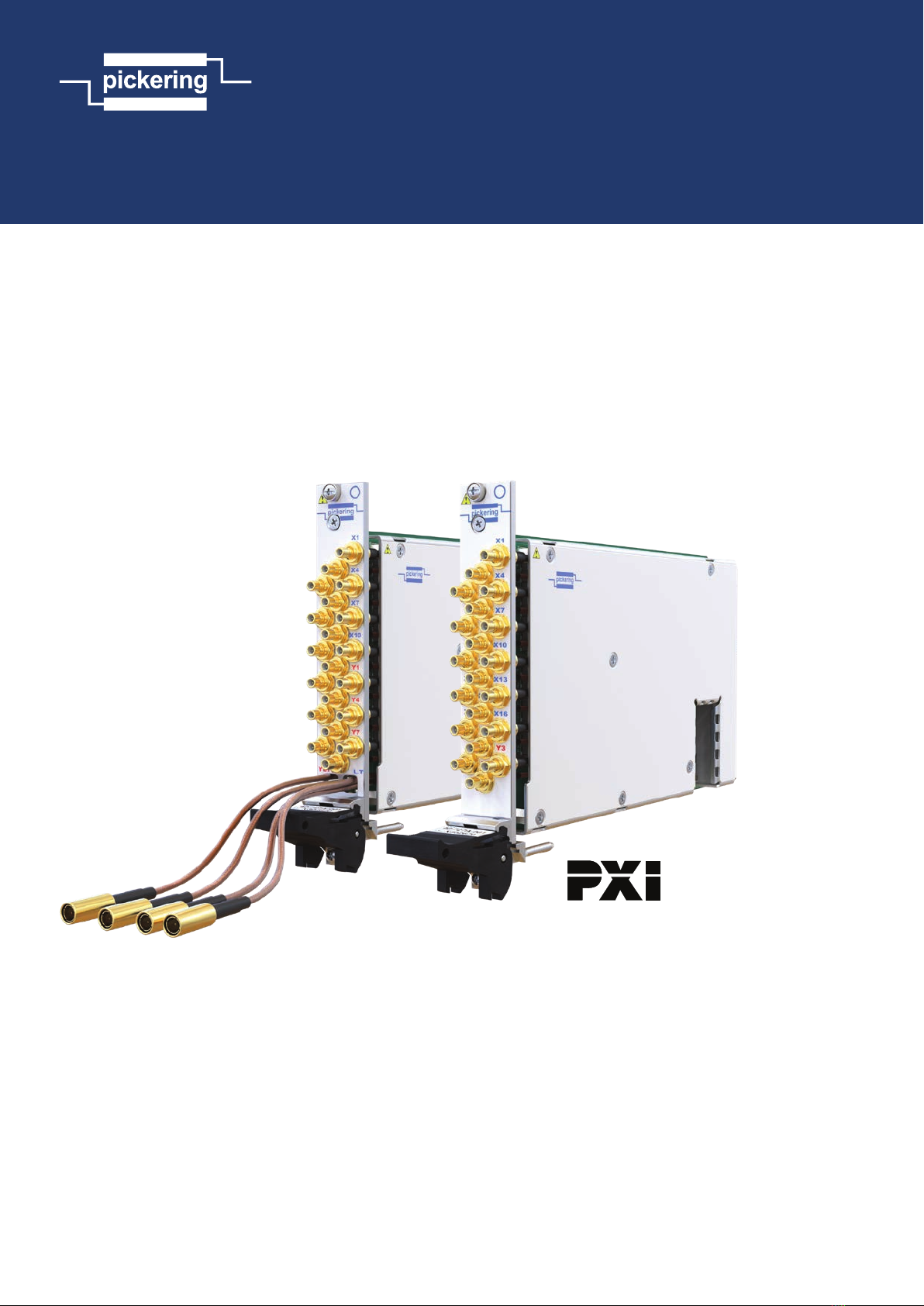

The 40-727A/728A/729A (PXI) and 42-727A/728A/729A

(PXIe) are high density RF matrix modules suitable for

switching up to 300 MHz in 50 Ω or 100 MHz in 75 Ω. They

are available in 50 Ω or 75 Ω versions with SMB connectors

or in 50 Ω versions with a multiway connector. They provide

a simple and scalable bidirectional matrix for RF signals

and are intended for the construction of high performance

switching systems. All X and Y connections have isolation

switches. These can be used to disconnect the matrix from

the test ﬁxture to maximize isolation and RF performance.

Updated Product

These modules are based on the established 40-727/8/9. As

well as having PXIe options, they use Pickering reed relays

throughout giving improved operation speed and reliability.

yAvailable as PXI or PXIe Modules

y16x4, 16x2 & 8x4 RF Coaxial Matrices

y300 MHz Usable Bandwidth (50 Ω)

y50 Ω & 75 Ω Versions Available

yEasy to Use Loop Thru Option Allows Unlimited

X Axis Expansion

yHigh Density SMB & Multiway Connector Versions

y75 Ω Version Suitable for Telecoms & Video Switching

yVISA & IVI Drivers Supplied for Windows

yPXI Versions Supported by PXI or LXI Chassis

ySelected Builds Supported by

eBIRST

™

y3 Year Warranty

Microwave Multiplexer (Part No. 4x-729A)

in 8x4 Format without Loop-thru

40-727A-002-L

RF Matrix Module

with MS-M

Multi-way Coaxial

Connector

Y4-LT

Y3-LT

Y2-LT

Y1-LT

Loop-Thru

Crosspoint

Isolation

Switches

Loop-Thru &

Isolation Switches

Crosspoint

Isolation

Switches

Microwave Multiplexer (Part No. 4x-729A)

in 8x4 Format with Loop-thru

pickeringtest.com

4x-727A/728A/729A

PXI/PXIe Expandable RF Matrix

Issue 1.1 July 2022

Page 1.2 PXI/PXIe Expandable RF Matrix Module 4x-727A/728A/729A

pickering

SECTION 1 - TECHNICAL SPECIFICATION

Matrix Operation

The 4x-727A/728A/729A are designed for X

to Y connections with maximum bandwidth.

They can also support X to X connections in

the same module or between multiple

modules (using loop-thru option) - see user

manual.

They are based on the same architecture

as the popular 40-725 RF matrix, but have

optional Y loop-thru allowing

easy expansion with minimum loss of

bandwidth.

X10

X11

X12

X13

X14

X15

X16

Crosspoint

Isolation

Switches

X10

X11

X12

X13

X14

X15

X16

Isolation

Switches

Crosspoint

X10

X11

X12

Y4-LT

Y3-LT

Y2-LT

Y1-LT

Loop-Thru

X13

X14

X15

X16

Isolation

Switches

Crosspoint

Loop-Thru &

Isolation Switches

X10

X11

X12

Y2-LT

Y1-LT

Loop-Thru

X13

X14

X15

X16

Crosspoint

Isolation

Switches

Loop-Thru &

Isolation Switches

40-727A-001-L

16x4 RF Matrix Module with

SMB Connectors and

Loop-thru on Flying Leads

Microwave Multiplexer (Part No. 4x-728A)

in 16x2 Format Without Loop-thru

Microwave Multiplexer (Part No. 4x-728A)

in 16x2 Format With Loop-thru

Microwave Multiplexer (Part No. 4x-729A)

in 16x4 Format Without Loop-thru

Microwave Multiplexer (Part No. 4x-729A)

in 16x4 Format With Loop-thru

4x-727A/728A/729A

pickeringtest.com Page 2

PXI/PXIe Expandable RF Matrix

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Unidad de control de Pickering

Pickering

Pickering 40-565A Manual de usuario

Pickering

Pickering SYSTEM 10 Manual de usuario

Pickering

Pickering 45-542 Manual de usuario

Pickering

Pickering PXI BRIC 40-563A Manual de usuario

Pickering

Pickering PXI 41-752 Manual de usuario

Pickering

Pickering PXI 40-145 Manual de usuario

Pickering

Pickering BRIC Series Manual de usuario

Pickering

Pickering 40-292 Manual de usuario

Pickering

Pickering 60-553 Manual de usuario

Pickering

Pickering 40-650A Manual de usuario

Pickering

Pickering 40-521 Manual de usuario

Pickering

Pickering 40-331 Manual de usuario

Pickering

Pickering Module Manual de usuario

Pickering

Pickering Pxi 41-660 Manual de usuario

Pickering

Pickering PXI BRIC 40-562A Manual de usuario

Pickering

Pickering PXI 40-795-001 Manual de usuario

Pickering

Pickering 40-574 Manual de usuario

Pickering

Pickering 41-761 Manual de usuario

Pickering

Pickering 40-534 Manual de usuario

Pickering

Pickering 40-884A Manual de usuario

Pickering

Pickering BRIC 40-565B Manual de usuario

Pickering

Pickering 4x-585A Manual de usuario

Pickering

Pickering 40-781 Manual de usuario

Pickering

Pickering 40-575 Manual de usuario

Manuales populares de Unidad de control de otras marcas

Festo

Festo Compact Performance CP-FB6-E Manual de lista de piezas

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manual de usuario

JS Automation

JS Automation MPC3034A Manual de usuario

JAUDT

JAUDT SW GII 6406 Series Guía rápida

Spektrum

Spektrum Air Module System Manual de usuario

BOC Edwards

BOC Edwards Q Series Manual de usuario

KHADAS

KHADAS BT Magic Manual de usuario

Etherma

Etherma eNEXHO-IL Manual de usuario

PMFoundations

PMFoundations Attenuverter Manual de usuario

GEA

GEA VARIVENT Manual de usuario

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manual de usuario

Altronix

Altronix LINQ8PD Instrucciones de montaje

Eaton

Eaton Powerware Series Manual de usuario

WAGO

WAGO 750-407/040-000 Manual de usuario

Sony

Sony CCU-590 Manual de usuario

Graco

Graco 25D614 Manual de usuario

Task Force Tips

Task Force Tips YE-RF-900 Manual de programación

Shini

Shini SPV-U Series Manual de usuario
