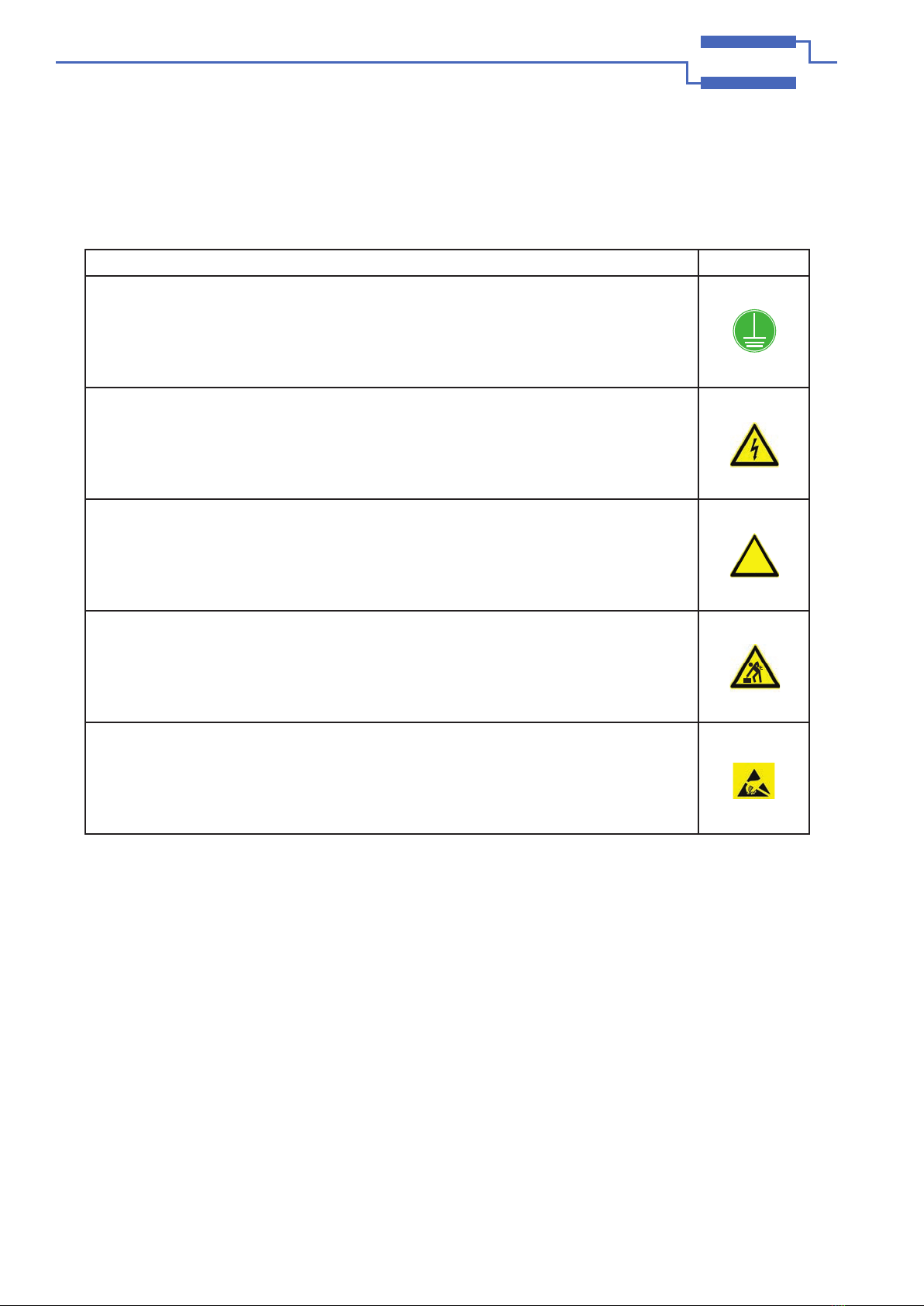

MEANING / DESCRIPTION SYMBOL

PROTECTIVE EARTH (GROUND)

To identify any terminal which is intended for connection to an external conductor for

protection against electric shock in case of a fault, or the terminal of a protective earth

(ground) electrode.

DANGEROUS VOLTAGE

To indicate hazards arising from dangerous voltages.

WARNING / CAUTION

An appropriate safety instruction should be followed or caution to a potential hazard

exists.

Refer to the relevant instructions detailed within the product manual.

HEAVY

If this product is heavy reference should be made to the safety instructions for

provisions of lifting and moving.

STATIC SENSITIVE

To indicate that static sensitive devices are present and handling precautions should

be followed.

SAFETY SYMBOLS

PRODUCT SAFETY

The following safety symbols may be used on the product and throughout the product documentation.

Page (V)

HIGH DENSITY MATRIX MODULE 40-520

pickering

Technical Support and Warranty................................................III

Product Safety .............................................................................IV

Contents (this page)....................................................................V

Warnings and Cautions ..............................................................VII

Section 1

Technical Specication...............................................................1.1

Section 2

Technical Description .................................................................2.1

Functional Description..........................................................2.1

Section 3

Installation....................................................................................3.1

Pre Operation Checks...........................................................3.1

Hardware Installation ............................................................3.1

Software Installation .............................................................3.3

Testing Operation ..................................................................3.4

Section 4

Programming Guide....................................................................4.1

Programming Options For Pickering PXI Modules ............4.1

Module Architecture..............................................................4.2

Using The IVI, Direct I/O or VISA Driver ..............................4.3

Section 5

Connector Information................................................................5.1

Section 6

Trouble Shooting .........................................................................6.1

Section 7

Maintenance Information............................................................7.1

Switching System Test Tools ...............................................7.2

Relay Lookup Tables ............................................................7.2

CONTENTS

Page (VI) HIGH DENSITY MATRIX MODULE 40-520

pickering

THIS PAGE INTENTIONALLY BLANK

Page (VII)

HIGH DENSITY MATRIX MODULE 40-520

pickering

Page (VII)

2 AMP 1-POLE UHD MATRIX MODULES 40-575 / 576 / 577 / 578 / 579

pickering

WARNINGS AND CAUTIONS

WARNING - HAZARDOUS ENVIRONMENTS SYMBOL

This product is not specically designed for use in hazardous environments, for example in explosive

atmospheres. If the product is to be used in hazardous environments we recommend that the user

ensures suitable protective measures are taken.

WARNING - DANGER OF ELECTRIC SHOCK SYMBOL

This module may contain hazardous voltages. Before removing the module from the rack remove all

supplies and disconnect user I/O signals.

Unused slots in the host chassis are populated with blanking plates to prevent access to user I/O

signals that may be present. Blanking panels are available to order from Pickering in a variety of

slot widths. If the product is not used in this manner for example by using an extender card then

additional care must be taken to avoid contact with exposed signals.

Not to be used in safety critical circuits, refer to the Pickering Interfaces’ terms & conditions of sale.

This module must not be used for the switching of Mains Circuits. For the switching of voltages up

to the module’s full specication, Secondary Circuit power supplies and the Device Under Test must

be fully isolated from the Mains Circuit and the safety earth.

The host chassis must be correctly installed and be connected to mains or factory safety ground,

please refer to your chassis installation manual.

Diagram Showing Separation Between The Mains Circuit and Secondary Circuit / DUT

For the purposes of this document, a Mains Circuit is an installation classied as Overvoltage

Category II up to 300V. Separation between the Secondary Circuit and Mains Circuit is achieved

by a transformer in which the primary windings are separated from the secondary windings by

reinforced insulation, double insulation, or a screen connected to the protective conductor terminal.

CAUTION - HANDLING OF ELECTROSTATIC-SENSITIVE DEVICES SYMBOL

Certain semiconductor devices used in this equipment are liable to damage due to static voltage.

Observe the following precautions when handling these devices in their unterminated state, or

sub-assemblies containing these devices:

1. Persons removing sub-assemblies from equipment using these devices must be earthed by a

wrist strap and a resistor at the point provided on the equipment.

2. Soldering irons used during the repair operations must be low voltage types with earthed tips and

isolated from the mains voltage by a double insulated transformer.

3. Outer clothing worn must be unable to generate static charges.

4. Printed Circuit Boards (PCBs) tted with these devices must be stored and transported in

anti-static bags.

PXI Switching

Module

Device

Under Test

Power

Supply

Power

Supply

Host Chassis

Secondary Circuit

Mains

Circuit

Mains

Circuit

Mains/Factory

Safety Ground

Page (VIII) HIGH DENSITY MATRIX MODULE 40-520

pickering

Page (VIII) 2 AMP 1-POLE UHD MATRIX MODULES 40-575 / 576 / 577 / 578 / 579

pickering

CAUTION - PRODUCT DOCUMENTATION SYMBOL

Suitably qualied & trained users should ensure that the accompanying documentation is fully read

and understood before attempting to install or operate the product.

SAFETY INSTRUCTIONS

All cleaning and servicing requires the equipment to be isolated and disconnected from the power source and user I/O

signals (refer to the Maintenance Section).

• Appropriate manual handling procedures should be followed as dictated by the weight of the individual module or

the combined weight of the modules & chassis.

• Should a fault occur with the module or chassis, immediately isolate and disconnect the incoming power to the

chassis and the user I/O signals.

• Ensure the equipment is installed, operated and maintained by trained and authorised personnel.

• For suitably equipped products in the event of an emergency press the red “emergency stop” button situated on

the front of the unit.

Page 1.1

HIGH DENSITY MATRIX MODULE 40-520

pickering SECTION 1 - TECHNICAL SPECIFICATION

SECTION 1 - TECHNICAL SPECIFICATION

pickeringtest.com

PXI High Density Matrix 40-520

ISSUE 2.1 SEP 2018

• High Density Reed Relay Matrix Module

• Low/Medium Density Options For Smaller

Requirements

• 22 Different Matrix Conﬁgurations With Up To

256 Crosspoints

• Uses High Reliability Pickering Ruthenium Reed

Relays For Maximum Performance

• Fast Operating Speed of 500µs

• Switch up to 150V, 1A with 15W Max Power

• VISA, IVI & Kernel Drivers Supplied for Windows

• Supported by PXI or LXI Chassis

• Supported by

BIRST

™ and

eBIRST

™ Test Tools

• 3 Year Warranty

Built-In Relay Self-Test -

BIRST

The BIRST facility provides a quick and simple way

of nding relay failures within the module. No test

equipment is required, simply disconnect the UUT

from the module’s connector, launch the BIRST

application and the tool will run a diagnostic test that

will nd all relays with faulty contacts.

For more information go to: pickeringtest.com/birst

Supported by

eBIRST

In addition to BIRST, these modules are also

supported by our eBIRST test tools. These tools

simplify switching system fault-nding by quickly

testing the system and graphically identifying the

faulty relay.

For more information go to: pickeringtest.com/ebirst

The 40-520 is a high density reed relay matrix with

22 different congurations. Typical applications

include signal routing in ATE and data acquisition

systems. The user signal connection is via a robust

50-pin D-Type connector that is fully supported by

the wide range of Pickering Interfaces cable and

connector accessories.

2-Wire Y Bus 1-Pole (Single 32x2 or Dual 16x2)

4-Wire Y Bus 1-Pole (Single 16x4, 24x4, 32x4 or Dual 12x4, 16x4)

6-Wire Y Bus 1-Pole

(Single 24x6, 32x6 or Dual 12x6, 16x6)

16-Wire Y Bus 1-Pole (Single 16x16)

12-Wire Y Bus 1-Pole

(Single 8x12, 12x12 or 16x12)

8-Wire Y Bus 1-Pole

(Single 8x8, 16x8, 24x8, 32x8

or Dual 8x8, 12x8, 16x8)

40-520 High Density Matrix Range Overview

Page 1.2 HIGH DENSITY MATRIX MODULE 40-520

pickering

SECTION 1 - TECHNICAL SPECIFICATION

High Density Matrix – 40-520

pickeringtest.com

Overview

X18

X20

X24

X17

X19

X21

X22

X23

X12

X10

X11

X16

X13

X14

X15

MATRIX

CROSSPOINT

MATRIX

CROSSPOINT

X12

X10

X11

X16

X13

X14

X15

MATRIX

CROSSPOINT

Y10

Y12

Y16

Y11

Y13

Y14

Y15

X12

X10

X11

X16

X13

X14

X15

MATRIX

CROSSPOINT

Y10

Y12

Y11

MATRIX

CROSSPOINT

Y10

Y12

Y11

X12

X10

X11

MATRIX

CROSSPOINT

Y10

Y12

Y11

40-520-001 Single 16x16 1-Pole Matrix

40-520-103 Single

8x12 1-Pole Matrix

40-520-102 Single 12x12 1-Pole Matrix40-520-101 Single 16x12 1-Pole Matrix

40-520-202 Single 24x8 1-Pole Matrix 40-520-204 Single 8x8 1-Pole Matrix

X18

X20

X24

X17

X19

X21

X22

X23

X28

X25

X26

X27

X32

X29

X30

X31

X12

X10

X11

X16

X13

X14

X15

MATRIX

CROSSPOINT

40-520-201 Single 32x8 1-Pole Matrix

Tabla de contenidos

Otros manuales de Unidad de control de Pickering

Pickering

Pickering PXI BRIC 40-569 Manual de usuario

Pickering

Pickering 40-518A Manual de usuario

Pickering

Pickering PXI 41-752 Manual de usuario

Pickering

Pickering 40-592A Manual de usuario

Pickering

Pickering 40-565A Manual de usuario

Pickering

Pickering 40-575 Manual de usuario

Pickering

Pickering 4x-585A Manual de usuario

Pickering

Pickering 40-584 Manual de usuario

Pickering

Pickering 41-761 Manual de usuario

Pickering

Pickering PXI BRIC 40-569B Manual de usuario

Pickering

Pickering 40-533B Manual de usuario

Pickering

Pickering 4 890 Series Manual de usuario

Pickering

Pickering 40-650A Manual de usuario

Pickering

Pickering SYSTEM 10 Manual de usuario

Pickering

Pickering 40-292 Manual de usuario

Pickering

Pickering 45-542 Manual de usuario

Pickering

Pickering PXI 40-145 Manual de usuario

Pickering

Pickering 40-670A Manual de usuario

Pickering

Pickering 41-735 Manual de usuario

Pickering

Pickering 40-522 Manual de usuario

Pickering

Pickering 40-580 Manual de usuario

Pickering

Pickering 4 785C Series Manual de usuario

Pickering

Pickering PXI 40-787 Manual de usuario

Pickering

Pickering PXI 40-855 Manual de usuario

Manuales populares de Unidad de control de otras marcas

Festo

Festo Compact Performance CP-FB6-E Manual de lista de piezas

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manual de usuario

JS Automation

JS Automation MPC3034A Manual de usuario

JAUDT

JAUDT SW GII 6406 Series Guía rápida

Spektrum

Spektrum Air Module System Manual de usuario

BOC Edwards

BOC Edwards Q Series Manual de usuario

KHADAS

KHADAS BT Magic Manual de usuario

Etherma

Etherma eNEXHO-IL Manual de usuario

PMFoundations

PMFoundations Attenuverter Manual de usuario

GEA

GEA VARIVENT Manual de usuario

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manual de usuario

Altronix

Altronix LINQ8PD Instrucciones de montaje

Eaton

Eaton Powerware Series Manual de usuario

WAGO

WAGO 750-407/040-000 Manual de usuario

Sony

Sony CCU-590 Manual de usuario

Graco

Graco 25D614 Manual de usuario

Task Force Tips

Task Force Tips YE-RF-900 Manual de programación

Shini

Shini SPV-U Series Manual de usuario
