Pickering 40-884 Manual de usuario

pickeringtest.com

Issue 3.2 June 2021

40-884 User Manual

PXI 50Ω 4x4 6GHz Matrix Module

Page (II) 50Ω 4X4 TERMINATED 6GHz MATRIX 40-884

pickering

Page (II) REED RELAY MODULE 40-110/115/120/125

pickering

No part of this publication may be reproduced, transmitted, transcribed, translated or stored in any form, or by

any means without the written permission of Pickering Interfaces.

Technical details contained within this publication are subject to change without notice.

ISO 9001

Reg No. FM38792

Page (III)

50Ω 4X4 TERMINATED 6GHz MATRIX 40-884

pickering

Page (III)

REED RELAY MODULE 40-110/115/120/125

pickering

TECHNICAL SUPPORT

For Technical Support please contact Pickering Interfaces either by phone, the website or via e-mail.

WARRANTY

All products manufactured by Pickering Interfaces are warranted against defective materials and workmanship for a period of

three years, excluding programmable power supplies, from the date of delivery to the original purchaser. Any product found to be

defective within this period will, at the discretion of Pickering Interfaces be repaired or replaced.

Products serviced and repaired outside of the warranty period are warranted for ninety days.

Extended warranty and service are available. Please contact Pickering Interfaces by phone, the website or via e-mail.

ENVIRONMENTAL POLICY

Pickering Interfaces operates under an environmental management system similar to ISO 14001.

Pickering Interfaces strives to full all relevant environmental laws and regulations and reduce wastes and releases to the

environment. Pickering Interfaces aims to design and operate products in a way that protects the environment and the health and

safety of its employees, customers and the public. Pickering Interfaces endeavours to develop and manufacture products that can

be produced, distributed, used and recycled, or disposed of, in a safe and environmentally friendly manner.

Worldwide Technical Support and Product Information

pickeringtest.com

Germany

Tel: +49 89 125 953 160

E-mail: [email protected]

Sweden

Tel: +46 340-69 06 69

E-mail: [email protected]

USA

Tel: (West) +1 541 471 0700

Tel: (East) +1 781 897 1710

E-mail: [email protected]

Czech Republic

Tel: +420 558 987 613

E-mail: [email protected]

France

Tel +33 9 72 58 77 00

E-mail [email protected]

Pickering Interfaces Headquarters

Stephenson Road Clacton-on-Sea CO15 4NL United Kingdom

Tel: +44 (0)1255-687900

E-Mail: [email protected]

China

Tel: +86 4008 799 765

E-mail: [email protected]

Page (IV) 50Ω 4X4 TERMINATED 6GHz MATRIX 40-884

pickering

Page (IV) REED RELAY MODULE 40-110/115/120/125

pickering

MEANING / DESCRIPTION SYMBOL

PROTECTIVE EARTH (GROUND)

To identify any terminal which is intended for connection to an external conductor for

protection against electric shock in case of a fault, or the terminal of a protective earth

(ground) electrode.

DANGEROUS VOLTAGE

To indicate hazards arising from dangerous voltages.

WARNING / CAUTION

An appropriate safety instruction should be followed or caution to a potential hazard

exists.

Refer to the relevant instructions detailed within the product manual.

HEAVY

If this product is heavy reference should be made to the safety instructions for

provisions of lifting and moving.

STATIC SENSITIVE

To indicate that static sensitive devices are present and handling precautions should

be followed.

SAFETY SYMBOLS

PRODUCT SAFETY

The following safety symbols may be used on the product and throughout the product documentation.

Page (V)

50Ω 4X4 TERMINATED 6GHz MATRIX 40-884

pickering

Technical Support and Warranty................................................III

Product Safety .............................................................................IV

Contents (this page)....................................................................V

Warnings and Cautions ..............................................................VII

Section 1

Technical Specication...............................................................1.1

Section 2

Technical Description .................................................................2.1

Functional Description..........................................................2.1

Section 3

Installation....................................................................................3.1

Pre Operation Checks...........................................................3.1

Hardware Installation ............................................................3.2

Software Installation .............................................................3.2

Testing Operation ..................................................................3.3

Section 4

Programming Guide....................................................................4.1

Programming Options For Pickering PXI Modules ............4.1

Matrix Module Architecture ..................................................4.3

Programming The Matrix Module.........................................4.4

Section 5

Connector Information................................................................5.1

Section 6

Trouble Shooting.........................................................................6.1

Section 7

Maintenance Information............................................................7.1

CONTENTS

Page (VI) 50Ω 4X4 TERMINATED 6GHz MATRIX 40-884

pickering

THIS PAGE INTENTIONALLY BLANK

Page (VII)

50Ω 4X4 TERMINATED 6GHz MATRIX 40-884

pickering

Page (VII)

REED RELAY MODULE 40-110/115/120/125

pickering

WARNINGS AND CAUTIONS

WARNING - HAZARDOUS ENVIRONMENTS SYMBOL

atmospheres. If the product is to be used in hazardous environments we recommend that the user

ensures suitable protective measures are taken.

WARNING - DANGER OF ELECTRIC SHOCK SYMBOL

This module may contain hazardous voltages. Before removing the module from the rack remove all

supplies and disconnect user I/O signals.

Unused slots in the host chassis are populated with blanking plates to prevent access to user

I/O signals that may be present. Blanking panels are available to order from Pickering in a variety

of slot widths. If the product is not used in this manner for example by using an extender card then

additional care must be taken to avoid contact with exposed signals.

CAUTION - HANDLING OF ELECTROSTATIC-SENSITIVE DEVICES SYMBOL

Certain semiconductor devices used in this equipment are liable to damage due to static voltage.

Observe the following precautions when handling these devices in their unterminated state, or

sub-assemblies containing these devices:

1. Persons removing sub-assemblies from equipment using these devices must be earthed by a

wrist strap and a resistor at the point provided on the equipment.

2. Soldering irons used during the repair operations must be low voltage types with earthed tips and

isolated from the mains voltage by a double insulated transformer.

3. Outer clothing worn must be unable to generate static charges.

anti-static bags.

CAUTION - PRODUCT DOCUMENTATION SYMBOL

and understood before attempting to install or operate the product.

SAFETY INSTRUCTIONS

All cleaning and servicing requires the equipment to be isolated and disconnected from the power source and user I/O

signals (refer to the Maintenance Section).

• Appropriate manual handling procedures should be followed as dictated by the weight of the individual module or

the combined weight of the modules & chassis.

• Should a fault occur with the module or chassis, immediately isolate and disconnect the incoming power to the

chassis and the user I/O signals.

• Ensure the equipment is installed, operated and maintained by trained and authorised personnel.

• For suitably equipped products in the event of an emergency press the red “emergency stop” button situated on

the front of the unit.

Page (VIII) 50Ω 4X4 TERMINATED 6GHz MATRIX 40-884

pickering

THIS PAGE INTENTIONALLY BLANK

Page 1.1

50Ω 4X4 TERMINATED 6GHz MATRIX 40-884

pickering SECTION 1 - TECHNICAL SPECIFICATION

SECTION 1 - TECHNICAL SPECIFICATION

pickeringtest.com

PXI 50 Ω 4x4 Terminated 6 GHz Matrix 40-884

ISSUE 4.0 APR 2018

yWide Frequency Range 10 MHz to 6 GHz

yHigh Performance Solid State Switch

y4x4 Matrix

yAutomatic Termination

y+30 dBm Input Power Handling

yExcellent Crosstalk & Isolation

yCompact 3 Slot Form Factor

yFast Operating Speed

yLong Servce Life

ySMA Coaxial Connectors

yVISA, IVI & Kernel Drivers Supplied for

Windows

ySupported by PXI or LXI Chassis

y3 Year Warranty

50Ω

50Ω RF 4x4 Matrix

40-884-001 4x4 Terminated 6 GHz Matrix

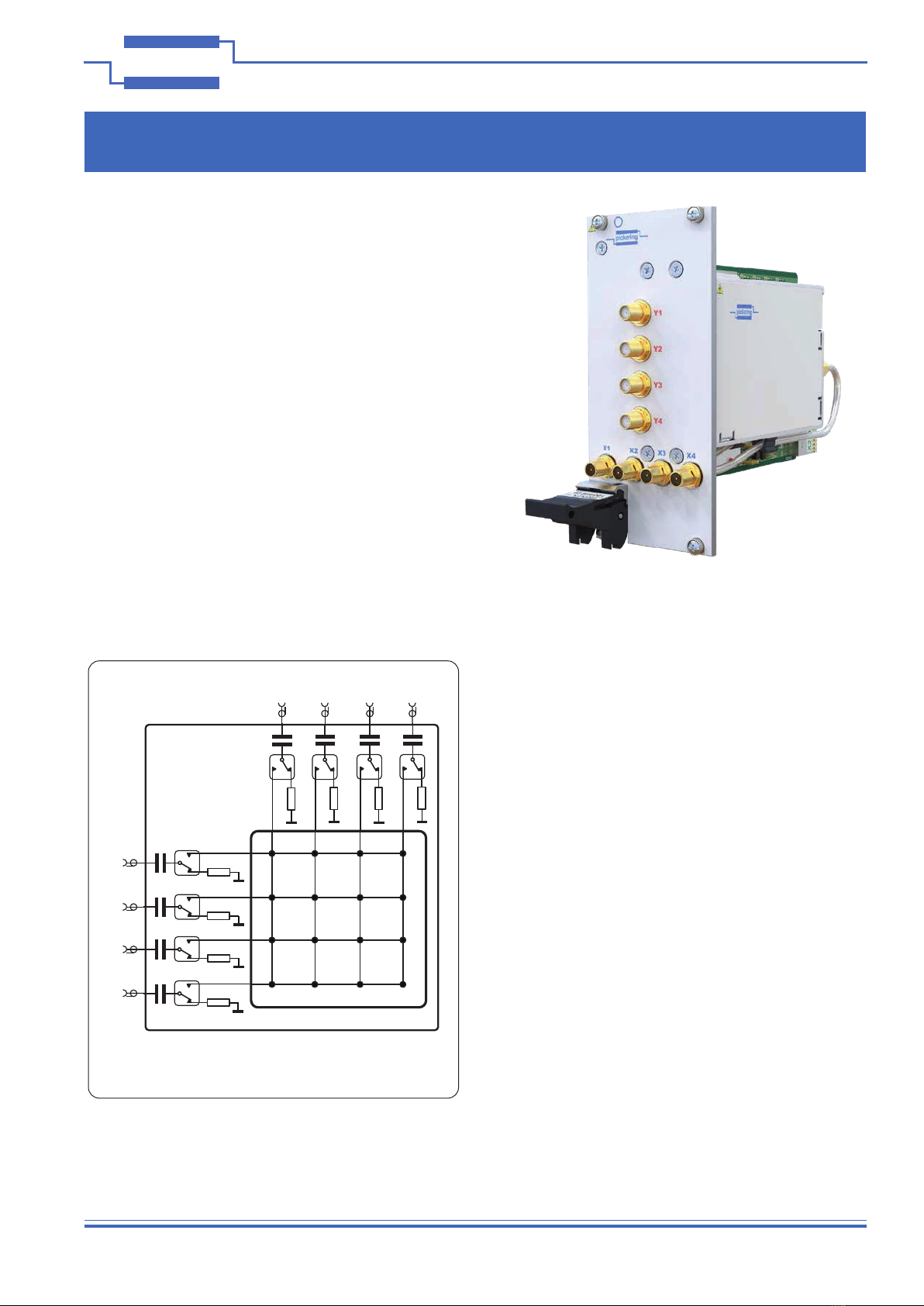

Simpliﬁed Functional Diagram

The 40-884 is an all solid state microwave matrix which

can operate to frequencies beyond 6 GHz and handle RF

powers to +30 dBm. The matrix supports up 4 point to point

connections across the matrix at the same time.

An innovative construction method ensures the 40-884

provides a compact 3 slot solution which has excellent

RF performance. A 4x4 matrix aids the concurrent testing

of up to 4 devices with 4 different sets of test equipment,

improving speed of test in RF systems and making more

efﬁcient use of expensive test equipment.

The design provides a high isolation between the selected

paths, ensuring a high degree of independence in the test

processes. Fast operating speed reduces the time taken

in setting switches for the next test run. With the ability

to handle signals up to +30 dBm and an IP3 of typically

+60dBm the design can handle the signal levels found

in most applications without introducing appreciable

distortion.

RF connections are made via SMA connectors to ensure

cabling solutions maintain the high performance of the

40-884.

The 40-884 is supplied with drivers that allow users

to support the module in all popular PXI software

environments. In addition the 40-884 can be supported in

Pickering Interfaces’ LXI/PXI Modular Chassis, permitting

users to choose an LXI or PXI switching platform while

retaining the same high performance characteristics and

driver environment.

Page 1.2 50Ω 4X4 TERMINATED 6GHz MATRIX 40-884

pickering

SECTION 1 - TECHNICAL SPECIFICATION

4x4 Terminated 6 GHz Matrix, 40-884

pickeringtest.com

Speciﬁcations

Insertion loss for 40-884-001

for all matrix paths up to 7.5 GHz

VSWR for 40-884-001

for X to Y paths up to 7.5 GHz

VSWR for 40-884-001

for Y to X paths up to 7.5 GHz

Crosstalk for 40-884-001

for adjacent paths up to 7.5 GHz
