PSCLF1
Installation lnstructions
1

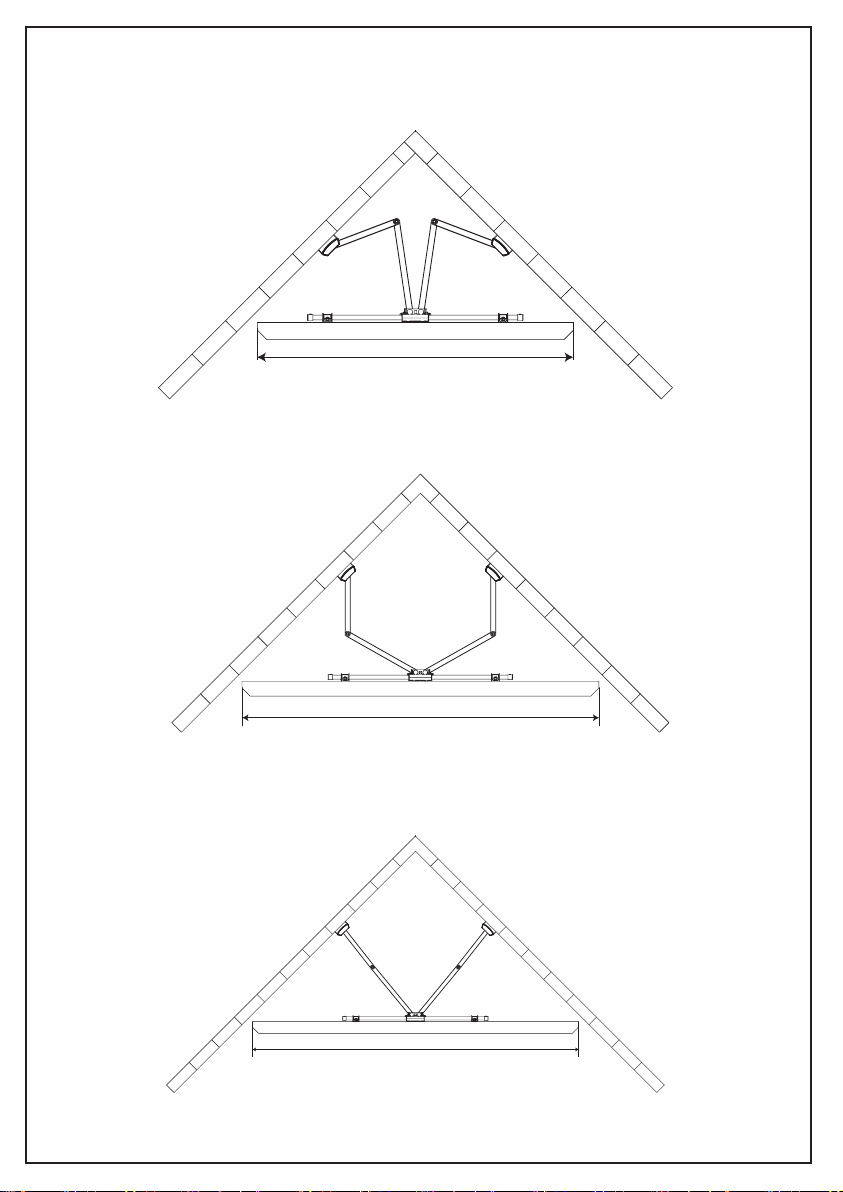

Note:To keep your TV from colliding with the walls, please note the
individual maximum width of the TV for the three different adjustment
methods of the TV wall mount.
Max:1000mm/39 in.
Max:1320mm/52 in.
Max:1530mm/60 in.
5mm
Wood Drill
TV Bracket
Level
Supplied Parts
Tools Needed (Not lncluded)
Stud Finder Tape Measure Pencil Drill
10mm
Concrete Drill
13mm
Socket Wrench Screwdriver
Hammer
IMPORTANT SAFETY INFORMATION
•Check package contents against Supplied Parts and Hardware List to assure that all
components were received undamaged. Do not use damaged or defective parts. lf you
•Not all parts and hardware included will be used.
•Carefully read all instructions before attempting installation. If you do not understand
the instructions or have any concerns or questions, please contact customer service at
•This product may contain moving parts. Use with caution.
•Do not use this product for any purpose or in any configuration not explicitly specified
in this instruction. We hereby disclaim any liability for injury or damage arising from
incorrect assembly, incorrect mounting, or incorrect use of this product.
•DO NOT INSTALL INTO DRYWALL ALONE.
•Please check www.perlesmith.com for more products and company information.
2
Arm and
Wall Plate Front Support
01 x1 02 x1
x2 x2
03 05
x2
04
UP
Arm Extensions
Wall Plate
Template
Wrench
10mm
Wrench
4mm
Hardware for Attaching the Arm Assembly/Wall Plate to Wall
Washers
M8
x6
3
Supplied Hardware
These anchors are for
concrete or brick walls
ONLY. DO NOT use them
in drywall or wood studs.
CAUTION!
x6
A3
Wall
Anchor
Lag Bolts
ST8X65
x6
A1 A2
Hardware for Attaching TV Brackets to TV
07
M6/M8 x4
M6 x 15mm x4 M6 x 35mm x4
M8 x 25mm x4 M8 x 35mm x4 M8 x 50mm x4
M8
M6
06
Washers
Spacers
08 TV Screws
[Only one size fits your TV]
[If necessary]
2.5mm X8 10mm X4 22mm X4
4
Step 1
Check TV Hole Pattern and Select TV Screws
Step 2
Select Spacers (if needed)
Only one screw size fits your TV.
WITH SPACER
3
For Rounded TV
For Flat TV with:
Inset Holes Cable Interference
aLong Screw
Short Screw
Washer
Washer
Spacer
TV Bracket
TV Bracket
EXTRA
08
08
06
07
06
NO SPACER b
For Flat TV
Spacer not necessary
SPACE
200 mm ≈ 7 7/8 in.
400 mm ≈ 15 3/4 in.
100 mm ≈ 4 in.
300 mm ≈ 11 3/4 in.
600 mm ≈ 23 6/10 in.
MAX:600mm/23.6 in.
MAX:400mm/16 in.
M6 M8
WARNING:
● Any material covering the wall must not exceed 5/8 in. (16 mm)
● Nominal wood stud size: common 2 x 4 in. (51 x 102 mm) minimum 1½ x 3½
in. (38 x 89 mm)
● Stud center must be verified
Step 4
For wood stud installation, follow STEP 4A
For concrete installation, follow STEP 4B
Attach the Arm Assembly/Wall Plate [01] to Wall
Step 4A
Wood Stud Option
X
●DONOT USE ANCHOR [A3] FOR THIS STEP!
●Avoid potential personal injury or property damage! DO NOT over-tighten the
lag bolts [A1]. Tighten the lag bolts [A1] only until the washers [A2] are pulled
firmly against the wall plate.
●Ensure the arm assembly/wall plate[01] is securely fastened to the wall
before continuing on to the next step.
5
Too Short Too Long
Step 3
Secure the TV Brackets to Your TV
Alternate Spacer
Setups
With Spacer
b
08 No Spacer
a
08 08
06
06
07
04
04
6
Position the arm template [05] at
your desired height and line up the
holes with your stud center line.
Level the wall plate and mark the
holes.
Use a stud finder(not included) to
locate wood studs. Mark the edge and
center locations.(The distance to
assemble is 525mm/20.6 in.)
ø5mm
65mm
Drill 6 pilot holes using a 5 mm
diameter drill bit. Make sure the
depth is not less than 65mm.
525mm/20.6 in.
525mm/20.6 in.
05
4A-1
4A-2
4A-3
13mm
Socket Wrench
Install the arm assembly/wall plate
using lag bolts [A1] and washer [A2].
Tighten the lag bolts [A1] only until the
washers [A2] are pulled firmly against
the wall plate.
(Not included)
4B-1
4A-4
7
WARNING:
Wall
Anchor
A3
Step
4B Solid Concrete or Concrete Block Option
●Avoid potential personal injury or property damage! DO NOT over-tighten the lag bolts
[A1]. Tighten the lag bolts [A1] only until the washers [A2] are pulled firmly against the
wall plate.
Position the arm template [05] at your
desired height, level the template and
mark the pilot hole locations.(The distance
to assemble is 525mm/20.6 in.)
UP
A1 A2
05
●Ensure the arm assembly/wall plate[01] is securely fastened to the
wall before continuing on to the next step.
● Any material covering the wall must not exceed 5/8 in. (16 mm)
● Mount the arm assembly/wall plate[01] directly onto the concrete surface
● Minimum solid concrete thickness: 203 mm (8 in.)
● Minimum concrete block size: 203 x 203 x 406 mm (8 x 8 x 16 in.)
525mm/20.6 in.
525mm/20.6 in.
13mm
Socket Wrench
(Not included)
ø10mm
70mm
Drill 6 pilot holes using a 10mm diameter
drill bit. Make sure the depth is not less
than 70mm. Never drill into the mortar
between blocks.
4B-2
4B-3
4B-4
8
Use the hammer to knock anchors [A3] into the
wall. Be sure the anchors [A3] are seated flush
with the concrete surface.
A3
Install the arm assembly/wall
plate using lag bolts [A1],
washers [A2] and anchors
[A3]. Tighten the lag bolts [A1]
only until the washers [A2] are
pulled firmly against the wall
plate. DO NOT over-tighten
the lag bolts [A1].
A1 A2
Step
5
5-1
5-2
5-3
5-4
9
Install arm extensions [02] and fasten with screws [S4] x4
Wrench 4mm
Remove the pre-assembed screws [S4]
from the front support [02] and save them
for the use of step 5-3. 02
03
02
01
S1
S2
02
S4
S4
S4
Wrench 4mm
Insert the arm extensions
[03] into the [02]
Fasten the screws [S4] x4
removed from the front
support [02].
Hang [01] onto [02]. Tighten preassembled screws [S1] and washers [S2] to secure [01]
to [02]
Make sure the big button in Front
Support [02] hang on the hook of the
Arm and Wall Plate assembly [01].
