PCE Instruments PCE-CM 40 Manual de usuario

PCE-CM 40 clamp meter

User Manual

User manuals in various languages (français,

italiano, español, português, nederlands, türk, polski,

русский, 中文) can be found by using our

product search on: www.pce-instruments.com

Last change: 18 August 2023

v1.0

English


 © PCE Instruments


Contents
1Safety notes........................................................................................... 1
2Specifications........................................................................................2
3Scope of delivery .................................................................................. 2
4System description............................................................................... 3
5Operation ............................................................................................... 4
5.1 Preparation ...................................................................................................................... 4
5.2 Current measurement AC................................................................................................. 4
5.3 Measuring the inrush current............................................................................................ 4
5.4 Frequency measurement.................................................................................................. 5
5.5 Hold function.................................................................................................................... 5
5.6 Data logger ...................................................................................................................... 5
5.7 Backlight.......................................................................................................................... 5
5.8 Automatic power off.......................................................................................................... 6
6Cleaning / storage................................................................................. 6
7Battery change ...................................................................................... 6
8APP Meterbox Pro................................................................................. 6
9Contact................................................................................................... 7
10 Disposal ................................................................................................. 7




1 Safety notes

Please read this manual carefully and completely before you usethe device for the first time. The

device may only be used by qualified personnel and repaired by PCE Instruments personnel.

Damage or injuries caused by non-observance of the manual are excluded from our liability and

not covered by our warranty.

•The device must only be used as described inthis instructionmanual. If used otherwise,

this can cause dangerous situations for the user and damage to the meter.

•The instrument may only be used if the environmental conditions (temperature, relative

humidity, …) are within the ranges stated in the technical specifications. Do not expose

the device to extreme temperatures, direct sunlight, extreme humidity or moisture.

•Do not expose the device to shocks or strong vibration. Never touch live components

when measuring. There is a danger to life!

•Never touch the bare measuring tips, otherwise electric shocks may occur.

•Before each measurement, make sure that the correct measurement range is set and

that the test leads are connected correctly.

•Resistance, capacitance and temperature measurements as well as diode tests (if

applicable) must only be carried out in de-energised condition.

•Before replacing the batteries or the fuses, all test leads must be removed from the

meter.

•The case should only be opened by qualified PCE Instruments personnel.

•Never use the instrument when your hands are wet.

•You must not make any technical changes to the device.

•The appliance should only be cleaned with a damp cloth. Use only pH-neutral cleaner,

no abrasives or solvents.

•The device must only be used with accessories from PCE Instruments or equivalent.

•Before each use, inspect the case for visible damage. If any damage is visible, do not

use the device.

•Do not use the instrument in explosive atmospheres.

•The measurement range as stated in the specifications must not be exceeded under

any circumstances.

•Non-observance of the safety notes can cause damage to the device and injuries to

the user.

General warning sign

Non-observance can cause damage to the device and injuries to the user.

Warning: electrical voltage

Non-observance can cause electric shock.

We do not assume liability for printing errors or any other mistakes in this manual.

We expressly point to our general guarantee terms which can be found in our general terms of

business.

2 Specifications

Alternating current 50 ... 400 Hz TRMS

Measurement range

Resolution

Accuracy

30 A AC

0.01 A

±(3 % of rdg. + 8 digits)

300 A AC

0.1 A

±(3 % of rdg. + 5 digits)

3000 AAC

1 A

±(3 % of rdg. + 5 digits)

General technical data of the measuring clamp PCE-CM 40

Loop diameter Rogwski coil

approx. 170 mm x 5 mm / 6.7 x 0.2 in

Display

4-digit LCD with backlight

Operating conditions

5 ... 40 °C / 41 ... 104 °F

max. 80 % RH, non-condensing

Storage conditions

-20 ... 60 °C / -4 ... 140 °F,

max. 80 % RH, non-condensing

Operating height

max. 2000 m

Power supply

2 x 1.5 V AAA battery

Automatic power off

after approx. 15 minutes

Security conditions

EN61010-1, EN61010-2-032, EN61326-1

Overvoltage category

CAT III, 1000 V; CAT IV, 600 V

Degree of pollution

3 Scope of delivery

1 x clamp meter PCE-CM 40 (display unit and Rogowski coil)

2 x 1.5 V AAA battery

1 x user manual

1 x carrying bag

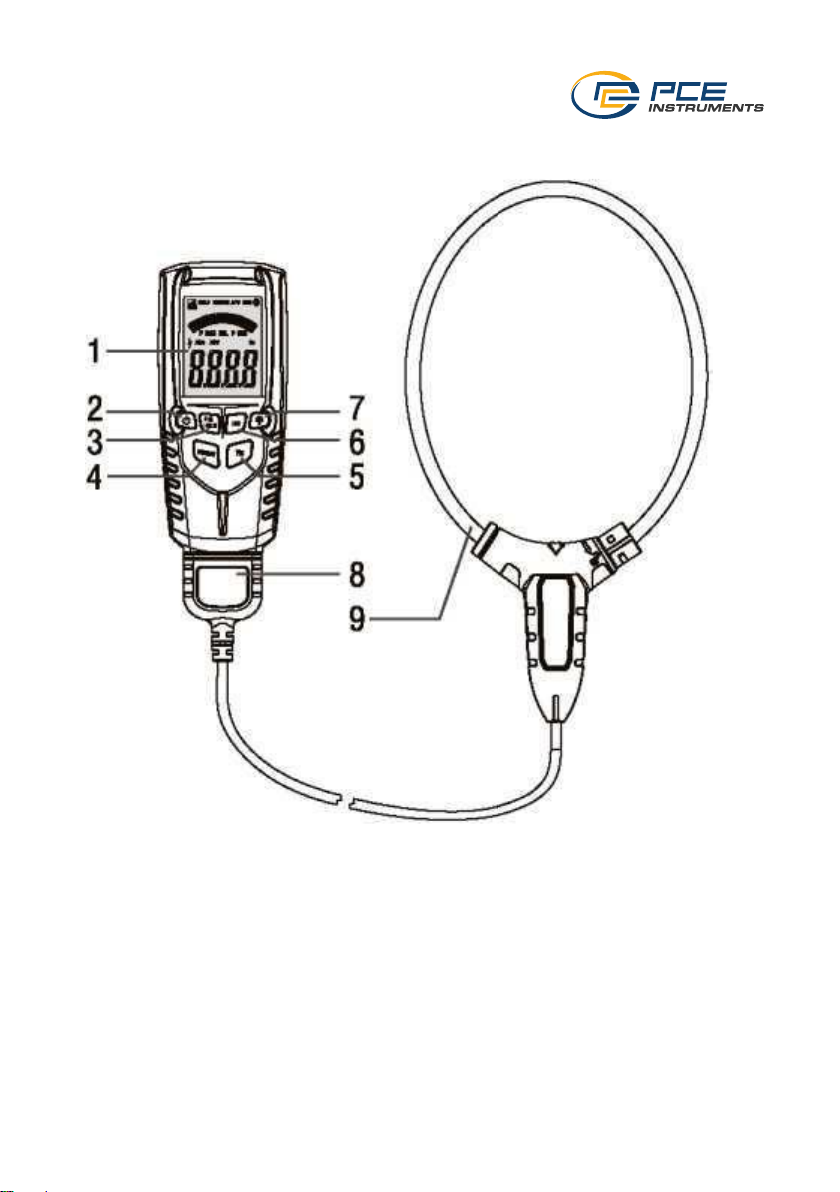

4 System description

①

Display

⑥

“LOG" key

②

“On" key

⑦

“Backlight“key

③

“HOLD / Bluetooth" key

⑧

Rogowski coil plug

④

“Inrush" key

⑨

Rogowski coil

⑤

“Hz" key

5 Operation

5.1 Preparation

•Unpack the meter completely.

•Remove the protective foils if necessary.

•Insert the batteries, as described in chapter 7.

•Insert the Rogowski coil connector into the base of the display unit.

5.2 Current measurement AC

•Switch on the meter.

•Open the Rogowski coil and place it around the conductor to be measured. Pay

attention to the direction of flow (arrow on the coil handle), close and lock the coil.

•Position the coil so that the conductor is as central as possible in the coil.

•The measurement error may increase if the conductor is not centred.

•The measurement range selection is automatically controlled by the meter.

•After the measurement, switch off the meter by pressing and holding the "On" key.

5.3 Measuring the inrush current

•Switch on the meter.

•Open the Rogowski coil and place it around the conductor to be measured. Pay

attention to the direction of flow (arrow on the coil handle), close and lock the coil.

•Position the coil so that the conductor is as central as possible in the coil.

•The measuring error may increase if the conductor is not centred.

•Press the "INRUSH" key.

•Press and hold the "INRUSH" key to change the measurement range from 3000 A to

30 A. For changing the measurement range from 30 A to 300 A and from 300 A to 3000

A, repeat the procedure.

•Switch on the consumer load to be measured.

•The inrush current is shown and held on the display.

•Repeat the procedure for a new measurement.

•Press the "INRUSH" key to return to normal measuring mode.

•After the measurement, switch off the meter by holding down the "ON" key.

HOLD

Reading

Alternating current

Low battery

Hertz (frequency)

Inrush current

Memory

Bluetooth transmission

Auto Power Off

5.4 Frequency measurement

•Switch on the meter.

•Open the Rogowski coil and place it around the conductor to be measured. Pay

attention to the direction of flow (arrow on the coil handle), close and lock the coil again.

•Position the coil so that the conductor is as central as possible in the coil.

•The measuring error may increase if the conductor is not centred.

•Press the "Hz" key.

•The frequency is shown on the display.

•Press the "Hz" key to return to normal measuring mode.

•After the measurement, switch off the meter by holding down the "ON" key.

5.5 Hold function

This function allows you to freeze the value currently shown on the display.

•Press the "HOLD" key during the current or frequency measurement.

•Press the "HOLD" key again to return to measuring mode.

5.6 Data logger

With the logger function, you can save the measured values to the device and transfer them to

the app (Meterbox Pro) via Bluetooth.

•Press the "LOG" key to start data recording.

•Press the "LOG" key once more to end data recording.

•Press and hold the "HOLD (Bluetooth)" key until the Bluetooth icon appears at the top

right of the display.

•To transfer the saved data to the app, press and hold the "LOG" key until the display

shows "Send". The saved data is transmitted.

Attention! After the data transfer, the Bluetooth mode is automatically exited.

•To exit Bluetooth mode manually, press and hold the "HOLD (Bluetooth)" key once

more.

5.7 Backlight

•Press the "Backlight" key to switch on the backlight.

•Press the key again to switch off the backlight.

5.8 Automatic power off

To save battery capacity, the device is automatically switched off after 15 minutes. During use of

the data logger, automatic power off is deactivated.

6 Cleaning / storage

•Use a damp cloth and mild cleaners to clean the meter. Never use cleaners that contain

solvents or abrasives.

•If you do not use the meter for more than 60 days, remove the batteries to prevent

leakage.

7 Battery change

•Open the battery compartment on the back using a screwdriver.

•Replace the two 1.5 V AAA batteries. Ensure correct polarity.

•Close the battery compartment.

8 APP Meterbox Pro

•Download the Meterbox Pro app from the App Store (iOS) or Google Play (Android) to

your mobile device or use the QR code below.

•You can find the instructions for Meterbox Pro in the app under Setting - Help.

Android

Apple

9 Contact

If you have any questions, suggestions or technical problems, please do not hesitate to contact

us. You will find the relevant contact information at the end of this user manual.

10 Disposal

For the disposal of batteries in the EU, the 2006/66/EC directive of the European Parliament

applies. Due to the contained pollutants, batteries must not be disposed of as household waste.

They must be given to collection points designed for that purpose.

In order to comply with the EU directive 2012/19/EU we take our devices back. We either re-use

them or give them to a recycling company which disposes of the devices in line with law.

For countries outside the EU, batteries and devices should be disposed of in accordance with

your local waste regulations.

If you have any questions, please contact PCE Instruments.

PCE Instruments contact information

Germany France Spain

PCE Deutschland GmbH PCE Instruments France EURL PCE Ibérica S.L.

Im Langel 26 23, rue de Strasbourg Calle Mula, 8

D-59872 Meschede 67250 Soultz-Sous-Forets 02500 Tobarra (Albacete)

Deutschland France España

Tel.: +49 (0) 2903 976 99 0 Téléphone: +33 (0) 972 3537 17 Tel. : +34 967 543 548

Fax: +49 (0) 2903 976 99 29 Numéro de fax: +33 (0) 972 3537 18 Fax: +34 967 543 542

[email protected] [email protected] [email protected]

www.pce-instruments.com/deutsch www.pce-instruments.com/french www.pce-instruments.com/espanol

United Kingdom Italy Turkey

PCE Instruments UK Ltd PCE Italia s.r.l. PCE Teknik Cihazları Ltd.Şti.

Trafford House Via Pesciatina 878 / B-Interno 6 Halkalı Merkez Mah.

Chester Rd, Old Trafford 55010 Loc. Gragnano Pehlivan Sok. No.6/C

Manchester M32 0RS Capannori (Lucca) 34303 Küçükçekmece - İstanbul

United Kingdom Italia Türkiye

Tel: +44 (0) 161 464902 0 Telefono: +39 0583 975 114 Tel: 0212 471 11 47

Fax: +44 (0) 161 464902 9 Fax: +39 0583 974 824 Faks: 0212 705 53 93

[email protected] [email protected] [email protected]

www.pce-instruments.com/english www.pce-instruments.com/italiano www.pce-instruments.com/turkish

The Netherlands United States of America Denmark

PCE Brookhuis B.V. PCE Americas Inc. PCE Instruments Denmark ApS

Institutenweg 15 1201 Jupiter Park Drive, Suite 8 Birk Centerpark 40

7521 PH Enschede Jupiter / Palm Beach 7400 Herning

Nederland 33458 FL Denmark

Telefoon: +31 (0)53 737 01 92 USA Tel.: +45 70 30 53 08

[email protected] Tel: +1 (561) 320-9162 [email protected]

www.pce-instruments.com/dutch Fax: +1 (561) 320-9176 www.pce-instruments.com/dansk

[email protected]

www.pce-instruments.com/us

Tabla de contenidos

Otros manuales de Instrumento de medición de PCE Instruments

PCE Instruments

PCE Instruments PCE-PH 30 Manual de usuario

PCE Instruments

PCE Instruments PCE-TG 300-P5EE Manual de usuario

PCE Instruments

PCE Instruments PCE-RVI 4 Manual de usuario

PCE Instruments

PCE Instruments ADL 11 Manual de usuario

PCE Instruments

PCE Instruments PCE-AQD 50 Manual de usuario

PCE Instruments

PCE Instruments PCE-T 260 Manual de usuario

PCE Instruments

PCE Instruments PCE-HDM 20 Manual de usuario

PCE Instruments

PCE Instruments PCE-TG 150 Manual de usuario

PCE Instruments

PCE Instruments PCE-320 Manual de usuario

PCE Instruments

PCE Instruments PCE-GPA 62 Manual de usuario

PCE Instruments

PCE Instruments PCE-4 EKIT Series Manual de usuario

PCE Instruments

PCE Instruments PCE-MMK 1 Manual de usuario

PCE Instruments

PCE Instruments SIMCO FMX-003 Manual de usuario

PCE Instruments

PCE Instruments PCE-BFT 2 Manual de usuario

PCE Instruments

PCE Instruments PCE-VA 20 Manual de usuario

PCE Instruments

PCE Instruments PCE-127 Series Manual de usuario

PCE Instruments

PCE Instruments PCE-322A Manual de usuario

PCE Instruments

PCE Instruments PCE-VT 3700S Manual de usuario

PCE Instruments

PCE Instruments PCE-423N Manual de usuario

PCE Instruments

PCE Instruments PCE-VT 3700 Manual de usuario

PCE Instruments

PCE Instruments Schiltknecht MiniAir 20 Manual de usuario

PCE Instruments

PCE Instruments PCE-DFG NF Series Manual de usuario

PCE Instruments

PCE Instruments PCE-MMT E Manual de usuario

PCE Instruments

PCE Instruments UMI 880 Series Manual de usuario

Manuales populares de Instrumento de medición de otras marcas

Suaoki

Suaoki D40 Manual de usuario

Elster

Elster BK-G1.6 Manual de usuario

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manual

Duratool

Duratool D03128 Manual de usuario

Vega

Vega VEGAPULS 65 Manual de usuario

Tonghui

Tonghui TH2618B Manual de usuario

Tenmars

Tenmars TM-801 Manual de usuario

MSR

MSR 145 Manual de usuario

TPS

TPS WP-82 Manual de usuario

ELMETRON

ELMETRON CP-511 Manual de usuario

PCB Piezotronics

PCB Piezotronics 003C30 Manual de usuario

Tenma

Tenma 72-10465 Manual de usuario

Endress+Hauser

Endress+Hauser Proline Promag 50 Especificaciones técnicas

Siemens

Siemens SITRANS F Coriolis FCT030 Manual de lista de piezas

KLINGER

KLINGER CMF V Series Manual de usuario

EXFO

EXFO FTB-2 Manual de operación y mantenimiento

Keysight

Keysight M8290A Manual de usuario

ADTEK

ADTEK MW-5 Manual de usuario
