PCE Instruments PCE-PTR 200N Manual de usuario

User Manual

PCE-PTR 200N Dynamometer

User manuals in various languages (français,

italiano, español, português, nederlands, türk, polski,

русский, 中文) can be found by using our

product search on: www.pce-instruments.com

Last change: 22 October 2019

v1.0

English


 © PCE Instruments


Contents
1Safety notes........................................................................................... 1
2Specifications........................................................................................2
3Important information before use .......................................................2
4Introduction ........................................................................................... 3
5Characteristics ...................................................................................... 3
6Delivery contents .................................................................................. 3
7Device description ................................................................................ 4
7.1 Keys and adaptor............................................................................................................. 4
7.2 Dimensions...................................................................................................................... 5
7.3 Circuit diagram of 3.5 mm jack......................................................................................... 5
7.4 Display............................................................................................................................. 6
7.5 Keys................................................................................................................................. 7
8Operation ............................................................................................... 8
9Options.................................................................................................10
10 Alarm....................................................................................................11
11 Calibration by using weights.............................................................11
12 Rechargeable battery .........................................................................11
13 Measurement.......................................................................................11
13.1
Choosing the sample
..........................................................................................................11
13.2
Preparation of the sample
 ................................................................................................12
13.3 Important information about the measurement ................................................................12
14 Warranty............................................................................................... 14
15 Disposal ...............................................................................................14




1 Safety notes

Please read this manual carefully and completely before you usethe device for the first time. The

device may only be used by qualified personnel and repaired by PCE Instruments personnel.

Damage or injuries caused by non-observance of the manual are excluded from our liability and

not covered by our warranty.

•The device must only be used as described in this instructionmanual. If used otherwise,

this can cause dangerous situations for the user and damage to the meter.

•The instrument may only be used if the environmental conditions (temperature, relative

humidity, …) are within the ranges stated in thetechnical specifications. Do not expose

the device to extreme temperatures, direct sunlight, extreme humidity or moisture.

•Do not expose the device to shocks or strong vibrations.

•The case should only be opened by qualified PCE Instruments personnel.

•Never use the instrument when your hands are wet.

•You must not make any technical changes to the device.

•The appliance should only be cleaned with a damp cloth. Use only pH-neutral cleaner,

no abrasives or solvents.

•The device must only be used with accessories from PCE Instruments or equivalent.

•Before each use, inspect the case for visible damage. If any damage is visible, do not

use the device.

•Do not use the instrument in explosive atmospheres.

•The measurement range as stated in the specifications must not be exceeded under

any circumstances.

•Non-observance of the safety notes can cause damage to the device and injuries to

the user.

We do not assume liability for printing errors or any other mistakes in this manual.

We expressly point to our general guarantee terms which can be found in our general terms of

business.

If you have any questions please contact PCE Instruments. The contact details can be found at

the end of this manual.

2 Specifications

Measuring range

0 ... 200 N

Calibration

0.1 N

Pressure calibration

1 Mpa

Load cell

integrated load cell with M6 connection

Measuring range

1 ... 100 % f. s.

Measurement

accuracy

±0.5 %

Units

n, kg, lb

Display

LCD

Operating

temperature

+10 ... +30 °C

Relative humidity

15 ... 80 %

Working conditions

The device must not be located near sources of vibration or corrosive

substances

Weight

1 kg / 2.2 lb

3 Important information before use

•Wear protective mask and gloves.

•Do not use damaged or bent fixtures.

•If “Err-1” appears on the LCD, it indicates that the test load the sensor measures is 110

% larger than the rated load. Decrease the load immediately. Make sure the load

applied is smaller than 105 % the rated load after the meter is restarted.

•Make sure the force gauge is not overloaded. Overload may damage the sensor.

•Do not use sharp tools to press buttons.

•Keep the meter away from liquids and store it in a cool, dry place and away from

sources of vibration.

•Only use the charger delivered with the force gauge for charging.

•Connect the meter to the computer in line with the instructions to avoid problems.

•Only connect the charger to an intact socket as damaged sockets can cause fire.

•Make sure the charger is securely inserted into a socket if the product needs to be

charged. Looseness may cause short circuit, resulting in electric shock or fire.

•Remove the charger after charging to avoid accidents.

•Do not touch the power adaptor with wet hands.

•Do not bend or twist the test head. A measurement may only be made perpendicularly

to the meter.

4 Introduction

The penetrometer PCE-PTR 200N is a practical handheld meter to check the degree of

ripeness of different types of fruit. This penetrometer is more accurate than most other models.

The penetrometer will provide some valuable information about the ideal harvest time. The

meter will also help monitoring the quality during storage, transport and sales. The penetrometer

is equipped with an internal load cell controlled by a microprocessor. This microprocessor

makes a quick and accurate readout possible. The meter has a mounting fixture for a test stand.

This reduces possible user error to a minimum and makes series of measurements possible.

5 Characteristics

Display

LCD / 180 ° rotatable / backlit

Interface

USB

Alarm

Fracture alarm, upper / lower offset, limit

alarm

Open Collector Transistor

12 V / 50 mA

Memory

10 measurements

Peak value measurement

yes

6 Delivery contents

1 x Penetrometer PCE-PTR 200N

1 x Penetration tip Ø 6 mm

1 x Penetration tip Ø 8 mm

1 x Penetration tip Ø 11 mm

1 x Flathead adapter

1 x Hook adapter

1 x Ball head adapter

1 x Chisel head adapter

1 x Notch head adapter

1 x Extension rod (65 mm / 2.55")

1 x USB cable

1 x Power plug

2 x Locking ring

1 x Equipment case

1 x Operation manual

The evaluation software can be downloaded here: https://www.pce-

instruments.com/deutsch/download-win_4.htm.

7 Device description

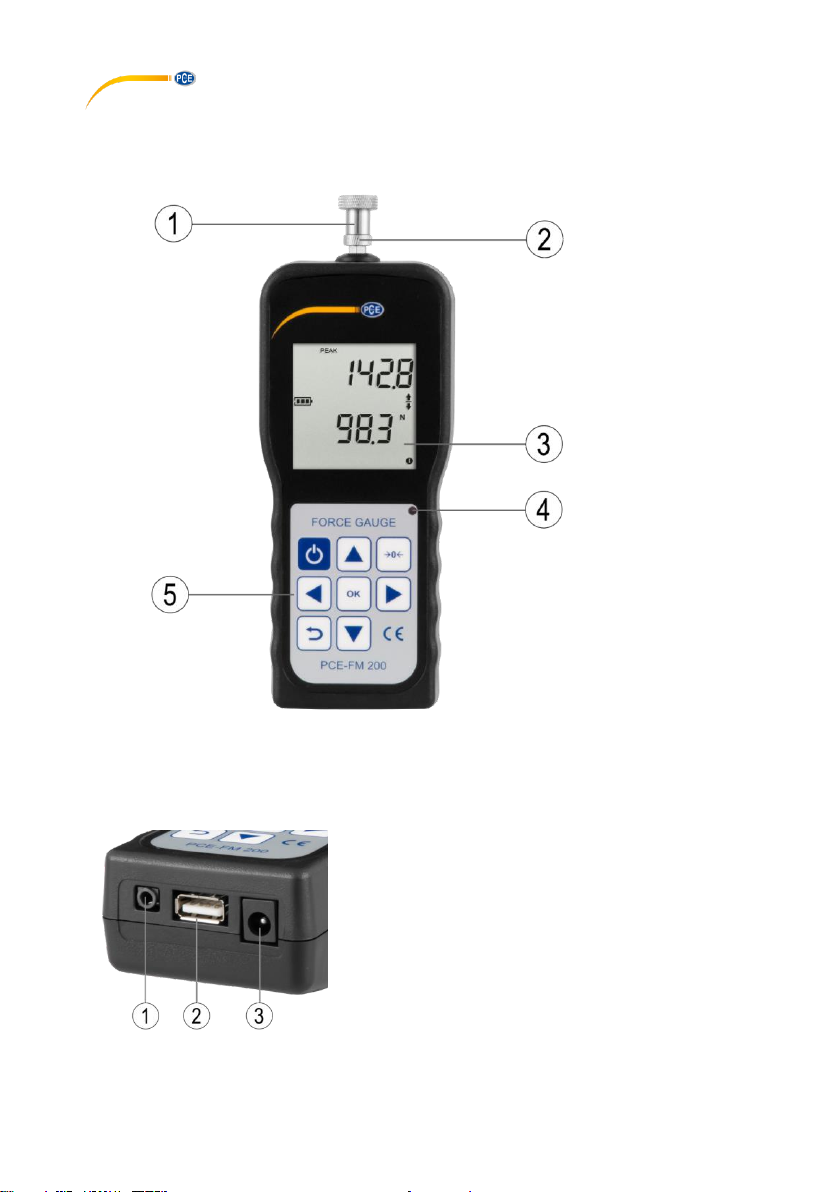

7.1 Keys and adaptor

1. Measuring adaptor

2. Clamping nut

3. LCD

4. LED

5. Control panel

1. Switched output

2. USB interface

3. Power connection

7.2 Dimensions

All dimensions in mm

7.3 Circuit diagram of 3.5 mm jack

Here you can find the circuit diagram for connecting a 3.5 mm jack in order to establish a

connection to the switched outputs.

7.4 Display

1. Number of values saved (these do not turn when the display does)

2. ATUO: Automatic peak clearing

PEAK: Manual peak clearing

AVER: Average of saved peak values

MAX:highest value measured

MIN: lowest measured value

3. Displays current the peak value or current measurement value in real time, depending on

display orientation

4. Battery level indication

5. PC connection

6. Measuring unit

7. Push (compression) icon

8. Pull (tension) icon

9. “—” the displayed value is smaller than the set limit

“○” Measurement successful or interrupted

“＋” the displayed value exceeds the set limit

7.5 Keys

Key

Test mode

Online test

mode

(USB

connected)

Storage mode

On / off

Unit

Exit mode

Leave option

Zeroing

Memory is

cleared

Reading

and unit are

sent

Data are sent

Saved

readings

are qeried

Switch

between

AVER, MAX

and MIN

Down

Menu is

opened

Invalid

Back to

measurement

mode

Selected

option is

opened

Displayed

value is

saved

Displayed

value is

saved

Left

Peak value

is deleted

Peak value

is deleted

Right

8 Operation

Power on and off:

- Press to power on/off.

Open menu and select an option:

- In test mode, press to open the settings menu and to select individual options.

Zero and delete a saved value:

- In test mode, press to reset the measured value to zero.

- In storage mode, press to delete individual memory items. These individual

memory items flash and can be selected by means of the arrow keys and

and deleted individually.

Change unit and leave a mode:

- In test mode, press to change the unit.

- In the menu, you can use to leave a selected option or menu.

- In storage mode, you can use to leave this mode and return to test mode.

Navigate through the options:

- In the menu, you can use the arrow keys and to navigate through the

options.

Save:

- In test mode, you can reset the peak value by using the key.

- Also in test mode, you can save the peak value by using the key.

- In storage mode, you can navigate to the right through the memory items by using the

key.

- Also in storage mode, you can navigate to the left through the memory items by using

the key.
