ORDERNO.KMS0504063CE

NetworkCamera

BB-HCM381A

(forU.S.A.)

 2005PanasonicCommunicationsCo.,Ltd.Allrightsreserved.

Unauthorizedcopyinganddistributionisaviolationoflaw.

IMPORTANTINFORMATIONABOUTLEADFREE,(PbF),SOLDERING

Ifleadfreesolderwasusedinthemanufactureofthisproducttheprintedcircuitboardswillbemarked

PbF.

Standardleaded,(Pb),soldercanbeusedasusualonboardswithoutthePbFmark.

Whenthismarkdoesappearpleasereadandfollowthespecialinstructionsdescribedinthismanual

ontheuseofPbFandhowitmightbepermissibletousePbsolderduringserviceandrepairwork.

1.ABOUTLEADFREESOLDER(PbF:Pbfree)

Note:

Intheinformationbelow,Pb,thesymbolforleadintheperiodictableofelements,willrefertostandard

solderorsolderthatcontainslead.

WewillusePbFwhendiscussingtheleadfreesolderusedinourmanufacturingprocesswhichismade

fromTin,(Sn),Silver,(Ag),andCopper,(Cu).

Thismodel,andotherslikeit,manufacturedusingleadfreesolderwillhavePbFstampedonthePCB.

Forserviceandrepairworkwesuggestusingthesametypeofsolderalthough,withsomeprecautions,

standardPbsoldercanalsobeused.

Caution

-PbFsolderhasameltingpointthatis50°~70°F,(30°~40°C)higher

thanPbsolder.Pleaseuseasolderingironwithtemperaturecontrol

andadjustitto700°±20°F,(370°±10°C).Incaseofusinghigh

temperaturesolderingiron,pleasebecarefulnottoheattoolong.

-PbFsolderwilltendtosplashifitisheatedmuchhigherthanitsmelting

point,approximately1100°F,(600°C).

-IfyoumustusePbsolderonaPCBmanufacturedusingPbFsolder,

removeasmuchoftheoriginalPbFsolderaspossibleandbesurethat

anyremainingismeltedpriortoapplyingthePbsolder.

-WhenapplyingPbFsoldertodoublelayeredboards,pleasecheckthe

componentsideforexcesswhichmayflowontotheoppositeside(See

figure,below).

1.1.SUGGESTEDPbFSOLDER

ThereareseveraltypesofPbFsolderavailablecommercially.Whilethisproductismanufacturedusing

Tin,Silver,andCopper,

(Sn+Ag+Cu),youcanalsouseTinandCopper,(Sn+Cu),orTin,Zinc,andBismuth,(Sn+Zn+Bi).Please

checkthemanufac

turer’sspecificinstructionsforthemeltingpointsoftheirproductsandanyprecautionsforusingtheir

productwithother

materials.

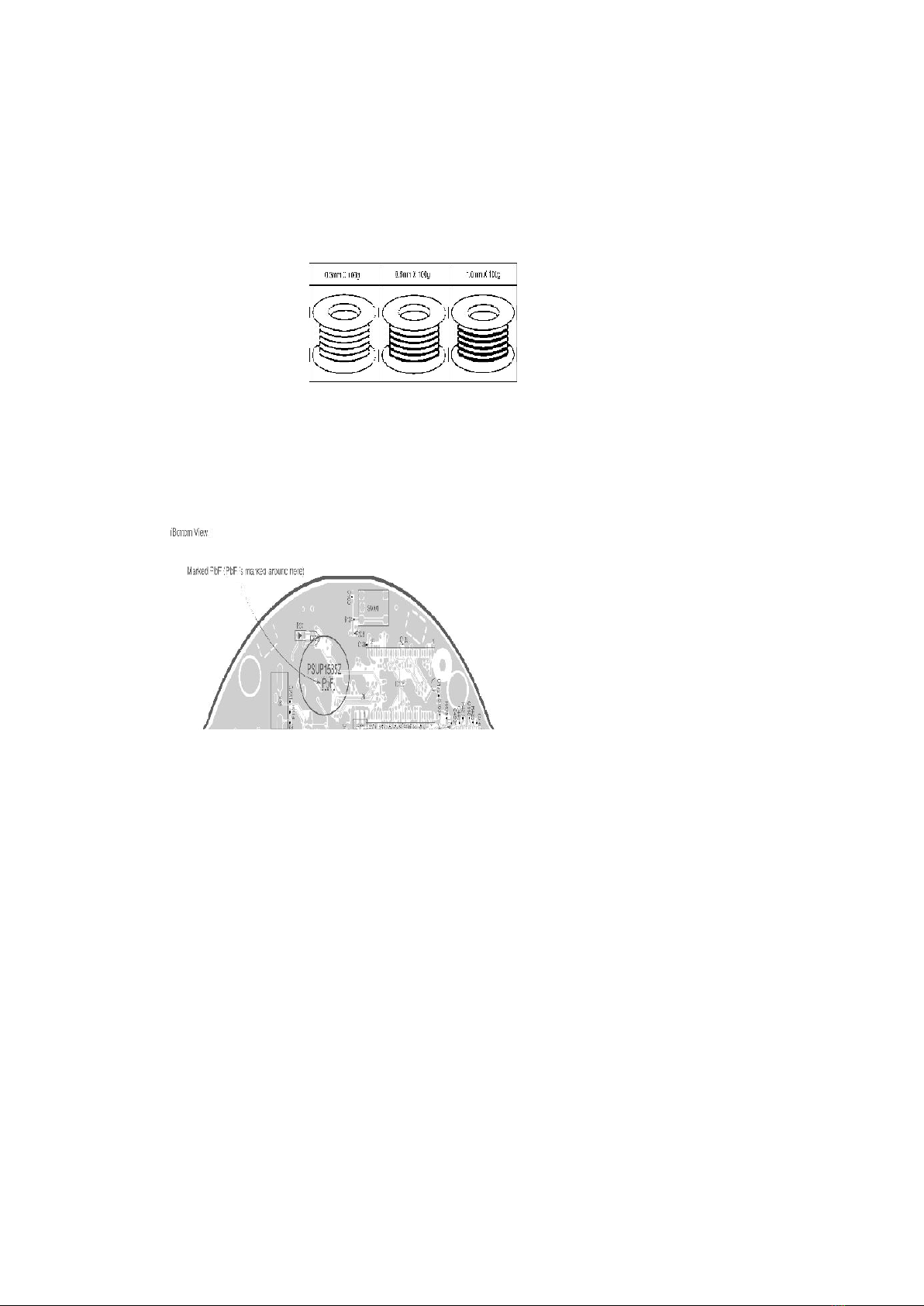

Thefollowingleadfree(PbF)solderwiresizesarerecommendedforserviceofthisproduct:0.3mm,

0.6mmand1.0mm.

1.2.HOWTORECOGNIZETHATPbFREESOLDERISUSED

MainBoard

TiltBoard

LensBoard

VideoBoard

CCDBoard

I/OBoard

2.FORSERVICETECHNICIANS

ICsandLSIsarevulnerabletostaticelectricity.

Whenreplacing,thefollowingprecautionswillhelptopreventrecurringmalfunctions.

1.Covertheplasticpartswithaluminumfoil.

2.Groundthesolderingirons.

3.Useaconductivematonthework-table.

4.DonotgraspICorLSIpinswithbarefingers.

3.CAUTION

3.1.SAFETYPRECAUTIONS

1.Beforeservicing,unplugthepowercordtopreventanelectricalshock.

2.Whenreplacingparts,useonlymanufacturer’srecommended

componentsforsafety.

3.Checktheconditionofpowercord.Replaceifwearordamageis

evident.

4.Afterservicing,besuretorestoretheleaddress,insulationbarriers,

insulationpapers,shields,etc.

5.Beforereturningtheservicedequipmenttothecustomer,makethe

followinginsulationresistancetesttopreventashockhazard.

3.2.BATTERYCAUTION

Dangerofexplosionifthebatteryisreplacedincorrectly.Replaceonlywiththesameorequivalenttype

recommendedbythemanufacturer.Discardusedbatteriesaccordingtofollowingcaution:

Disposalortransportationoflithiumbatteriesshouldbeperformedbypermitted,inaccordancewith

federal,stateandlocalguidelines.

Abatterycontinuestohavenotransportationlimitationsaslongasitisseparatedtopreventshort

circuitsandpackedinstrongpackaging.

Commercialfirmsthatdisposeofanyquantityoflithiumcellsshouldhaveamechanisminplaceto

accountfortheirultimatedisposition.Thisisagoodpracticeforalltypesofcommercialorindustrial

waste.

Whenthelithiumbatteryisexchanged,theclocksettingsarecleared.Inthiscase,makeclocksettings

again.

RecommendTypeNumber:

BR12251VC(BAT1)ManufacturedbyMATSUSHITA

3.3.TRADEMARKS

-NetscapeandNetscapeNavigatorareregisteredtrademarksof

NetscapeCommunicationsCorporationintheU.S.andothercountries.

-AdobeandAcrobatareeitherregisteredtrademarksortrademarksof

AdobeSystemsIncorporatedintheUnitedStatesand/orother

countries.

-EthernetisaregisteredtrademarkofXeroxCorporationintheUnited

Statesand/orothercountries.

-Microsoft,Windows,WindowsNT,MS-DOSandActiveXareeither

registeredtrademarksortrademarksofMicrosoftCorporationinthe

UnitedStatesand/orothercountries.

-PentiumisaregisteredtrademarkofIntelCorporationorits

subsidiariesintheUnitedStatesandothercountries.

-ScreenshotsreprintedwithpermissionfromMicrosoftCorporation.

Allothertrademarksidentifiedhereinarethepropertyoftheirrespectiveowners.

3.4.INSULATIONRESISTANCETEST

1.UnplugtheACpowercordandshortthetwoprongsoftheplugwitha

jumperwire.

2.MeasuretheresistancevaluewithohmmeterbetweenthejumperedAC

plugandeachexposedmetalcabinetpart,suchasscrewthreads,etc.

Note:

Someexposedpartsmaybeisolatedfromthechassisbydesign.Thesewillreadinfinity.

3.Ifthemeasurementisoutsidethespecifiedlimits,thereisapossibility

ofshockhazard.Theequipmentshouldberepairedandrechecked

beforeitisreturnedtothecustomer.

3.5.POWERCAUTION

Thepowersocketwalloutletshouldbelocatednearthisequipmentandbeeasilyaccessible.

3.6.MAINTENANCE

TokeeptheNetworkCamerainthegoodcondition,maintenanceplaysanimportantpart.Please

performtherecommendedmaintenanceonaregularbasis(asneeded).Aftercleaningthedustfromthe

lenswithanairblower,pleasewipethelenswithalenscleaningpaper.Turningoffthepoweris

recommendedwhencleaning.

Lens

-Whenthepowerison,donotmanuallyrevolvethePan/Tilt.Accidentally

revolvingorturningthepan/tiltmechanismwhilethecamerais

poweredonmaycausethememorizedcamerapositionstochange.If

thisoccurs,pleaserestartthecamerabymomentarilydisconnecting

power.

-Donottouchthelens.Itcantakeawaytheprotectivecoatingonthe

lens.Fingerprints,dust,stains,etc.onthelenscanalsodegradethe

performanceoftheAutomaticFocusingfeature.

-Cleanthelenswithalenscleaningpaper.

4.SPECIFICATIONS

NetworkCameraSpecifications

Item Description

Zoom 12steps,42x(21xOpticalZoom,2xDigitalZoom)

Pan/TiltAngle Pan:-175°to+175°,Tilt:-120°to0°(Onthetable)/0°to+90°(Ontheceiling)

SensorType 1/4typeCCD(Interlacetype),380,000pixels(EffectivePixels)

Illumination 3-100,000lx(0.09-100,000lxwhenincolornightviewmode)

WhiteBalance Auto/Manual/Hold

Focus Auto/Manual(40steps)

Zoom 12stepsof42xZooming(21xOpticalZoom,2xDigitalZoom)

MinimumObjectDistance Wide:5mm(0.2inches)

Tele:1m(40inches)

CaliberRatio(FNo.) Tele:F1.6-Wide:F3.6

HorizontalViewingAngle Tele:2.6°(Optical)/1.3°(Digital),Wide:51°

Exposure Auto

OtherSpecifications

Item Description

VideoCompression JPEG/3Levels

VideoResolution 640x480,320x240(default),160x120

BufferedImage*1 About125frames(320x240)withtimedisplay(SDmemorycardisnot

inserted.)

AudioCommunication 2-wayHalfDuplex

AudioBandwidth 300Hz-3.4KHz

AudioPlayMethod PlaywithActiveX

InputEncodingMethod EncodingwithActiveX

AudioInput*2 3.5mmMiniJack

AudioOutput*2 3.5mmStereoMiniJack(outputismono),LineLevel

VideoOutput*2 AnalogComposite(NTSC)

Framerate*3 Max.12frames/second(640x480)

Max.30frames/second(320x240or160x120)

SupportedProtocols IPv4/IPv6Dual-Stack

-IPv4:

TCP,UDP,IP,HTTP,FTP,SMTP,DHCP,DNS,ARP,ICMP,POP3,NTP,IPsec,UPnP

-IPv6:

TCP,UDP,IP,HTTP,FTP,SMTP,DNS,ICMPv6,POP3,NDP,NTP,IPsec

IPsecFeature ESPEncryption,ESPAuthentication

Transportmode/Tunnelmode

IKE(InternetKeyExchange)

IKE(InternetKey

Exchange)

Pre-SharedKey

CipherAlgorithm DES-CBC,3DES-CBC,AES-CBC

Message-Digest

Algorithm

HMAC-MD5,HMAC-SHA-1

MessageTransfer

Condition

AlarmorTimer

ImageTransferMethod SMTP,FTP

Interface 10Base-T/100Base-TXEthernetRJ-45connectorx1

IndicatorDisplay Power/NetworkCommunication/Cameraoperation/Ethernetlink
