Panasonic GP-US932CA Manual de usuario

the best in HD just got better

GP-US932A HD Series

Now

1080p

HD!

True Multi-Format HD

The unit is 1080p, 1080i or 720P selectable and uses three

1/3" type 16x9 Progressive HD sensors running at full 60

frames per second. Offering sharp, flicker-free images

with better vertical resolution.

New High-Sensitivity Progressive CCD

Each pixel has a large light-receiving area, giving this

newly developed 1/3" type progressive CCD exceptional

high sensitivity. This advanced CCD and a newly

developed digital signal processor(DSP),in combination with

a very sophisticated offset spatial technology, achieves a

balance of high resolution and high S/N ratio required for

critical HD applications.

New DSP with 14-bit A/D Conversion

and 19-bit Processing

Starting from progressive capture, the GP-US932A's

newly developed DSP uses 14-bit A/D conversion and

19-bit inner processing to attain unprecedented accuracy

and results in true 1920x1080i, 1920x1080p or 1280x720p

HD outputs. From this progressive capture, the DSP converts

the signal to multiple, simultaneous HD and SD outputs.

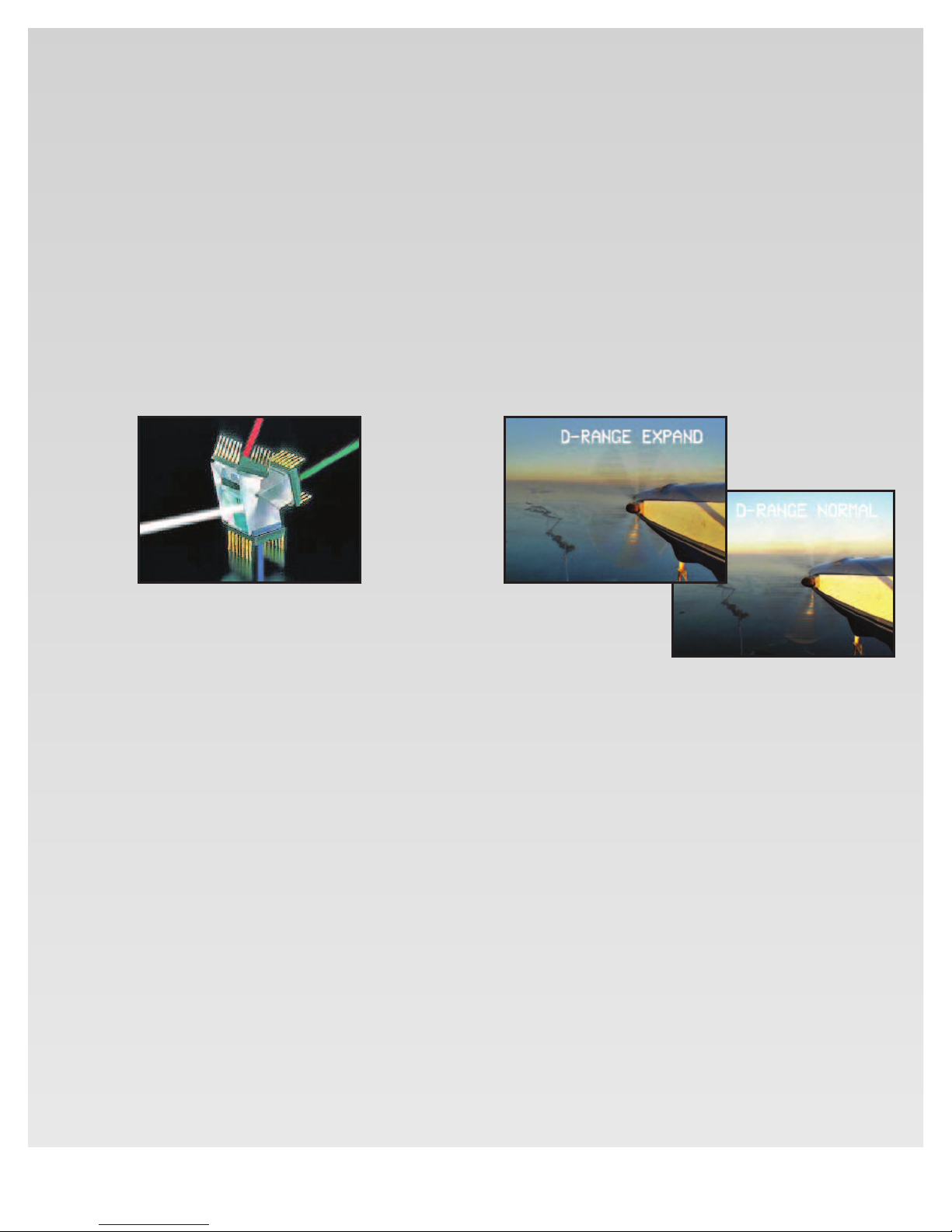

Special Expanded

Dynamic Range Function

Our unique new dynamic range feature expands the

contrast of the dark areas while maintaining detail in the

bright areas of the picture.

High-Resolution

Native Progressive Scan

Progressive to interlace conversion, cross conversion and

down conversion all start with the progressive scan. That

initial Native Progressive Scan offers a higher level of

vertical resolution. The result is outstanding HD and SD

video output image quality that electronically processed

scans cannot match.

Panasonic’s True HD

3CCD Remote Head

1080p Output Camera System

Now, get the sharpest, purest color i ages i aginable, fro Panasonic’s

s all 3CCD re ote head ca era with true 16x9 Multi For at High Definition.

Ideal for edical, icroscopy, broadcast, inspection, industrial and

professional applications, this revolutionary solution is available only fro

Panasonic. Take a look – you'll be a azed to see what you've been issing.

GP-US932A HD image

Con entional image

Major Operating Controls & Switches

•HD Outputs: HDM , HD-SD ; Analog Component

(RGB/YPbPr)

•Standard outputs: S-Video, composite

•RS-232 for control

Powerful, Flexible Menu Set-up

Three Scene Files

There are three separate scene files each with eleven

programmable parameter settings that can be customized

to the user's preference, i.e. surgical modalities.

Full, Flexible Para eter Settings

• Gamma • Red Detail • Precise ELC Control • Gain

• KNEE, Black Stretch • Detail Enhancement

(frequency selectable / multiple levels)

Other Features

ncludes Electronic Zoom up to 2.5x, freeze, mirror,

rotate and flip functions.

The best in HD just got better!

1080p Output •Smaller Head

mproved Sensitivity by 6dB

Longer Cables Available •HDM Outputs

GP-US932A HD image

Con entional image

Underwater Microscopy Reality TV Specialty Broadcast

Aerial Sports Medical

GP-US932A HD Series Remote Camera System Specifications

•Lens, power supply and cable are optional equipment

•All TV pictures and menus are simulated and shown for the

purpose of explanation

•Weights and dimensions are approximate

•Specifications are subject to change without notice

•These products may be subject to export control regulations

IMPORTANT– Safety Precaution: carefully read

the operating instructions and

installation manual before using

this product

Panasonic is registered with “ISO 14001,” the international

standard for the environment To ensure a bright future

for the earth, Panasonic has begun numerous activities

to promote clean global manufacturing

1 888 880 8474

panasonic com/visionsystems

DISTRIBUTED BY:

System Block Diagram

Optional Accessories

Adaptor

C-Mount Lens1, 2

Fiber Scope1

Bore Scope1

Microscope Attachment 1

Camera Head

GP-US932HA

Camera Cables

GP-CA932/4 : 4m

GP-CA932/6 : 6m

GP-CA932/1 0 : 10m

GP-CA932A 2 0 : 20m

Camera Control Unit

GP-US932CA

1Available from other manufacturers

2Back focus function may not be applicable with some C-Mount lenses

Specifications

Scan Frequency 59.94 Hz (NTSC for SD)

Power Source 12 V DC

Power Consumption

GP-US932CA - approx.15.6W

(including camera head) GP-US932CSA - approx.16.8W

Pick-up System Micro prism system

Image Sensor Three 1/3” interline transfer (IT) progressive CCDs

Synchronization Internal or external synchronization

Video Output

Video Output BNC Connector x 1, 1.0 V [P-P] / 75 Ω

S-Video Output S-Video connector x 1

Y: 0.714 V [P-P] / 75 Ω

C: 0.286 V [P-P] / 75 Ω

RGB/YPbPr Output

D-sub 9-pin connector x 1

R, G, B: 0.7 V [P-P] / 75 Ω

Y: 0.7 V [P-P] / 75 Ω

Pb, Pr: 0.525 V [P-P] / 75 Ω

SYNC: 0.6 V [P-P] / 75 Ω

(at output using 1080i or 720p)

0.3 V [P-P] / 75 Ω

(at output using 480p or 480i)

VIDEO: 1.0 V [P-P] / 75 Ω

HDMI Output HDMI connector x 1

SDI Output BNC connector x 2 (GP-US932CSA only)

Video Format

Video Output 480/59.94i

S-Video Output 480/59.94i

RGB/YPbPr Output

1080/59.94i, 1080/29.97p(sF), 720/59.94p, 480/59.94p, 480/59.94i

HDMI Output 1080/59.94p,1080/59.94i, 1080/29.97p(sF), 720/59.94p, 480/59.94p

SDI Output 1080/59.94i,1080/29.97p(sF),720/59.94p, 480/59.94i (GP-US932CSA only)

Required Illumination

2000 lux (3200 K, F8.0)

Minimum Illumination

12 lux (1.1 fc) (F2.2, GAIN: HIGH, 30 % output at center)

Signal-to-Noise Ratio

54 dB (at output using 1 080i)

Horizontal Resolution

700 TV lines at center (when 1 080i output)

Color Bar SMPTE color bar with 0 % set-up

Functions Camera title, ELC, electronic shutter, gain adjustment,

electronic sensitivity enhancement, selection of multiple

output

signal, scene files, white balance, black balance, synchronization,

electronic zoom, image freezing, flip, mirror, status display

External Control RS-232C D-sub 9-pin connector x 1

Ambient Operating Temperature

0˚C to 40 ˚C (32 ˚F to 104 ˚F)

Ambient Operating Humidity

30 % to 90 %

Dimensions

GP-US932CA

170 (W) x 44 (H) x 229 (D) mm

GP-US932CSA

(6-11/16" (W) x 1-3/4" (H) x 9-1/16" (D))

(excluding rubber feet and projections)

GP-US932HA

37 (W) x 47 (H) x 60 (D) mm

(1-7/16" (W) x 1-7/8" (H) x 2-1/8" (D))

(excluding tripod socket and projections)

Weight

GP-US932CA

1.40 kg (3.1 lbs.)

GP-US932CSA

1.45 kg (3.2 lbs.)

GP-US932HA

140 g (0.3 lbs.)

Finish Ivory color coating

Part Names and Functions

Front View

Rear View

Power Switch Camera Input

Color Bar/AWC Switch Dynamic Range Expansion Switch Left Arrow Key Right Arrow Key Down Arrow Key

Scene File Switch Gain Switch Freeze/Menu Switch Select Switch Up Arrow Key

GP-US932CSA

(SDI and HDMI outputs)

SDI Output 1/2

12 V DC InputRS-232CS-Video OutputRGB/YPbPr Output

Sync Signal IN/OUT Function Setup SwitchVideo Output

GP-US932CA

(HDMI output)

HDMI Output

12 V DC InputRS-232CS-Video OutputRGB/YPbPr Output

Sync Signal IN/OUT Function Setup SwitchVideo Output

Fujinon* HD lens

Fujinon* SD lens

Specifications of Recommended LensesRecommended Lenses

HAF4.8DA-1 XA4x7.5DA-1

TF2.8DA-8 TF4DA-8

TF8DA-8 TF15DA-8

Model No.

Manufacturer

Focal Length (mm)

Zoom Ratio

Maximum Aperture Ratio

Angle of View (˚) Horizontal

Vertical

Minimum Object Distance (m / ft)

Filter Thread

Mount

Focus

Iris

Length (from focal plane)

(mm / inch)

Full Aperture (mm / inch)

Weight (g / lbs)

HAF4.8DA-1

Fujinon*

4.8

2.2

57.07˚

34.05˚

0.1 / 0.33

M55

Manual

53.126 / 2.092

(in air)

ø42 / ø1.654

95 / 0.21

XA4x7.5DA-1

Fujinon*

7.5 – 30

2.8

38.38˚ – 9.94˚

22.18˚ – 5.61˚

0.45 / 1.48

M52

Manual

178.926 / 7.044

(in air)

ø54 / ø2.126

500 / 1.1

TF2.8DA-8

Fujinon*

2.8

2.2

85.98˚

55.40˚

0.1 / 0.33

N/A

Manual

64.025 / 2.521

(in air)

ø34 / ø1.339

75 / 0.17

TF4DA-8

Fujinon*

2.2

66.25˚

40.36˚

0.1 / 0.33

M27 x 0.5

Manual

63.025 / 2.481

(in air)

ø29 / ø1.142

70 / 0.15

TF8DA-8

Fujinon*

2.2

36.14˚

20.82˚

0.1 / 0.33

M25.5 x 0.5

Manual

56.526 / 2.225

(in air)

ø29 / ø1.142

60 / 0.13

TF15DA-8

Fujinon*

2.2

19.74˚

11.19˚

0.1 / 0.33

M25.5 x 0.5

Manual

56.526 / 2.225

(in air)

ø29 / ø1.142

60 / 0.13

HD Lenses SD Lenses

* Fujinon Lenses: Please contact to your distributor

Dimensions

Camera Cables

GP-CA932/4: 4m

GP-CA932/6: 6m

GP-CA932/10: 10m

GP-CA932A20: 20m
