Installation/Troubleshooting

Model No.

BL-C30

Network Camera

All manuals and user guides at all-guides.com

all-guides.com

Installation/Troubleshooting

Abbreviations

• UPnP is the abbreviation for Universal Plug and Play.

• "Network Camera" is called "Camera" in this Installation/Troubleshooting.

Trademarks

• Microsoft, Windows, and ActiveX are either registered trademarks or

trademarks of Microsoft Corporation in the United States and/or other

countries.

• Screen shots reprinted with permission from Microsoft Corporation.

• All other trademarks identified herein are the property of their respective

owners.

All manuals and user guides at all-guides.com

Installation/Troubleshooting

Table of Contents

1 Before Using ..................................................................4

1.1 IMPORTANT SAFETY INSTRUCTIONS........................................ 4

1.1.1 For European Union (EU).......................................................................... 6

1.1.2 User Name and Password Protection........................................................ 7

1.1.3 Video Recording Notice............................................................................. 7

1.2 Camera Feature Locations............................................................. 8

1.2.1 Front View.................................................................................................. 8

1.2.2 Bottom View .............................................................................................. 9

1.2.3 Rear View .................................................................................................. 9

1.3 Viewnetcam.com Service............................................................. 10

1.4 Connecting the Camera to a Router Supporting UPnP™............ 12

1.5 Connecting the Camera to a Router Not Supporting UPnP™ ..... 13

1.6 Setting Up the Camera Using the MAC Address on the Setup

Program ....................................................................................... 14

2 Troubleshooting ..........................................................19

2.1 About Indicator Display ................................................................ 19

2.2 About Camera Setup.................................................................... 21

2.3 About Wireless Communication................................................... 24

2.4 About Camera Image and Page Display...................................... 25

2.5 About Privacy Mode..................................................................... 30

2.6 About Pyroelectric Infrared Sensor .............................................. 31

2.7 About Operation Bar .................................................................... 33

2.8 About Image Buffer/Transfer ........................................................ 34

2.9 About Other Features................................................................... 35

All manuals and user guides at all-guides.com

Installation/Troubleshooting

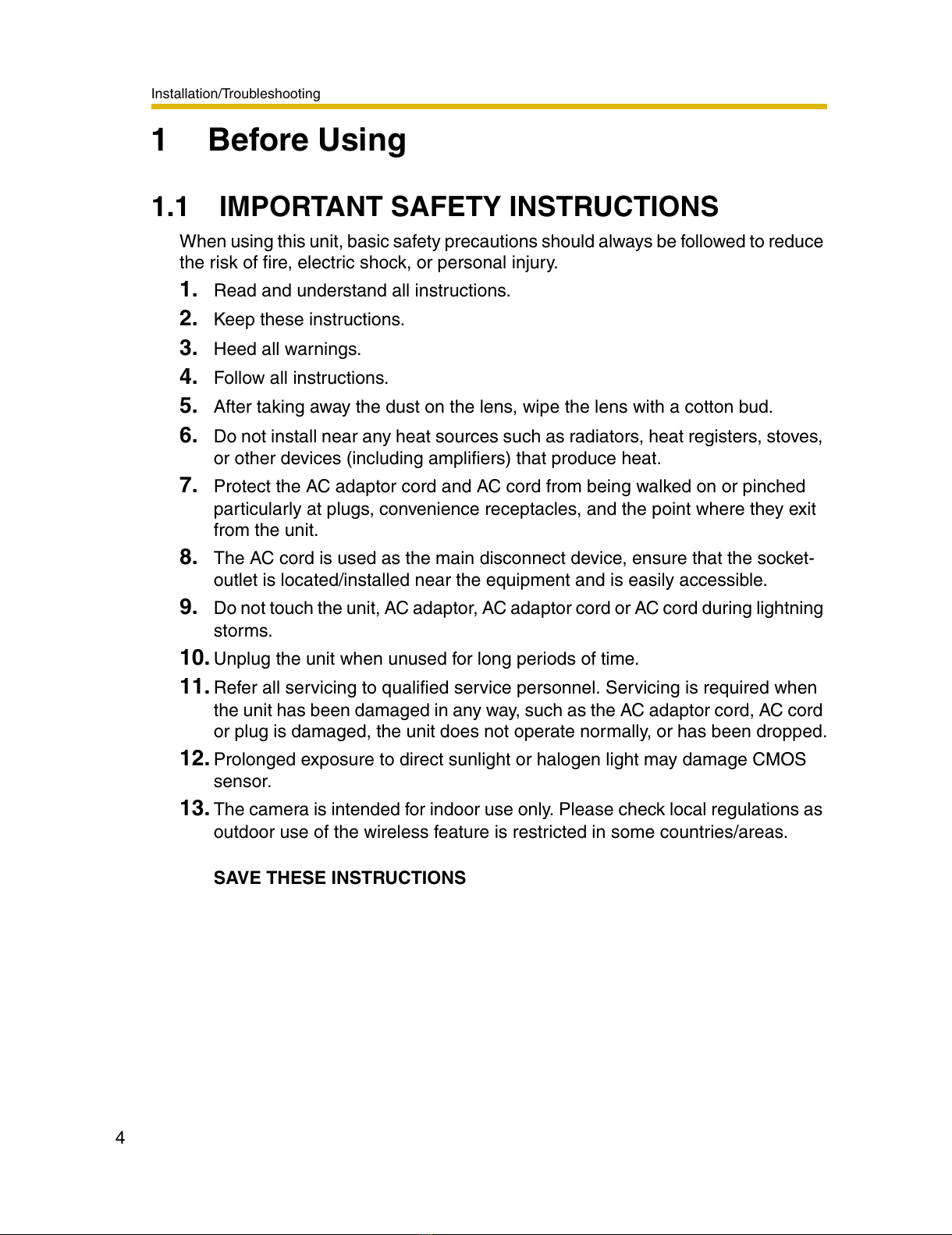

1 Before Using

1.1 IMPORTANT SAFETY INSTRUCTIONS

When using this unit, basic safety precautions should always be followed to reduce

the risk of fire, electric shock, or personal injury.

1. Read and understand all instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. After taking away the dust on the lens, wipe the lens with a cotton bud.

6. Do not install near any heat sources such as radiators, heat registers, stoves,

or other devices (including amplifiers) that produce heat.

7. Protect the AC adaptor cord and AC cord from being walked on or pinched

particularly at plugs, convenience receptacles, and the point where they exit

from the unit.

8. The AC cord is used as the main disconnect device, ensure that the socket-

outlet is located/installed near the equipment and is easily accessible.

9. Do not touch the unit, AC adaptor, AC adaptor cord or AC cord during lightning

storms.

10. Unplug the unit when unused for long periods of time.

11. Refer all servicing to qualified service personnel. Servicing is required when

the unit has been damaged in any way, such as the AC adaptor cord, AC cord

or plug is damaged, the unit does not operate normally, or has been dropped.

12. Prolonged exposure to direct sunlight or halogen light may damage CMOS

sensor.

13. The camera is intended for indoor use only. Please check local regulations as

outdoor use of the wireless feature is restricted in some countries/areas.

SAVE THESE INSTRUCTIONS

All manuals and user guides at all-guides.com

Installation/Troubleshooting

Network Camera Memo

Environment:

Do not install the camera where the temperature is less than 5 °C or greater than

+40 °C. Allow 10 cm clearance around the unit for proper ventilation. Avoid

excessive smoke, dust, mechanical vibration, shock, or direct sunlight.

Routine care:

Wipe the unit with a soft cloth. Do not use benzine, thinner, or any abrasive powder.

When you leave the unit unused for a long period of time, unplug the AC cord from

the outlet.

If you have any problems:

Consult an authorized Network Camera dealer.

Caution

• This equipment must be installed and operated in accordance with provided

instructions and a minimum 20 cm spacing must be provided between antenna

and all person's body (excluding extremities of hands, wrist and feet) during

wireless modes of operation.

• This transmitter must not be co-located or operated in conjunction with any

other antenna or transmitter.

•Medical

Consult the manufacturer of any personal medical devices, such as

pacemakers, to determine if they are adequately shielded from external RF

(radio frequency) energy. (The unit operates in the frequency range of 2.412

GHz to 2.472 GHz, and the power output level is 0.1 watts.) Do not use the unit

in health care facilities if any regulations posted in the area instruct you not to

do so. Hospitals or health care facilities may be using equipment that could be

sensitive to external RF (radio frequency) energy.

• Any changes or modifications not expressly approved by the party responsible

for compliance could void the user's authority to operate this device.

No responsibility will be taken by our company with respect to consequences

resulting from the use, damage or both of the camera.

Serial Number

(Found on the bottom side of the main unit)

MAC Address

(Found on the bottom side of the main unit)

Name and address of dealer

Date of purchase

For your future reference

Attach your purchase receipt here.

All manuals and user guides at all-guides.com

Installation/Troubleshooting

1.1.1 For European Union (EU)

Panasonic Communications Co., Ltd., declares that this equipment is in

compliance with the essential requirements and other relevant provisions of Radio

& Telecommunications Terminal Equipment (R&TTE) Directive 1999/5/EC.

Declarations of Conformity for the relevant Panasonic products described in this

manual are available for download by visiting:

http://www.doc.panasonic.de

Contact:

Panasonic Services Europe GmbH

Panasonic Testing Centre

Winsbergring 15, 22525 Hamburg, F.R. Germany

1999/5/EC

English This 2.4 GHz Wireless LAN equipment is intended for use in the

following countries in the EU: the United Kingdom, Germany,

Spain, France, Italy, Belgium, Denmark, Sweden, Finland,

Netherlands, Switzerland, and Greece.

Finnish Tämä 2,4 GHz:n langaton lähiverkkolaite on tarkoitettu

käytettäväksi seuraavissa EU-maissa: Iso-Britannia, Saksa,

Espanja, Ranska, Italia, Belgia, Tanska, Ruotsi, Suomi,

Alankomaat, Sveitsi ja Kreikka.

Dutch Deze draadloze LAN-apparatuur (2,4 GHz) is bedoeld voor gebruik

in de volgende EU-landen: Verenigd Koninkrijk, Duitsland, Spanje,

Frankrijk, Italië, België, Denemarken, Zweden, Finland,

Nederland, Zwitserland en Griekenland.

French Cet équipement LAN sans fil de 2,4 GHz a été conçu pour être

utilisé dans les pays suivants de la Communauté Européenne:

Royaume-Uni, Allemagne, Espagne, France, Italie, Belgique,

Danemark, Suède, Finlande, Pays-Bas, Suisse et Grèce.

Swedish Den här trådlösa LAN-utrustningen på 2,4 GHz är avsedd för

användning i följande EU-länder: Storbritannien, Tyskland,

Spanien, Frankrike, Italien, Belgien, Danmark, Sverige, Finland,

Nederländerna, Schweiz och Grekland.

Danish Dette 2,4 GHz trådløse LAN-udstyr er beregnet til brug i følgende

EU-lande: Storbritannien, Tyskland, Spanien, Frankrig, Italien,

Belgien, Danmark, Sverige, Finland, Holland, Schweiz og

Grækenland.

0682

All manuals and user guides at all-guides.com

all-guides.com

Installation/Troubleshooting

1.1.2 User Name and Password Protection

The use of a unique User Name and secret Password is an important tool that

will help limit unauthorized individuals from accessing the camera. If you

choose to disable this tool, and choose not to limit access by use of a User

Name and Password, this may result in access to the camera by

unauthorized individuals. (see page 49 of the Operating Instructions on the

Setup CD-ROM)

1.1.3 Video Recording Notice

PLEASE NOTE that under certain circumstances, video recording may be

PROHIBITED by law. This device should be used only in compliance with all

applicable federal, state and local statutes.

German Dieses Zubehör für die Einrichtung eines 2,4-GHz-Wireless LAN

ist für die Verwendung in folgenden EU-Ländern vorgesehen:

Großbritannien (UK), Deutschland, Spanien, Frankreich, Italien,

Belgien, Dänemark, Schweden, Finnland, Niederlande, Schweiz

und Griechenland.

Italian Questa apparecchiatura LAN wireless a 2,4 GHz è progettata per

l’utilizzo nei seguenti paesi dell’Unione Europea: Regno Unito,

Germania, Spagna, Francia, Italia, Belgio, Danimarca, Svezia,

Finlandia, Paesi Bassi e Grecia.

Spanish Este equipo para redes inalámbricas de 2.4 GHz está diseñado

para ser utilizado en los siguientes países de la UE: Reino Unido,

Alemania, España, Francia, Italia, Bélgica, Dinamarca, Suecia,

Finlandia, Holanda, Suiza, y Grecia.

Greek

υτά τα ασύρματα δικτυακά προϊόντα (στην συχνότητα των 2.4

GHz) προορίζονται για χρήση στις ακόλουθες χώρες της

Ευρωπαϊκής Ένωσης: Ηνωμένο Βασίλειο, Γερμανία, Ισπανία,

Γαλλία, Ιταλία, Βέλγιο, Δανία, Σουηδία, Φινλανδία, Ολλανδία,

Ελβετία και Ελλάδα.

All manuals and user guides at all-guides.com

Installation/Troubleshooting

1.2 Camera Feature Locations

1.2.1 Front View

Privacy Button

To temporarily deactivate the camera, press the privacy button. Once pressed, the

button changes from green to red. The video will be temporarily turned off, camera

features become unresponsive and the viewed image turns to a gray screen. To

return to normal operation, press the privacy button again. It should turn green

within a few seconds. To restore video, click [Refresh] on the web browser. Privacy

mode can also be controlled from mobile phones or PCs (see page 26 or page 81

of the Operating Instructions on the Setup CD-ROM).

Indicator Display

Antenna

Pan/Tilt Part

Do not apply pressure to the pan/tilt portion of the

camera. Any forced movement can damage the internal

mechanism.

Indicator/Privacy Button

Pyroelectric Infrared Sensor (see Getting Started)

Power

Normal Operation*1

*1The indicator turns orange if the camera is not connected to the LAN.

*2The indicator blinks orange if the camera is not connected to the LAN.

Updating Firmware

Getting IP address*2

Got IP address

Setting

Finished setting

Not on the LAN Orange Orange blinking

Orange blinking

(The camera restarts about 1 minute later.)

Pressing FACTORY

DEFAULT RESET button

Orange blinking Turning off

UPnPTM Failure*3Orange blinking (About a 2-second interval)

On the LAN

Using

DHCP

Automatic

Setup

In Privacy Mode Red

Internal Failure Red blinking

Orange Green

Green

Orange and green blinking

Green blinking

*3When the sensor is active, the interval between blinks may increase.

Orange blinking

All manuals and user guides at all-guides.com

Installation/Troubleshooting

1.2.2 Bottom View

1.2.3 Rear View

Note

If the ceiling is made of wood, the camera can be installed on the ceiling. See

Panasonic Network Camera support website at http://panasonic.co.jp/pcc/

products/en/netwkcam/ for details.

Ethernet

(LAN) port

Serial number

(S/N)

The MAC

address

DC IN jack

Tripod Mounting

Hole

Used when installing

the camera on a

tripod.

FACTORY DEFAULT

RESET Button

Resets settings to

default (see page 93

of the Operating

Instructions on the

Setup CD-ROM).

Switch

(Wired or Wireless)

Stand Mounting Hole

Used when installing the camera onto a

wooden wall with a stand.

Used when installing

the camera onto

a wooden wall.

All manuals and user guides at all-guides.com

Installation/Troubleshooting

1.3 Viewnetcam.com Service

Viewnetcam.com is a free dynamic DNS (DDNS) service provided by Panasonic.

It allows you to choose an easy-to-remember address (such as

"bob.viewnetcam.com") that you can use to view images from your camera over the

Internet.

What is the advantage of Viewnetcam.com service?

In order to view camera images over the Internet, you need to know your camera’s

global IP address. However, many Internet Service Providers (ISPs) assign their

customers a "dynamic" IP address that changes monthly, weekly, or each time they

log on. Unless you have been assigned a static IP address (an IP address that

does not change periodically) by your ISP, you may find it difficult to access your

camera over the Internet because your IP address changes periodically.

Viewnetcam.com service allows you to access your camera even if your assigned

global IP address changes.

See http://www.viewnetcam.com for details.

How the Viewnetcam.com service works

1. Your ISP assigns a global IP address to your Internet access account that

changes periodically. This is the address needed to access the camera over

the Internet.

2. When your ISP assigned global IP address changes, your camera

automatically notifies the Viewnetcam.com service server of the new address.

3. The Viewnetcam.com server contacts a Domain Name System (DNS) and

registers your new global IP address to your chosen Viewnetcam.com address

(such as "bob.viewnetcam.com").

4. When you enter your Viewnetcam.com address in your web browser while

away from home or the office, the DNS server looks up the global IP address

assigned to your Viewnetcam.com address.

5. The DNS server finds your current global IP address and allows you to connect

to your camera.

Viewnetcam.com service server

ISP

DNS

server

Internet

New address registered with

DNS server

Camera connection established

Camera reports new address

Global IP address

changes

Off-site PC

On-site Network

Camera

DNS looks up

current address
