Operating Instructions

Network Camera

Please read this manual before using, and save this manual for future reference.

Panasonic Network Camera Website: http://www.panasonic.com/netcam

for customers in the USA or Puerto Rico

Model No. BB-HCM381A

(AC Adaptor Type)

BB-HCE481A

(PoE Type)

Indoor Use Only

Operating Instructions

Main Features

IPv6*1 Network Camera

Your Panasonic Network Camera supports IPv6 (Internet Protocol Version 6). IPv6

was created to address the additional IP addresses that will be needed as the

Internet continues to expand. Since the camera also supports the currently used

IPv4, its "dual stack" design will seamlessly operate while IPv6 is phased in. For

more information regarding IPv6, see page 15, or visit http://www.ipv6.org/.

PoE (Power over Ethernet) Supported

(For Only BB-HCE481A [PoE Type])

The camera supports PoE (Power over Ethernet), and be powered up by using an

Ethernet cable without the AC adaptor.

Audio 2-way Communication*3 (Walkie-talkie Type)

2-way audio communication is now possible between your Network Camera and

PC. By connecting a user-supplied microphone and speaker*4 to both the camera

and to the PC, you will be able to speak to and hear anyone within range of the

camera.

For example, the camera can be used in the following various locations:

• In the baby's room, to hear if the baby is crying.

• At the front door, to see and hear who is at the door.

• In the children's play room, to see and hear if they are safe.

Note

• PLEASE NOTE that under certain circumstances, audio/video recording may

be PROHIBITED by law. This device should be used only in compliance with all

applicable federal, state and local statutes.

This manual is for both BB-HCM381A (AC Adaptor Type) and BB-HCE481A

(PoE Type). Available features and operations are different in part depending

on the model. Read this manual carefully and use the Network Camera

properly.

*1 To connect using IPv6, subscribe to your ISP's "IPv4/IPv6 Dual-Stack" or "IPv6 over IPv4

Tunneling" service. The camera does not function on IPv6-only networks.

*2 BB-HCE481A works with a PoE hub only. No port for AC adaptor.

*3 The audio feature does not work well on cell phones. The Talk button and Listen button cannot

be used simultaneously. Depending on the network environment and traffic conditions, the

audio may be delayed or may break up.

*4 The speaker connected to the camera requires a built-in amplifier.

Operating Instructions

Motion Detection

The camera has a Motion Detection feature that detects movement, such as

people, based on the preset threshold and sensitivity of the camera.

You can buffer the camera images, transfer images to an FTP server or send E-

mails using the Motion Detection function as a trigger.

Better Image Quality

The CCD sensor and the color night view mode provides better image quality and

low light performance.

• The CCD sensor gives you clear image.

• You can monitor live video (Motion JPEG) that refreshes its image 30 frames

per second.

• Color night view mode allows you to monitor the camera in low illuminance.

Remote Pan/Tilt/Zoom/Focus

The following features allow you to operate Network Camera from web browser on

your PC. High speed Pan/Tilt operation can move the lens horizontally from -175°

to +175° and vertically from -120° to 0° in mounting on the table and from 0° to +90°

in mounting on the ceiling. This movable lens allows you to view a wide range of

perspective from a distant place. Network Camera has a 42x magnifying capacity:

a 21x optical zoom and a 2x digital zoom. Automatic and Manual Focusing features

provide you with detailed and distinct images. Additionally, the following control

features are available to easily and quickly monitor the camera.

Video Output

Network Camera has an analog composite output terminal. You can view images

from Network Camera on TV and record them on videotapes.

SD Memory Card*1 Recording

The camera has an SD memory card slot. You can record camera images to the

SD memory card. If you enable alarm buffer/transfer, you can record the image at

the timing of signal detection of door sensor or light. If you enable 1-minute interval

timer buffer/transfer to 1 GB SD memory card, you can record about 58,000

images (320 x 240 resolution and standard quality) for about 41 days.

Click to Center ........ When you click a certain point on the camera image, the

camera moves to display that point in the center of the

image.

Preset Position ........ You can register 20 preset positions. When you select a

preset position, the camera moves to that position.

Output Control ........ You can control external devices (Open or Short to

GND) (E.g., turning a light on or ringing a buzzer).

*1 The camera supports 2 GB, 1 GB, 512 MB, 256 MB, 128 MB or 64 MB Panasonic SD memory

card (customer-provided).

Operating Instructions

Enhanced Multi-Camera Page

The Multi-Camera page displays the moving images from up to 4 cameras, while

supporting audio 2-way communication with each. This camera allows you to

switch between 3 sets of 4 cameras. Additionally, static images from a maximum

of 12 cameras can be displayed on a single page.

DynamicDNS Service Support

DynamicDNS service allows you to access the camera over the Internet with a

domain name of your choice (e.g. bob.viewnetcam.com) instead of a global IP

address.

Multi-Language Display

The Top page, Single Camera and Multi-Camera page can be displayed in English,

French, German, Italian, Spanish, Russian, Simplified Chinese, Korean or

Japanese. The Setup, Maintenance and Support pages are displayed only in

Simplified Chinese, English or Japanese.

Abbreviations

• UPnP is the abbreviation for Universal Plug and Play.

• "Network Camera" is called "Camera" in this manual.

• "Setup CD-ROM" is called "CD-ROM" in this manual.

Trademarks

• Adobe, Acrobat and Reader are either registered trademarks or trademarks of

Adobe Systems Incorporated in the United States and/or other countries.

• Microsoft, Windows, Hotmail and ActiveX are either registered trademarks or

trademarks of Microsoft Corporation in the United States and/or other

countries.

• SD mark is a trademark of the SD Card Association.

• This software is based in part on the work of the Independent JPEG Group.

• Screen shots reprinted with permission from Microsoft Corporation.

• All other trademarks identified herein are the property of their respective

owners.

Operating Instructions

Table of Contents

1 Camera Monitoring ....................................................... 8

1.1 BB-HCM381A Feature Locations ...................................................8

1.1.1 Front View...................................................................................................8

1.1.2 Rear View...................................................................................................9

1.1.3 Bottom View ...............................................................................................9

1.2 BB-HCE481A Feature Locations..................................................10

1.2.1 Front View.................................................................................................10

1.2.2 Rear View.................................................................................................11

1.2.3 Bottom View .............................................................................................11

1.3 How to Turn on the Camera..........................................................12

1.4 Accessing the Camera .................................................................13

1.4.1 To Access the Camera in IPv6 .................................................................15

1.5 Viewing the Single Camera page .................................................17

1.5.1 Displaying the Banner ..............................................................................20

1.5.2 Auto Centering the Image (Click to Center)..............................................21

1.5.3 Capturing a Still Image .............................................................................22

1.5.4 Using the Operation Bar...........................................................................23

1.5.5 Zooming In and Out..................................................................................26

1.5.6 Automatic and Manual Focusing ..............................................................28

1.5.7 Setting Home Position/Alarm Position/Preset Position.............................30

1.6 Listening to Camera Audio and Talking through the Camera .......34

1.7 Viewing the Multi-Camera page....................................................36

1.8 Viewing the Buffered Image page.................................................38

1.8.1 Deleting Buffered Images .........................................................................40

1.9 Viewing Still Images on Your Cell Phone......................................41

1.9.1 Enabling or Disabling the Buffer/Transfer on your Cell Phone..................44

2 Using the Camera's Basic Features.......................... 45

2.1 Setup Page of the Camera ...........................................................45

2.2 Connecting the Camera to Your IPv4 Network .............................48

2.3 Connecting the Camera to Your IPv6 Network .............................53

2.4 What is IPsec?..............................................................................57

2.5 Encrypting the Camera Image in Transport Mode........................60

2.6 Encrypting the Camera Image in Tunnel Mode ............................63

2.7 Using UPnP™(Universal Plug and Play)......................................67

Operating Instructions

2.7.1 Connecting the Camera to a Router that

Supports UPnP™(IPv4 Only) .................................................................. 68

2.7.2 Connecting the Camera to a Router that

Does Not Support UPnP™(IPv4 Only) .................................................... 68

2.8 Registering with the DynamicDNS Service ................................. 70

2.8.1 DynamicDNS Service (IPv4/IPv6)............................................................75

2.9 Setting the Date and Time........................................................... 77

2.10 Changing Camera Settings.......................................................... 80

2.11 Adjusting Audio............................................................................ 86

3 Registering Users .......................................................88

3.1 Changing the Authentication Setting and Administrator User

Name and Password.................................................................... 88

3.2 Logging in to the Camera ............................................................ 92

3.3 Creating, Modifying or Deleting General Users ........................... 93

4 Buffering or Transferring Images ..............................96

4.1 Procedures of Buffering or Transferring Images .......................... 96

4.2 Buffering or Transferring Images by Timer................................... 97

4.3 Buffering or Transferring Images by Alarm Signal ..................... 107

4.4 Buffering or Transferring Images by Motion Detection Signal.... 119

4.5 Transferring Camera Images in Transport Mode ....................... 131

4.6 Transferring Camera Images in Tunnel Mode............................ 132

4.7 Setting the Motion Detection ..................................................... 133

4.8 Setting Alarm Log Notification ................................................... 137

4.9 Using the SD Memory Card....................................................... 140

4.9.1 Format the SD Memory Card.................................................................142

4.9.2 Start the SD Memory Recording............................................................ 143

4.9.3 Stop the SD Memory Recording ............................................................144

5 Using Other Features................................................145

5.1 Changing Initial Settings on the Single Camera page or

the Multi-Camera page .............................................................. 145

5.2 Configuring Multiple Cameras ................................................... 148

5.3 Specifying Operation Time ........................................................ 150

5.4 Controlling External Output ....................................................... 152

Operating Instructions

5.5 Changing the Indicator Display...................................................153

6 Camera Maintenance................................................ 154

6.1 Maintenance page ......................................................................154

6.1.1 Confirming the Status.............................................................................155

6.1.2 Confirming Session Status.....................................................................155

6.1.3 Confirming Alarm Logs...........................................................................156

6.1.4 Restarting the Camera ...........................................................................157

6.1.5 Updating the Camera Firmware .............................................................158

6.1.6 Creating the Configuration File...............................................................160

6.1.7 Loading Settings from a Configuration File ............................................161

6.1.8 Resetting the Camera to Factory Default ...............................................162

6.2 Support page..............................................................................163

6.2.1 The Help page........................................................................................163

6.2.2 Product Information ................................................................................163

6.2.3 Support Information................................................................................163

6.3 External I/O.................................................................................164

7 Other Information ..................................................... 166

7.1 FACTORY DEFAULT RESET Button ..........................................166

7.2 Default Setting List......................................................................167

7.3 Cleaning .....................................................................................178

7.4 Setting an IP Address on Your PC..............................................179

7.5 Using Setup Program .................................................................180

7.6 Setting Your PC ..........................................................................186

7.6.1 Setting Proxy Server Settings on a Web Browser ..................................186

7.6.2 Setting UPnP™ to Display Camera Shortcut in My Network Places......189

7.6.3 Setting the Internet Temporary File Setting on the Web Browser...........189

7.7 ASCII Character Table ................................................................190

7.8 File Size and Number of Buffered Images..................................191

7.9 Number of Images on the SD Memory Card ..............................192

7.10 Specifications .............................................................................193

8 Index .......................................................................... 196

Operating Instructions

1Table of Contents

1 Camera Monitoring

1.1 BB-HCM381A Feature Locations

1.1.1 Front View

Indicator Display

*1 The indicator turns orange if the camera is not connected to the LAN.

*2 The indicator blinks orange if the camera is not connected to the LAN.

*3 See page 3 and 4 the Troubleshooting on the CD-ROM for information on indicator error

codes.

Auto Focus/Zoom Lens

Wide: 5 mm (3/16 inches) —Infinity

Tele: 1 m (3 feet 3 inches) —Infinity

Indicator

The indicator color shows camera status (see

page 153).

SD Memory Card Cover

Protects the SD Memory Card from dust. Remove

the cover only when removing the SD Memory

Card (see page 140).

Power

Normal Operation*1

Updating Firmware

Getting IP address*2

Got IP address

Setting

Finished setting

Not on LAN Orange blinking

Orange blinking

(The camera restarts after that.)

FACTORY DEFAULT RESET

button pressed

Orange blinking Turning off

UPnPTM Failure Orange blinking (About a 2-second interval)

On LAN

Using

DHCP

Automatic

Setup

Internal Failure Red blinking*3

Orange blinking Green

Green

Green blinking

Operating Instructions

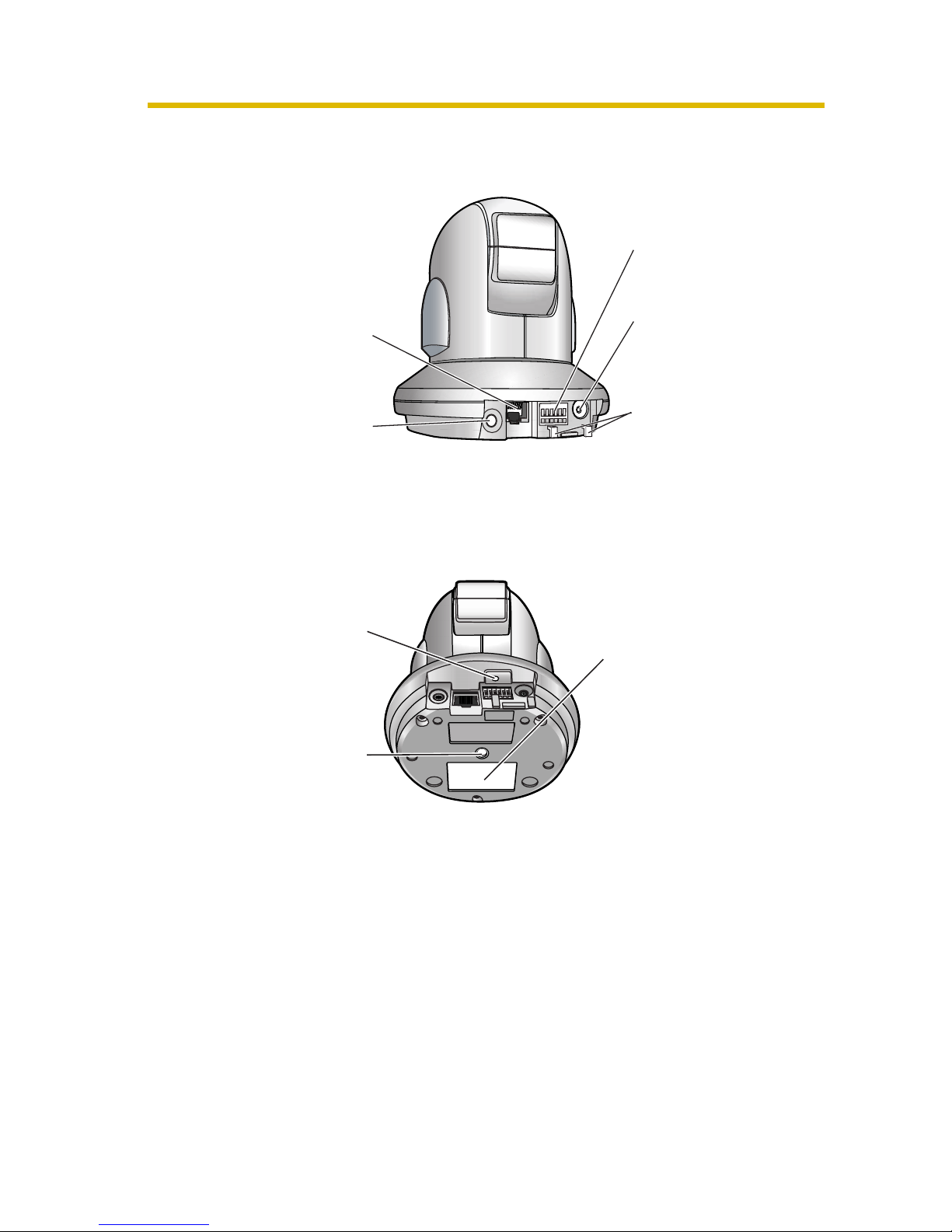

1.1.2 Rear View

1.1.3 Bottom View

Ethernet (LAN) port

Connects the camera to

your LAN.

Audio/Video terminal

(See Getting Started)

External I/O

(See page 164)

DC IN jack

Connects the camera

to the AC adaptor.

Hook for AC

Adaptor Cord

Used to secure the

AC adaptor cord.

FACTORY DEFAULT

RESET button

Resets settings to default

(see page 166).

Hole for Ceiling Plate A

Used for ceiling

mounting

(See Installation Guide).

MAC Address and

Serial Number are

indicated on the label.

Operating Instructions

1.2 BB-HCE481A Feature Locations

1.2.1 Front View

Indicator Display

*1 The indicator blinks orange if the camera is not connected to the LAN.

*2 See page 5 and 6 the Troubleshooting on the CD-ROM for information on indicator error

codes.

Auto Focus/Zoom Lens

Wide: 5 mm (3/16 inches) —Infinity

Tele: 1 m (3 feet 3 inches) —Infinity

Indicator

The indicator color shows camera status (see

page 153).

SD Memory Card Cover

Protects the SD Memory Card from dust. Remove

the cover only when removing the SD Memory

Card (see page 140).

Power

Normal Operation

Updating Firmware

Getting IP address*1

Got IP address

Setting

Finished setting

Orange blinking

(The camera restarts after that.)

FACTORY DEFAULT

RESET button pressed

Orange blinking Turning off

UPnPTM Failure Orange blinking (About a 2-second interval)

On LAN

Using

DHCP

Automatic

Setup

Internal Failure Orange*2

Red blinking*2

Orange blinking Green

Green

Green blinking

Otros manuales para CQDF602U - AUTO RADIO/CD DECK

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Cámara de seguridad de Panasonic

Panasonic

Panasonic WV-SW352 Manual de usuario

Panasonic

Panasonic BB-HCM580A - 21x Optical Zoom Pan/Tilt Security Network... Manual de usuario

Panasonic

Panasonic WV-CW504S Manual de usuario

Panasonic

Panasonic WVCP210 - COLOR CAMERA Manual de usuario

Panasonic

Panasonic WVBP130 - B/W CCTV CAMERA Manual de usuario

Panasonic

Panasonic WV-S2231L Manual de funcionamiento

Panasonic

Panasonic BB-HCM581A - Network Camera Pan Manual de usuario

Panasonic

Panasonic BL-C111 Manual de funcionamiento

Panasonic

Panasonic WVCL934 - COLOR CCTV CAMERA Manual de usuario

Panasonic

Panasonic WV-NW484SE Guía del usuario

Panasonic

Panasonic KX-HCM10 Manual de usuario

Panasonic

Panasonic KX-HCM230 Manual de usuario

Panasonic

Panasonic Super Dynamic III WV-CW484S Manual de usuario

Panasonic

Panasonic WVCF420 - CCTV Manual de usuario

Panasonic

Panasonic BB-HCM531A - Network Camera Manual de usuario

Panasonic

Panasonic WVCLR830 - COLOR CCTV CAMERA Manual de usuario

Panasonic

Panasonic KX-HCM270 Manual de usuario

Panasonic

Panasonic WVCL350 - COLOR CAMERA Manual de usuario

Panasonic

Panasonic AW-E750E Manual de usuario

Panasonic

Panasonic AK-HC1500G Manual de usuario

Panasonic

Panasonic WV-NP240 series Manual de usuario

Panasonic

Panasonic KX-HCM280 Manual de usuario

Panasonic

Panasonic BL-C1 Manual de usuario

Panasonic

Panasonic BL-C1A - Network Camera Manual de usuario

Manuales populares de Cámara de seguridad de otras marcas

Okina USA

Okina USA SIR36-870VF650LP Manual de usuario

Divio

Divio NDR155PA Manual de usuario

Canon

Canon VB-C500D Manual de usuario

Easy Access

Easy Access EasyGuard Manual de usuario

Vivotek

Vivotek FD9389-EHV-v2 Manual de usuario

TUYA

TUYA COSMO W2 Manual de usuario

Eusso

Eusso UNC7500-IR Guía de configuración

urmet domus

urmet domus 1096/204 Manual de usuario

VC VC20 series Manual de usuario

Axis

Axis Q1614 Manual de usuario

ieGeek

ieGeek DD201 Manual de usuario

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manual de usuario

Vicon

Vicon V662-D-1 Instrucciones de funcionamiento

Grundig

Grundig GCH-K0274P Manual de usuario

Lorex

Lorex VANTAGE LBC7032 Manual de usuario

4xem

4xem WPT Manual de usuario

Samsung

Samsung SCV-3082 Manual de usuario

Vitek

Vitek VTC-C544 Manual de usuario
