Panasonic EY7549 Manual de usuario

distribution is a violation of law.

Order Number PTD1301X19CE

Cordless Multi- Impact & Drill Driver

Model No. EY7549

Europe

Oceania

TABLE OF CONTENTS

PAGE PAGE

1 Warning -------------------------------------------------------------- 2

2 Specifications ----------------------------------------------------- 2

3 Troubleshooting Guide ----------------------------------------- 3

4 Disassembly and Assembly Instructions ---------------- 8

5 Wiring Connection Diagram ---------------------------------15

6 Schematic Diagram ---------------------------------------------15

7 Exploded View and Replacement Parts List -----------16

1Warning

Caution:

• Pb free solder has a higher melting point that standard solder; Typically the melting point is 50 - 70°F (30 - 40°C) higher. Please

use a soldering iron with temperature control and adjust it to 750 ± 20°F (400 ± 10°C). In case of using high temperature solder-

ing iron, please be careful not to heat too long.

• Pb free solder will tend to splash when heated too high (about 1100°F / 600°C).

2 Specifications

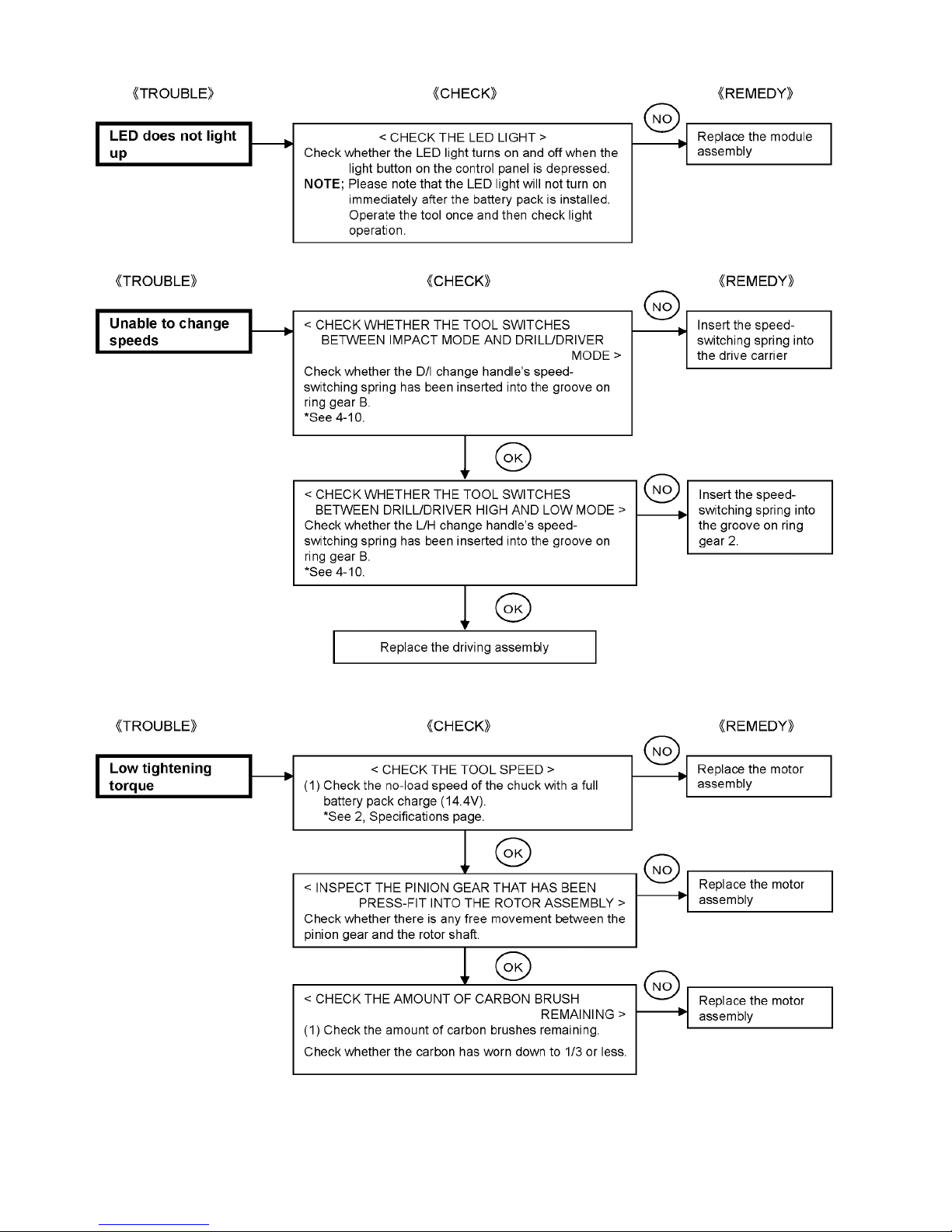

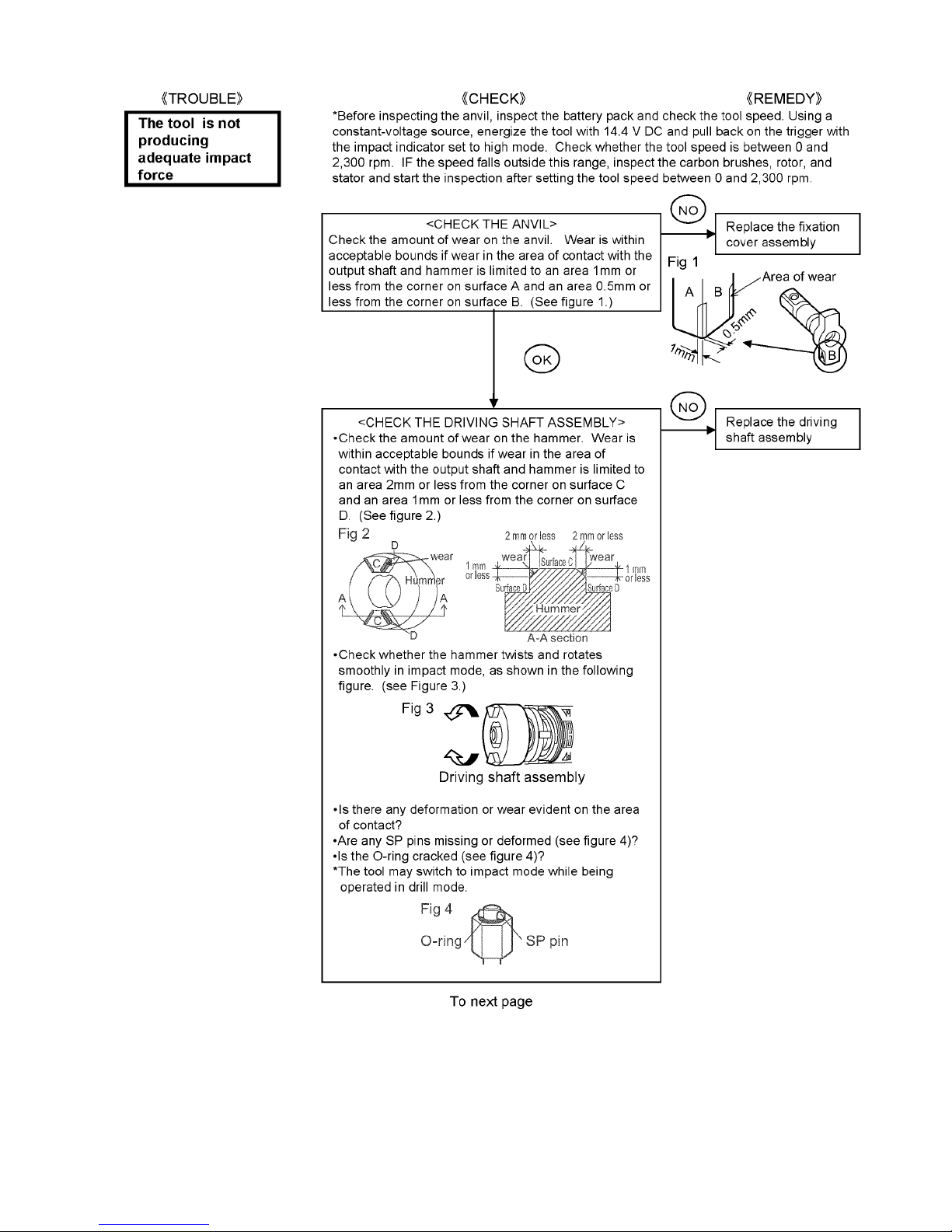

3 Troubleshooting Guide

3.1. Troubleshooting Guide

3.2. Trial Operation (After Checking Troubleshooting Guide)

3.2.1. Assembly

• Confirm if there is no gap between housing A and B by pinching lead wires.

• Confirm all screws are tightened firmly.

3.2.2. Operation

• Check whether the tool operates properly in both the forward and reveres directions.

• Check whether the LED light turns on and off each time the LED light on/off button is depressed.

• Check whether the tool speed increases continuously as the trigger is gradually engaged.

• Check whether the tool speed is normal after repair and reassembly.

*Please refer to the specifications on page 2.

• Check whether the tool may become hot in a short operation.

• Set the clutch handle to the mark and check whether the tool rotates without any clutch operation.

• Pull the trigger all the way back and check whether the tool stops rotating immediately when it is released.

• Rotate the clutch handle and check whether the clutch switches properly.

• Check whether impact operation functions properly.

3.2.3. Integrity

• With the switch activated, shake the tool back and forth and up and down and verify that its sound does not change excessively.

• Check for the presence of any dirt or foreign matter from the repair process on the outside of the tool.

4 Disassembly and Assembly Instructions

*To assemble the tool, start with 4-12 and proceed to 4-1

4.1. Removing the plate hook

4.2. Removing the Fixation cover assembly

4.3. Removing the housing

4.4. Removing the switch assembly

4.5. Removing the Module assembly
