Panasonic EYFMA1B Manual de usuario

© Panasonic Corporation 2015. All rights reserved.

Unauthorized copying and distribution is a violation

of law.

Order Number PTD1512E08CE

Cordless Impact Wrench

Model No. EYFMA1B

Model No. EYFMA1J

Model No. EYFMA1JR

Europe

TABLE OF CONTENTS

PAGE PAGE

1 Warning -------------------------------------------------------------- 2

2 Specifications ----------------------------------------------------- 2

3 Troubleshooting Guide ----------------------------------------- 3

4 Service Fixture and Adjustment----------------------------- 6

5 Disassembly and Assembly Instructions ---------------- 9

6 Measurements and Adjustments---------------------------15

7 Schematic Diagram ---------------------------------------------16

8 Wiring Connection Diagram ---------------------------------17

9 Exploded View and Replacement Parts List -----------18

2

1Warning

Caution:

• Pb free solder has a higher melting point that standard solder; Typically the melting point is 50 - 70°F (30 - 40°C) higher. Please

use a soldering iron with temperature control and adjust it to 750 ± 20°F (400 ± 10°C). In case of using high temperature solder-

ing iron, please be careful not to heat too long.

• Pb free solder will tend to splash when heated too high (about 1100°F / 600°C).

2 Specifications

3

3 Troubleshooting Guide

4

5

6

4 Service Fixture and Adjustment

4.1. Check Parts Identify Procedure

7

8

9

5 Disassembly and Assembly Instructions

5.1. Disassembly Instructions

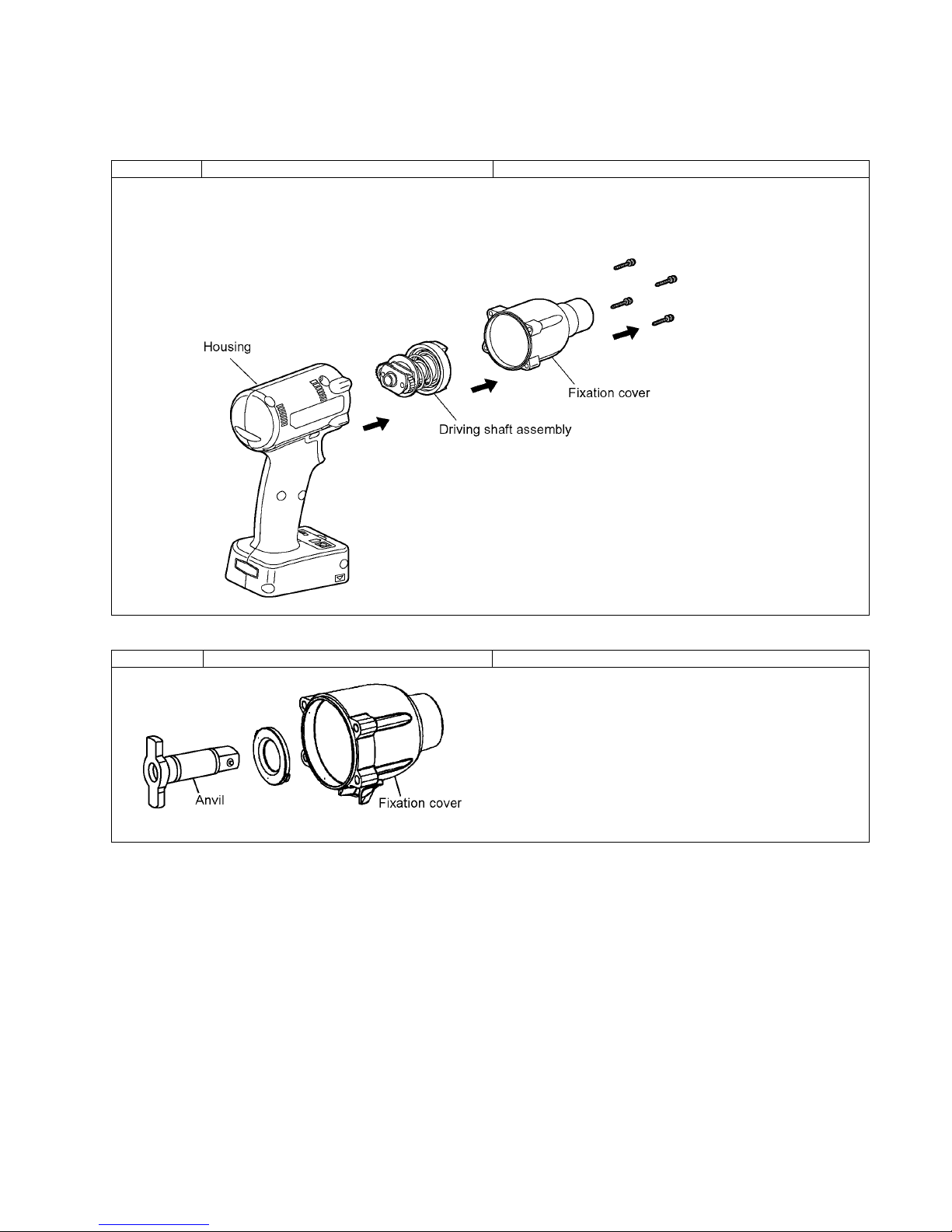

Ref. No. 1A Procedure 1A Removal of Fixation cover.

1. Remove four screws where tightening fixation cover.

2. Pull off the fixing cover assembly.

3. Once removing the fixing cover, the driving shaft assembly may come

out.

Ref. No. 1B Procedure 1A 1B Removal of Anvil.

1. Pull the anvil out from the fixation cover.

10

Ref. No. 1C Procedure 1A 1B 1C Removal of Housing.

1. Remove nine housing screws.

2. Then open the housing A and B.

NOTE:

When opening the housings, make sure that the main PCB is on the

housing A.

If the main PCB sticks in the housing B and pull it out from the hous-

ing A, the ribbon cable may be defected.

Ref. No. 1D Procedure 1A 1B 1C 1D Removal of Ribbon cable (FPC).

1. Slightly lift up the connector.

NOTE:

Do not pull the connector firmly because it is not able to take out

completely.

2. Take out the ribbon cable.
