Panasonic EYFLA9C Manual de usuario

© Panasonic corporation 2019. All rights reserved.

Unauthorized copying and distribution is a violation

of law.

Order Number PTD1902E58CE

Cordless Impact Wrench

Model No. EYFLA9C

Model No. EYFMA2C

Model No. EYFLA9P

Model No. EYFMA2P

Europe

TABLE OF CONTENTS

PAGE PAGE

1 Warning -------------------------------------------------------------- 2

2 Specifications ----------------------------------------------------- 2

3 Troubleshooting Guide ----------------------------------------- 3

4 Disassembly and Assembly Instructions ---------------- 6

5 Exploded View and Replacement Parts List -----------12

2

1Warning

Caution:

• Pb free solder has a higher melting point that standard solder; Typically the melting point is 50 - 70°F (30 - 40°C) higher. Please

use a soldering iron with temperature control and adjust it to 750 ± 20°F (400 ± 10°C). In case of using high temperature solder-

ing iron, please be careful not to heat too long.

• Pb free solder will tend to splash when heated too high (about 1100°F / 600°C).

2 Specifications

3

3 Troubleshooting Guide

3.1. Troubleshooting Guide

4

5

3.2. Trial Operation (after checking Troubleshooting Guide).

3.2.1. Assembly

• Confirm if there is no gap between housing A and B by pinching lead wires.

• There is no dust or deformation on battery terminals.

3.2.2. Operation

• Check whether the tool speed increases continuously as the trigger is gradually engaged.

• Check whether the tool operates properly in both the forward and reveres directions.

• Set the LED light to switch-linked mode (L2) and check whether the LED light turns on when the trigger is engaged and that it

turns off when the trigger is released.

• Set the buzzer to each of its three modes and verify that there is no buzzer in b0 mode, that the buzzer sounds when the green

lamp is on in b1 mode, and that the buzzer sounds when the Red lamp is on b2 mode.

• Check whether the ID setting has been properly configured after repair and reassembly.

[ Method of confirmation ]

1. Press D button on the remote control

2. Confirm the operation panel display

• Initializing all settings (revert settings to factory defaults).

[ Setting method ]

6

4 Disassembly and Assembly Instructions

* To reduce the risk of injury, always remove battery pack before removing/installing the tool.

* To assemble the tool, start with 4-8 and proceed to 4-1

4.1. How to remove the Driving shaft assembly and Shaft cover assembly.

4.2. How to remove the Thrust plate and Anvil.

7

4.3. How to remove the Housing B.

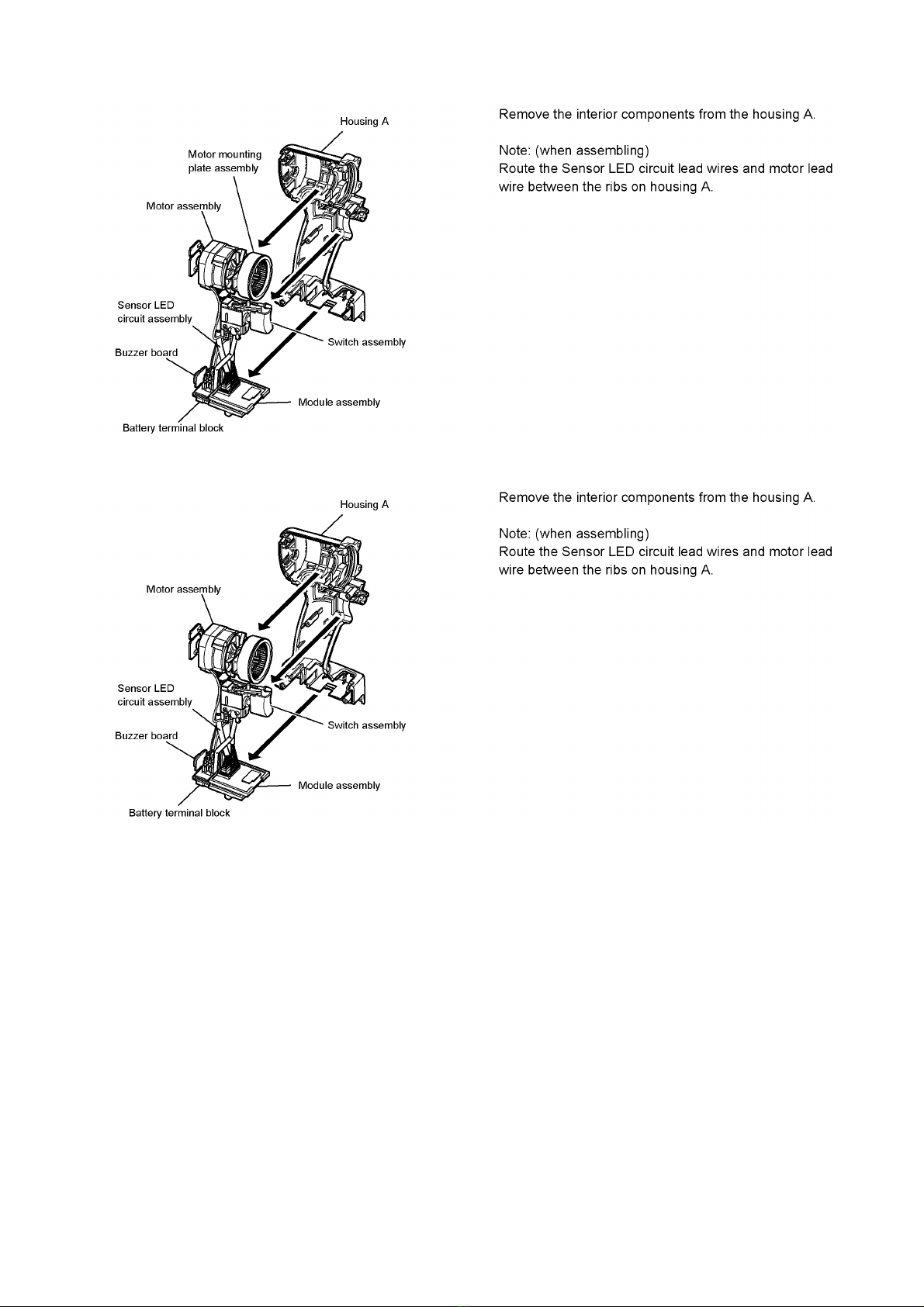

4.4. How to remove the Interior components.

8

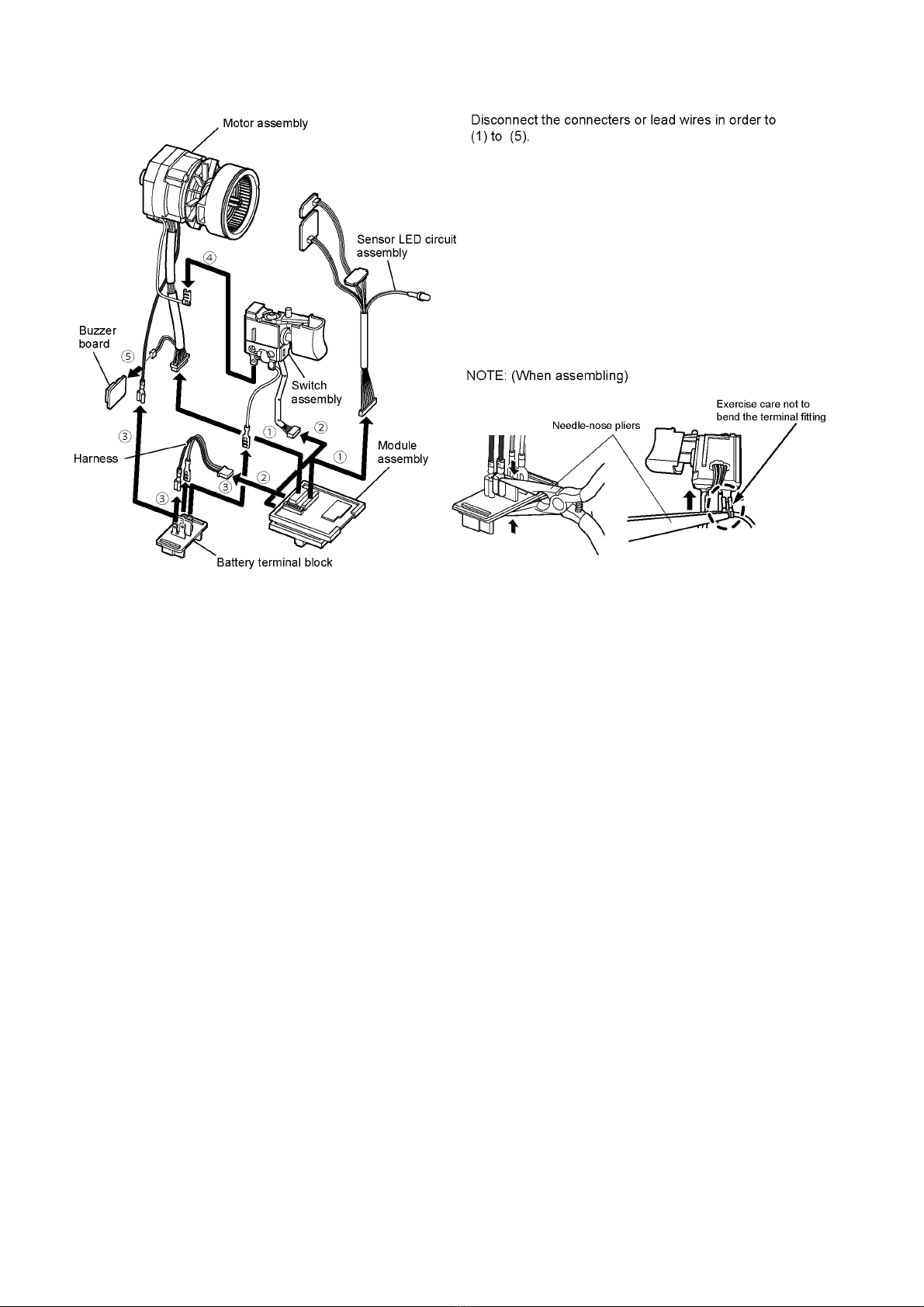

4.5. How to remove the Module assembly.

9

4.6. Checking and setting the Module assembly’s DIP switches.

4.7. How to remove the Motor mounting plate assembly.

10

4.8. How to remove the Driving shaft assembly.
