Panasonic EYFLA5A Manual de usuario

© Panasonic Corporation 2016

Unauthorized copying and distribution is a violation

of law.

Order Number PTD1601E09CE

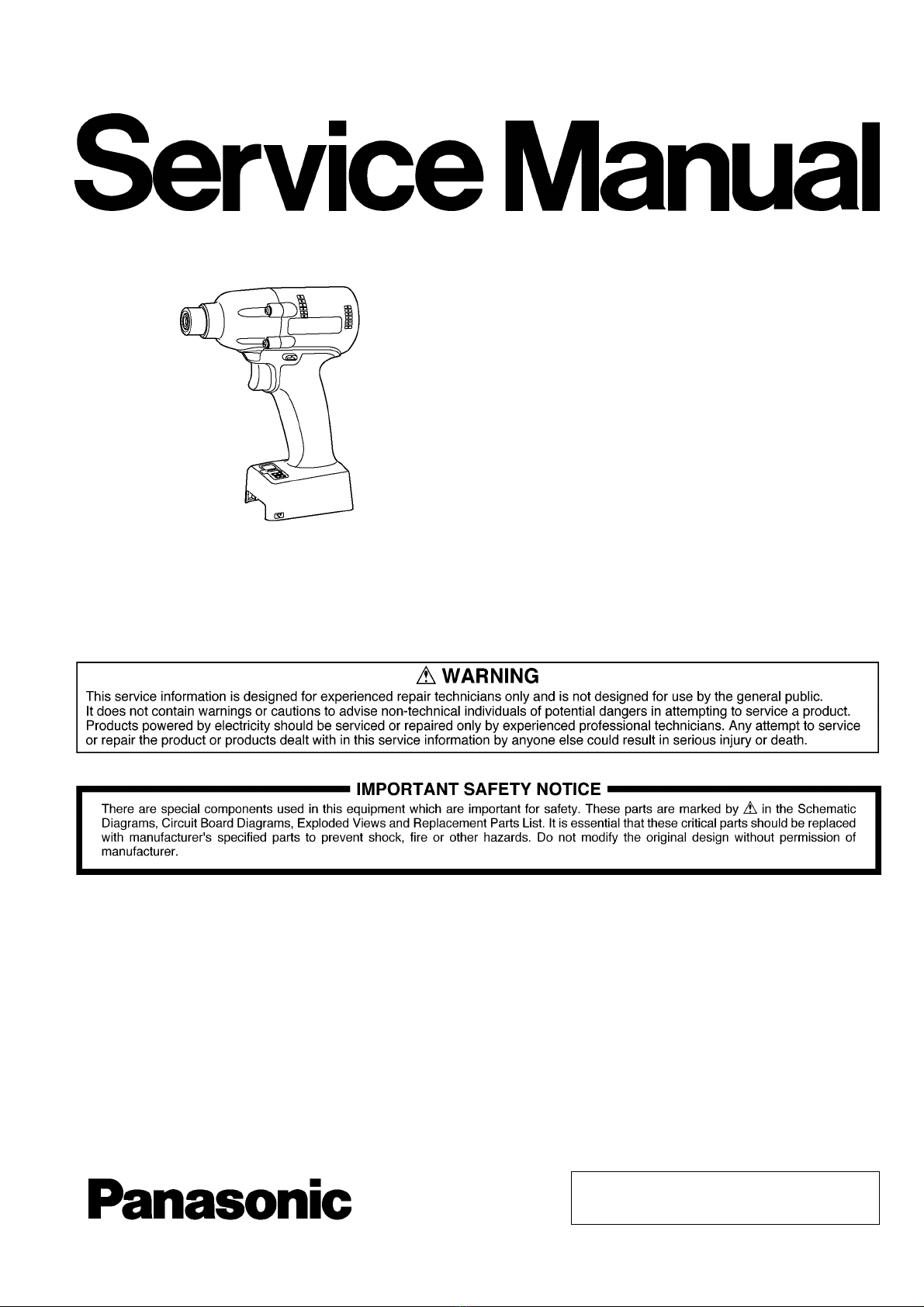

Cordless Impact Driver / Cordless Impact Wrench

Model No. EYFLA4A

Model No. EYFLA5A

(Cordless Impact

Driver)

Model No. EYFLA5Q

Model No. EYFLA5B

Model No. EYFLA6J

Model No. EYFLA6B

(Cordless Impact

Wrench)

Europe

TABLE OF CONTENTS

PAGE PAGE

1 Warning -------------------------------------------------------------- 2

2 Specifications ----------------------------------------------------- 2

3 Troubleshooting Guide ----------------------------------------- 3

4 Service Fixture and Adjustment----------------------------- 6

5 Disassembly and Assembly Instructions ---------------12

6 Measurements and Adjustments---------------------------20

7 Wiring Connection Diagram ---------------------------------21

8 Schematic Diagram ---------------------------------------------22

9 Exploded View and Replacement Parts List -----------23

2

1Warning

Caution:

• Pb free solder has a higher melting point that standard solder; Typicall the melting point is 50 - 70F (30 - 40C) higher. Please

use a soldering iron with temperature control and adjust it to 750 ± 20F (400 ± 10C). In case of using high temperature solder-

ing iron, please be careful not to heat too long.

• Pb free solder will tend to splash when heated too high (about 1100F / 600C).

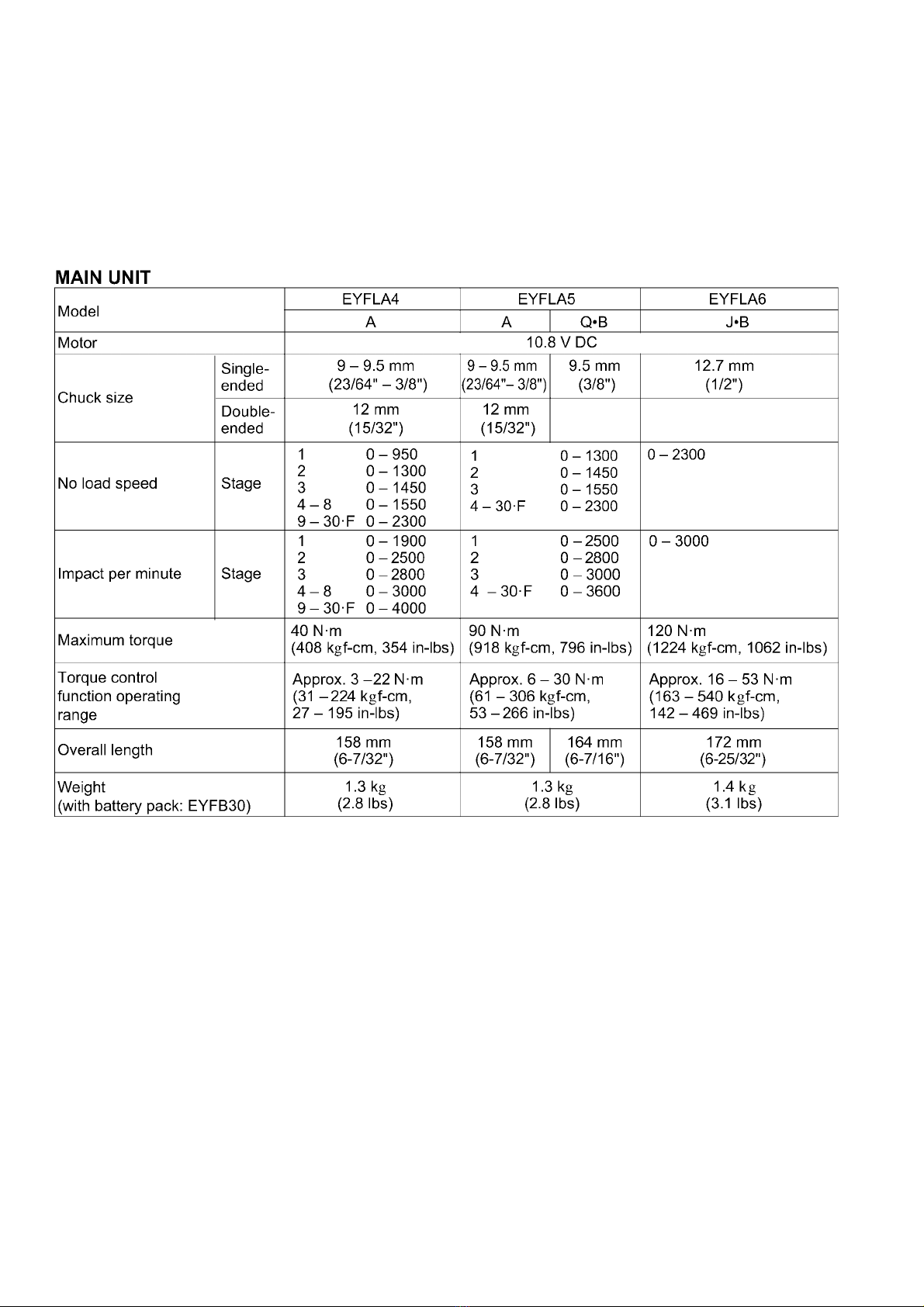

2 Specifications

3

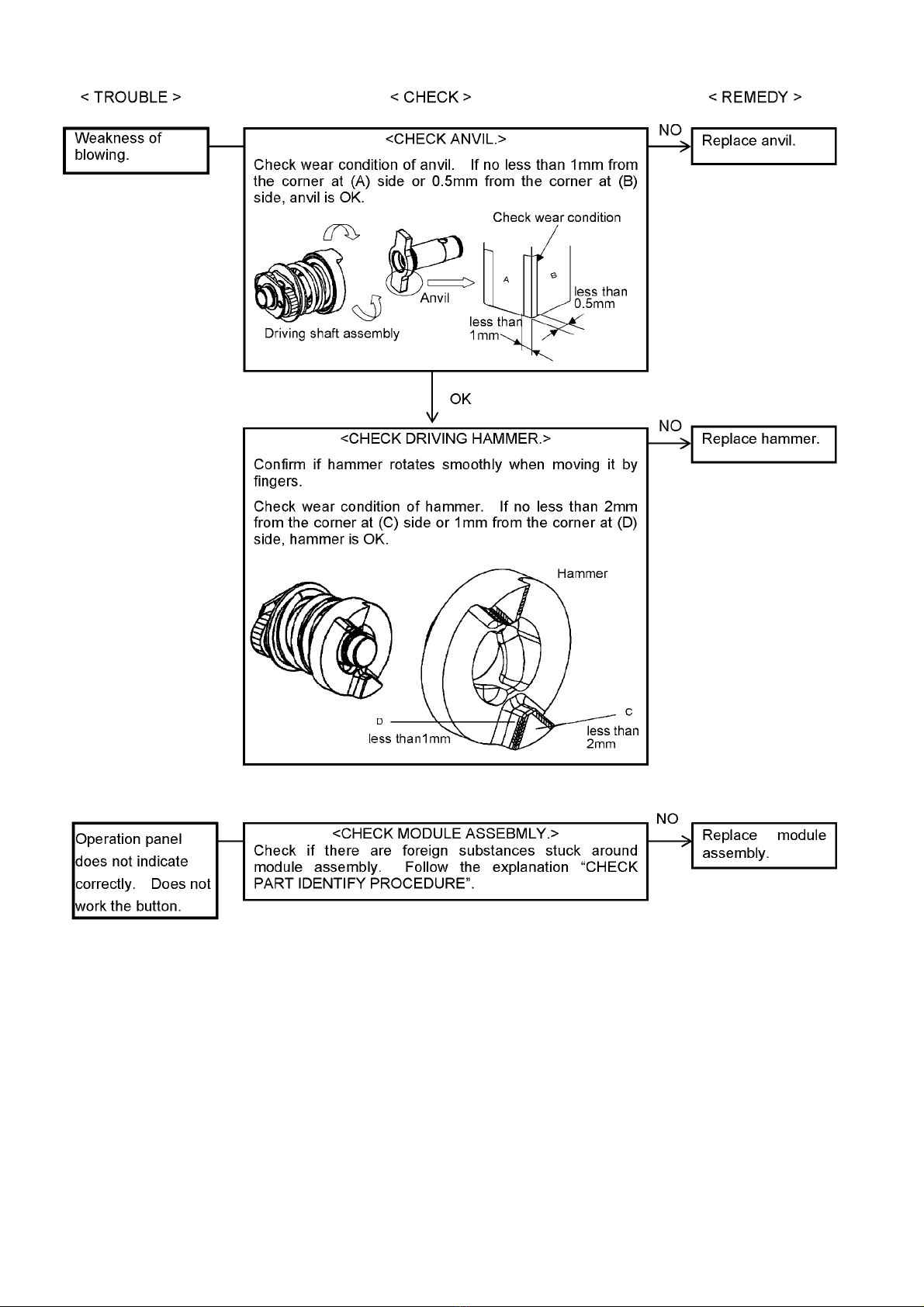

3 Troubleshooting Guide

4

5

6

4 Service Fixture and Adjustment

4.1. Check Parts Identify Procedure

7

8

9

4.2. Initializing and Setting

NOTE:

• This section explains how to revert all tool settings to their default values at the time of shipment from the factory.

• The error display will be turned off.

INITIALIZING ALL SETTINGS.

1. Set the tool to configuration mode.

(See the next procedure SETTINGS THE TOOL TO

CONFIGURATION MODE.)

2. Press the format button.

a. The control panel will begin flashing.

DISPLAY: The letter “F” flashes on and off.

BATTERY INDICATION LAMP: The upper and lower

bars of the battery flash on and off.

3. Press the OK button to accept the selected setting.

a. The control panel will stop flashing and light up.

SETTINGS THE TOOL TO CONFIGURATION MODE.

1. Turn off the control panel.

If the control panel is on, remove and then reinsert the

battery pack.

2. Engage the switch while pushing the button and then

release both the button and the switch.

a. After all the LED lamps have turned off, the control

panel will flash and change to configuration mode.

10

CONFIGURING THE TORQUE CLUTCH SETTING.

1. Press the (+) and (-) buttons to select the clutch setting

that is appropriate for the work being performed.

a. “F” indicates that the torque control function is off.

b. You can select from 30 torque clutch settings (1 to

30).

2. Press the OK button to accept the selected torque clutch

setting.

a. The control panel will stop flashing and light up.

NOTE:

You must press the OK button in order for the selected

setting to take effect.

SETTING THE SNUG POINT DETECTION LEVEL.

1. Press the torque setting mode button.

a. The snug point detection level setting value will be

displayed.

2. Press the (+) and (-) buttons to set the best snug point

detection level for the work you are performing.

3. Press the OK button to accept the number of torque

stages and the snug point detection level.

a. The tool’s panel will flash and then light up continu-

ously.
