Assembly and Operating Instructions for

Outback® Meteor 4 Burner Gas Barbecue

Drawings are not to scale.

Specifications subject to change

without prior notice.

WARNING

 For outdoor use only. Not for commercial use.

 Read instructions before using the appliance. Failure to follow instructions could

result in death, serious bodily injury, and/or property loss.

 Warning: accessible parts may be very hot. Keep young children and pets away.

 Do not move the appliance during use.

 Turn off the gas supply at the gas bottle after use.

 Any modification of the appliance, misuse, or failure to follow the instructions may

be dangerous and will invalidate your warranty. This does not affect your statutory

rights.

 Retain these instructions for future reference.

 Leak test annually, and whenever the gas bottle is removed or replaced. Check that

the hose connections are tight and leak test each time you reconnect the gas bottle.

 For Flare-up control please refer to the ‘OPERATION’ section of this manual.

FOR YOUR SAFETY

If you smell gas:

1. Shut off gas to the appliance.

2. Extinguish any open flame.

3. Open barbecue lid or hood.

4. If odour continues, discontinue use and

contact your local dealer.

FOR YOUR SAFETY

1. Do not store or use petrol or other flammable

vapours or liquids in the vicinity of this or any

other appliance.

2. A gas bottle not connected for use must not be

stored in the vicinity of this or any other

appliance.

MT-H4430-3

CODE PART QTY Outback Meteor Select

Hooded 4 Burner Gas BBQ

HOOD

A1 Hood (Pre-Assembled to Body)1

A2 Hood Handle 1

A3 Warming Rack 1

BODY

B1 Barbecue Body 1

B2 Burner 4

B3 Control Panel 1

B4 Knob 4

B5 Hose (if supplied) 

B6 Lava Rock in Basket / Flame Tamer 

B7 Cooking Grill 1

B8 Cooking Griddle 1

B9 Drip Tray Left Bracket 1

B10 Drip Tray Right Bracket 1

B11 Drip Tray 1

B12 Drip Pan 1

B13 Ignition Button 1

TROLLEY

C1 Side Burner Shelf 1

C2 Side Burner Shelf Panel 1

C3 Side Burner Grid 1

C4 Knob Bezel 1

C5 Side Burner Knob 1

C6 Side Burner 1

C7 Side Shelf 1

C8 Side Shelf Panel 1

C9 Left Front Leg 1

C10 Left Rear Leg 1

C11 Right Front Leg 1

C12 Right Rear Leg 1

C13 Upper Body Support 1

C14 Storage Box Handle 1

C15 Storage Box 1

C16 Front Panel 1

C17 Side Panel 4

C18 Bottom Panel 1

C19 Wheel 2

C20 Wheel Hubcap 2

C21 Axle 1

C22 Electronic Ignition Assembly 1

C23 Heat Shield 1

HARDWARE

D1 ST4.0x10 Screw 30 

D2 M4x10 Bolt 3

D3 M4 Step Bolt 4

D4 M6x15 Bolt 16 

D5 M6x40 Bolt 16 

D6 M6 Nut 12 

D7 Locknut 2

 Pre-Assembled Component

 Quantity varies according to model purchased

 Appearance, size, and construction may differ according to model purchased

1. Parts List

Quantity varies according to model purchased. Specifications subject to change without prior notice. For

more details on hardware, please see the corresponding ‘Hardware Reference Diagram’.

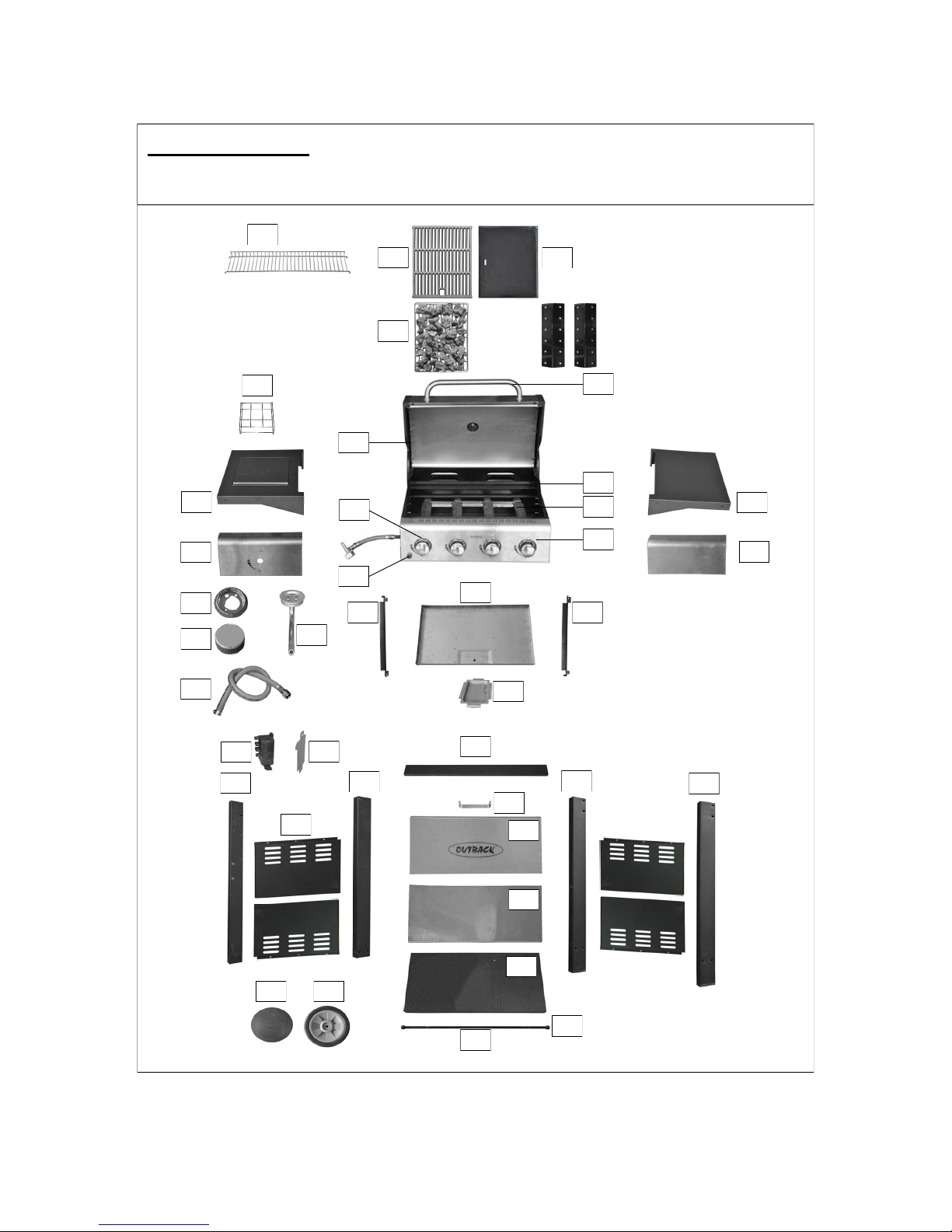

2. Parts Diagram

Quantity varies according to model purchased. Specifications subject to change without prior notice. For

more details on hardware, please see the corresponding ‘Hardware Reference Diagram’.

B9 B10

C17

C11

C13

C22 C23

B13

C20

B7 B8

B11

C18

C14

C21

C19

C15

C16

C12

B12

C10

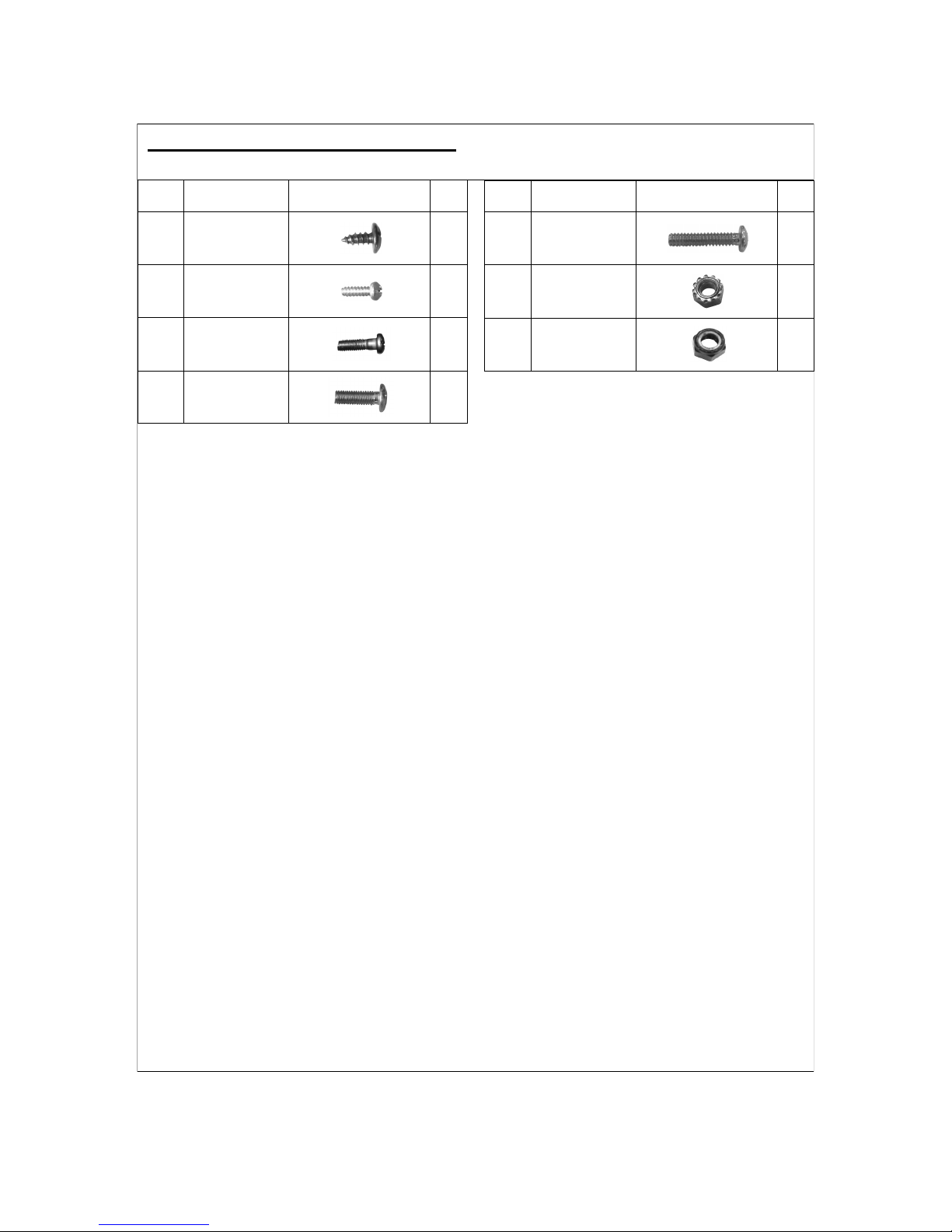

3. Hardware Reference Diagram

Specifications subject to change without prior notice.

CODE PART ILLUSTRATION QTY

D5 M6x40

Bolt

D6 M6 Nut

D7 Locknut

CODE PART ILLUSTRATION QTY

D1 ST4.0x10

Screw

D2 M4x10

Bolt

D3 M4 Step Bolt

D4 M6x15

Bolt

4. Assembly

IMPORTANT!

 TOOLS NEEDED FOR ASSEMBLY: Medium size flat blade or Phillips/Crosspoint screwdriver,

adjustable spanner or metric spanner set.

 Remove any internal component or packaging from the barbecue body.

 Whilst every care is taken in the manufacture of this product, care must be taken during assembly in

case sharp edges are present.

 Please read the Important Information section carefully before assembly and use of your

barbecue.

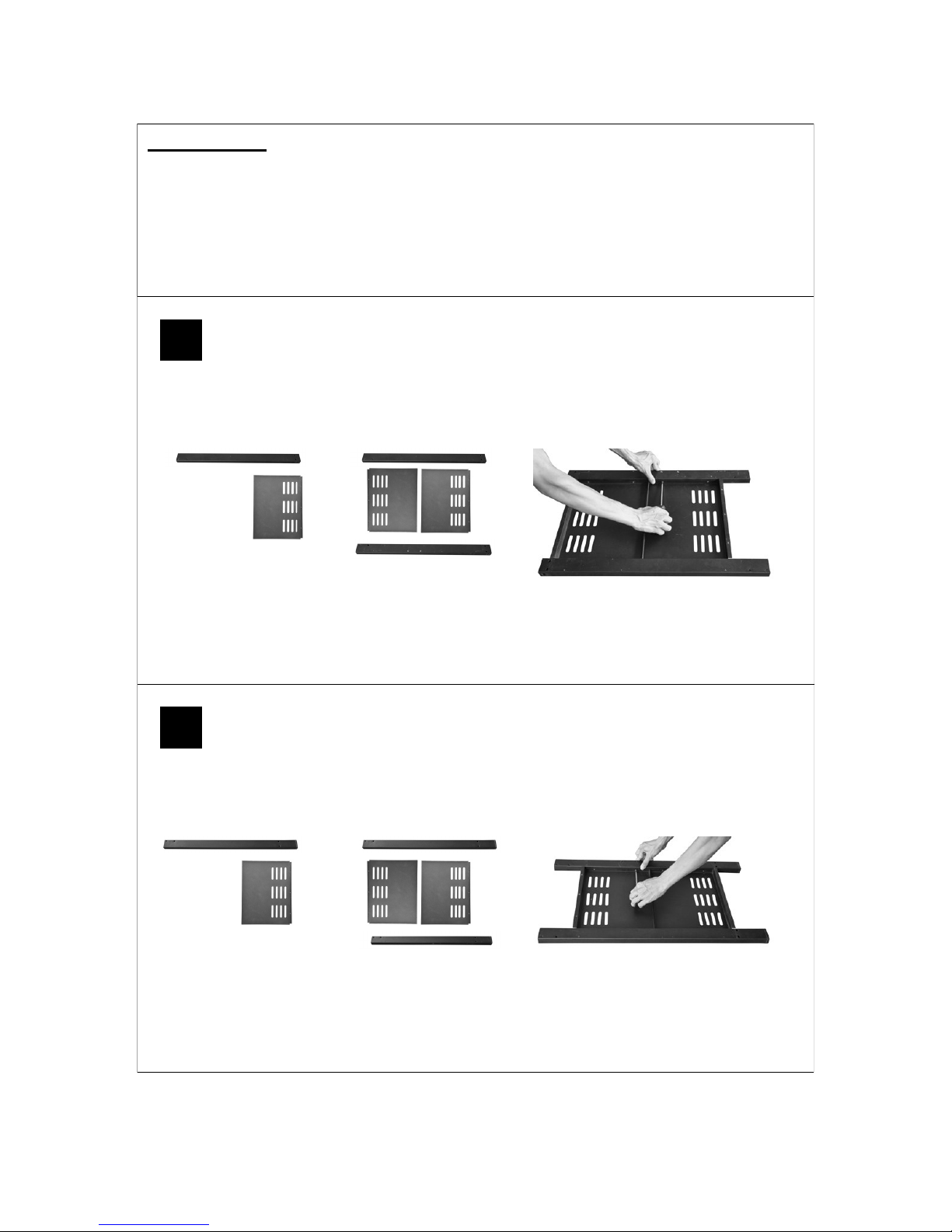

Attach the Left Legs (C9,C10) to the Side Panels (C17) using ST4.0x10 Screws (D1) as shown.

Attach the Right Legs (C11,C12) to the Side Panels (C17) using ST4.0x10 Screws (D1) as shown.

Left Cabinet Panel Assembly

Right Cabinet Panel Assembly

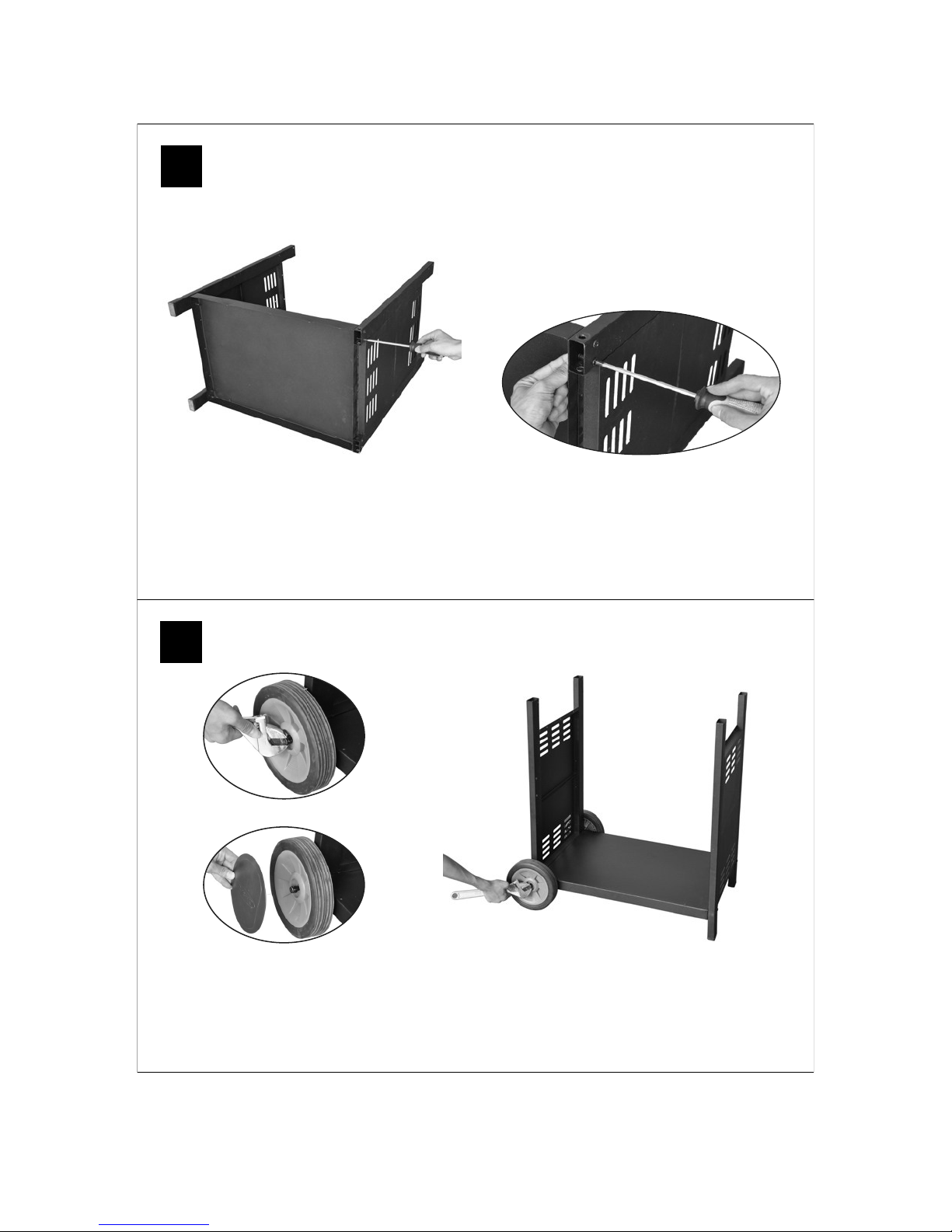

Attach the left / right cabinet panel assembly to the Bottom Panel (C18) using M6x40 Bolts (D5)

and M6 Nuts (D6) as shown.

Unscrew the Locknuts (D7) from both ends of the Axle (C21).

Slide the axle through the corresponding holes in the left legs. Slide the Wheels (C19) over each

end of the axle. Secure the wheels into place with the locknuts. Place the Wheel Hubcaps (C20)

onto the outside of the wheels.

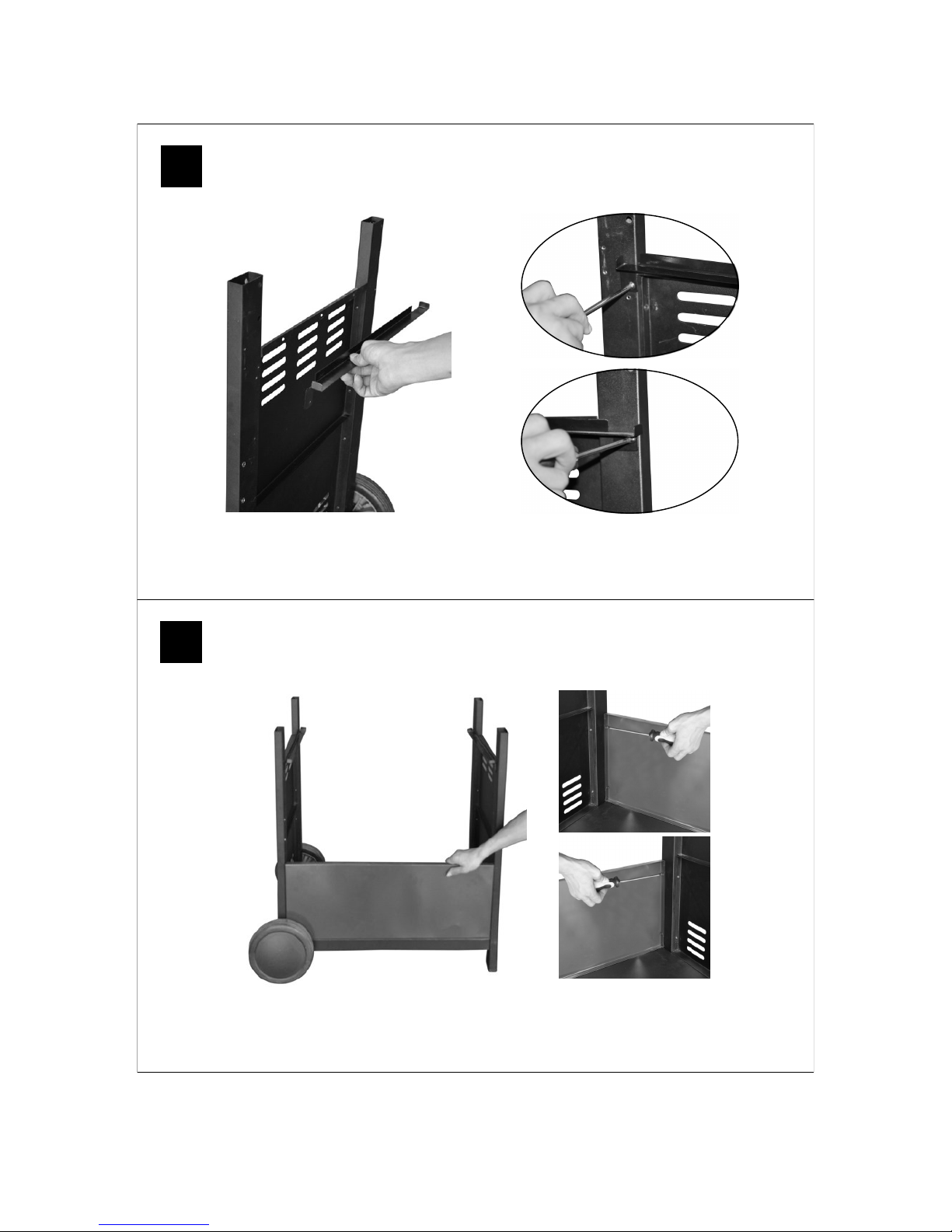

Attach Drip Tray Left Bracket (B9) to the left legs using ST4.0x10 Screws (D1) as shown.

Repeat above process for Drip Tray Right Bracket (B10).

Install the Front Panel (C16) between the left / right front legs using ST4.0x10 Screws (D1).

Front Side

Rear Side

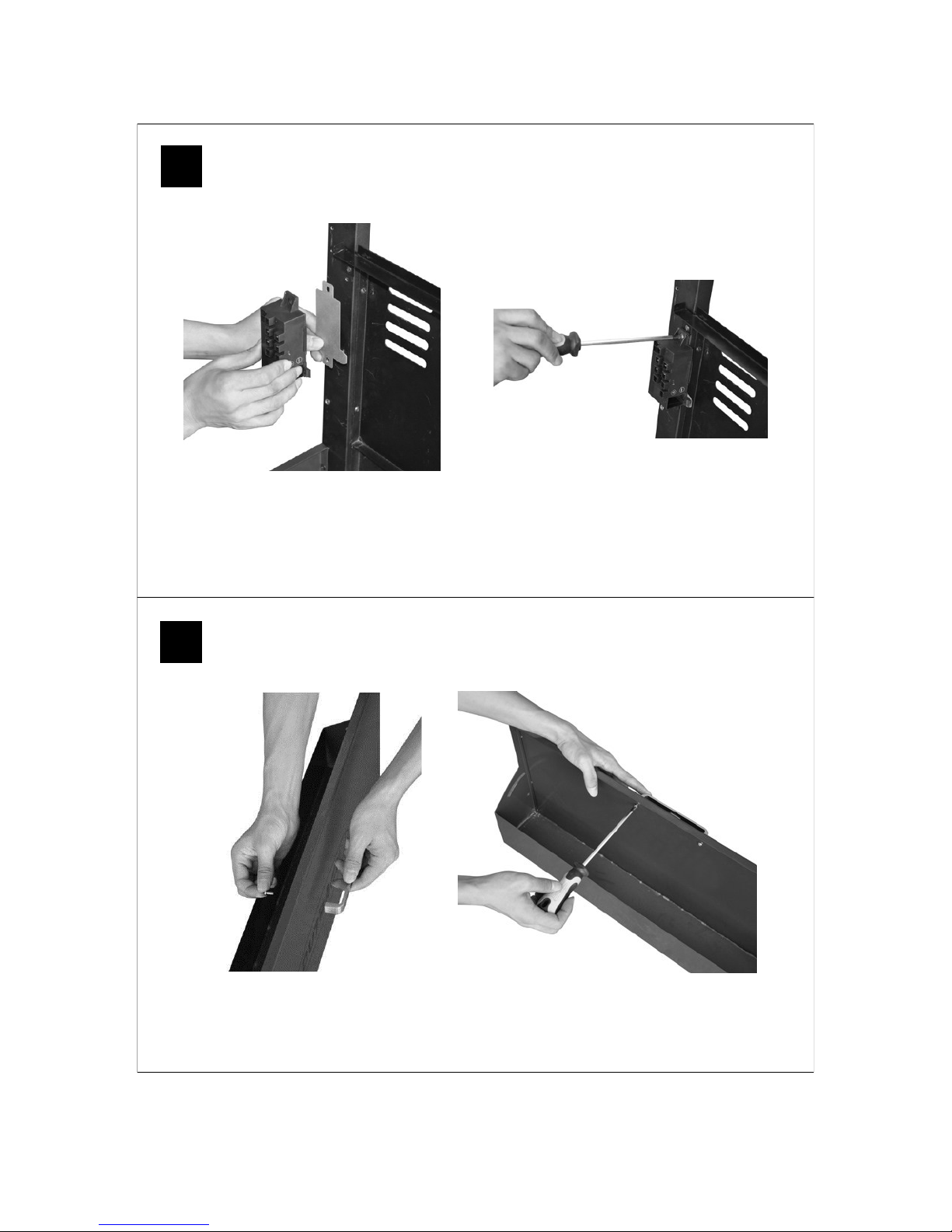

Fix the Electronic Ignition Assembly (C22) and Heat Shield (C23) to the front left leg by inserting

two ST4.0x10 Screws (D1) through the electronic ignition assembly and heat shield and screwing

into the front left leg.

Remove the retaining bolts from the Storage Box Handle (C14), and then attach it onto the Stor-

age Box (C15) using the retaining bolts.

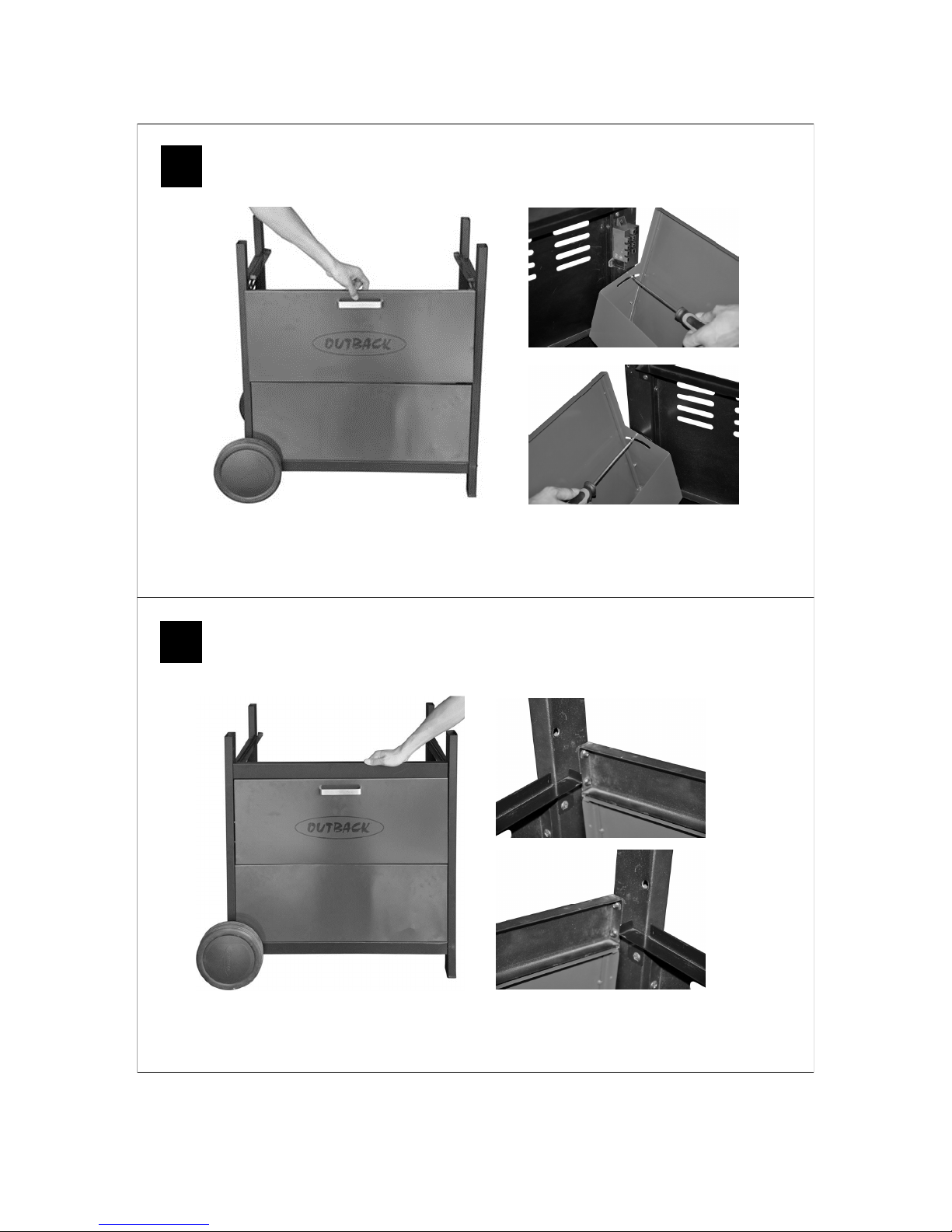

Install the storage box assembly between the left / right front legs using M4 Step Bolts (D3).

Attach the Upper Body Support (C13) to the front legs using M6x15 Bolts (D4).

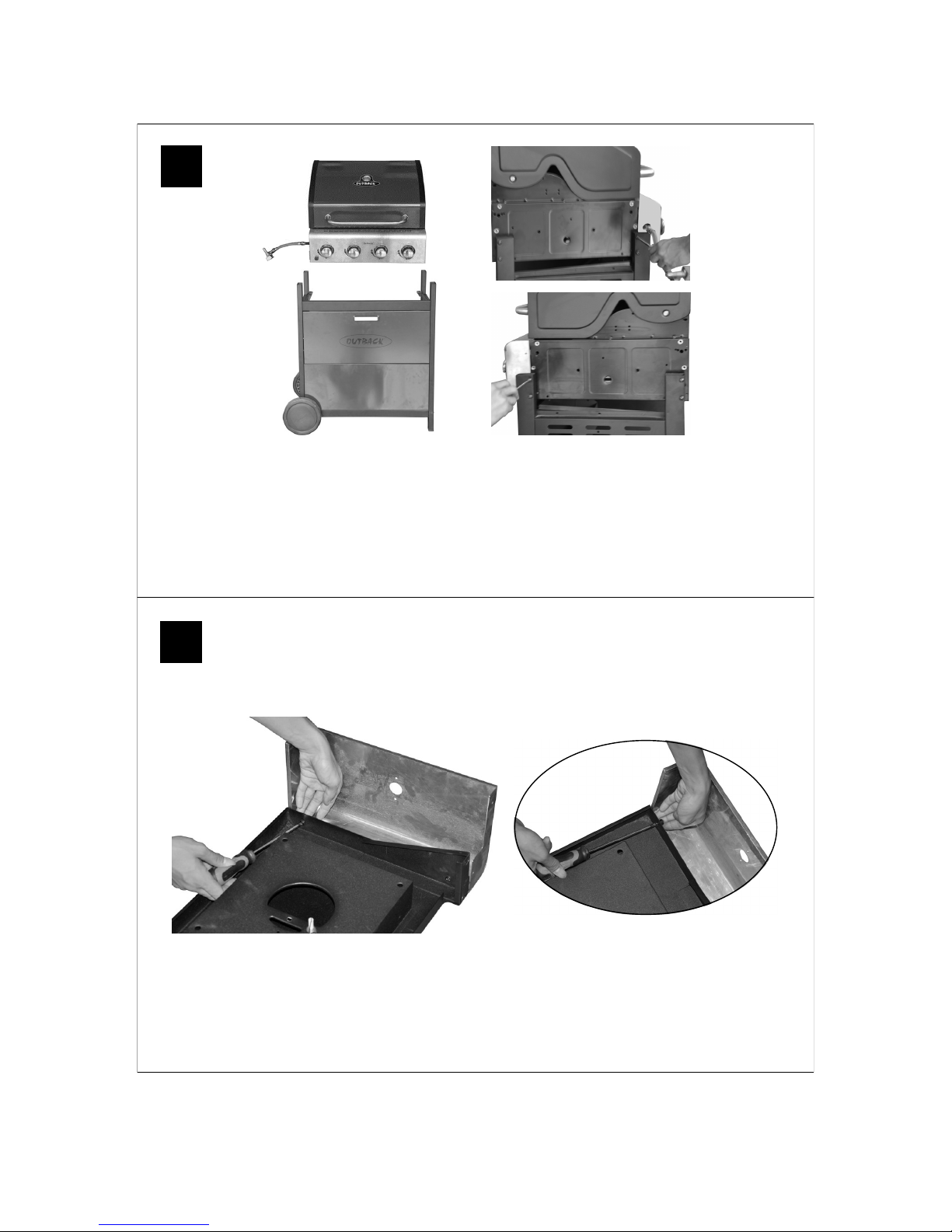

Carefully place the Barbecue Body (B1) onto the cabinet structure and fix using M6x40 Bolts (D5) as

shown.

WARNING: DO NOT RELEASE THE BARBECUE BODY WHILE THE BARBECUE HAS NOT BEEN

PROPERLY SEATED. THIS MAY RESULT IN INJURY OR DAMAGE TO YOUR BARBECUE.

CAUTION! Care must be taken to ensure the hood or lid does not fall open unexpectedly or

becomes damaged when it is set on the ground.

Attach Side Burner Shelf Panel (C2) onto the Side Burner Shelf (C1) using M6x15 Bolts (D4)

and M6 Nuts (D6).
