Assembly and Operating Instructions for Outback®

Sapphire 3 Burner Gas BBQ

WARNING

 For outdoor use only. Not for commercial use.

 Read instructions before using the appliance. Failure to follow instructions could

result in death, serious bodily injury, and/or property loss.

 Warning: accessible parts may be very hot. Keep young children and pets away.

 Do not move the appliance during use.

 Turn off the gas supply at the gas bottle after use.

 Any modification of the appliance, misuse, or failure to follow the instructions may be

dangerous and will invalidate your warranty. This does not affect your statutory rights.

 Retain these instructions for future reference.

 Leak test annually, and whenever the gas bottle is removed or replaced. Check that the

hose connections are tight and leak test each time you reconnect the gas bottle.

 For Flare-up control please refer to the ‘OPERATION’ section of this manual.

FOR YOUR SAFETY

If you smell gas:

1. Shut off gas to the appliance.

2. Extinguish any open flame.

3. Open barbecue lid or hood.

4. If odour continues, discontinue use and

contact your local dealer.

FOR YOUR SAFETY

1. Do not store or use petrol or other flammable

vapours or liquids in the vicinity of this or any

other appliance.

2. A gas bottle not connected for use shall not be

stored in the vicinity of this or any other

appliance.

0359

THG3216AW

Parts List

Quantities vary according to model purchased. Specifications subject to change without prior notice. For

more details on hardware, please see ‘Hardware Reference Diagram’.

CODE PART QTY Sapphire 3 Burner Gas BBQ

HOOD

A1 Hood (Pre-Assembled to Body) 1 

A2 Hood Handle 1 

A3 Hood Handle Spacers 2 

A4 Heat Indicator 1 

A5 Warming Rack 1 

BODY

B1 Barbecue Body 1 

B2 Burner 3 

B3 Cross Channel 2 

B4 Control Panel 1 

B5 Knob 3 

B6 Ignition Button 1 

B7 Flame Tamer 3 

B8 Round Grill 1 

B10 Hose and Regulator Assembly 1 

B11 Drip Tray 1 

B12 Drip Tray Left Bracket 1 

B13 Drip Tray Right Bracket 1 

TROLLEY

C1 Side Shelf 2 

C2 Tool Hook 1 

C3 Left Front Leg 1 

C4 Left Rear Leg 1 

C5 Right Front Leg 1 

C6 Right Rear Leg 1 

C7 Bottle Opener 1 

C8 Front Screen 1 

C9 Trolley Base 1 

C10 Leg Endcap 2 

C11 Axle 1 

C12 Wheel 2 

C13 Hubcap 2 



HARDWARE

D1 M5x15 Bolt 4 

D2 Washer 4 

D3 M5 Nut 4 

D4 M6x15 Bolt 1 

D5 M6 Nut 8 

D6 ST4.0x10 Screw 6 

D7 M6x40 Bolt 8 

D8 M6x90 Bolt 8 

D9 M6 Spacer 8 

D10 1/4 20UCNx35 Bolt 16 

D11 1/4 20UCNx12 Bolt 2 

D12 Locknut 2 

B9 Cooking Grill 2 

 Pre-Assembled Component

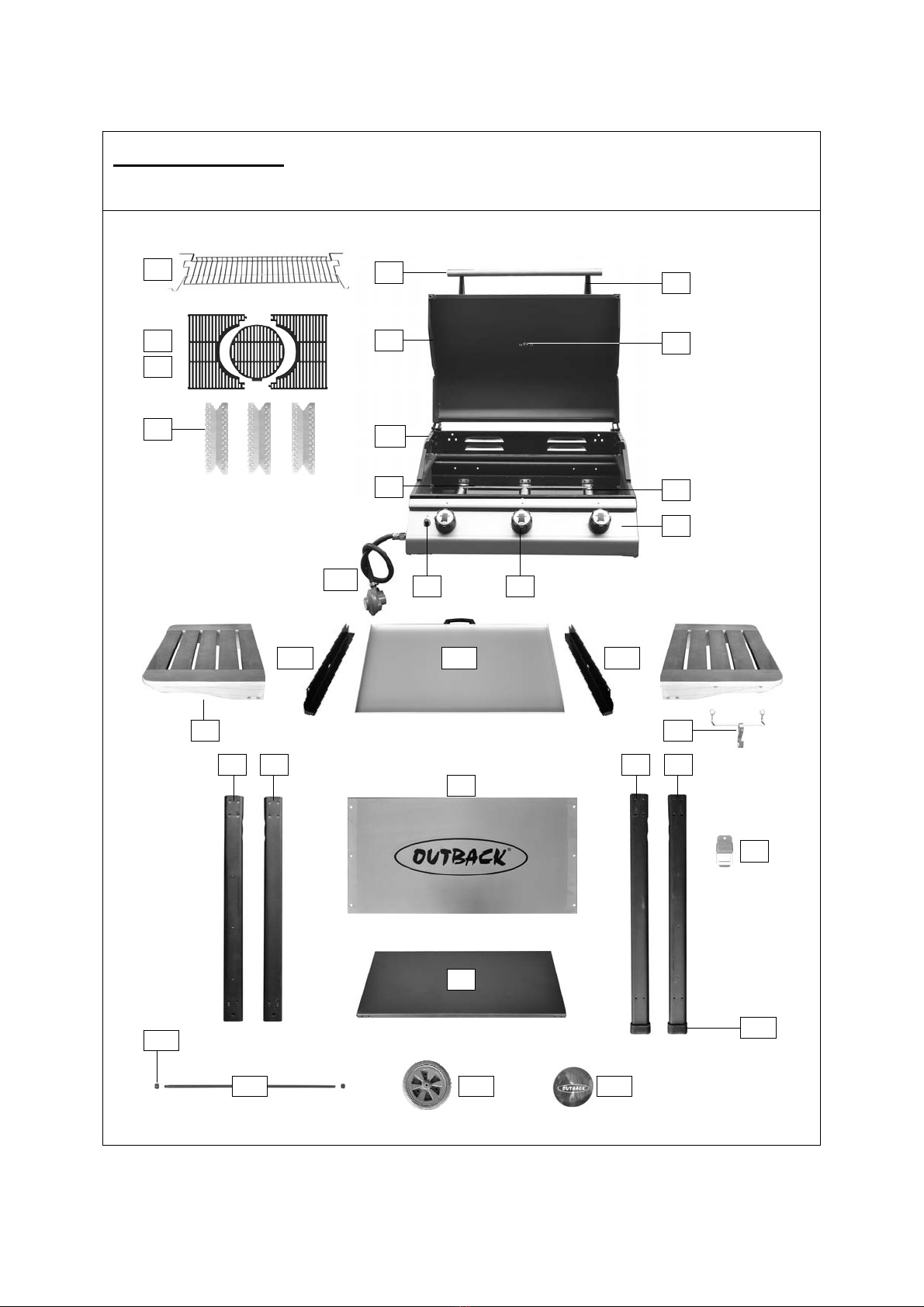

Parts Diagrams

Quantities vary according to model purchased. Specifications subject to change without prior notice. For

more details on hardware, please see hardware pack page.

D12 C10

B12

C1 C2

C6 C5

C3 C4

C12 C13C11

A2 A3

B5B6

B12 B13

B11

B10

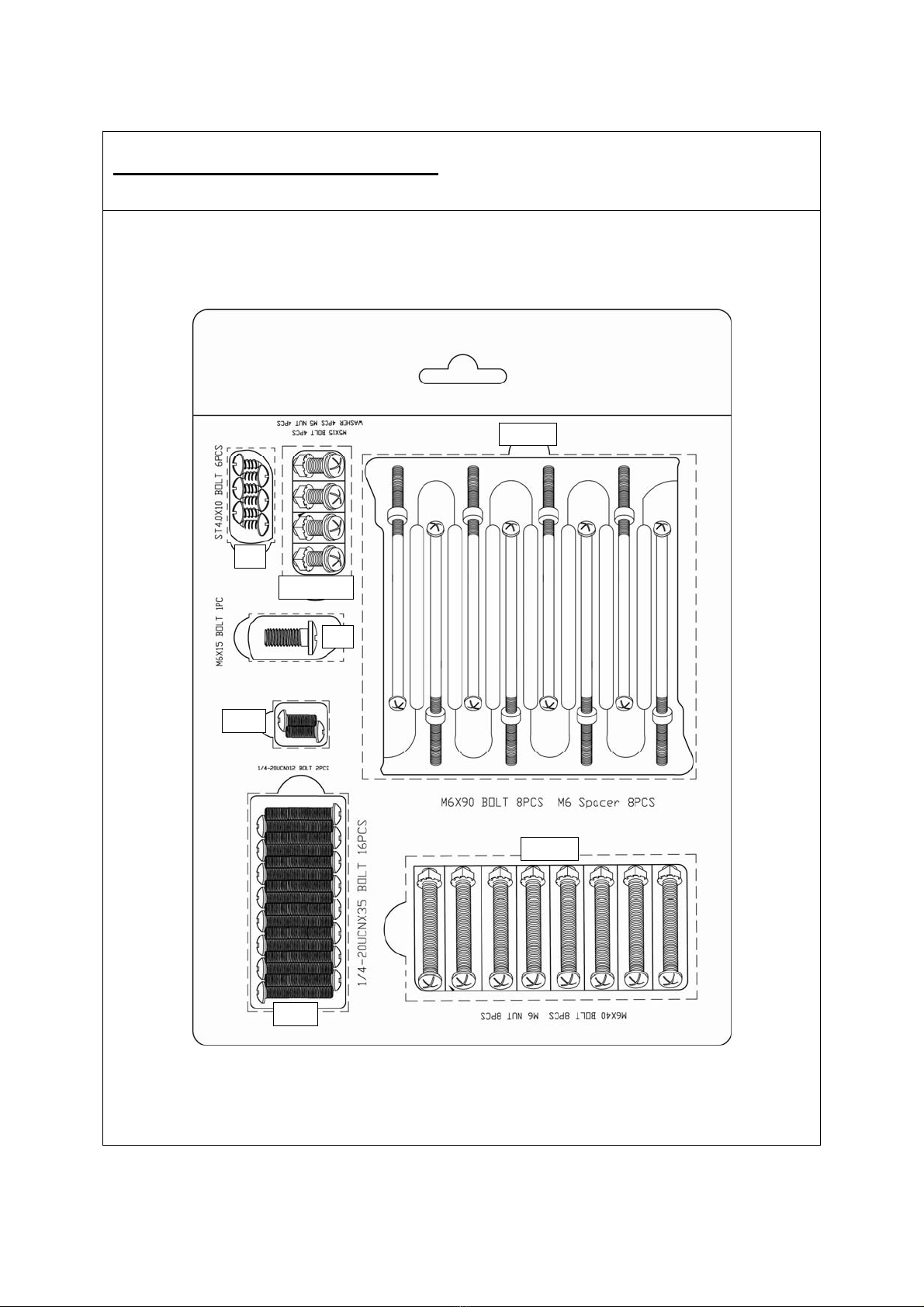

Hardware Reference Diagram

Specifications subject to change without prior notice.

D1,D2,D3

D10

D7,D5

D8,D9

D11

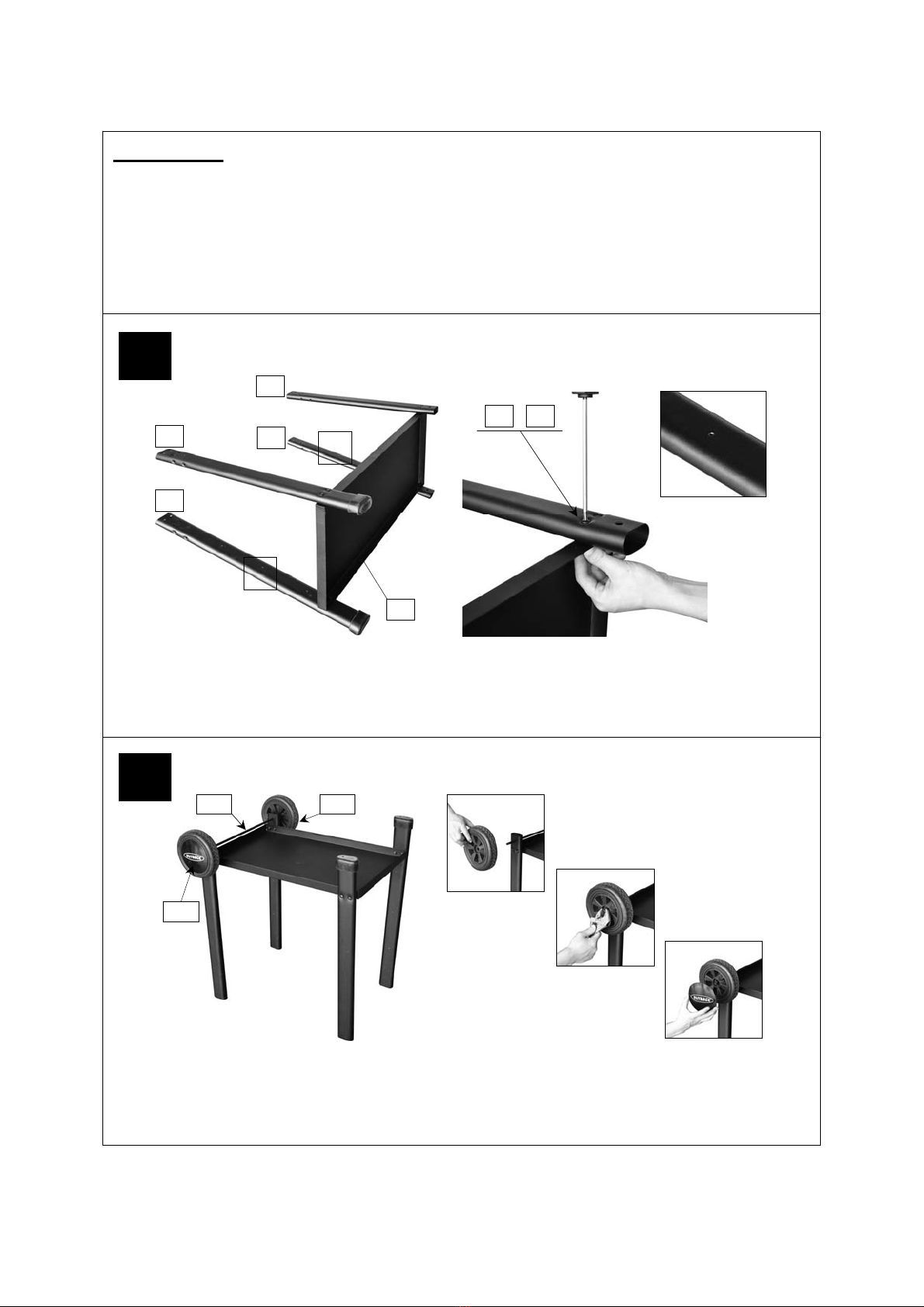

Attach the Legs (C3,C4,C5,C6) to the Trolley Base (C9) using the M6x40 Bolts (D7x8pcs) and M6

Nuts (D5x8pcs), as shown.

Note: Ensure that the legs with the fixing holes on them are at the front of the barbecue.

Assembly

IMPORTANT!

 TOOLS NEEDED FOR ASSEMBLY: Medium size flat blade or Phillips/Crosspoint screwdriver,

adjustable spanner or metric spanner set.

 Remove any internal components or packaging from the barbecue body.

 Whilst every care is taken in the manufacture of this product, care must be taken during assembly in

case sharp edges are present.

 Please read the Important Information section carefully before assembly and use of your

barbecue.

Unscrew the Locknuts (D12) from both ends of the Axle (C11). Slide the axle through the

corresponding holes in the left legs. Slide the Wheels (C12) over each end of the axle.

Secure the wheels into place with the locknuts. Place the wheel Hubcaps (C13) onto the

outsides of the wheels.

D7 D5

C11 C12

C13

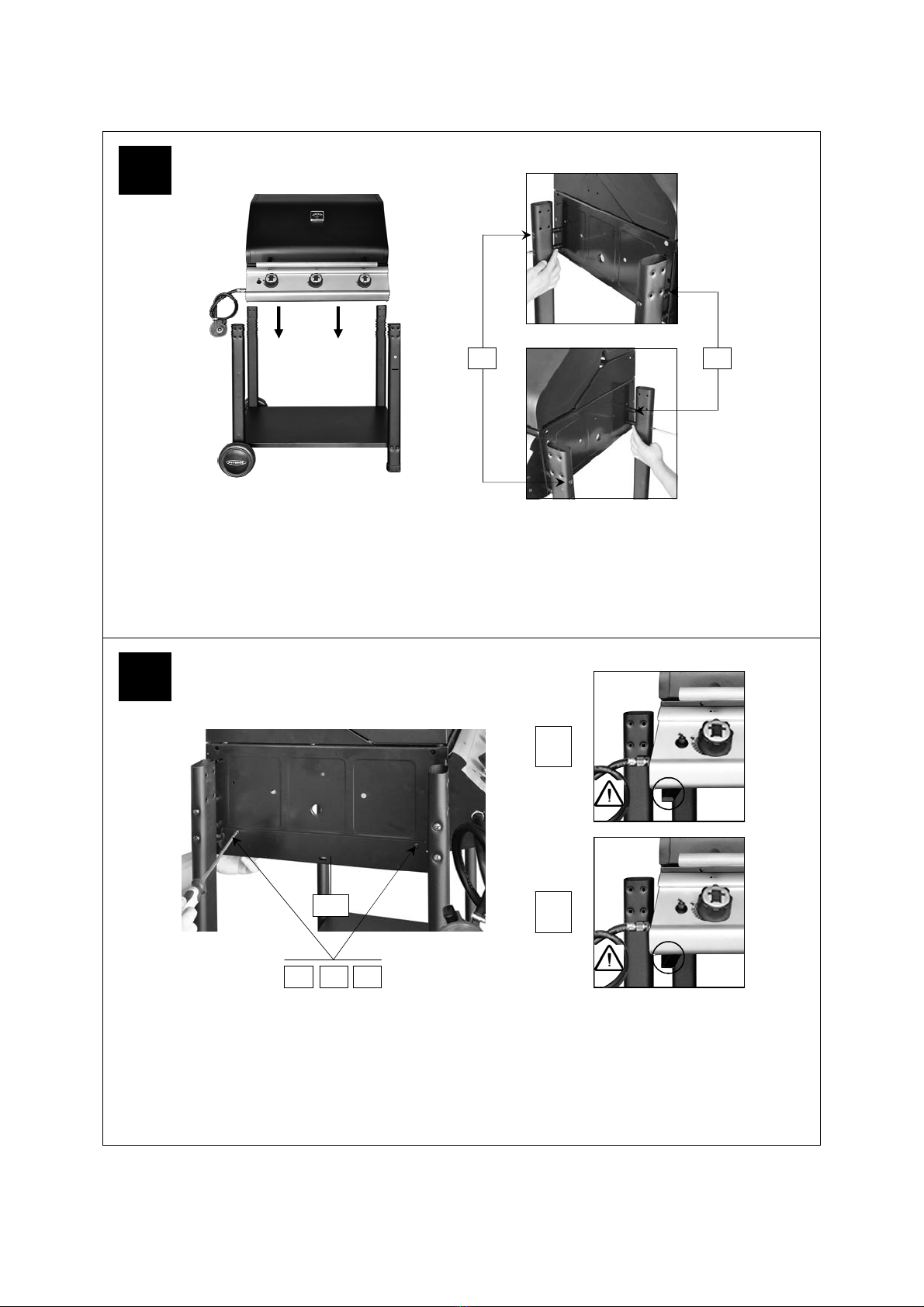

Insert M6x90 Bolts (D8x8pcs) through the trolley legs and M6 Spacer (D9x8pcs). While holding

the barbecue body into position (2 people required), screw the bolts into the barbecue body as

shown.

CAUTION! Care must be taken to ensure the hood or lid does not fall open unexpectedly or

becomes damaged when it is set on the ground.

LEFT

RIGHT

D8 D9

Attach the Drip Tray Left Bracket (B12) to the barbecue body using M5x15 Bolts (D1x2pcs),

Washers (D2x2pcs) and M5 Nuts (D3x2pcs) as shown. Repeat above process for Drip Tray

Right Bracket (B13).

NOTE: Ensure that the big tabs of the brakets which stop the drip tray are located at the

front of the barbecue.

√

D2D1 D3

B12

Front

view

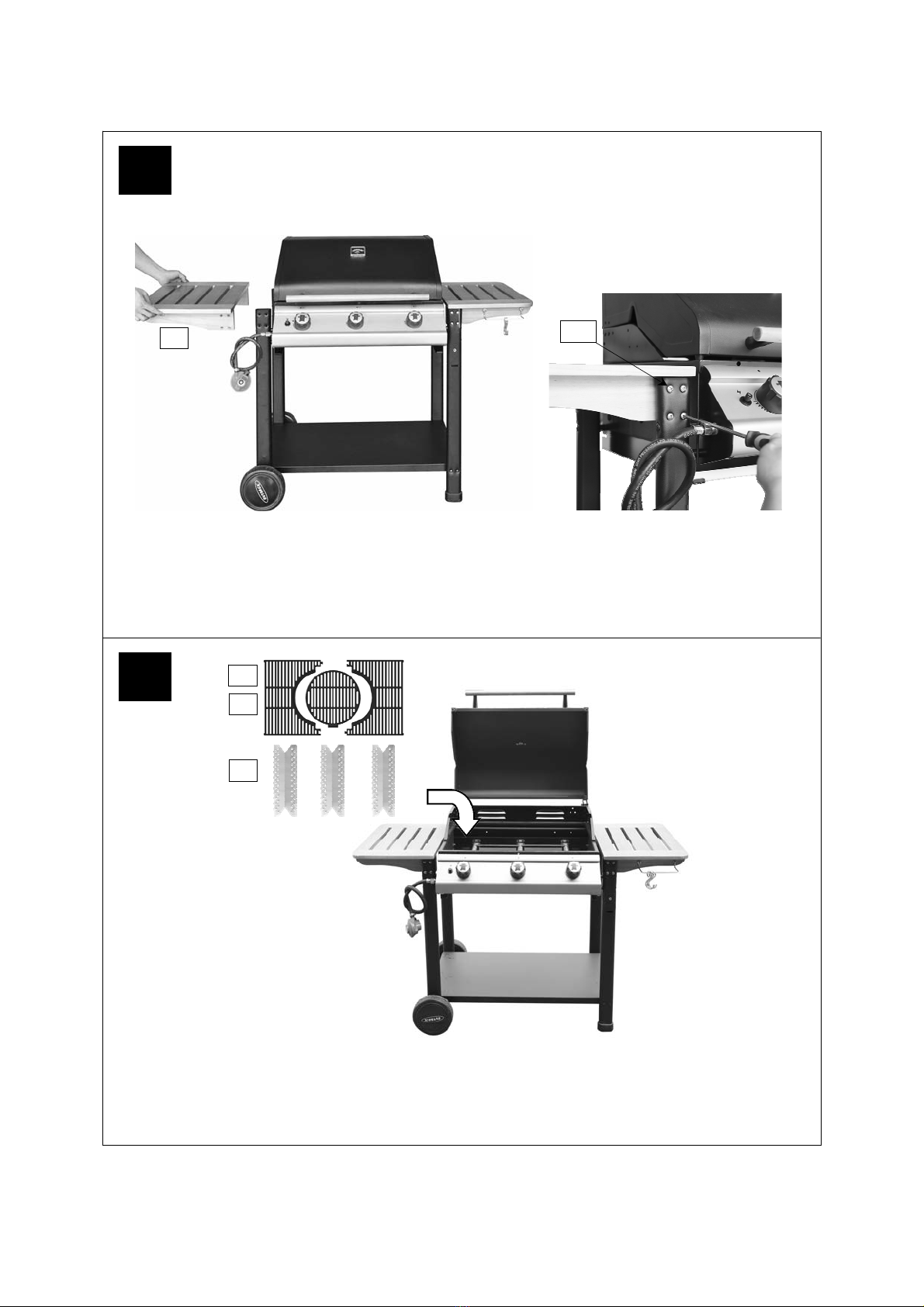

Attach the side shelf assembly to the right front/rear legs using 1/4 20UCNx35 Bolts (D10x8pcs)

as shown.

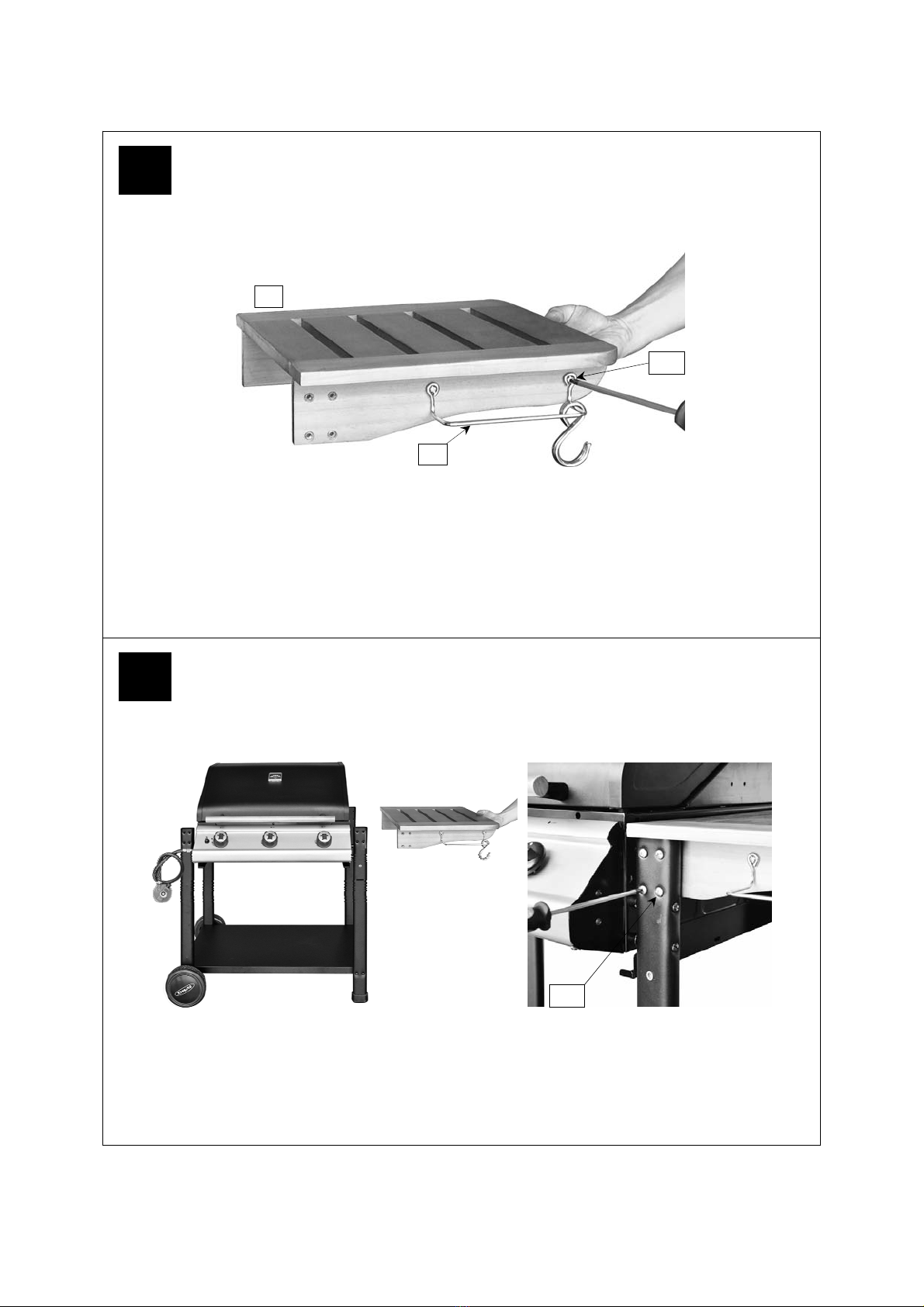

Attach the Tool Hook (C2) to the Side Shelf (C1) using 1/4-20UCNx12 Bolts (D11x2pcs).

D10

D11

Carefully lay Flame Tamers (B7) into the barbecue body ensuring it lies level within the boy. Lay

the Cooking Grills (B9) and Round Grill(B8) into place. Ensure the cooking grill lies directly over

the flame tamer on the barbecue body.

Attach the Side Shelf (C1) to the Left Front/Rear Legs using 1/4 20UCNx35 Bolts (D10x8pcs)

as shown.

C1 D10

Attach the Warming Rack (A5) to the Hood (A1) and Barbecue Body (B1) as shown. Make sure

that the swing legs fix to the body of the barbecue and the shorter fixed legs go through the holes

in the hood.

Insert the Drip Tray (B11) by sliding it underneath the barbecue body.

LEFT

RIGHT

Step①

Step②

Step③

Step④

B11

(Rear view of the barbecue trolley)

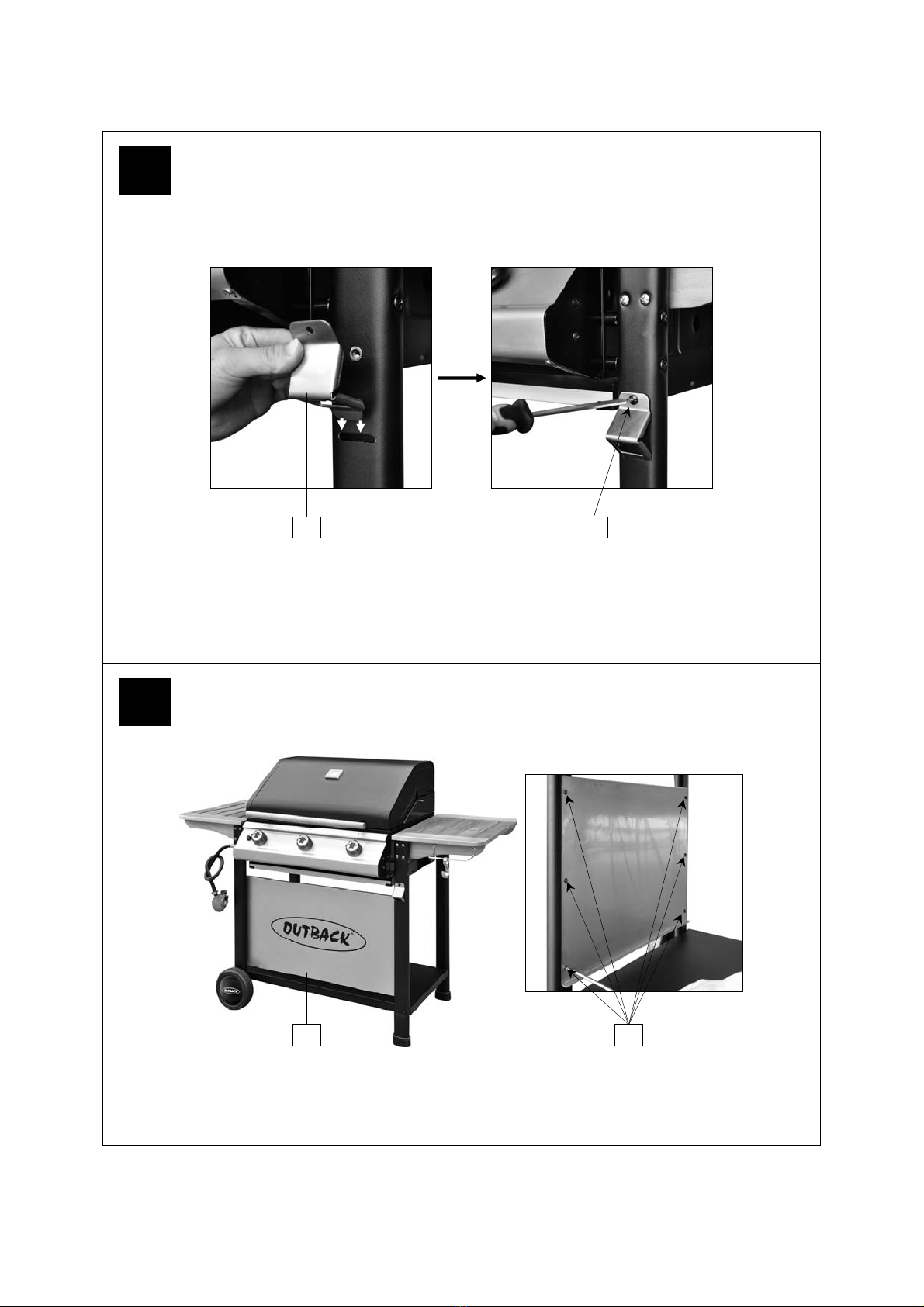

Insert the Bottle Opener (C7) to into the corresponding hole on right front leg as shown, then fix it

by using M6x15 Bolt (D4x1pc).

Attach the Front Screen (C8) to the front left/right legs using ST4.0x10 Screws (D6x6pcs) as shown.

C7 D4

C8 D6
