Assembly and Operating Instructions for Outback®
Spectrum 2 Burner, Spectrum 3 Burner Hooded Gas Barbecues
Photographs are not to scale.
Specifications subject to change
without prior notice.
FOR YOUR SAFETY
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. Open barbecue lid or hood.
4. If odour continues, discontinue use and
contact your local dealer.
FOR YOUR SAFETY
1. Do not store or use petrol or other flammable
vapours or liquids in the vicinity of this or
any other appliance.
2. A gas bottle not connected for use shall not
be stored in the vicinity of this or any other
appliance.
WARNING
!" For outdoor use only.
!" Read instructions before using the appliance. Failure to follow instructions
could result in death, serious bodily injury, and/or property loss.
!" Warning: accessible parts may be very hot. Keep young children away.
!" Do not move the appliance during use.
!" Turn off the gas supply at the gas bottle after use.
!" Any modification of the appliance, misuse, or failure to follow the instructions
may be dangerous and will invalidate your warranty. This does not affect your
statutory rights.
!" Retain these instructions for future reference.
!" Leak test annually, and whenever the gas bottle is removed or replaced.
0359
2
A. Parts List
Quantities vary according to model purchased. Specifications subject to change without prior notice. For
more details on hardware, please see ‘Hardware Reference Diagram’.
CODE PART QTY Outback® Spectrum
2 Burner Hooded
Outback® Spectrum
3 Burner Hooded
HOOD
A1 Hood Handle 1 !"#$ !"#$
A2 L/H Hood Handle Bracket 1 !"$ !"$
A3 R/H Hood Handle Bracket 1 !"$ !"$
A4 Hood (Pre-Assembled to Body) 1 !"#$ !"#$
A5 Hood Panel 1 !"$ !"$
A6 Heat Indicator and Nuts 1 !"$ !"$
BODY
B1 Body (see Part A1: Hood) 1 !"# !"#
B2 Burner %2"3"
B3 Control Panel 1 !"# !"#
B4 Knob %2"3"
B5 Flame Tamer 2 ! !
B6 Large Cooking Grill 1 ! !
B7 Small Cooking Grill 1 ! !
B8 Small Cooking Griddle 1 !
B9 Drip Tray 1 !# !#
B10 Drip Tray Left Bracket 1 !!
B11 Drip Tray Right Bracket 1 ! !
B12 Drip Tray Handle 1 !!
B13 Hose and Regulator 1 ! !
B14 Warming Rack 1 !# !#
TROLLEY
C1 Side Shelf 2 !$ !
C2 Front Left Leg 1 !$ !
C3 Rear Left Leg 1 !$ !
C4 Front Right Leg 1 !$ !
C5 Rear Right Leg 1 !$ !
C6 Screen 1 !#!#
C7 Leg Endcap 2 !"$ !"$
C8 Wheel 2 !$ !$
C9 Hubcap 2 !$ !$
C10 Axle 1 !$ !$
C11 Trolley Base 1 $!#!#
$
HARDWARE
D1 M5x10 Bolt 2 !"$ !"$
D2 M5x15 Bolt 4 !$ !$
D3 Ø5 Washer 4 !$ !$
D4 M5 Nut 4 !$ !$
D5 M6x25 Bolt 24 !$ !$
D6 M6x145 Bolt 8 !$ !$
D7 Ø6 Spacer 8 !$ !$
D8 Axle Washer 2 !$ !$
D9 Locknut 2 !$ !$
"Pre-Assembled Component
%Quantity varies according to model purchased
#$$Appearance, size, and construction may differ according to model purchased$
3
B. Parts Diagrams
Quantities vary according to model purchased. Specifications subject to change without prior notice. For
more details on hardware, please see hardware pack page.
A1
A4
A3
B3
B4
B2
B7B6 B8
B14
B13
C1
C6
C11 C7
C10
C8 C9
D8D9
A6
A5
A2
B1
C3 C2 C5 C4
B12
B10 B11
B9
B5
4
C. Hardware Reference Diagram
Specifications subject to change without prior notice.
D2,D3,D4
D5
D6,D7
5
D. Assembly
TOOLS NEEDED FOR ASSEMBLY:
Medium size flat blade or Phillips/crosspoint screwdriver, adjustable spanner or metric spanner set.
The assembly of this barbecue requires 2 people.
Whilst every care is taken in the manufacture of this product, care must be taken during assembly in case
sharp edges are present.
Attach the legs (C2,C3,C4,C5) to the trolley base (C11) using the M6x25 bolts (D5).
Take care to fix the legs with Velcro attached as shown in the illustration.
(Photo depicts trolley
from the reverse side)
C3
C2
D5
C11
C4
C9
D8 C10
D9
C8
Slide the axle (C10) through the corresponding holes in the short legs. Place a washer
(D8) on each end of the axle. Slide the wheels (C8) over each end of the axle. Secure
the wheels into place with the locknuts (D9). Snap the hubcaps (C9) into the wheels.
1
2
C5
6
Attach the side shelves (C1) to the front/rear left legs (C2,C3) and front/rear right legs
(C4,C5) using the M6x25 bolts (D5).
C1
D5
B7B6 B8
Remove all cast iron cooking components, flame tamer, drip tray, and any internal
packaging from the barbecue body.
3
4
B5
7
B1 B1
Lay the assembled trolley on its side. Lay the body (B1) on its back and slide into position
between the trolley legs. Warning: Care must be taken to ensure hood does not fall open
unexpectedly. When positioning the body of the barbecue, ensure the control panel is on the
same side as the legs with Velcro fastenings.
With the barbecue laid on the ground, insert a M6x145 bolt (D6) through the short leg, through a
spacer (D7), and secure the bolt into the sidewall of the body. Repeat the process for all the legs
until the body is completely fixed to the trolley.
NOTE: When positioning the body of the barbecue, ensure the control panel is on the same side
as the legs with Velcro fastenings.
5
6
D7
D6
8

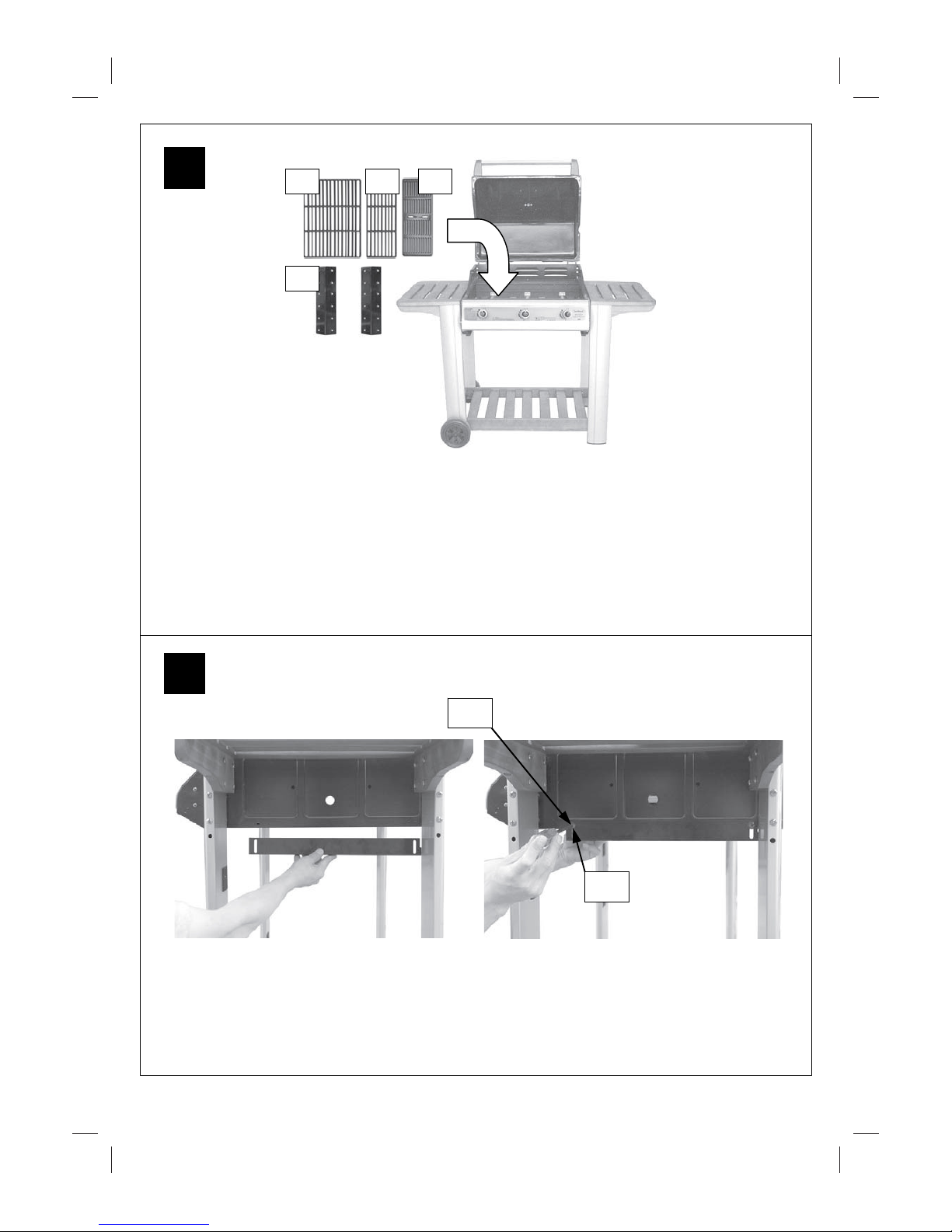

Carefully stand the barbecue upright. Remove the plastic wrap from the flame tamers (B5) and
lay them carefully into the body ensuring they lie level within the body. Lay the cooking grills
(B6, B7) and griddle (B8) into place.
2 burner model configuration: Left — Large Cooking Grill, Flame Tamer, Right — Small
Cooking Grill, Flame Tamer;
3 burner model configuration: Left — Large Cooking Grill, Flame Tamer, Middle — Small
Cooking Grill, Flame Tamer, Right — Small Griddle Plate.
NOTE: Ensure that the flame tamer lies directly underneath the grills.
7
8
Attach drip tray right bracket (B11) to barbecue body using M5x15 bolts (D2), washers
(D3) and M5 nuts (D4) as shown. Repeat above process for drip tray left bracket (B10).
NOTE: Ensure that the tabs of the brakets which stop the drip tray are located at
the back of the barbecue.
D2
D3
B7B6 B8
B5
9
(Rear view of the barbecue trolley.)
Attach the screen (C6) to the front left/right
legs as shown.
C6
Attach the warming rack (B14) to the
hood as shown.
9
10
Remove M5x10 bolts (D1) from drip tray handle (B12). Attach the drip tray handle
onto drip tray (B9) using the bolts. Slide the drip tray underneath barbecue body
from rear.
B9
B9
B12
D1
10
Leak Test Diagram
ASSEMBLY IS NOW COMPLETE.
PROCEED TO THE NEXT PAGE FOR INSTRUCTIONS ON OPERATION AND MAINTENANCE.
ALL JOINTS AND CONNECTIONS
MUST NOW BE LEAK TESTED
BEFORE USING THE BBQ. FOR
DETAILS OF LEAK TESTING,
PLEASE REFER TO INSTRUCTIONS
ON PAGE 12.
11
Connect the hose and regulator (B13) to the barbecue body. Ensure the mating
faces of the connection are clean and not damaged. Do not use any sealing
tape, paste or liquid on the joint. The nut must be tightened with a spanner. Do
not use force which may damage the assembly.
