Assembly and Operating Instructions for

Outback® Omega 100, Omega 200, and Omega 300 Gas Barbecues

Photographs are not to scale.

Specifications subject to change

without prior notice. 0359

EN (Europe)

Omega 100 Omega 300Omega 200

WARNING

For outdoor use only. Not for commercial use.

Read instructions before using the appliance. Failure to follow instructions could

result in death, serious bodily injury, and/or property loss.

Warning: accessible parts may be very hot. Keep young children and pets away.

Do not move the appliance during use.

Turn off the gas supply at the gas bottle after use.

Any modification of the appliance, misuse, or failure to follow the instructions

may be dangerous and will invalidate your warranty. This does not affect your

statutory rights.

Retain these instructions for future reference.

Leak test annually, and whenever the gas bottle is removed or replaced. Check

that the hose connections are tight and leak test each time you reconnect the gas

bottle.

For Flare-up control please refer to the ‘OPERATION’ section of this manual.

FOR YOUR SAFETY

If you smell gas:

1. Shut off gas to the appliance.

2. Extinguish any open flame.

3. Open barbecue lid or hood.

4. If odour continues, discontinue use and

contact your local dealer.

FOR YOUR SAFETY

1. Do not store or use petrol or other flammable

vapours or liquids in the vicinity of this or any

other appliance.

2. A gas bottle not connected for use must not be

stored in the vicinity of this or any other

appliance.

CODE PART QTY OUTBACK®

OMEGA 100

OUTBACK®

OMEGA 200

OUTBACK®

OMEGA 300

Hood

A1 Hood (Pre-Assembled to Body) 1   

A2 Hood Handle 1   

A3 Upper Hinge Bracket 2   

A4 Warming Rack  1

Body

B1 Barbecue Body 1   

B2 Burner 1   

B3 Control Panel 1   

B4 Knob 2   

B5 Hose (if supplied) 

B6 Main Electrode 1   

B7 Gas Collector Box 1   

B8 Ignition Button 1   

B9 Lower Hinge Bracket 2   

B10 Cooking Grill 1 

B11 Lava Rock in Basket / Flame Tamer 1   

B12 Grease Cup Holder 1   

B13 Grease Cup 1   

B14 Arch Support 2   

B15 Body Handle 1

Trolley

C1 Side Burner Knob 1

C2 Side Burner Grid 1

C3 Side Burner Shelf 1

C4 Side Burner 1

C5 Side Burner Electrode 1

C6 Side Shelf 2 1

C7 Left Front Leg 1   

C8 Left Rear Leg 1   

C9 Right Front Leg 1   

C10 Right Rear Leg 1   

C11 Leg Endcap 2   

C12 Screen 1   

C13 Long Support Rod 2

C14 Short Support Rod 2

C15 Bottom Shelf  1 1

C16 Short Axle 2   

C17 Wheel 2   

C18 Hubcap 2   

Hardware

D1 ST4.0x10 Screw 2   

D2 M5x10 Bolt 2   

D3 M6x15 Bolt 4

D4 M6x25 Bolt 4 

D5 M6x30 Bolt 4   

D6 M6x40 Bolt 8 8

D7 M6x50 Bolt 4 

D8 Axle Clip 2   

D9 M6 Nut  4 20 20

D10 Shelf Spacer 8 8

D11 Shelf Washer 8 8

1. Parts List

Quantity varies according to model purchased. Specifications subject to change without prior notice. For

more details on hardware, please see the corresponding ‘Hardware Reference Diagram’.

Pre-Assembled Component

Quantity varies according to model purchased

Appearance, size, and construction may differ according to model purchased

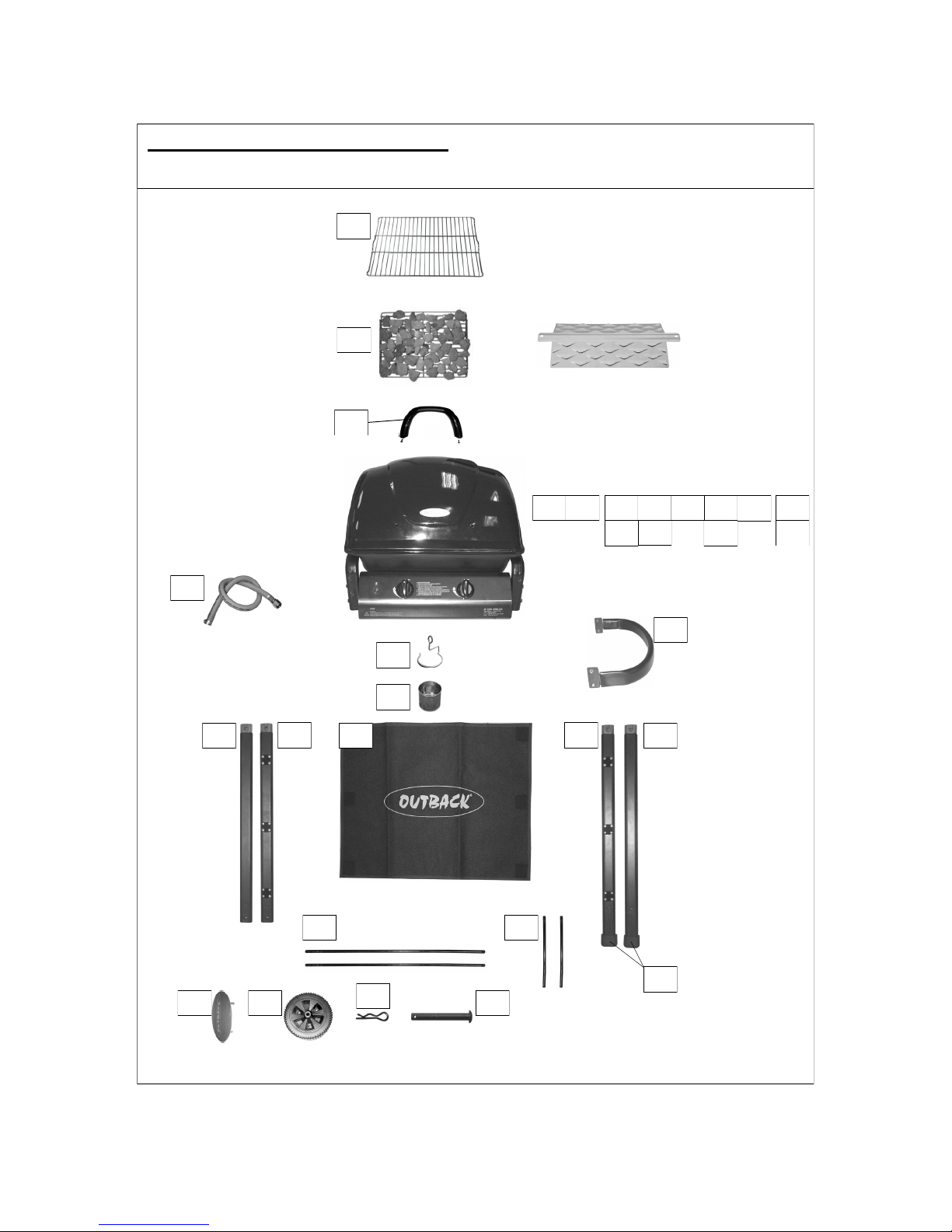

2.1. Parts Diagram: Omega 100

Quantity varies according to model purchased. Specifications subject to change without prior notice. For

more details on hardware, please see the corresponding ‘Hardware Reference Diagram’.

Pre-assembled body unit includes

the following individual parts:

B10

B11

B12

B13

B15

C12

C13 C14

C18 C17

C8 C10

C11

C16

A1 A3 B1 B2

B3 B4

D2B8

B14

C7 C9

2.2. Hardware Reference Diagram: Omega 100

Specifications subject to change without prior notice.

C16

D4, D9 D5

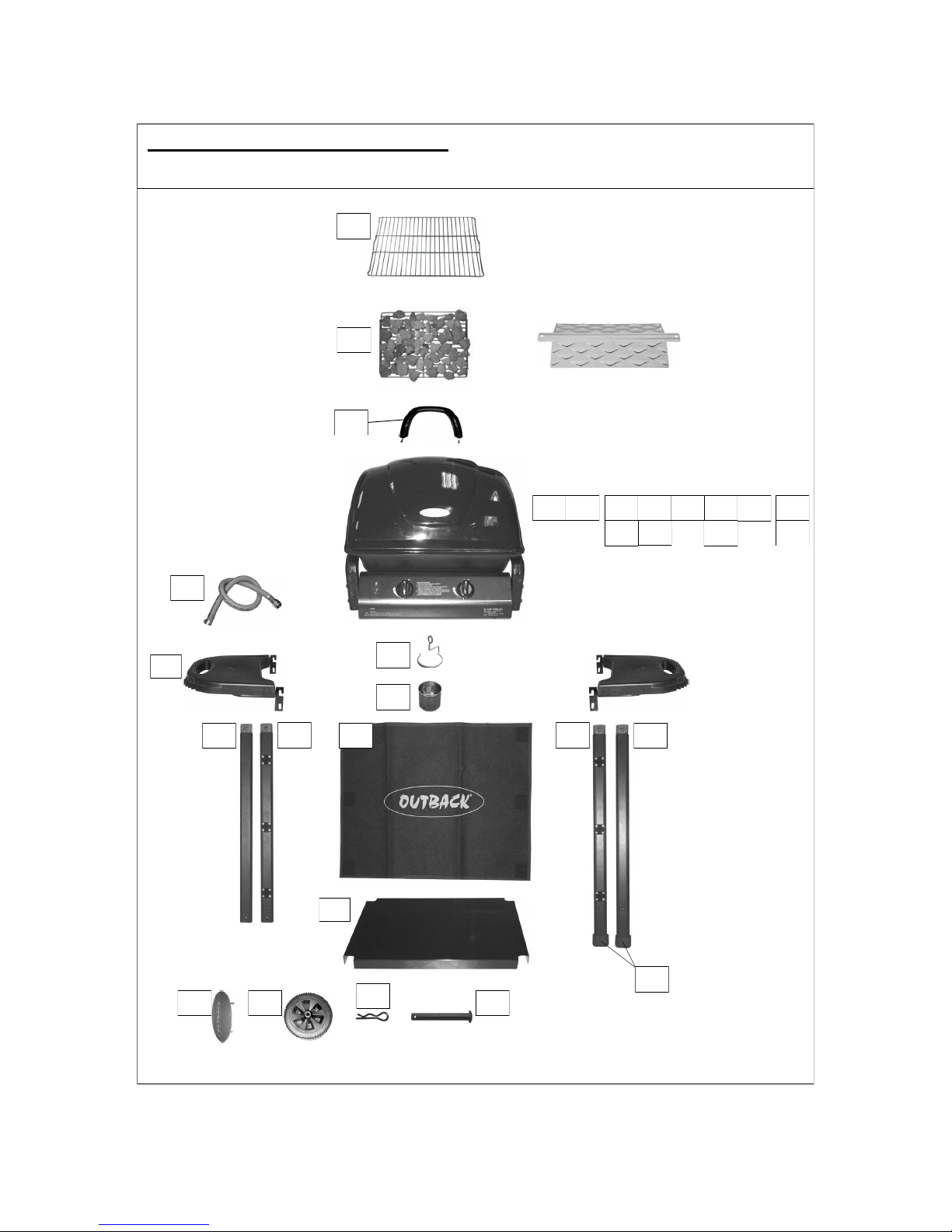

3.1. Parts Diagram: Omega 200

Quantity varies according to model purchased. Specifications subject to change without prior notice. For

more details on hardware, please see the corresponding ‘Hardware Reference Diagram’.

C15

Pre-assembled body unit includes

the following individual parts:

A1 A3 B1 B2

B3 B4

D2B8

B14

B12

B13

C12

C18 C17

C11

C16

B10

B11

C8 C10

C7 C9

3.2. Hardware Reference Diagram: Omega 200

Specifications subject to change without prior notice.

C16

D4, D9 D5, D9

D6, D9, D10, D11

D7, D9

4.1. Parts Diagram: Omega 300

Quantity varies according to model purchased. Specifications subject to change without prior notice. For

more details on hardware, please see the corresponding ‘Hardware Reference Diagram’.

C15

B10

B11

B12

B13

C12

C11

C18 C17 C16

Pre-assembled body unit includes

the following individual parts:

A1 A3

B1 B2 B3

B6 B7

B9 B14

C8 C10

C7 C9

4.2. Hardware Reference Diagram: Omega 300

Specifications subject to change without prior notice.

C16

D4, D9 D5, D9

D6, D9, D10, D11

D7, D9

5. Assembly

IMPORTANT!

TOOLS NEEDED FOR ASSEMBLY: Medium size flat blade or Phillips/Crosspoint screwdriver,

adjustable spanner or metric spanner set.

The assembly of this barbecue requires 2 people.

Whilst every care is taken in the manufacture of this product, care must be taken during assembly in

case sharp edges are present.

Please read the Important Information section carefully before assembly and use of your

barbecue.

CAUTION! Care must be taken to ensure the hood or lid does not fall open unexpect-

edly or becomes damaged when it is set on the ground.

1  Omega 100  Omega 200  Omega 300

 Omega 100  Omega 200  Omega 300

C10

Omega 100 and Omega 200 Omega 300

NOTE: The warming rack is not supplied for Omega 100 and Omega 200

C10

Ensure that the legs with the Velcro attached to them are at the front of the

barbecue, facing inwards.

 Omega 100  Omega 200  Omega 300

Omega 100 and Omega 200 Omega 300

C9 C9

Omega 100 and Omega 200 Omega 300
