Outback CD100 Manual de usuario
WARNING
• For outdoor use only. Not for commercial use.
• Read instructions before using the appliance. Failure to follow instructions could
result in death, serious bodily injury, and/or property loss.
• Warning: accessible parts may be very hot. Keep young children and pets away.
• CAUTION: Do not use spirit or petrol for lighting or re-lighting! Use only
firelighters complying to EN1860-3!
• Do not move the appliance during use.
• Any modification of the appliance, misuse, or failure to follow the instructions
may be dangerous and will invalidate your warranty. This does not affect your
statutory rights.
• Retain these instructions for future reference.
• For Flare-up control please refer to the ‘OPERATION’ section of this manual.
Photographs are not to scale.
Specifications subject to change
without prior notice.
Assembly and Operating Instructions for
Outback® Half Drum Charcoal BBQ
CD100
2
Parts List
Quantity varies according to model purchased. Specifications subject to change without prior notice. For
more details on hardware, please see the corresponding ‘Hardware Reference Diagram’.
Pre-Assembled Component
Quantity varies according to model purchased
Appearance, size, and construction may differ according to model purchased
CODE PART QTY Outback® Half Drum
Charcoal BBQ
BODY
B1 Barbecue Body 1
B2 Upper Bracket 1
B3 Trolley Handle 1
B4 Tool Hook 3
B5 Side Shelf 1
B6 Side Shelf Bracket 2
B7 Left Wind Shield 1
B8 Right Wind Shield 1
B9 Rear Wind Shield 1
B10 Charcoal Grill 2
B11 Cooking Grill Lower Support 1
B12 Cooking Grill 2
B13 Cooking Grill Upper Support 1
B14 Grill Lifting Handle 2
TROLLEY
C1 Left Front Leg 1
C2 Left Rear Leg 1
C3 Right Front Leg 1
C4 Right Rear Leg 1
C5 Screen 1
C6 Trolley Base 1
C7 Axle Spacer 2
C8 Locknut 2
C9 Axle 1
C10 Wheel 2
C11 Wheel Hubcap 2
HARDWARE
D1 M6x15 Bolt 22
D2 M6x35 Bolt 14
D3 M6 Nut 24
D4 R Shape Clip 4
D5 Side Shelf Pin 4
D6 ST4.0x10 Screw 6
3
Parts Diagram
Quantity varies according to model purchased. Specifications subject to change without prior notice. For
more details on hardware, please see the corresponding ‘Hardware Reference Diagram’.
B1
B2
B6
B3
B5
B4
B7
B10
B12
B8
B9
B14
B11
B13
C2
C1
C3
C4
C6
C5
C7
C8
C10
C11
C9
4
Hardware Reference Diagram
Specifications subject to change without prior notice.
D1
D2
D4
D3
D6
D5
5
Assembly
IMPORTANT!
• TOOLS NEEDED FOR ASSEMBLY: Medium size flat blade or Phillips/Crosspoint screwdriver,
adjustable spanner or metric spanner set.
• Remove any internal components or packaging from the barbecue body.
• Whilst every care is taken in the manufacture of this product, care must be taken during assembly in
case sharp edges are present.
• Please read the Important Information section carefully before assembly and use of your
barbecue.
1
2
Attach the Left Rear Leg (C2) and Right Rear Leg (C4) onto the trolley base assembly using the
M6x35 Bolts (D2x4pcs) and M6 Nuts (D3x4pcs).
Attach the Left Front Leg (C1) and Right Front Leg (C3) onto the Trolley Base (C6) using the
M6x35 Bolts (D2x4pcs) and M6 Nuts (D3x4pcs).
D3
D2
D3
D2
NOTE: Holes
to fix screen
6
3
Unscrew the Locknuts (C8) from both ends of the Axle (C9).
Slide the axle through the corresponding holes in the left legs. Slide the Axle Spacer (C7) and the
Wheels (C10) over each end of the axle. Secure the wheels into place with the locknuts. Place
the Wheel Hubcaps (C11) onto the outside of the wheels.
Attach a Upper Bracket (B2) onto the Barbecue Body (B1) using the M6x35 Bolt (D2) and M6 Nut
(D3). Repeat above process for other upper bracket.
4
C10
C7
C11
C9C8
Inside
Outside
D2
D3
B1
B2
B2
7
5
6
Carefully place the barbecue body assembly onto the trolley assembly and fix using
M6x35 Bolts (D2x4pcs) and M6 Nuts (D3x4pcs) as shown.
Attach the Trolley Handle (B3) onto the Barbecue Body (B1) using the M6x15 Bolts (D1x2pcs).
D2
D3
D1
B3
B1
8
7
8
Attach a Side Shelf Bracket (B6) onto the Barbecue Body (B1) using the M6x15 Bolts
(D1x2pcs) and M6 Nuts (D3x2pcs). Slide the Side Shelf Pin (D5) through the upper fixing
hole in Side Shelf Bracket(B6), and secure with a R Shape Clip (D4) as shown. Repeat above
process for other side shelf bracket.
Attach the Side Shelf (B5) to the barbecue using the Side Shelf Pins (D5x2pcs) and R Shape
Clips (D4x2pcs) as shown.
Hook the shelf onto the upper pins to extend it to its normal horizontal position.
D1
B6
D4
D3
D5
D5
D4
B5
9
9
10

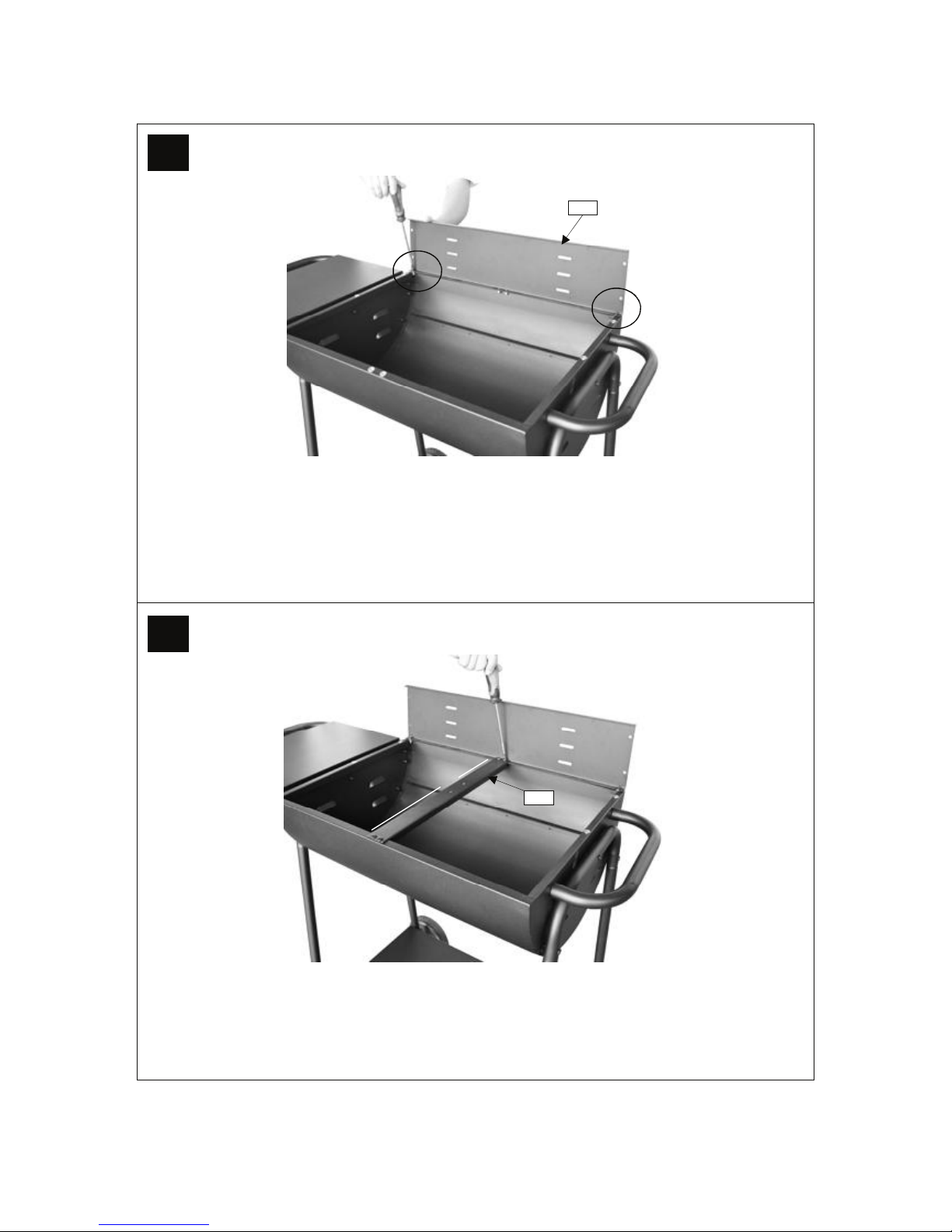

Attach the Rear Wind Shield (B9) onto the barbecue body using the
M6x15 Bolts (D1x2pcs) .
NOTE: Only fixed both ends.
Attach the Cooking Grill Lower Support (B11) onto the barbecue body
using the M6x15 Bolts (D1x4pcs) .
Note: Ensure that Long end of the cooking grill lower support at
the front of the barbecue.
LongShort
B9
B11
10
11
12
Attach the Left Wind Shield (B7) and the Right Wind Shield (B8) onto the barbecue body using
the M6x15 Bolts (D1x8pcs) and M6 Nuts (D3x4pcs) .
NOTE: The left wind shield and the right wind shield should be on the inside of the rear
wind shield.
Attach the Cooking Grill Upper Support (B13) onto the Cooking Grill Lower Support (B11)
using the M6x15 Bolts (D1x2pcs) and M6 Nuts (D3x2pcs).
B8
B7 D1
D3
D1
D3
D1 D1
D1 D3
B13
