Optika SZN Series Manual de usuario

microscopes

i T A L Y

OPTIKA MICROSCOPES - ITALY

www.optikamicroscopes.com - [email protected]

Ver. 1.1.0

OPERATION MANUAL

MANUEL D’INSTRUCTIONS

GUIDA UTENTE

MANUAL DE INSTRUCCIONES

SZN

STEREOZOOM HEAD

Page 2

INDEX

1. DESCRIPTION page 3

2. INTRODUCTION page 4

3. UNPACKING AND ASSEMBLY page 4

4. USING THE MICROSCOPE page 5

5. MAINTENANCE page 6

6. TECHNICAL SPECIFICATIONS page 7

7. OPTIONAL ACCESSORIES page 7

8. RECOVERY AND RECYCLING page 8

Page 3

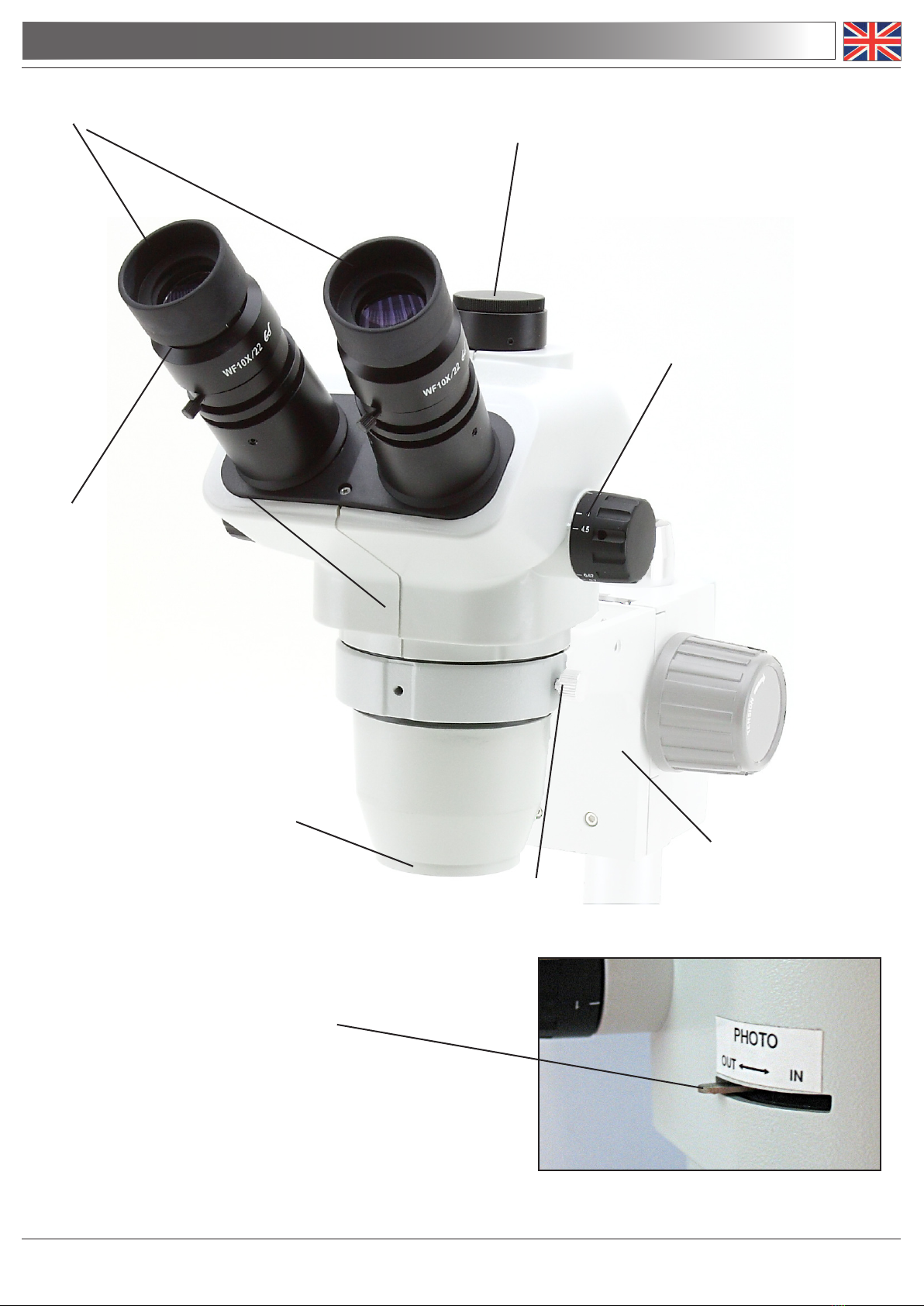

1.0 DESCRIPTION

EYEPIECES PHOTO/VIDEO

CAPTURING

TUBE

DIOPTRIC

COMPENSATION

ZOOM KNOB

OBJECTIVES

STAND

[more info on the speci-

fic stand’s user manual]

LOCK SCREW

LIGHT PATH

SELECTOR LEVER

[overleaf]

Page 4

2.0 INTRODUCTION

The OPTIKA stereozoom head SZN is an high performance Greenough microscope with continuous

zoom system 0.67x - 4.5x, and widefield high-point 22mm eyepieces.

These instruments are made for examining any three dimensional object in industrial, biological and

educational applications. They are equipped with two separate optical systems that give an excellent

field depth to the image, a stereoscopic effect.

There are, at the moment, 2 models in the series:

SZN-B: Binocular head.

SZN-T: Trinocular version.

Suitable for photo/video applications.

3.0 UNPACKING AND ASSEMBLY

The components for the SZN series are shipped in a Styrofoam box for protection. Open the box with

care to avoid that any components fall out and get damaged.

If the instrument has been damaged during the transport, please contact both the carrier and your

supplier immediately.

Put the stereo head onto the focusing carrier of the stand (sold separately) and lock it by the lock

screw on the side of the focusing carrier. During the operation of the microscope, this screw should

always be locked to maintain maximum stability.

Unpack the eyepieces and other optical parts carefully and place the eyepieces into the eyepiece

tubes. Make sure that the eyecups are placed on each eyepiece, for a more comfortable view.

When handling the optical parts, avoid touching any lens surface with naked hand or fingers. Any

fingerprint or grease stains will negatively affect the image quality.

Page 5

4.0 USING THE MICROSCOPE

4.1 Adjust interpupillary distance

Hold the right and left eyepiece tube with both hands

and adjust the interpupillary distance by moving the two

parts until one circle of light can be seen. If two circles

appear, the interpupillary distance is too big, and if two

overlapped circles appear, the interpupillary distance

is too small.

4.2 Focus

Put the sample to be observed on the plate and turn

the zoom to the highest magnification using the bilateral zoom knob. Try to focus the sample using

the focusing knobs of the stand.

If necessary adjust the height of the microscope head along the vertical stand. Remember to lock

the lock screw and support collar after aligning the height of the microscope.

4.3 Dioptric compensation

This compensation makes it possible for people with glasses to adjust the microscope to their eyes

and use the microscope without glasses. Turn the zoom down to the lowest magnification. Adjust the

diopter compensation ring of the right eyepiece tube until the image of the right eyepiece is clear and

sharp. Repeat the procedure for the left eyepiece. Then, check the focus of the image for the whole

zoom range. It should now be perfectly parfocal (focus is always maintained during the change of

magnification).

4.4 Magnification and working distance

The total magnification varies depending on the eyepieces and auxiliary objectives used. With the

bilateral zoom knob, the user can change the magnification in a factor of 6.72 with perfect parfocality

and the image is always centred.

Select the desired magnification by adjusting the bilateral zoom knob. Change the eyepieces and/or

add an appropriate magnifying objective lens if necessary. The total magnification used can be cal-

culated by the following equation:

Total magnification = Eyepiece magnification x Zoom magnification x Objective lens magnification

Normal working distance for the standard configuration (1x objective lens) is 100 mm.

DIOPTRIC

COMPENSATION

Page 6

4.5 Video capturing (optional)

Two kinds of observation heads, binocular or trinocular, are available for the SZN series. They can

all be connected to cameras via an adaptor, for digital and analogical photo and video capturing.

Before taking a picture or filming video, pull out the light path selector lever so the light will be de-

flected into the photo tube. At the same time, no light will enter into the right eyepiece tube for obser-

vation. Please refer to the adaptor and camera manuals for further details.

5.0 MAINTENANCE

4.0 USING THE MICROSCOPE

5.1 Microscopy environment

This microscope is recommended to be used in a clean, dry and shock free environment with

a temperature of 0-40°C and a maximum relative humidity of 85 % (non condensing). Use a

dehumidifier if needed.

5.2 To think about when and after using the microscope

• The microscope should always be kept vertically when moving it and be careful so that no

moving parts, such as the eyepieces, fall out.

• Never mishandle or impose unnecessary force on the microscope.

• Never attempt to service the microscope yourself.

• After use, turn off the light immediately, cover the microscope with the included dust-cover,

and keep it in a dry and clean place.

5.3 Cleaning the optics

• If the optical parts need to be cleaned try first to: use compressed air.

• If that is not sufficient: use a soft lint-free piece of cloth with water and a mild detergent.

• And as a final option: use the piece of cloth moistened with a 3:7 mixture of ethanol and

ether.

Note: ethanol and ether are highly flammable liquids. Do not use them near a heat source,

near sparks or near electric equipment. Use these chemicals in a well ventilated room.

• Remember to never wipe the surface of any optical items with your hands. Fingerprints can

damage the optics.

• Do not disassemble objectives or eyepieces in attempt to clean them.

Page 7

HEAD 45° INCLINED, 360° ROTATABLE

EYEPIECE WF10X/22MM HIGH-POINT WIDEFIELD

INTERPUPILLARY

DISTANCE

55 – 75MM

DIOPTRIC

ADJUSTMENT

+/- 5DP

ZOOM 0,67X .. 4,5X [ZOOM RATIO: 6,72]

WORKING DISTANCE 100mm [WITHOUT ADDITIONAL LENS]

6.0 TECHNICAL SPECIFICATIONS

7.0 OPTIONAL ACCESSORIES

7.1 Eyepieces and auxiliary objectives

With the standard equipment is included a pair of 10x eyepieces. There are also 15x and 20x

eyepieces available as optional accessories.

To change the eyepieces, remove the original eyepieces and replace with the new pair.

The standard objective is 1x, and other magnifications are available. An additional objective

can be needed to obtain a specific magnification or a different working distance.

The additional objective is mounted simply by screwing it onto the stereo-head. The height

of the microscope has to be re-adjusted as the working distance is changed when additional

objective is used.

7.2 List of available accessories

ST-141 Eyepieces (pair) WF10x/22mm

ST-142 Eyepieces (pair) WF15x/16mm

ST-143 Eyepieces (pair) WF20x/12mm

ST-144 Eyepieces (pair) WF25x/9mm

ST-145 Micrometric eyepiece WF10x/22mm

SAO0.3 Additional lens 0,3x

SAO0.5 Additional lens 0,5x

SAO0.75 Additional lens 0,75x

SAO1.5 Additional lens 1,5x

SAO2 Additional lens 2x

ST-146 SRL Reflex camera adapter

ST-147 CCD camera adapter (for 1/3” sensors)

ST-147.1 CCD camera adapter (for 1/2” sensors

Please contact Optika Microscopes for more information and a complete list of accessories.

Page 8

8.0 RECOVERY AND RECYCLING

Art.13 Dlsg 25 july 2005 N°151. “According to directives 2002/95/EC, 2002/96/EC and 2003/108/EC

relating to the reduction in the use of hazardous substances in electrical and electronic equipment

and waste disposal.”

The basket symbol on equipment or on its box indicates that the product at the end of its useful life

should be collected separately from other waste.

The separate collection of this equipment at the end of its lifetime is organized and managed by

the producer. The user will have to contact the manufacturer and follow the rules that he adopted

for end-of-life equipment collection. The collection of the equipment for recycling, treatment and en-

vironmentally compatible disposal, helps to prevent possible adverse effects on the environment

and health and promotes reuse and/or recycling of materials of the equipment. Improper disposal

of the product involves the application of administrative penalties as provided by the laws in force.

Pagina 10

INDICE

- DESCRIZIONE pag. 11

- INTRODUZIONE pag. 12

- DISIMBALLAGGIO E MONTAGGIO DEL MICROSCOPIO pag. 12

- ALLINEAMENTO E UTILIZZO DEL MICROSCOPIO pag. 13

- MANUTENZIONE DEL MICROSCOPIO pag. 14

- SPECIFICHE TECNICHE pag. 15

- ACCESSORI OPZIONALI pag. 15

- MISURE ECOLOGICHE pag. 16
